BU132-TKPQS3 (1995)

Toyota Dyna 200/Toyoace G25

Production May 1995 - May 1999
Engine 15BF
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(9505- )BU102..T4..20T..CBU..5F ; (9505- )BU102..DM6,T2,T3..DSL..5F ; (9505-

Click highlighted areas on diagram

diagram 38901D 38902B 38902C 38902C 38908A 9161160616 9161160820 9165140616 9413060800 9453100800 9461310800
Part # Description Qty Price
Common parts
91611-60616
91611-60820
91651-40616
94130-60800
94531-00800
94613-10800

ILLUST NO. 2 OF 2(9505- )BU102..T4..20T..CBU..5F ; (9505- )BU102..DM6,T2,T3..DSL..5F ; (9505-

Click highlighted areas on diagram

diagram 33740A 33740A 38904C 38907E 38920A 38930A 38961 38962 38982 38982 9017906158 9017906158 9024908001 9046108047 9046108047 9046108047 9046108202 9161160616 9161160616 9161160812 9161160814 9161160816 9161160816 9161160820 9161160820 9161160820 9413060800 9616000600
Part # Description Qty Price
38907E - STAY SUB-ASSY, POWER TEKE-OFF CONTROL
38907-93114

BU102,132,142..4FC

 1
38907-93127

BU102..IV3..4FC;BU102..T3..CBU..4FC;BU107,13#,142,147..(T2,T3,T4,TW4)..4FC

 1
38920A - LEVER ASSY, POWER TAKE-OFF CONTROL, NO.1
38920-93121

BU102..IV3..4FC;BU102..T3..CBU..4FC;BU107,13#,142,147..(T2,T3,T4,TW4)..4FC

 1
38920-93106

BU102,132,142..4FC

 1
Common parts
90179-06158
90249-08001
90461-08047
90461-08202
91611-60616
91611-60812
91611-60814
91611-60816
91611-60820
94130-60800
96160-00600

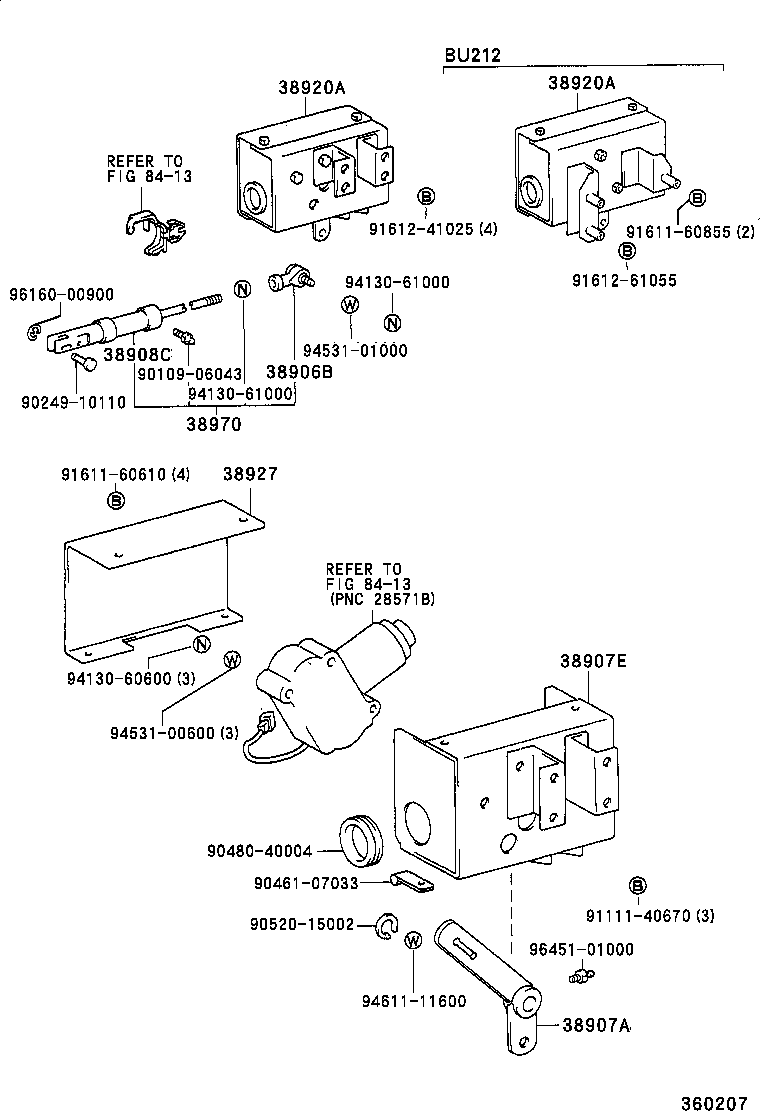

(9505-9610)BU102,132,142,212..4FC ; (9610- )BU212..20T

Click highlighted areas on diagram

diagram 38906B 38907A 38907E 38908C 38920A 38920A 38927 38970 8413 8413 9010906043 9024910110 9046107033 9048040004 9052015002 9111140670 9161160610 9161160855 9161241025 9161261055 9413060600 9413061000 9413061000 9453100600 9453101000 9461111600 9616000900 9645101000
Part # Description Qty Price
38906B - JOINT ASSY, BALL (FOR POWER TAKE-0FF CONTROL ROD)
38906-93101

BU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC

 1
38907A - LEVER SUB-ASSY, POWER TAKE-OFF CONTROL
38907-93100

BU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC

 1
38907E - STAY SUB-ASSY, POWER TEKE-OFF CONTROL
38907-93114

BU102,132,142..4FC

 1
38907-93127

BU102..IV3..4FC;BU102..T3..CBU..4FC;BU107,13#,142,147..(T2,T3,T4,TW4)..4FC

 1
38908C - ROD SUB-ASSY, POWER TAKE-OFF CONTROL
38908-93106

BU102,132,142..4FC

 1
38908-93102

BU102..IV3..4FC;BU102..T3..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC

 1
38920A - LEVER ASSY, POWER TAKE-OFF CONTROL, NO.1
38920-93121

BU102..IV3..4FC;BU102..T3..CBU..4FC;BU107,13#,142,147..(T2,T3,T4,TW4)..4FC

 1
38920-93106

BU102,132,142..4FC

 1
38920A - LEVER ASSY, POWER TAKE-OFF CONTROL, NO.1
38920-93121

BU102..IV3..4FC;BU102..T3..CBU..4FC;BU107,13#,142,147..(T2,T3,T4,TW4)..4FC

 1
38920-93106

BU102,132,142..4FC

 1
38927 - COVER, VALVE CONTROL LEVER
38927-93100

BU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC

 1
38970 - ROD ASSY, POWER TAKE-OFF CONTROL
38970-93102

BU102..IV3..4FC;BU102..T3..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC

 1
38970-93103

BU102,132,142..4FC

 1
Common parts
90109-06043
90249-10110
90461-07033
90480-40004
90520-15002
91111-40670
91611-60610
91611-60855
91612-41025
91612-61055
94130-60600
94130-61000
94531-00600
94531-01000
94611-11600
96160-00900
96451-01000
Linked diagrams
8413

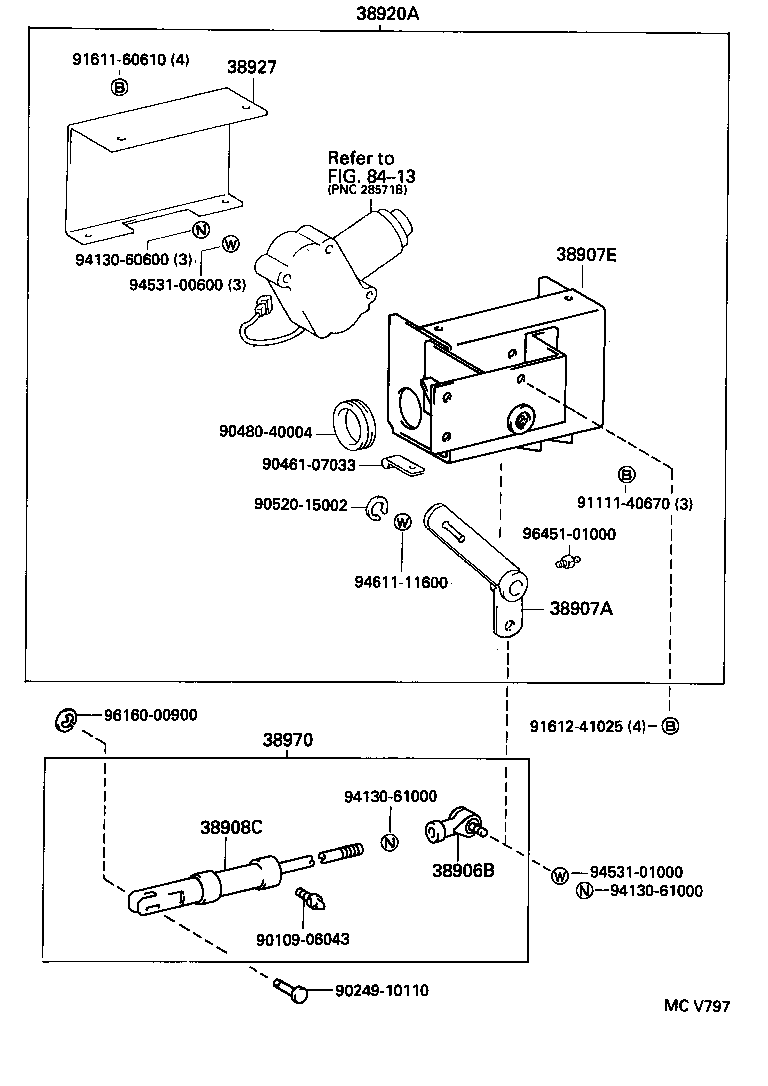

(9610- )BU102,107,13#,142,147..4FC

Click highlighted areas on diagram

diagram 38906B 38907A 38907E 38908C 38920A 38927 38970 8413 9010906043 9024910110 9046107033 9048040004 9052015002 9111140670 9161160610 9161241025 9413060600 9413061000 9413061000 9453100600 9453101000 9461111600 9616000900 9645101000
Part # Description Qty Price
38906B - JOINT ASSY, BALL (FOR POWER TAKE-0FF CONTROL ROD)
38906-93101

BU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC

 1
38907A - LEVER SUB-ASSY, POWER TAKE-OFF CONTROL
38907-93100

BU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC

 1
38907E - STAY SUB-ASSY, POWER TEKE-OFF CONTROL
38907-93114

BU102,132,142..4FC

 1
38907-93127

BU102..IV3..4FC;BU102..T3..CBU..4FC;BU107,13#,142,147..(T2,T3,T4,TW4)..4FC

 1
38908C - ROD SUB-ASSY, POWER TAKE-OFF CONTROL
38908-93106

BU102,132,142..4FC

 1
38908-93102

BU102..IV3..4FC;BU102..T3..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC

 1
38920A - LEVER ASSY, POWER TAKE-OFF CONTROL, NO.1
38920-93121

BU102..IV3..4FC;BU102..T3..CBU..4FC;BU107,13#,142,147..(T2,T3,T4,TW4)..4FC

 1
38920-93106

BU102,132,142..4FC

 1
38927 - COVER, VALVE CONTROL LEVER
38927-93100

BU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC

 1
38970 - ROD ASSY, POWER TAKE-OFF CONTROL
38970-93102

BU102..IV3..4FC;BU102..T3..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC

 1
38970-93103

BU102,132,142..4FC

 1
Common parts
90109-06043
90249-10110
90461-07033
90480-40004
90520-15002
91111-40670
91611-60610
91612-41025
94130-60600
94130-61000
94531-00600
94531-01000
94611-11600
96160-00900
96451-01000
Linked diagrams
8413
