Toyota Dyna 200/toyoace g25 BU132 POWER TAKE-OFF CASE & GEAR

BU132-TKPQS3 (1995)

Toyota Dyna 200/Toyoace G25

Production May 1995 - May 1999

Engine 15BF

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(9505- )BU102..T4..20T..CBU..5F ; (9505- )BU102..DM6,T2,T3..DSL..5F ; (9505-

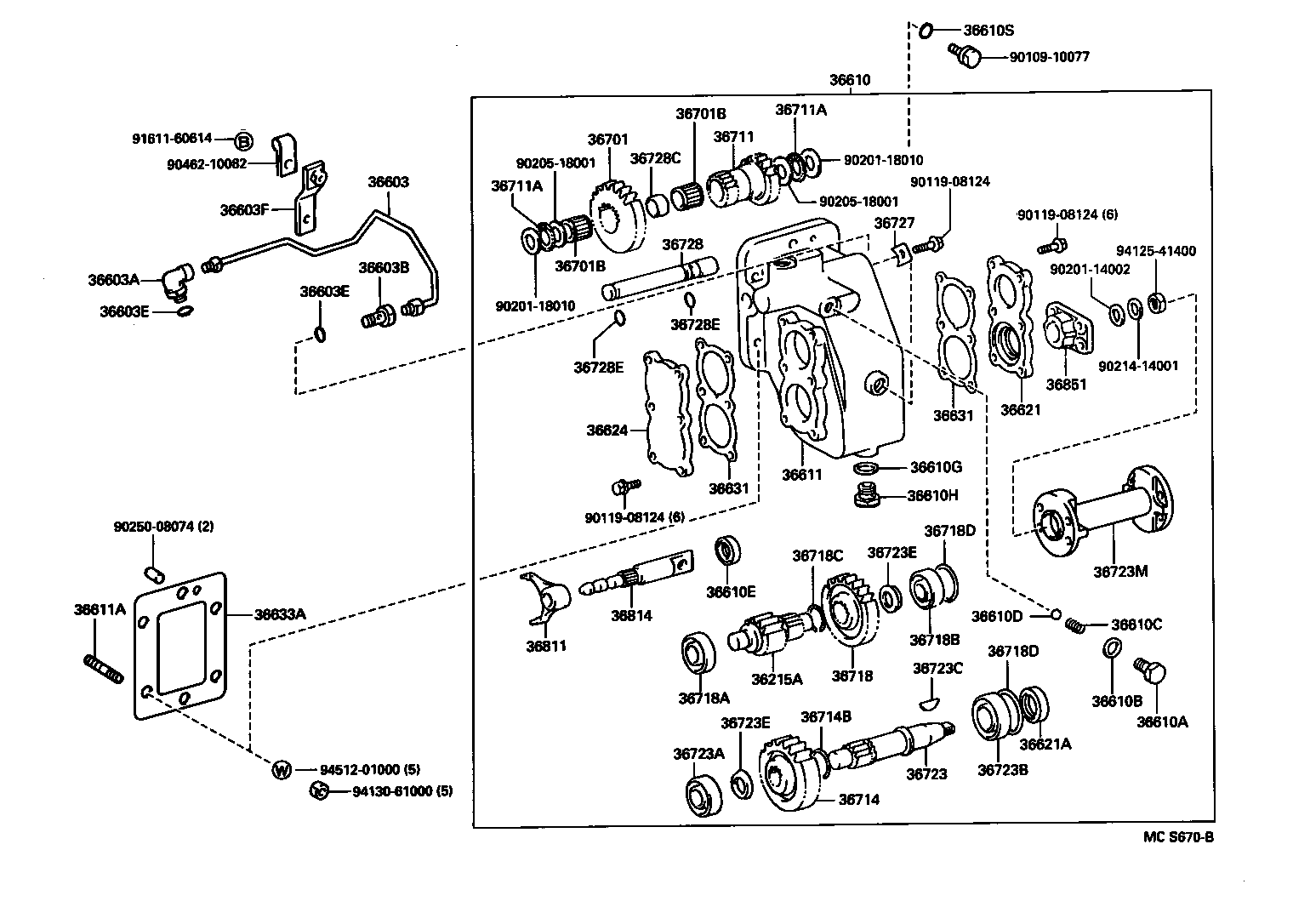

Click highlighted areas on diagram

ﾌﾞﾝﾘｼｷﾏﾆｱﾙﾚﾊﾞ- P.T.O

Part #	Description	Period	Qty
36610 - POWER TAKE-OFF ASSY
36610-93123	BU102,132,142,212..4FC	05/1995 - 10/1996	1
36610-93123	BU102,132,142,212..4FC	05/1995 - 10/1996	1
36610A - BOLT, LOCK BALL (FOR POWER TAKE-OFF)
90341-12001	BU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC	05/1995 - 12/2999	1
90341-12001	BU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC	05/1995 - 12/2999	1
36610B - GASKET, SEAT (FOR POWER TAKE-OFF)
90430-12004	BU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC 厚さ=2.0	05/1995 - 12/2999	1
90430-12004	BU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC 厚さ=2.0	05/1995 - 12/2999	1
90430-12001	BU132,142,212..4FC;BU102..T4..CBU..4FC;BU102..(T2,T3)..20T..CBU;BU102..(DM6,T2,T3,T4,T5)..(20T,30T)..IV3 厚さ=0.5	05/1995 - 10/1995	1
90430-12001	BU132,142,212..4FC;BU102..T4..CBU..4FC;BU102..(T2,T3)..20T..CBU;BU102..(DM6,T2,T3,T4,T5)..(20T,30T)..IV3 厚さ=0.5	05/1995 - 10/1995	1
90430-12001	BU132..TL4..5F;BU107..06S..4FC;BU107..(T2,T4)..CBU;BU102,RZU100..T3..LPGB;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU102..TR..03S..20T..CBU..5F;BU13#,142,147,212..(T2,T3,T4)..4FC;BU102,107..(DM6,T2,T3,T4,T5)..(20T,30T)..DSL..IV3 厚さ=0.5	10/1995 - 12/2999	1
90430-12001	BU132..TL4..5F;BU107..06S..4FC;BU107..(T2,T4)..CBU;BU102,RZU100..T3..LPGB;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU102..TR..03S..20T..CBU..5F;BU13#,142,147,212..(T2,T3,T4)..4FC;BU102,107..(DM6,T2,T3,T4,T5)..(20T,30T)..DSL..IV3 厚さ=0.5	10/1995 - 12/2999	1
90430-12006	BU132,142,212..4FC;BU102..T4..CBU..4FC;BU102..(T2,T3)..20T..CBU;BU102..(DM6,T2,T3,T4,T5)..(20T,30T)..IV3 厚さ=1.0	05/1995 - 10/1995	1
90430-12006	BU132,142,212..4FC;BU102..T4..CBU..4FC;BU102..(T2,T3)..20T..CBU;BU102..(DM6,T2,T3,T4,T5)..(20T,30T)..IV3 厚さ=1.0	05/1995 - 10/1995	1
90430-12006	BU132..TL4..5F;BU107..06S..4FC;BU107..(T2,T4)..CBU;BU102,RZU100..T3..LPGB;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU102..TR..03S..20T..CBU..5F;BU13#,142,147,212..(T2,T3,T4)..4FC;BU102,107..(DM6,T2,T3,T4,T5)..(20T,30T)..DSL..IV3 厚さ=1.0	10/1995 - 12/2999	1
90430-12006	BU132..TL4..5F;BU107..06S..4FC;BU107..(T2,T4)..CBU;BU102,RZU100..T3..LPGB;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU102..TR..03S..20T..CBU..5F;BU13#,142,147,212..(T2,T3,T4)..4FC;BU102,107..(DM6,T2,T3,T4,T5)..(20T,30T)..DSL..IV3 厚さ=1.0	10/1995 - 12/2999	1
36610C - SPRING, GEAR SHIFT FORK LOCK BALL (FOR POWER TAKE-OFF)
90501-18001	BU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC	05/1995 - 12/2999	1
90501-18001	BU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC	05/1995 - 12/2999	1
36610D - BALL, GEAR SHIFT FORK LOCK (FOR POWER TAKE-OFF)
90360-06004	BU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC	05/1995 - 12/2999	1
90360-06004	BU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC	05/1995 - 12/2999	1
36610E - SEAL, OIL (FOR POWER TAKE-OFF)
90311-20005	BU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC	05/1995 - 12/2999	1
90311-20005	BU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC	05/1995 - 12/2999	1
36611 - CASE, POWER TAKE-OFF
36611-93105	BU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC	05/1995 - 12/2999	1
36611-93105	BU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC	05/1995 - 12/2999	1
36611A - BOLT, STUD (FOR POWER TAKE-OFF CASE)
90116-10099	BU112..DM7..4FC;BU102,112..TR..IV3..4FC;BU102..T4..20T..CBU..4FC;BU102..(T2,T3)..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC	05/1995 - 06/1999	5
90116-10099	BU112..DM7..4FC;BU102,112..TR..IV3..4FC;BU102..T4..20T..CBU..4FC;BU102..(T2,T3)..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC	05/1995 - 06/1999	5
36621 - RETAINER, POWER TAKE-OFF BEARING
36621-93101	BU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC	05/1995 - 12/2999	1
36621-93101	BU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC	05/1995 - 12/2999	1
36621A - SEAL, OIL (FOR POWER TAKE-OFF BEARING RETAINER)
90311-25012	BU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC	05/1995 - 06/1999	1
90311-25012	BU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC	05/1995 - 06/1999	1
36631 - GASKET, POWER TAKE-OFF BEARING RETAINER
36631-93102	BU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC	05/1995 - 06/1999	2
36631-93102	BU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC	05/1995 - 06/1999	2
36714 - GEAR, POWER TAKE-OFF OUTPUT
36714-93103	BU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC	05/1995 - 06/1999	1
36714-93103	BU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC	05/1995 - 06/1999	1
36718 - GEAR, POWER TAKE-OFF IDLER
36718-93106	BU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC	05/1995 - 06/1999	1
36718-93106	BU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC	05/1995 - 06/1999	1
36718A - BEARING(FOR POWER TAKE-OFF IDLER GEAR FRONT)
90366-20002	BU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC	05/1995 - 06/1999	1
90366-20002	BU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC	05/1995 - 06/1999	1
36718B - BEARING(FOR POWER TAKE-OFF IDLER GEAR REAR)
90366-20002	BU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC	05/1995 - 06/1999	1
90366-20002	BU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC	05/1995 - 06/1999	1
36718C - RING, HOLE SNAP(FOR POWER TAKE-OFF IDLER GEAR)
90520-28029	BU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC	05/1995 - 06/1999	1
90520-28029	BU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC	05/1995 - 06/1999	1
36718C - RING, HOLE SNAP(FOR POWER TAKE-OFF IDLER GEAR)
90520-28029	BU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC	05/1995 - 06/1999	1
90520-28029	BU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC	05/1995 - 06/1999	1
36718D - SPACER(FOR POWER TAKE-OFF IDLER GEAR)
90564-40003	BU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC T=0.17-0.23	05/1995 - 12/2999	1
90564-40003	BU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC T=0.17-0.23	05/1995 - 12/2999	1
90564-40005	BU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC T=0.47-0.53	05/1995 - 12/2999	1
90564-40005	BU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC T=0.47-0.53	05/1995 - 12/2999	1
90564-40002	BU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC T=0.07-0.13	05/1995 - 12/2999	1
90564-40002	BU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC T=0.07-0.13	05/1995 - 12/2999	1
90564-40001	BU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC T=0.02-0.08	05/1995 - 12/2999	1
90564-40001	BU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC T=0.02-0.08	05/1995 - 12/2999	1
36723 - SHAFT, POWER TAKE-OFF OUTPUT, NO.1
36723-93103	BU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC	05/1995 - 06/1999	1
36723-93103	BU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC	05/1995 - 06/1999	1
36723A - BEARING (FOR OUTPUT SHAFT FRONT)
90366-20002	BU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC	05/1995 - 06/1999	1
90366-20002	BU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC	05/1995 - 06/1999	1
36723B - BEARING (FOR OUTPUT SHAFT REAR)
90363-25001	BU102,132,142,212..4FC 厚さ=12	05/1995 - 10/1996	1
90363-25001	BU102,132,142,212..4FC 厚さ=12	05/1995 - 10/1996	1
36723C - KEY, WOODRUFF (FOR POWER TAKE-OFF OUTPUT SHAFT)
90280-07011	BU102..DM5..IV3;BU112,RZU100..(DM6,T2,T3,T4)..5F;BU10#,132,14#,162,172,182,202,212,222..DM6,T1,T2,T3,T4,T5,TW2,TW4	05/1995 - 10/1995	1
90280-07011	BU102..DM5..IV3;BU112,RZU100..(DM6,T2,T3,T4)..5F;BU10#,132,14#,162,172,182,202,212,222..DM6,T1,T2,T3,T4,T5,TW2,TW4	05/1995 - 10/1995	1
90280-07011	BU112..T3..5F;BU132..TL4..5F;RZU100,XZU130..02S,03S;BU10#,13#,14#,162,172,182,202,212,222..(DM6,T1,T2,T3,T4,T5,TW1,TW2,TW4)..(02S,03S,06S,07S)..(CBU,IV3)	10/1995 - 08/1997	1
90280-07011	BU112..T3..5F;BU132..TL4..5F;RZU100,XZU130..02S,03S;BU10#,13#,14#,162,172,182,202,212,222..(DM6,T1,T2,T3,T4,T5,TW1,TW2,TW4)..(02S,03S,06S,07S)..(CBU,IV3)	10/1995 - 08/1997	1
90280-07011	BU112..T3..5F;BU132..TL4..5F;BU102..IV3..4FC;BU102..T3..CBU..4FC;BU100,102,XZU130..(DM6,DM7,T1,T2,T3,T4,TW2,TW4)..5F;BU105,107,13#,14#,162,172,182,202,212,222,RZU100,140,XZU140..(ALV,DM6,T2,T3,T4,TW1,TW4)..(02S,03S,06S,07S)	08/1997 - 12/2999	1
90280-07011	BU112..T3..5F;BU132..TL4..5F;BU102..IV3..4FC;BU102..T3..CBU..4FC;BU100,102,XZU130..(DM6,DM7,T1,T2,T3,T4,TW2,TW4)..5F;BU105,107,13#,14#,162,172,182,202,212,222,RZU100,140,XZU140..(ALV,DM6,T2,T3,T4,TW1,TW4)..(02S,03S,06S,07S)	08/1997 - 12/2999	1
36723E - SPACER (FOR POWER TAKE-OFF OUTPUT SHAFT BEARING)
36645-93100	BU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC	05/1995 - 06/1999	2
36645-93100	BU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC	05/1995 - 06/1999	2
36723E - SPACER (FOR POWER TAKE-OFF OUTPUT SHAFT BEARING)
36645-93100	BU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC	05/1995 - 06/1999	2
36645-93100	BU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC	05/1995 - 06/1999	2
36728 - SHAFT, POWER TAKE-OFF IDLER
36728-93103	BU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC	05/1995 - 06/1999	1
36728-93103	BU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC	05/1995 - 06/1999	1
36811 - FORK, POWR TAKE-OFF SHIFT, NO.1
36811-93103	BU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC	05/1995 - 12/2999	1
36811-93103	BU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC	05/1995 - 12/2999	1
36814 - SHAFT, POWR TAKE-OFF FORK, NO.1
36814-93102	BU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC	05/1995 - 12/2999	1
36814-93102	BU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC	05/1995 - 12/2999	1
36851 - RETAINER, POWER TAKE-OFF JOINT
36851-93101	BU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC	05/1995 - 12/2999	1
36851-93101	BU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC	05/1995 - 12/2999	1
Common parts
90119-10029
90201-14002
90214-14001
91111-50820
94125-41400
94130-61000
94512-01000
94531-00800
Linked diagrams
8413

ILLUST NO. 1 OF 2(9505- )BU100,102,XZU130..5F ; (9505- )BU105,107,112,13#,14#,162,172,182,202,

Click highlighted areas on diagram

Part #	Description	Period	Qty
36610 - POWER TAKE-OFF ASSY
36610-93123	BU102,132,142,212..4FC	05/1995 - 10/1996	1
36611A - BOLT, STUD (FOR POWER TAKE-OFF CASE)
90116-10099	BU112..DM7..4FC;BU102,112..TR..IV3..4FC;BU102..T4..20T..CBU..4FC;BU102..(T2,T3)..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC	05/1995 - 06/1999	5
36621 - RETAINER, POWER TAKE-OFF BEARING
36621-93101	BU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC	05/1995 - 12/2999	1
36621A - SEAL, OIL (FOR POWER TAKE-OFF BEARING RETAINER)
90311-25012	BU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC	05/1995 - 06/1999	1
36631 - GASKET, POWER TAKE-OFF BEARING RETAINER
36631-93102	BU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC	05/1995 - 06/1999	2
36714 - GEAR, POWER TAKE-OFF OUTPUT
36714-93103	BU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC	05/1995 - 06/1999	1
36718 - GEAR, POWER TAKE-OFF IDLER
36718-93106	BU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC	05/1995 - 06/1999	1
36723 - SHAFT, POWER TAKE-OFF OUTPUT, NO.1
36723-93103	BU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC	05/1995 - 06/1999	1
36723B - BEARING (FOR OUTPUT SHAFT REAR)
90363-25001	BU102,132,142,212..4FC 厚さ=12	05/1995 - 10/1996	1
36723C - KEY, WOODRUFF (FOR POWER TAKE-OFF OUTPUT SHAFT)
90280-07011	BU102..DM5..IV3;BU112,RZU100..(DM6,T2,T3,T4)..5F;BU10#,132,14#,162,172,182,202,212,222..DM6,T1,T2,T3,T4,T5,TW2,TW4	05/1995 - 10/1995	1
90280-07011	BU112..T3..5F;BU132..TL4..5F;RZU100,XZU130..02S,03S;BU10#,13#,14#,162,172,182,202,212,222..(DM6,T1,T2,T3,T4,T5,TW1,TW2,TW4)..(02S,03S,06S,07S)..(CBU,IV3)	10/1995 - 08/1997	1
90280-07011	BU112..T3..5F;BU132..TL4..5F;BU102..IV3..4FC;BU102..T3..CBU..4FC;BU100,102,XZU130..(DM6,DM7,T1,T2,T3,T4,TW2,TW4)..5F;BU105,107,13#,14#,162,172,182,202,212,222,RZU100,140,XZU140..(ALV,DM6,T2,T3,T4,TW1,TW4)..(02S,03S,06S,07S)	08/1997 - 12/2999	1
36723E - SPACER (FOR POWER TAKE-OFF OUTPUT SHAFT BEARING)
36645-93100	BU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC	05/1995 - 06/1999	2
36728 - SHAFT, POWER TAKE-OFF IDLER
36728-93103	BU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC	05/1995 - 06/1999	1
36811 - FORK, POWR TAKE-OFF SHIFT, NO.1
36811-93103	BU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC	05/1995 - 12/2999	1
36814 - SHAFT, POWR TAKE-OFF FORK, NO.1
36814-93102	BU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC	05/1995 - 12/2999	1
36851 - RETAINER, POWER TAKE-OFF JOINT
36851-93101	BU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC	05/1995 - 12/2999	1
Common parts
88894-18010
90101-08156
90119-08124
90119-10029
90179-14066
90201-08091
90201-14002
90214-14001
90339-03002
90389-25003
90407-51002
90501-29040
94125-41400
94130-61000
94512-01000
94531-01400
94613-11200
97100-06205
Linked diagrams
8413

ILLUST NO. 2 OF 2(9505- )BU100,102,132,140,142,147,RZU100..DSL,LPGB ; (9610- )BU107,137,147..5

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
44730-10010
90119-08A46
90464-00311
90467-16002
95446-09110
95446-09200
95446-09280
95446-09320
95446-09400
95446-09500
Linked diagrams
3602
4710
8401

(9505- )BU102,107,13#,142,147,212..T2,T3,T4,TW4..4FC

Click highlighted areas on diagram

Part #	Description	Period	Qty
36215A - GEAR, POWER TAKE-OFF DRIVE
36215-93100	BU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC	05/1995 - 06/1999	1
36603 - TUBE SUB-ASSY, POWER TAKE-OFF LUBRICATION
36603-93101	BU112..DM7..4FC;BU102,112..TR..IV3..4FC;BU102..T4..20T..CBU..4FC;BU102..(T2,T3)..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC	05/1995 - 06/1999	1
36603A - ELBOW (FOR POWER TAKE-OFF LUBRICATION TUBE)
90407-14003	BU112..DM7..4FC;BU102,112..TR..IV3..4FC;BU102..T4..20T..CBU..4FC;BU102..(T2,T3)..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC	05/1995 - 06/1999	1
36603B - UNION (FOR POWER TAKE-OFF LUBRICATION TUBE)
90404-14007	BU112..DM7..4FC;BU102,112..TR..IV3..4FC;BU102..T4..20T..CBU..4FC;BU102..(T2,T3)..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC	05/1995 - 06/1999	1
36603E - RING, O (FOR POWER TAKE-OFF LUBRICATION TUBE)
90301-10189	BU112..DM7..4FC;BU102,112..TR..IV3..4FC;BU102..T4..20T..CBU..4FC;BU102..(T2,T3)..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC	05/1995 - 06/1999	2
36603E - RING, O (FOR POWER TAKE-OFF LUBRICATION TUBE)
90301-10189	BU112..DM7..4FC;BU102,112..TR..IV3..4FC;BU102..T4..20T..CBU..4FC;BU102..(T2,T3)..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC	05/1995 - 06/1999	2
36603F - BRACKET, POWER TAKE-OFF LUBRICATION TUBE
32913-93100	BU112..DM7..4FC;BU102,112..TR..IV3..4FC;BU102..T4..20T..CBU..4FC;BU102..(T2,T3)..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC	05/1995 - 06/1999	1
36610 - POWER TAKE-OFF ASSY
36610-93123	BU102,132,142,212..4FC	05/1995 - 10/1996	1
36610A - BOLT, LOCK BALL (FOR POWER TAKE-OFF)
90341-12001	BU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC	05/1995 - 12/2999	1
36610B - GASKET, SEAT (FOR POWER TAKE-OFF)
90430-12004	BU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC 厚さ=2.0	05/1995 - 12/2999	1
90430-12001	BU132,142,212..4FC;BU102..T4..CBU..4FC;BU102..(T2,T3)..20T..CBU;BU102..(DM6,T2,T3,T4,T5)..(20T,30T)..IV3 厚さ=0.5	05/1995 - 10/1995	1
90430-12001	BU132..TL4..5F;BU107..06S..4FC;BU107..(T2,T4)..CBU;BU102,RZU100..T3..LPGB;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU102..TR..03S..20T..CBU..5F;BU13#,142,147,212..(T2,T3,T4)..4FC;BU102,107..(DM6,T2,T3,T4,T5)..(20T,30T)..DSL..IV3 厚さ=0.5	10/1995 - 12/2999	1
90430-12006	BU132,142,212..4FC;BU102..T4..CBU..4FC;BU102..(T2,T3)..20T..CBU;BU102..(DM6,T2,T3,T4,T5)..(20T,30T)..IV3 厚さ=1.0	05/1995 - 10/1995	1
90430-12006	BU132..TL4..5F;BU107..06S..4FC;BU107..(T2,T4)..CBU;BU102,RZU100..T3..LPGB;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU102..TR..03S..20T..CBU..5F;BU13#,142,147,212..(T2,T3,T4)..4FC;BU102,107..(DM6,T2,T3,T4,T5)..(20T,30T)..DSL..IV3 厚さ=1.0	10/1995 - 12/2999	1
36610C - SPRING, GEAR SHIFT FORK LOCK BALL (FOR POWER TAKE-OFF)
90501-18001	BU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC	05/1995 - 12/2999	1
36610D - BALL, GEAR SHIFT FORK LOCK (FOR POWER TAKE-OFF)
90360-06004	BU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC	05/1995 - 12/2999	1
36610E - SEAL, OIL (FOR POWER TAKE-OFF)
90311-20005	BU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC	05/1995 - 12/2999	1
36610G - GASKET (FOR FRONT POWER TAKE-OFF DRAIN)
12157-10010	BU112..DM7..4FC;BU102,112..TR..IV3..4FC;BU102..T4..20T..CBU..4FC;BU102..(T2,T3)..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC	05/1995 - 06/1999	1
36610H - PLUG (FOR FRONT POWER TAKE-OFF DRAIN)
90341-18057	BU172..IV4;BU107..CBU..4FC;BU112..DM7..4FC;BU102..30T..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,112..(T3,TW4)..IV3..4FC;BU13#,142,147,212,297..(T2,T3,T4,TW1)..4FC;BU102,107..(DM6,T2,T3,T4,TW1)..WT..20T..DSL..(IV3,IV4)	05/1995 - 06/1999	1
36610S - RING, O (FOR POWER TAKE-OFF)
90301-13005	BU112..DM7..4FC;BU102,112..TR..IV3..4FC;BU102..T4..20T..CBU..4FC;BU102..(T2,T3)..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC	05/1995 - 06/1999	1
36611 - CASE, POWER TAKE-OFF
36611-93105	BU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC	05/1995 - 12/2999	1
36611A - BOLT, STUD (FOR POWER TAKE-OFF CASE)
90116-10099	BU112..DM7..4FC;BU102,112..TR..IV3..4FC;BU102..T4..20T..CBU..4FC;BU102..(T2,T3)..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC	05/1995 - 06/1999	5
36621 - RETAINER, POWER TAKE-OFF BEARING
36621-93101	BU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC	05/1995 - 12/2999	1
36621A - SEAL, OIL (FOR POWER TAKE-OFF BEARING RETAINER)
90311-25012	BU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC	05/1995 - 06/1999	1
36624 - CAP, POWER TAKE-OFF BEARING
36624-93100	BU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC	05/1995 - 12/2999	1
36631 - GASKET, POWER TAKE-OFF BEARING RETAINER
36631-93102	BU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC	05/1995 - 06/1999	2
36631 - GASKET, POWER TAKE-OFF BEARING RETAINER
36631-93102	BU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC	05/1995 - 06/1999	2
36633A - GASKET, POWER TAKE-OFF COVER
36633-93102	BU112..DM7..4FC;BU102,112..TR..IV3..4FC;BU102..T4..20T..CBU..4FC;BU102..(T2,T3)..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC	05/1995 - 06/1999	1
36701 - GEAR SUB-ASSY, POWER TAKE-OFF INPUT
36212-93100	BU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC	05/1995 - 06/1999	1
36701B - BEARING (FOR POWER TAKE-OFF INPUT GEAR)
90364-18005	BU112..DM7..4FC;BU102,112..TR..IV3..4FC;BU102..T4..20T..CBU..4FC;BU102..(T2,T3)..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC	05/1995 - 06/1999	2
36701B - BEARING (FOR POWER TAKE-OFF INPUT GEAR)
90364-18005	BU112..DM7..4FC;BU102,112..TR..IV3..4FC;BU102..T4..20T..CBU..4FC;BU102..(T2,T3)..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC	05/1995 - 06/1999	2
36711 - GEAR, POWER TAKE-OFF INPUT
36711-93100	BU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC	05/1995 - 06/1999	1
36711A - BEARING (FOR POWER TAKE-OFF INPUT GEAR)
90374-18003	BU112..DM7..4FC;BU102,112..TR..IV3..4FC;BU102..T4..20T..CBU..4FC;BU102..(T2,T3)..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC	05/1995 - 06/1999	2
36711A - BEARING (FOR POWER TAKE-OFF INPUT GEAR)
90374-18003	BU112..DM7..4FC;BU102,112..TR..IV3..4FC;BU102..T4..20T..CBU..4FC;BU102..(T2,T3)..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC	05/1995 - 06/1999	2
36714 - GEAR, POWER TAKE-OFF OUTPUT
36714-93103	BU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC	05/1995 - 06/1999	1
36714B - RING (FOR POWER TAKE-OFF OUTPUT GEAR)
90520-28029	BU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC	05/1995 - 06/1999	1
36718 - GEAR, POWER TAKE-OFF IDLER
36718-93106	BU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC	05/1995 - 06/1999	1
36718A - BEARING(FOR POWER TAKE-OFF IDLER GEAR FRONT)
90366-20002	BU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC	05/1995 - 06/1999	1
36718B - BEARING(FOR POWER TAKE-OFF IDLER GEAR REAR)
90366-20002	BU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC	05/1995 - 06/1999	1
36718C - RING, HOLE SNAP(FOR POWER TAKE-OFF IDLER GEAR)
90520-28029	BU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC	05/1995 - 06/1999	1
36718D - SPACER(FOR POWER TAKE-OFF IDLER GEAR)
90564-40003	BU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC T=0.17-0.23	05/1995 - 12/2999	1
90564-40005	BU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC T=0.47-0.53	05/1995 - 12/2999	1
90564-40002	BU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC T=0.07-0.13	05/1995 - 12/2999	1
90564-40001	BU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC T=0.02-0.08	05/1995 - 12/2999	1
36718D - SPACER(FOR POWER TAKE-OFF IDLER GEAR)
90564-40003	BU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC T=0.17-0.23	05/1995 - 12/2999	1
90564-40005	BU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC T=0.47-0.53	05/1995 - 12/2999	1
90564-40002	BU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC T=0.07-0.13	05/1995 - 12/2999	1
90564-40001	BU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC T=0.02-0.08	05/1995 - 12/2999	1
36723 - SHAFT, POWER TAKE-OFF OUTPUT, NO.1
36723-93103	BU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC	05/1995 - 06/1999	1
36723A - BEARING (FOR OUTPUT SHAFT FRONT)
90366-20002	BU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC	05/1995 - 06/1999	1
36723B - BEARING (FOR OUTPUT SHAFT REAR)
90363-25001	BU102,132,142,212..4FC 厚さ=12	05/1995 - 10/1996	1
36723C - KEY, WOODRUFF (FOR POWER TAKE-OFF OUTPUT SHAFT)
90280-07011	BU102..DM5..IV3;BU112,RZU100..(DM6,T2,T3,T4)..5F;BU10#,132,14#,162,172,182,202,212,222..DM6,T1,T2,T3,T4,T5,TW2,TW4	05/1995 - 10/1995	1
90280-07011	BU112..T3..5F;BU132..TL4..5F;RZU100,XZU130..02S,03S;BU10#,13#,14#,162,172,182,202,212,222..(DM6,T1,T2,T3,T4,T5,TW1,TW2,TW4)..(02S,03S,06S,07S)..(CBU,IV3)	10/1995 - 08/1997	1
90280-07011	BU112..T3..5F;BU132..TL4..5F;BU102..IV3..4FC;BU102..T3..CBU..4FC;BU100,102,XZU130..(DM6,DM7,T1,T2,T3,T4,TW2,TW4)..5F;BU105,107,13#,14#,162,172,182,202,212,222,RZU100,140,XZU140..(ALV,DM6,T2,T3,T4,TW1,TW4)..(02S,03S,06S,07S)	08/1997 - 12/2999	1
36723E - SPACER (FOR POWER TAKE-OFF OUTPUT SHAFT BEARING)
36645-93100	BU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC	05/1995 - 06/1999	2
36723E - SPACER (FOR POWER TAKE-OFF OUTPUT SHAFT BEARING)
36645-93100	BU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC	05/1995 - 06/1999	2
36723M - SHAFT, POWER TAKE-OFF OUTPUT, NO.2
36723-93110	BU102..IV3..4FC;BU102..T3..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC	10/1996 - 12/2999	1
36727 - STOPPER, POWER TAKE-OFF INPUT SHAFT
36727-93100	BU112..DM7..4FC;BU102,112..TR..IV3..4FC;BU102..T4..20T..CBU..4FC;BU102..(T2,T3)..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC	05/1995 - 06/1999	1
36728 - SHAFT, POWER TAKE-OFF IDLER
36728-93103	BU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC	05/1995 - 06/1999	1
36728C - COLLER (FOR POWER TAKE-OFF IDLER SHAFT)
90387-20005	BU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC	05/1995 - 06/1999	1
36728E - RING, 0 (FOR POWER TAKE-OFF IDLER)
90301-13005	BU112..DM7..4FC;BU102,112..TR..IV3..4FC;BU102..T4..20T..CBU..4FC;BU102..(T2,T3)..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC	05/1995 - 06/1999	2
36728E - RING, 0 (FOR POWER TAKE-OFF IDLER)
90301-13005	BU112..DM7..4FC;BU102,112..TR..IV3..4FC;BU102..T4..20T..CBU..4FC;BU102..(T2,T3)..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC	05/1995 - 06/1999	2
36811 - FORK, POWR TAKE-OFF SHIFT, NO.1
36811-93103	BU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC	05/1995 - 12/2999	1
36814 - SHAFT, POWR TAKE-OFF FORK, NO.1
36814-93102	BU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC	05/1995 - 12/2999	1
36851 - RETAINER, POWER TAKE-OFF JOINT
36851-93101	BU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC	05/1995 - 12/2999	1
Common parts
90109-10077
90119-08124
90201-14002
90201-18010
90205-18001
90214-14001
90250-08074
90462-10082
91611-60614
94125-41400
94130-61000
94512-01000

BU132-TKPQS3 (1995)

(9505- )BU102..T4..20T..CBU..5F ; (9505- )BU102..DM6,T2,T3..DSL..5F ; (9505-

ILLUST NO. 1 OF 2(9505- )BU100,102,XZU130..5F ; (9505- )BU105,107,112,13#,14#,162,172,182,202,

ILLUST NO. 2 OF 2(9505- )BU100,102,132,140,142,147,RZU100..DSL,LPGB ; (9610- )BU107,137,147..5

(9505- )BU102,107,13#,142,147,212..T2,T3,T4,TW4..4FC

Part Price Details
