BU132-TKPQS3 (1995)
Toyota Dyna 200/Toyoace G25

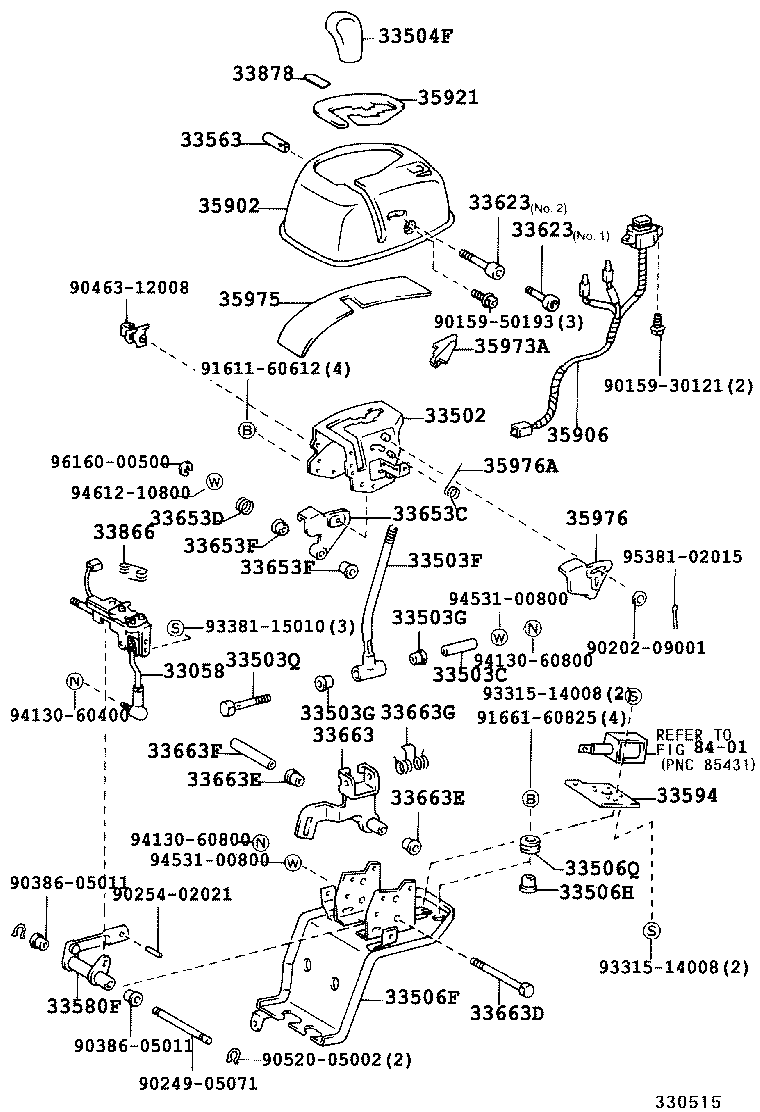

ILLUST NO. 1 OF 2(9505- )BU102,107,112,13#,142,147,212..4FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33058 - BRACKET SUB-ASSY, SHIFT LOCK SOLENOID | ||||
| 33058-36010 |
BU102,107,112,13#,142,147,212,297..4FC |
1 | ||
| 33502 - PLATE SUB-ASSY, SHIFT LEVER | ||||
| 33502-37010 |
BU102,107,112,13#,142,147,212,297..4FC |
1 | ||
| 33503C - COLLAR(FOR SHIFT LEVER SUB-ASSY) | ||||
| 90387-08089 |
BU102,107,112,13#,142,147,212,297..4FC |
1 | ||
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33503-37020 |
BU102,107,112,13#,142,147,212,297..4FC |
1 | ||
| 33503G - BUSH(FOR SHIFT LEVER) | ||||
| 90385-11003 |
BU102,107,112,13#,142,147,212,297..4FC |
2 | ||
| 33503G - BUSH(FOR SHIFT LEVER) | ||||
| 90385-11003 |
BU102,107,112,13#,142,147,212,297..4FC |
2 | ||
| 33503Q - BOLT(FOR SHIFT LEVER SUB-ASSY) | ||||
| 91121-40855 |
BU102,107,112,13#,142,147,212,297..4FC |
1 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-36070B0 |
BU102,107,112,13#,142,147,212,297..4FC GRAY,TRIM1# |
1 | ||
| 33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT | ||||
| 33570-37010 |
BU102,107,112,13#,142,147,212,297..4FC |
1 | ||
| 33506H - BUSH (FOR SHIFT LEVER RETAINER) | ||||
| 90386-12056 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 |
4 | ||
| 33506Q - GROMMET, NO.1(FOR CONTROL SHIFT LEVER RETAINER) | ||||
| 90480-19008 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 |
4 | ||
| 33563 - BUTTON, SHIFT LOCK RELEASE | ||||
| 33563-26020 |
BU102,107,112,13#,142,147,212,297..4FC |
1 | ||
| 33580F - BELLCRANK ASSY, SHIFTING (FOR FLOOR SHIFT) | ||||
| 33580-36060 |
BU102,107,112,13#,142,147,212,297..4FC |
1 | ||
| 33594 - PLATE, SHIFT LOCK (FOR FLOOR SHIFT) | ||||
| 33594-36010 |
BU102,107,112,13#,142,147,212,297..4FC |
1 | ||
| 33623 - BUTTON, SHIFT LEVER KNOB | ||||
| 33623-37020 |
BU102,107,112,13#,142,147,212,297..4FC NO.2 |
1 | ||
| 33623-37010 |
BU102,107,112,13#,142,147,212,297..4FC NO.1 |
1 | ||
| 33623 - BUTTON, SHIFT LEVER KNOB | ||||
| 33623-37020 |
BU102,107,112,13#,142,147,212,297..4FC NO.2 |
1 | ||
| 33623-37010 |
BU102,107,112,13#,142,147,212,297..4FC NO.1 |
1 | ||
| 33653C - GUIDE, SHIFT LEVER WIRE | ||||
| 33653-36030 |
BU102,107,112,13#,142,147,212,297..4FC |
1 | ||
| 33653D - SPRING, TORSION (FOR FLOOR SHIFT LEVER GUIDE) | ||||
| 90508-16113 |
BU102,107,112,13#,142,147,212,297..4FC |
1 | ||
| 33653F - BUSH | ||||
| 90386-08014 |
BU102,107,112,13#,142,147,212,297..4FC |
2 | ||
| 33653F - BUSH | ||||
| 90386-08014 |
BU102,107,112,13#,142,147,212,297..4FC |
2 | ||
| 33663 - LEVER, CONTROL | ||||
| 33663-37030 |
BU102..IV3..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC;BU107,112,13#,142,147,212..(DM7,T2,T3,T4,TW4)..4FC ｱﾘ(P.T.O) |
1 | ||
| 33663-37040 |
BU102,107,112,13#,142,147,212,297..TR..4FC |
1 | ||
| 33663D - BOLT (FOR FLOOR SHIFT CONTROL LEVER) | ||||
| 91121-40880 |
BU102,107,112,13#,142,147,212,297..4FC |
1 | ||
| 33663E - BUSH (FOR FLOOR SHIFT CONTROL LEVER) | ||||
| 90385-11006 |
BU102,107,112,13#,142,147,212,297..4FC |
2 | ||
| 33663E - BUSH (FOR FLOOR SHIFT CONTROL LEVER) | ||||
| 90385-11006 |
BU102,107,112,13#,142,147,212,297..4FC |
2 | ||
| 33663F - COLLAR (FOR FLOOR SHIFT CONTROL LEVER) | ||||
| 90387-08096 |
BU102,107,112,13#,142,147,212,297..4FC |
1 | ||
| 33663G - SPRING, TORSION (FOR FLOOR SHIFT CONTROL LEVER) | ||||
| 90508-25003 |
BU102,107,112,13#,142,147,212,297..4FC |
1 | ||
| 33866 - SPRING, SHIFT LOCK RELEASE | ||||
| 33866-36010 |
BU102,107,112,13#,142,147,212,297..4FC |
1 | ||
| 33878 - LABEL, SHIFT LOCK INFORMATION, NO.2 | ||||
| 33878-36010 |
BU102,107,112,13#,142,147,212,297..4FC |
1 | ||
| 35902 - COVER SUB-ASSY, POSITION INDICATOR HOUSING | ||||
| 33522-37010B0 |
BU102,107,112,13#,142,147,212,297..4FC BLUISH GRAY,TRIM1# |
1 | ||
| 35906 - WIRE SUB-ASSY, INDICATOR LAMP | ||||
| 35906-37010 |
BU102,107,112,13#,142,147,212,297..4FC |
1 | ||
| 35921 - PLATE, CONTROL POSITION INDICATOR | ||||
| 35921-37010 |
BU102,107,112,13#,142,147,212,297..4FC |
1 | ||
| 35973A - ATTACHMENT, POSITION INDICATOR HOUSING COVER | ||||
| 35973-36010 |
BU102,107,112,13#,142,147,212,297..4FC |
1 | ||
| 35975 - COVER, SLIDE (FOR POSITION INDICATOR) | ||||
| 35975-36020 |
BU102,107,112,13#,142,147,212,297..4FC |
1 | ||
| 35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR) | ||||
| 35976-36010B0 |
BU102,107,112,13#,142,147,212,297..4FC GRAY,TRIM1# |
1 | ||
| 35976A - SPRING, TORSION (FOR POSITION INDICATER SLIDE COVER) | ||||
| 90508-10045 |
BU102,107,112,13#,142,147,212,297..4FC |
1 | ||
| Common parts | ||||
| 90159-30121 | ||||
| 90159-50193 | ||||
| 90202-09001 | ||||
| 90249-05071 | ||||
| 90254-02021 | ||||
| 90386-05011 | ||||
| 90463-12008 | ||||
| 90520-05002 | ||||
| 91611-60612 | ||||
| 91661-60825 | ||||
| 93315-14008 | ||||
| 93381-15010 | ||||
| 94130-60400 | ||||
| 94130-60800 | ||||
| 94531-00800 | ||||
| 94612-10800 | ||||
| 95381-02015 | ||||
| 96160-00500 | ||||
| Linked diagrams | ||||
| 8401 | ||||

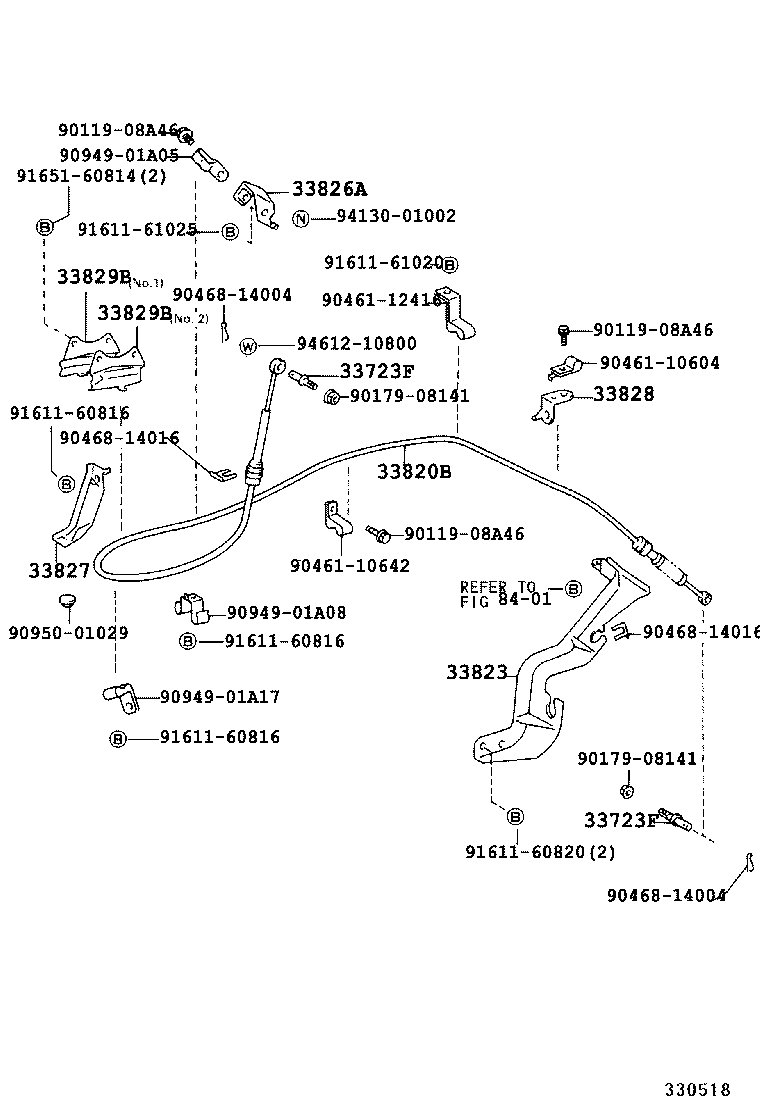

ILLUST NO. 2 OF 2(9505- )BU102,132,142..T2,T3,T4..4FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33723F - SWIVEL, CONNECTING ROD (FOR FLOOR SHIFT) | ||||
| 33723-28010 |
BU102,107,13#,142,147,212..4FC |
2 | ||
| 33723F - SWIVEL, CONNECTING ROD (FOR FLOOR SHIFT) | ||||
| 33723-28010 |
BU102,107,13#,142,147,212..4FC |
2 | ||
| 33820B - CABLE ASSY, TRANSMISSION CONTROL | ||||
| 33820-37310 |
BU102,132,142..(T2,T3,T4)..4FC |
1 | ||
| 33820-37210 |
BU102..IV3..4FC;BU132,142..(T3,T4)..4FC;BU102..(T2,T3)..CBU..4FC;BU102..T4..20T..CBU..4FC ｱﾘ(P.T.O) |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-37070 |
BU102,107,112,13#,142,147,212..4FC |
1 | ||
| 33826A - BRACKET, TRANSMISSION CONTROL CABLE, NO.2 | ||||
| 33826-37020 |
BU112..4FC;BU132..T3,T4;BU10#,12#,137,14#,RZU100,140,XZU130,140 |
1 | ||
| 33827 - BRACKET, TRANSMISSION CONTROL CABLE, NO.3 | ||||
| 33827-37050 |
BU132,XZU130..DM7,T3,T4;BU10#,112,12#,137,14#,172,RZU100,140,XZU140..03S,05S,06S |
1 | ||
| 33828 - BRACKET, TRANSMISSION CONTROL CABLE, NO.4 | ||||
| 33827-37010 |
BU102,107,112,13#,142,147,212..4FC |
1 | ||
| 33829B - CLAMP, TRANSMISSION CONTROL CABLE | ||||
| 33829-37060 |
BU132..T3,T4;BU100,102,112,12#,140,142,RZU100,140,XZU130,140 NO.2 |
1 | ||
| 33829-37050 |
BU132..T3,T4;BU100,102,112,12#,140,142,RZU100,140,XZU130,140 NO.1 |
1 | ||
| 33829B - CLAMP, TRANSMISSION CONTROL CABLE | ||||
| 33829-37060 |
BU132..T3,T4;BU100,102,112,12#,140,142,RZU100,140,XZU130,140 NO.2 |
1 | ||
| 33829-37050 |
BU132..T3,T4;BU100,102,112,12#,140,142,RZU100,140,XZU130,140 NO.1 |
1 | ||
| Common parts | ||||
| 90119-08A46 | ||||
| 90179-08141 | ||||
| 90461-10604 | ||||
| 90461-10642 | ||||
| 90461-12416 | ||||
| 90468-14004 | ||||
| 90468-14016 | ||||
| 90949-01A05 | ||||
| 90949-01A08 | ||||
| 90949-01A17 | ||||
| 90950-01029 | ||||
| 91611-60816 | ||||
| 91611-60820 | ||||
| 91611-61020 | ||||
| 91611-61025 | ||||
| 91651-60814 | ||||
| 94130-01002 | ||||
| 94612-10800 | ||||
| Linked diagrams | ||||
| 8401 | ||||
