BU132-LQPQS3 (1997)

Toyota Dyna 200/Toyoace G25

Production Mar 1997 - May 1999
Engine 15BF
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

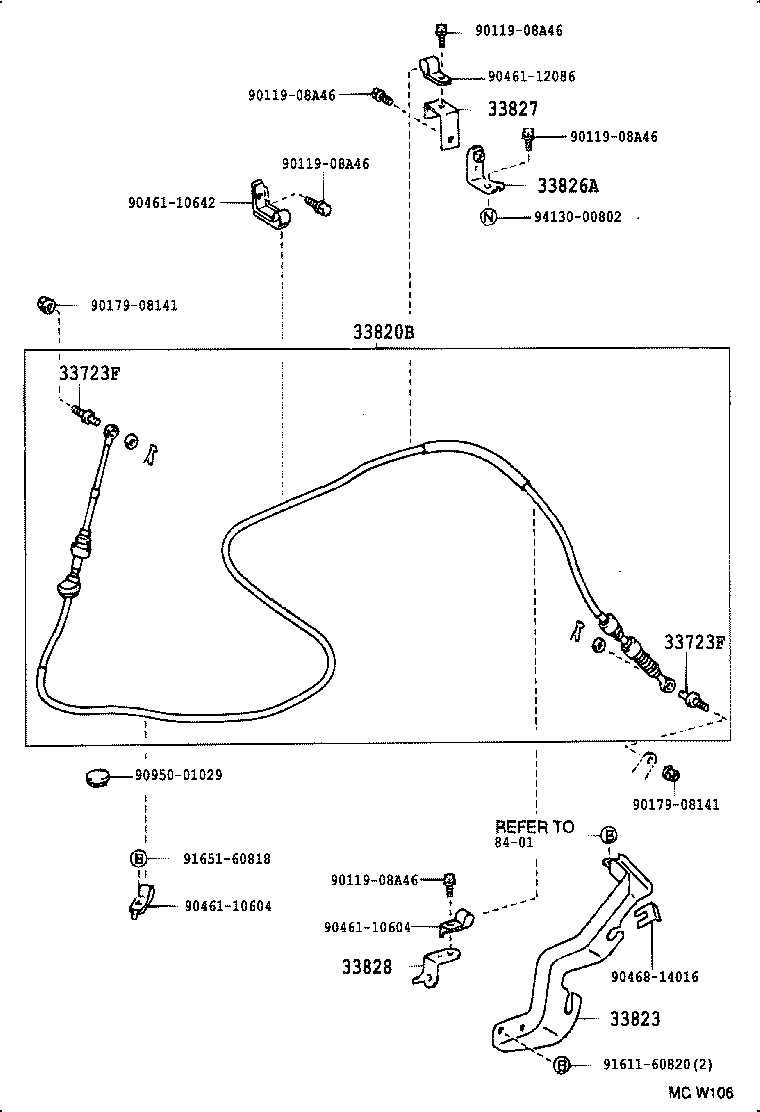

ILLUST NO. 2 OF 2(9703- )TL4..4FC

Click highlighted areas on diagram

diagram 33723F 33723F 33820B 33823 33826A 33827 33828 8401 9011908A46 9011908A46 9011908A46 9011908A46 9011908A46 9017908141 9017908141 9046110604 9046110604 9046110642 9046112086 9046814016 9095001029 9161160820 9165160818 9413000802
Part # Description Qty Price
33723F - SWIVEL, CONNECTING ROD (FOR FLOOR SHIFT)
33723-28010

BU102,107,13#,142,147,212..4FC

 2
33723F - SWIVEL, CONNECTING ROD (FOR FLOOR SHIFT)
33723-28010

BU102,107,13#,142,147,212..4FC

 2
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-37590

BU132..TL4..4FC

 1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-37070

BU102,107,112,13#,142,147,212..4FC

 1
33826A - BRACKET, TRANSMISSION CONTROL CABLE, NO.2
33826-37100

BU132..TL4..4FC

 1
33827 - BRACKET, TRANSMISSION CONTROL CABLE, NO.3
17772-54031

BU132..TL4..4FC

 1
33828 - BRACKET, TRANSMISSION CONTROL CABLE, NO.4
33827-37010

BU102,107,112,13#,142,147,212..4FC

 1
Common parts
90119-08A46
90179-08141
90461-10604
90461-10642
90461-12086
90468-14016
90950-01029
91611-60820
91651-60818
94130-00802
Linked diagrams
8401
