BU120V-REMLS (1995)
Toyota Dyna 200/Toyoace G25
Production
May 1995
-
May 1999
Engine
3B
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9505- )BU12#

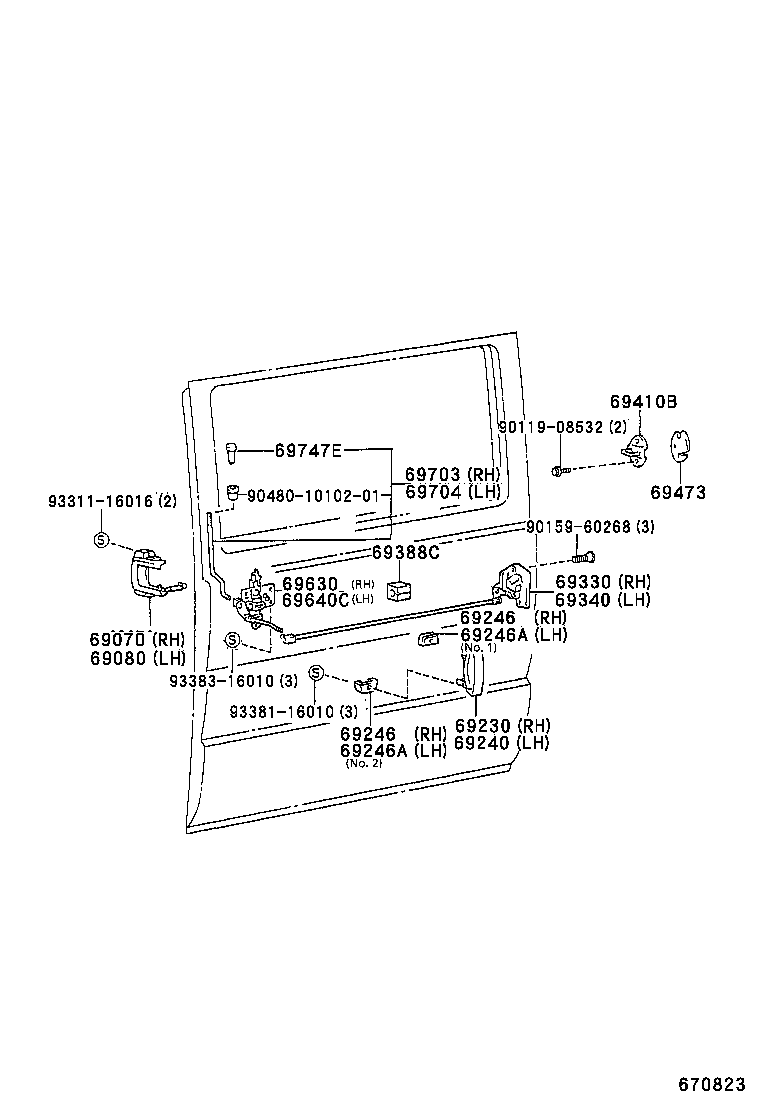

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69070 - HANDLE ASSY, SLIDE DOOR, INSIDE, RH | ||||
| 69070-92602C0 |
BU120 TECS=ﾙ-ﾄ ﾊﾞﾝ 5ﾄﾞｱ,BLACK,TRIM1# |
1 | ||
| 69080 - HANDLE ASSY, SLIDE DOOR, INSIDE, LH | ||||
| 69080-92601C0 |
BU12# BLACK,TRIM1# |
1 | ||
| 69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH | ||||
| 69230-92601 |
BU120 TECS=ﾙ-ﾄ ﾊﾞﾝ 5ﾄﾞｱ |
1 | ||
| 69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH | ||||
| 69240-92601 |
BU12# |
1 | ||
| 69246 - PAD, SLIDE DOOR OUTSIDE HANDLE | ||||
| 69247-95A00 |
BU120 TECS=ﾙ-ﾄ ﾊﾞﾝ 5ﾄﾞｱ,NO.2 |
1 | ||
| 69246-95A00 |
BU120 TECS=ﾙ-ﾄ ﾊﾞﾝ 5ﾄﾞｱ,NO.1 |
1 | ||
| 69246 - PAD, SLIDE DOOR OUTSIDE HANDLE | ||||
| 69247-95A00 |
BU120 TECS=ﾙ-ﾄ ﾊﾞﾝ 5ﾄﾞｱ,NO.2 |
1 | ||
| 69246-95A00 |
BU120 TECS=ﾙ-ﾄ ﾊﾞﾝ 5ﾄﾞｱ,NO.1 |
1 | ||
| 69246A - PAD, SLIDE DOOR OUTSIDE HANDLE, UPPER | ||||
| 69247-95A00 |
BU12# NO.2 |
1 | ||
| 69246-95A00 |
BU12# NO.1 |
1 | ||
| 69246A - PAD, SLIDE DOOR OUTSIDE HANDLE, UPPER | ||||
| 69247-95A00 |
BU12# NO.2 |
1 | ||
| 69246-95A00 |
BU12# NO.1 |
1 | ||
| 69330 - LOCK ASSY, REAR DOOR, RH | ||||
| 69330-95A02 |
BU120 TECS=ﾙ-ﾄ ﾊﾞﾝ 5ﾄﾞｱ |
1 | ||
| 69340 - LOCK ASSY, REAR DOOR, LH | ||||
| 69340-95A02 |
BU12# |
1 | ||
| 69388C - SILENCER, SLIDE DOOR LOCK REMOTE CONTROL LINK | ||||
| 69388-95A00 |
BU12# |
1 | ||
| 69388-95A00 |
BU120 右側 |
1 | ||
| 69410B - PLATE ASSY, REAR DOOR LOCK STRIKER | ||||
| 69470-95A01 |
BU120 TECS=ﾙ-ﾄ ﾊﾞﾝ 5ﾄﾞｱ |
2 | ||
| 69470-95A01 |
BU12# |
1 | ||
| 69473 - SPACER, SLIDE DOOR REAR LOCK STRIKER | ||||
| 69474-95A00 |
BU12# 左側 |
1 | ||
| 69473-95A00 |
BU12# 右側 |
1 | ||
| 69630 - CONTROL ASSY, SLIDE DOOR LOCK REMOTE | ||||
| 69630-95A00 |
BU120 TECS=ﾙ-ﾄ ﾊﾞﾝ 5ﾄﾞｱ |
1 | ||
| 69640C - CONTROL ASSY, SLIDE DOOR LOCK REMOTE, LH | ||||
| 69640-95A00 |
BU12# |
1 | ||
| 69703 - LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, RH | ||||
| 69703-95A00 |
BU120 TECS=ﾙ-ﾄ ﾊﾞﾝ 5ﾄﾞｱ |
1 | ||
| 69704 - LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, LH | ||||
| 69704-95A00 |
BU12# |
1 | ||
| 69747E - BUTTON, REAR DOOR LOKING REMOTE CONTROL | ||||
| 69747-20020C0 |
BU12# BLACK,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-08532 | ||||
| 90159-60268 | ||||
| 90480-1010201 | ||||
| 93311-16016 | ||||
| 93381-16010 | ||||
| 93383-16010 | ||||
