Toyota Dyna 200/toyoace g25 BU112 POWER STEERING TUBE

BU112D-TNMMS (1995)

Toyota Dyna 200/Toyoace G25

Production May 1995 - May 1999

Engine 15BF

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

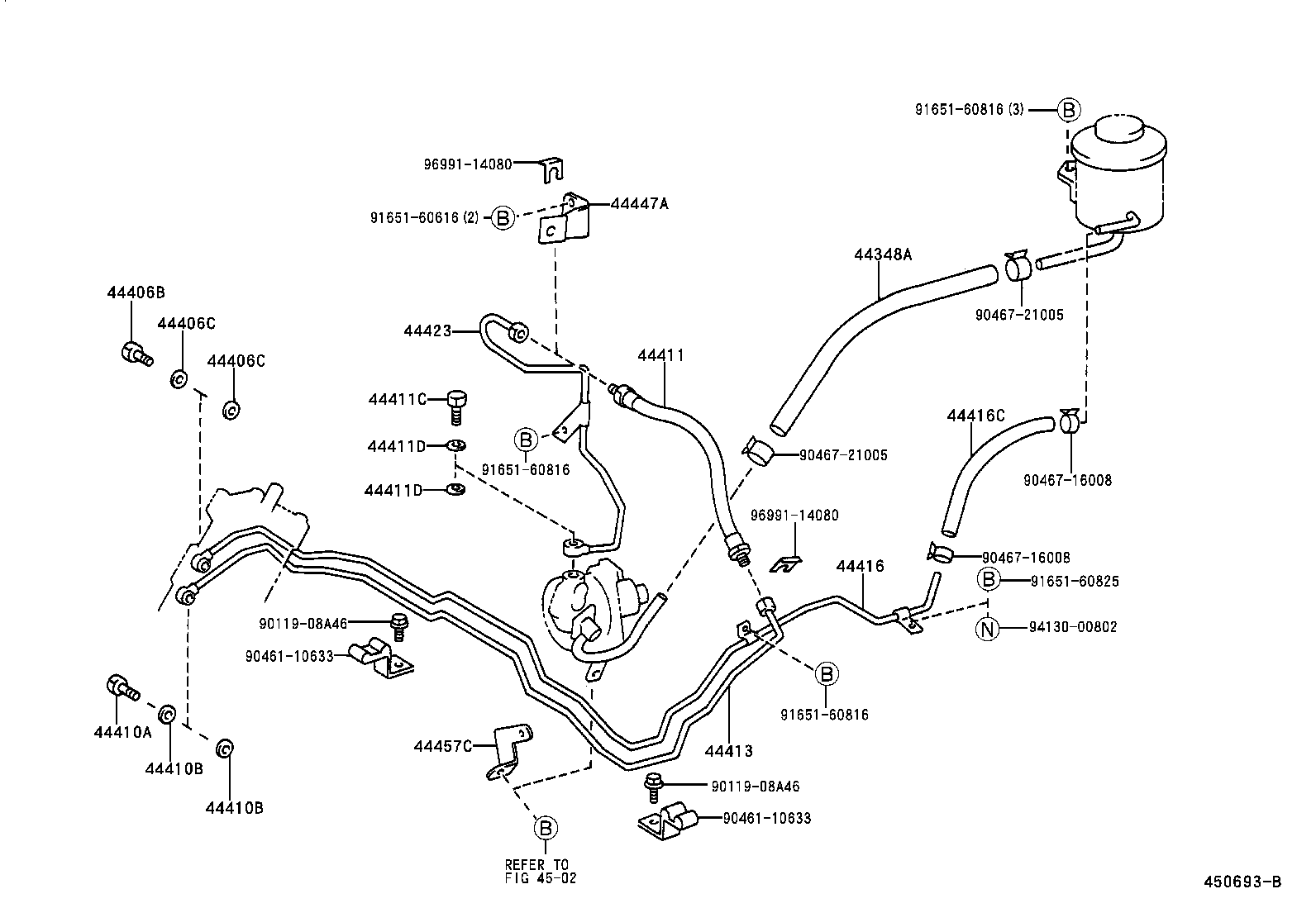

(9505- )BU102,112,122,132,142,RZU100..DSL,LPGB

Click highlighted areas on diagram

Part #	Description	Period	Qty
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-37090	BU212..03S..DSL;BU102,112,132,142,202,222..(DM2,DM3,DM5,DM6,DM7,DM8,T2,T3,T4,TW1)..DSL ｱﾘ(EGRﾊﾞﾙﾌﾞ X2 ｼﾖｳ)	08/1997 - 12/2999	1
44348-37010	BU102,107,112,122,13#,142,147,202,212,222..DSL	05/1995 - 12/2999	1
44406B - BOLT, UNION(FOR RETURN TUBE)
90401-14003	BU100,102,112,12#,132,140,142,162,172,182,202,212,222,RZU100,140,XZU130,140	05/1995 - 12/2999	1
44406C - GASKET(FOR RETURN TUBE)
90430-14235	BU100,102,112,12#,132,140,142,162,172,182,202,212,222,RZU100,140,XZU130,140	05/1995 - 12/2999	2
44406C - GASKET(FOR RETURN TUBE)
90430-14235	BU100,102,112,12#,132,140,142,162,172,182,202,212,222,RZU100,140,XZU130,140	05/1995 - 12/2999	2
44410A - BOLT, UNION(FOR PRESSURE FEED TUBE)
90401-14003	BU100,102,112,12#,132,140,142,162,172,182,202,212,222,RZU100,140,XZU130,140	05/1995 - 12/2999	1
44410B - GASKET(FOR PRESSURE FEED TUBE)
90430-14235	BU100,102,112,12#,132,140,142,162,172,182,202,212,222,RZU100,140,XZU130,140	05/1995 - 12/2999	2
44410B - GASKET(FOR PRESSURE FEED TUBE)
90430-14235	BU100,102,112,12#,132,140,142,162,172,182,202,212,222,RZU100,140,XZU130,140	05/1995 - 12/2999	2
44411 - HOSE, PRESSURE FEED
44411-37030	BU10#,112,12#,13#,14#,RZU100..DSL,LPGB	05/1995 - 08/1999	1
44411C - BOLT, UNION(FOR PRESSURE FEED HOSE)
90404-16024	BU102,107,112,122,13#,142,147,162,172,182,202,212,222,RZU100,140..DSL,EFI,LPGB,TD	05/1995 - 12/2999	1
44411D - GASKET(FOR PRESSURE FEED HOSE)
90430-16168	BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140	05/1995 - 12/2999	2
44411D - GASKET(FOR PRESSURE FEED HOSE)
90430-16168	BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140	05/1995 - 12/2999	2
44413 - TUBE, PRESSURE FEED, NO.1
44413-37010	BU142..30T;RZU100..LPGB;BU142..T3..20T;BU102..T4..30T;RZU100..30T..(EFI,LPG);BU112,RZU100..(DM6,DM7,DM8)..(DSL,EFI,LPG);BU100,102,132,140..(DM2,DM3,DM6,T3,T5,TW1)..WT	05/1995 - 12/2999	1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-37080	BU112..DMP	05/1995 - 04/1996	1
44416-37081	BU112..DMP	04/1996 - 05/1999	1
44416-37230	BU132..CBU..5F;BU102..20T..4FC;BU102..T4..20T..5F;BU132..(T3,T4)..IV3;BU112,142..03S..DSL..(4FC,5F);BU102..(DM2,DM3,DM5,DM6,T2,T3,TW1)..DSL..5F ｱﾘ(EGRﾊﾞﾙﾌﾞ X2 ｼﾖｳ)	08/1997 - 12/2999	1
44416C - HOSE(FOR RETURN TUBE TO RESERVIOR)
90445-18139	BU112	05/1995 - 05/1999	1
90445-18144	BU10#,12#,13#,14#,162,172,182..DSL	05/1995 - 12/2999	1
90445-18152	BU102,112,132,142..(DM2,DM3,DM5,DM6,DM7,DM8,T2,T3,T4,TW1)..DSL ｱﾘ(EGRﾊﾞﾙﾌﾞ X2 ｼﾖｳ)	08/1997 - 12/2999	1
44423 - TUBE, OIL PUMP TO GEAR BOX
44423-37040	BU10#,112,12#,132,14#	05/1995 - 12/1995	1
44423-37041	BU10#,112,12#,13#,14#,RZU100..DSL,LPGB	12/1995 - 12/2999	1
44447A - BRACKET, HOSE SUPPORT, NO.1
44447-37030	BU10#,112,12#,13#,14#,RZU100..DSL,LPGB	05/1995 - 12/2999	1
44457C - BRACKET, POWER STEERING TUBE SUPPORT, NO.1
44457-37030	BU212..03S..DSL;BU102,112,132,142,202,222..(DM2,DM3,DM5,DM6,DM7,DM8,T2,T3,T4,TW1)..DSL ｱﾘ(EGRﾊﾞﾙﾌﾞ X2 ｼﾖｳ),NO.1	08/1997 - 12/2999	1
44457-37050	BU212..03S..DSL;BU102,112,132,142,202,222..(DM2,DM3,DM5,DM6,DM7,DM8,T2,T3,T4,TW1)..DSL ｱﾘ(EGRﾊﾞﾙﾌﾞ X2 ｼﾖｳ),NO.2	08/1997 - 12/2999	1
44457-36040	BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100..DSL,LPGB,TD	05/1995 - 12/2999	1
Common parts
90119-08A46
90461-10633
90467-16008
90467-21005
91651-60616
91651-60816
91651-60825
94130-00802
96991-14080
Linked diagrams
4502

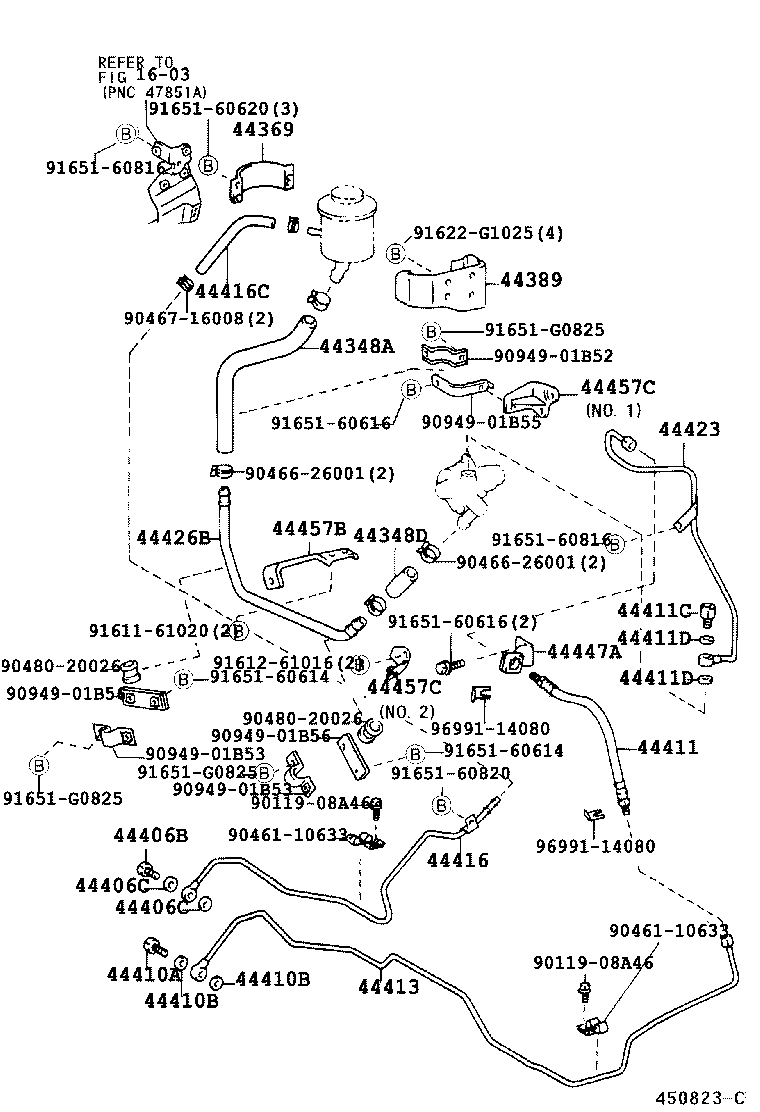

(9708- )BU102,112,132,142

Click highlighted areas on diagram

ｱﾘ(EGR ﾊﾞﾙﾌﾞX2 ｼﾖｳ)

Part #	Description	Period	Qty
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-37090	BU212..03S..DSL;BU102,112,132,142,202,222..(DM2,DM3,DM5,DM6,DM7,DM8,T2,T3,T4,TW1)..DSL ｱﾘ(EGRﾊﾞﾙﾌﾞ X2 ｼﾖｳ)	08/1997 - 12/2999	1
44348-37010	BU102,107,112,122,13#,142,147,202,212,222..DSL	05/1995 - 12/2999	1
44348D - HOSE, OIL RESERVOIR TO PUMP, NO.2
44348-37100	BU212..03S..DSL;BU102,112,132,142,202,222..(DM2,DM3,DM5,DM6,DM7,DM8,T2,T3,T4,TW1)..DSL	08/1997 - 12/2999	1
44369 - BRACKET, OIL RESERVOIR, NO.1
44369-36020	BU212..03S..DSL;BU100,105,112,120,140,145,202,222..DSL;BU102,132,142..(DM2,DM3,DM5,DM6,T2,T3,T4,TW1)..DSL	08/1997 - 12/2999	2
44389 - BRACKET, OIL RESERVOIR, NO.3
44389-37020	BU212..03S..DSL;BU102,112,132,142,202,222..(DM2,DM3,DM5,DM6,DM7,DM8,T2,T3,T4,TW1)..DSL	08/1997 - 12/2999	1
44406B - BOLT, UNION(FOR RETURN TUBE)
90401-14003	BU100,102,112,12#,132,140,142,162,172,182,202,212,222,RZU100,140,XZU130,140	05/1995 - 12/2999	1
44406C - GASKET(FOR RETURN TUBE)
90430-14235	BU100,102,112,12#,132,140,142,162,172,182,202,212,222,RZU100,140,XZU130,140	05/1995 - 12/2999	2
44406C - GASKET(FOR RETURN TUBE)
90430-14235	BU100,102,112,12#,132,140,142,162,172,182,202,212,222,RZU100,140,XZU130,140	05/1995 - 12/2999	2
44410A - BOLT, UNION(FOR PRESSURE FEED TUBE)
90401-14003	BU100,102,112,12#,132,140,142,162,172,182,202,212,222,RZU100,140,XZU130,140	05/1995 - 12/2999	1
44410B - GASKET(FOR PRESSURE FEED TUBE)
90430-14235	BU100,102,112,12#,132,140,142,162,172,182,202,212,222,RZU100,140,XZU130,140	05/1995 - 12/2999	2
44410B - GASKET(FOR PRESSURE FEED TUBE)
90430-14235	BU100,102,112,12#,132,140,142,162,172,182,202,212,222,RZU100,140,XZU130,140	05/1995 - 12/2999	2
44411 - HOSE, PRESSURE FEED
44411-37030	BU10#,112,12#,13#,14#,RZU100..DSL,LPGB	05/1995 - 08/1999	1
44411C - BOLT, UNION(FOR PRESSURE FEED HOSE)
90404-16024	BU102,107,112,122,13#,142,147,162,172,182,202,212,222,RZU100,140..DSL,EFI,LPGB,TD	05/1995 - 12/2999	1
44411D - GASKET(FOR PRESSURE FEED HOSE)
90430-16168	BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140	05/1995 - 12/2999	2
44411D - GASKET(FOR PRESSURE FEED HOSE)
90430-16168	BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140	05/1995 - 12/2999	2
44413 - TUBE, PRESSURE FEED, NO.1
44413-37010	BU142..30T;RZU100..LPGB;BU142..T3..20T;BU102..T4..30T;RZU100..30T..(EFI,LPG);BU112,RZU100..(DM6,DM7,DM8)..(DSL,EFI,LPG);BU100,102,132,140..(DM2,DM3,DM6,T3,T5,TW1)..WT	05/1995 - 12/2999	1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-37080	BU112..DMP	05/1995 - 04/1996	1
44416-37081	BU112..DMP	04/1996 - 05/1999	1
44416-37230	BU132..CBU..5F;BU102..20T..4FC;BU102..T4..20T..5F;BU132..(T3,T4)..IV3;BU112,142..03S..DSL..(4FC,5F);BU102..(DM2,DM3,DM5,DM6,T2,T3,TW1)..DSL..5F ｱﾘ(EGRﾊﾞﾙﾌﾞ X2 ｼﾖｳ)	08/1997 - 12/2999	1
44416C - HOSE(FOR RETURN TUBE TO RESERVIOR)
90445-18139	BU112	05/1995 - 05/1999	1
90445-18144	BU10#,12#,13#,14#,162,172,182..DSL	05/1995 - 12/2999	1
90445-18152	BU102,112,132,142..(DM2,DM3,DM5,DM6,DM7,DM8,T2,T3,T4,TW1)..DSL ｱﾘ(EGRﾊﾞﾙﾌﾞ X2 ｼﾖｳ)	08/1997 - 12/2999	1
44423 - TUBE, OIL PUMP TO GEAR BOX
44423-37040	BU10#,112,12#,132,14#	05/1995 - 12/1995	1
44423-37041	BU10#,112,12#,13#,14#,RZU100..DSL,LPGB	12/1995 - 12/2999	1
44426B - TUBE, OIL RESERVOIR TO PUMP
44426-37020	BU212..03S..DSL;BU102,112,132,142,202,222..(DM2,DM3,DM5,DM6,DM7,DM8,T2,T3,T4,TW1)..DSL	08/1997 - 12/2999	1
44447A - BRACKET, HOSE SUPPORT, NO.1
44447-37030	BU10#,112,12#,13#,14#,RZU100..DSL,LPGB	05/1995 - 12/2999	1
44457B - BRACKET, POWER STEERING TUBE SUPPORT, NO.2
44457-37040	BU212..03S..DSL;BU102,112,132,142,202,222..(DM2,DM3,DM5,DM6,DM7,DM8,T2,T3,T4,TW1)..DSL	08/1997 - 12/2999	1
44457C - BRACKET, POWER STEERING TUBE SUPPORT, NO.1
44457-37030	BU212..03S..DSL;BU102,112,132,142,202,222..(DM2,DM3,DM5,DM6,DM7,DM8,T2,T3,T4,TW1)..DSL ｱﾘ(EGRﾊﾞﾙﾌﾞ X2 ｼﾖｳ),NO.1	08/1997 - 12/2999	1
44457-37050	BU212..03S..DSL;BU102,112,132,142,202,222..(DM2,DM3,DM5,DM6,DM7,DM8,T2,T3,T4,TW1)..DSL ｱﾘ(EGRﾊﾞﾙﾌﾞ X2 ｼﾖｳ),NO.2	08/1997 - 12/2999	1
44457-36040	BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100..DSL,LPGB,TD	05/1995 - 12/2999	1
44457C - BRACKET, POWER STEERING TUBE SUPPORT, NO.1
44457-37030	BU212..03S..DSL;BU102,112,132,142,202,222..(DM2,DM3,DM5,DM6,DM7,DM8,T2,T3,T4,TW1)..DSL ｱﾘ(EGRﾊﾞﾙﾌﾞ X2 ｼﾖｳ),NO.1	08/1997 - 12/2999	1
44457-37050	BU212..03S..DSL;BU102,112,132,142,202,222..(DM2,DM3,DM5,DM6,DM7,DM8,T2,T3,T4,TW1)..DSL ｱﾘ(EGRﾊﾞﾙﾌﾞ X2 ｼﾖｳ),NO.2	08/1997 - 12/2999	1
44457-36040	BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100..DSL,LPGB,TD	05/1995 - 12/2999	1
Common parts
90119-08A46
90461-10633
90466-26001
90467-16008
90480-20026
90949-01B52
90949-01B53
90949-01B55
90949-01B56
91611-61020
91612-61016
91622-G1025
91651-60614
91651-60616
91651-60620
91651-60816
91651-60820
91651-G0825
96991-14080
Linked diagrams
1603

BU112D-TNMMS (1995)

(9505- )BU102,112,122,132,142,RZU100..DSL,LPGB

(9708- )BU102,112,132,142
