BU112D-TMPMS3 (1995)

Toyota Dyna 200/Toyoace G25

Production May 1995 - May 1999
Engine 15BF
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )4FC

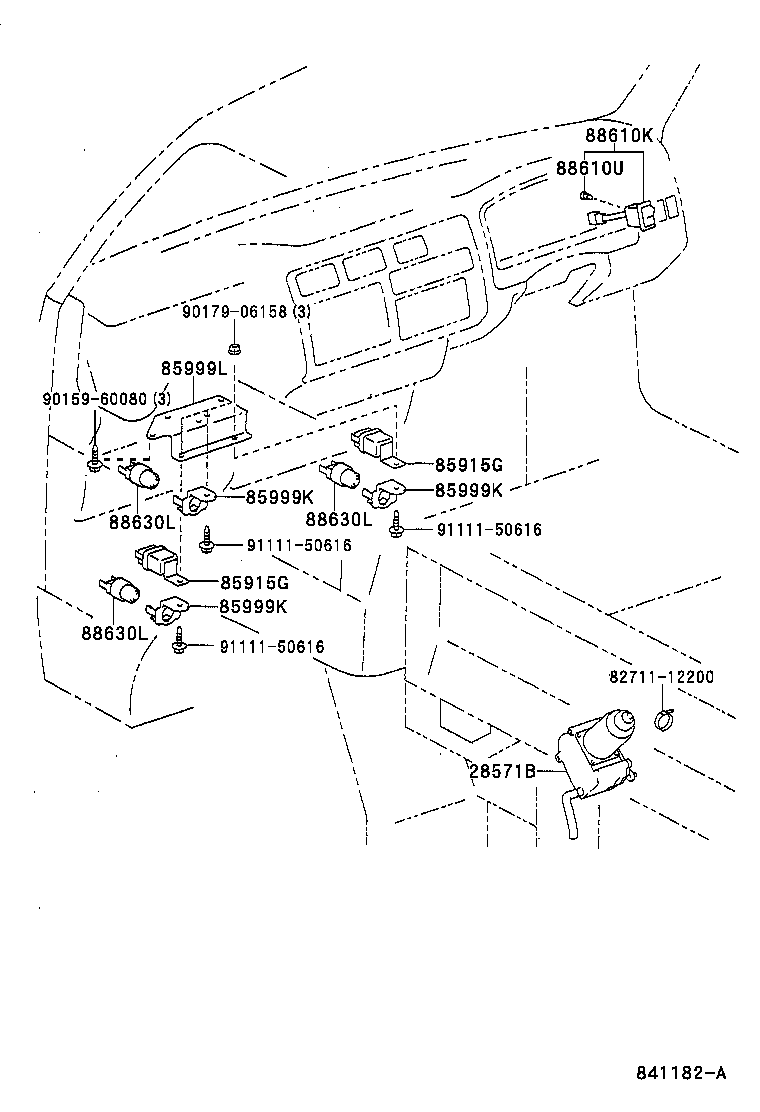

Click highlighted areas on diagram

diagram 28571B 8271112200 85915G 85915G 85999K 85999K 85999K 85999L 88610K 88610U 88630L 88630L 88630L 9015960080 9017906158 9111150616 9111150616 9111150616
Part # Description Qty Price
Common parts
82711-12200
90159-60080
90179-06158
91111-50616

(9505- )

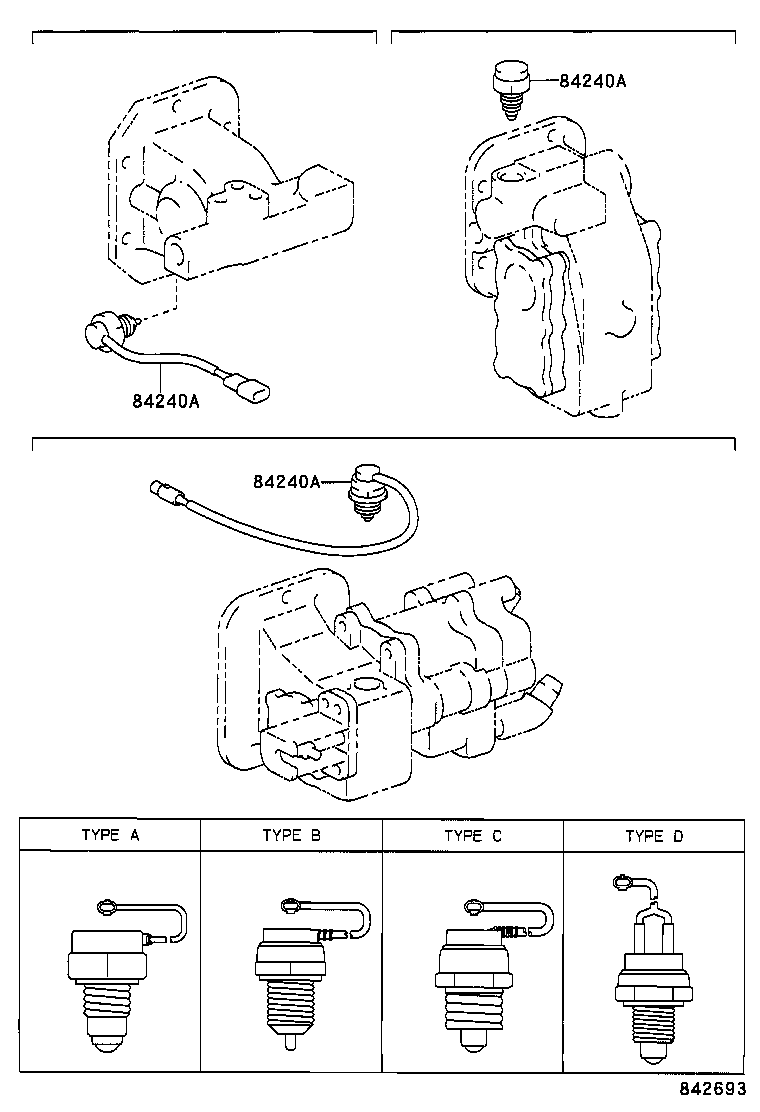

Click highlighted areas on diagram

diagram 84240A 84240A 84240A
Part # Description Qty Price
84240A - SWITCH ASSY, POWER TAKE-OFF INDICATOR
84240-37010

BU112..T3..IV3..4FC;BU102,112,162,RZU100..DM2,DM3,DM5,DM7,DM8

TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ

 1
84240A - SWITCH ASSY, POWER TAKE-OFF INDICATOR
84240-37010

BU112..T3..IV3..4FC;BU102,112,162,RZU100..DM2,DM3,DM5,DM7,DM8

TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ

 1
84240A - SWITCH ASSY, POWER TAKE-OFF INDICATOR
84240-37010

BU112..T3..IV3..4FC;BU102,112,162,RZU100..DM2,DM3,DM5,DM7,DM8

TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ

 1
