BU112D-TMPMS (1995)

Toyota Dyna 200/Toyoace G25

Production May 1995 - May 1999
Engine 15BF
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )BU102,112,162..DM2,DM5,DM7,DM8 ; (9708- )RZU100..DM5..CBU

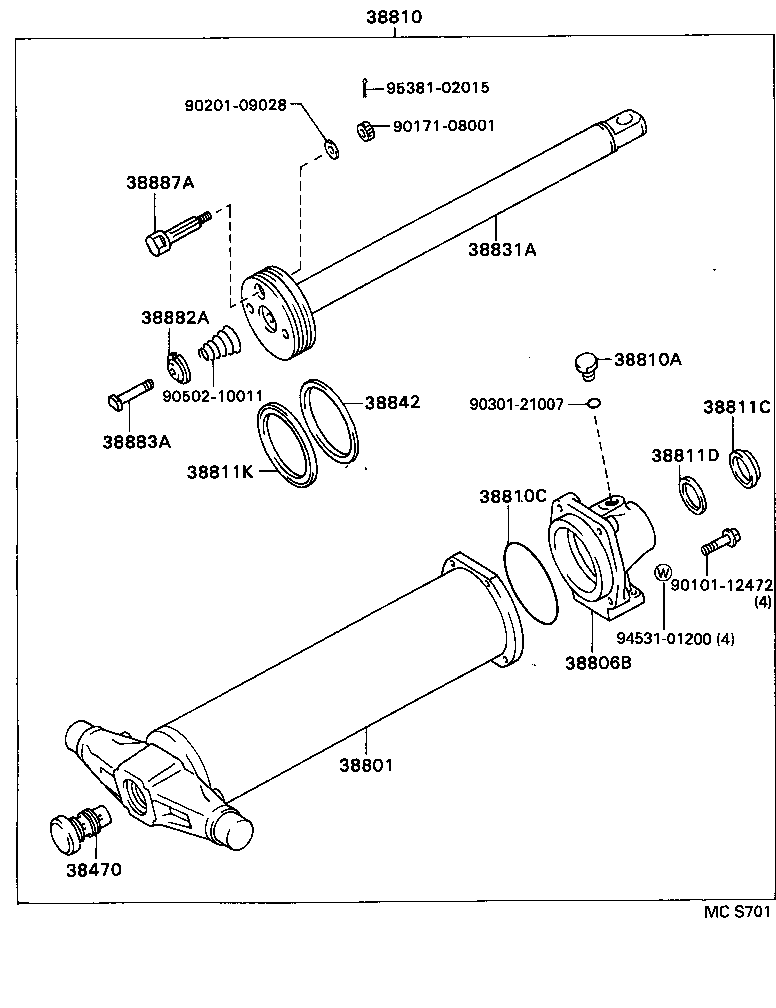

Click highlighted areas on diagram

diagram 38470 38801 38806B 38810 38810A 38810C 38811C 38811D 38811K 38831A 38842 38882A 38883A 38887A 9010112472 9017108001 9020109028 9030121007 9050210011 9453101200 9538102015
Part # Description Qty Price
38470 - VALVE ASSY, DUMP FLOW CONTROL
38470-96300

BU102,112,162,RZU100..(DM2,DM5,DM7,DM8)..CBU

 1
38801 - CYLINDER SUB-ASSY, HOIST
38801-93102

BU112..DMP..CBU

 1
38806B - HEAD SUB-ASSY, HOIST CYLINDER
38851-93102

BU112..DMP..CBU

 1
38810 - CYLINDER ASSY, HOIST
38810-93106

BU112..DMP..CBU

 1
38810A - PLUG, NO.1 (FOR HOIST CYLINDER)
90341-20001

BU102,112,162,RZU100,XZU130..(DM2,DM5,DM7,DM8)..CBU

 1
38810C - RING, O (FOR HOIST CYLINDER)
90301-99077

BU102,112,162,RZU100..(DM2,DM5,DM7,DM8)..CBU

 1
38811C - SEAL, DUST, NO.1 (FOR HOIST CYLINDER)
90304-50002

BU102,112,162,RZU100,XZU130..(DM2,DM5,DM7,DM8)..CBU

 1
38811D - SEAL, DUST, NO.2 (FOR HOIST CYLINDER)
90304-50001

BU102,112,162,RZU100,XZU130..(DM2,DM5,DM7,DM8)..CBU

 1
38811K - SEAL, DUST, NO.3 (FOR HOIST CYLINDER)
90304-99004

BU102,112,162,RZU100..(DM2,DM5,DM7,DM8)..CBU

 1
38831A - PISTON, HOIST CYLINDER
38830-93100

BU112..DMP..CBU

 1
38842 - RING, HOIST CYLINDER PISTON
38842-96301

BU102,112,162,RZU100..(DM2,DM5,DM7,DM8)..CBU

 1
38882A - VALVE, SLOW RETURN
38882-93200

BU102,112,162,RZU100,XZU130..(DM2,DM5,DM7,DM8)..CBU

 1
38883A - SPINDLE, SLOW RETURN VALVE
38883-93103

BU102,112,162,RZU100..(DM2,DM5,DM7,DM8)..CBU

 1
38887A - VALVE, HOIST CYLINDER POPPET
38887-93100

BU102,112,162,RZU100..(DM2,DM5,DM7,DM8)..CBU

 1
Common parts
90101-12472
90171-08001
90201-09028
90301-21007
90502-10011
94531-01200
95381-02015
