BU112-TKPMS3 (1995)
Toyota Dyna 200/Toyoace G25

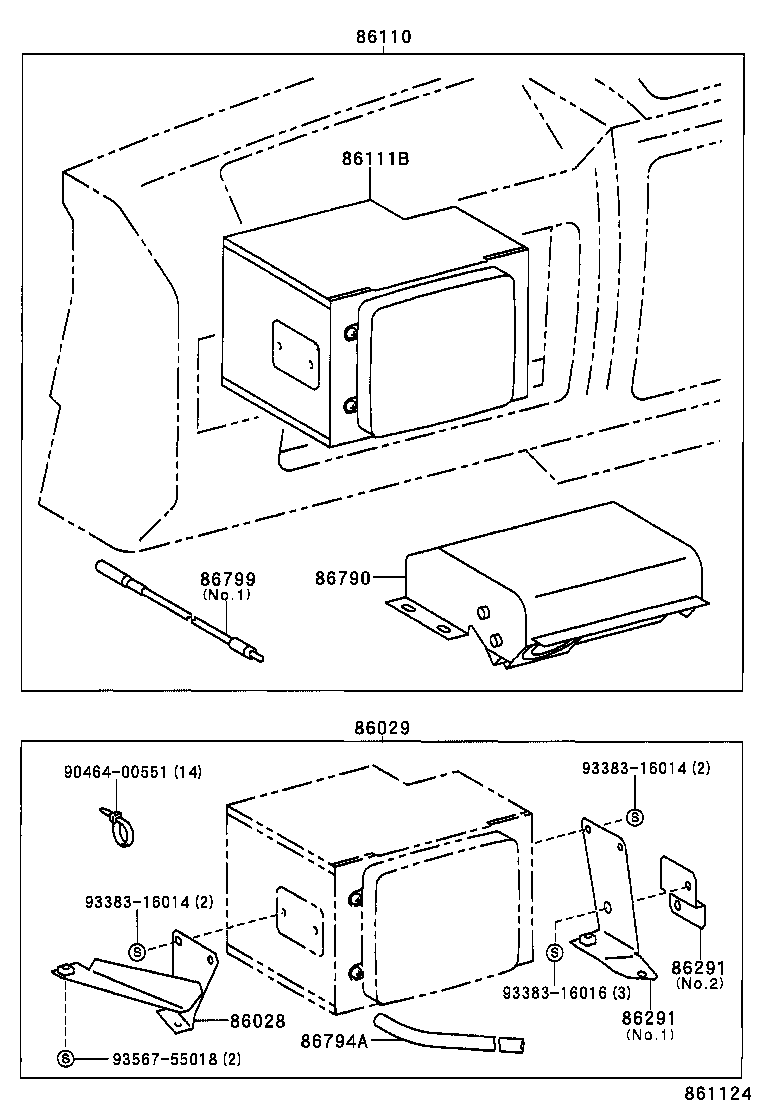

ILLUST NO. 1 OF 2(9505- )RZU100..EFI,LPG ; (9505- )BU10#,112,12#,13#,14#,162,172,182,202,212,2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86028 - BRACKET SUB-ASSY, TELEVISION | ||||
| 86028-37010 |
BU112,162..TR..IV3;BU10#,13#,14#,172,182,202,212,222,XZU130,140..(ALV,DM6,DM7,T1,T2,T3,T4,T5)..(DSL,TD)..IV3 |
1 | ||
| 86029 - BRACKET SET, TELEVISION | ||||
| 86029-37010 |
BU112,162..TR..IV3;BU10#,13#,14#,172,182,202,212,222,XZU130..(DM6,DM7,T1,T2,T3,T4,T5)..(DSL,TD)..IV3 *** |
1 | ||
| 86110 - MULTI-DISPLAY ASSY | ||||
| 86110-36010 |
BU112,162..TR..IV3;BU10#,13#,14#,172,182,202,212,222,XZU130,140..(ALV,DM6,DM7,T1,T2,T3,T4,T5)..(DSL,TD)..IV3 *** |
1 | ||
| 86111B - DISPLAY, MULTI-DISPLAY | ||||
| 86111-36010 |
BU112,162..TR..IV3;BU10#,13#,14#,172,182,202,212,222,XZU130,140..(ALV,DM6,DM7,T1,T2,T3,T4,T5)..(DSL,TD)..IV3 |
1 | ||
| 86291 - BRACKET, TELEVISION | ||||
| 86291-37040 |
BU112,162..TR..IV3;BU10#,13#,14#,172,182,202,212,222,XZU130,140..(ALV,DM6,DM7,T1,T2,T3,T4,T5)..(DSL,TD)..IV3 NO.2 |
1 | ||
| 86291-37030 |
BU112,162..TR..IV3;BU10#,13#,14#,172,182,202,212,222,XZU130,140..(ALV,DM6,DM7,T1,T2,T3,T4,T5)..(DSL,TD)..IV3 NO.1 |
1 | ||
| 86291 - BRACKET, TELEVISION | ||||
| 86291-37040 |
BU112,162..TR..IV3;BU10#,13#,14#,172,182,202,212,222,XZU130,140..(ALV,DM6,DM7,T1,T2,T3,T4,T5)..(DSL,TD)..IV3 NO.2 |
1 | ||
| 86291-37030 |
BU112,162..TR..IV3;BU10#,13#,14#,172,182,202,212,222,XZU130,140..(ALV,DM6,DM7,T1,T2,T3,T4,T5)..(DSL,TD)..IV3 NO.1 |
1 | ||
| 86790 - CAMERA ASSY, TELEVISION | ||||
| 86790-36010 |
BU112,162..TR..IV3;BU10#,13#,14#,172,182,202,212,222,XZU130,140..(ALV,DM6,DM7,T1,T2,T3,T4,T5)..(DSL,TD)..IV3 |
1 | ||
| 86794A - COVER, TELEVISION CAMERA WIRE, NO.2 | ||||
| 86794-37010 |
BU112,162..TR..IV3;BU10#,13#,14#,172,182,202,212,222,XZU130,140..(ALV,DM6,DM7,T1,T2,T3,T4,T5)..(DSL,TD)..IV3 |
1 | ||
| 86799 - WIRE, TELEVISION CAMERA | ||||
| 86799-36040 |
BU112,162..TR..IV3;BU10#,13#,14#,172,182,202,212,222,XZU130,140..(ALV,DM6,DM7,T1,T2,T3,T4,T5)..(DSL,TD)..IV3 NO.4 |
1 | ||
| 86799-36020 |
BU112,162..TR..IV3;BU10#,13#,14#,172,182,202,212,222,XZU130,140..(ALV,DM6,DM7,T1,T2,T3,T4,T5)..(DSL,TD)..IV3 NO.2 |
1 | ||
| 86799-36010 |
BU112,162..TR..IV3;BU10#,13#,14#,172,182,202,212,222,XZU130,140..(ALV,DM6,DM7,T1,T2,T3,T4,T5)..(DSL,TD)..IV3 NO.1 |
1 | ||
| 86799-36030 |
BU112,162..TR..IV3;BU10#,13#,14#,172,182,202,212,222,XZU130,140..(ALV,DM6,DM7,T1,T2,T3,T4,T5)..(DSL,TD)..IV3 NO.3 |
1 | ||
| Common parts | ||||
| 90464-00551 | ||||
| 93383-16014 | ||||
| 93383-16016 | ||||
| 93567-55018 | ||||

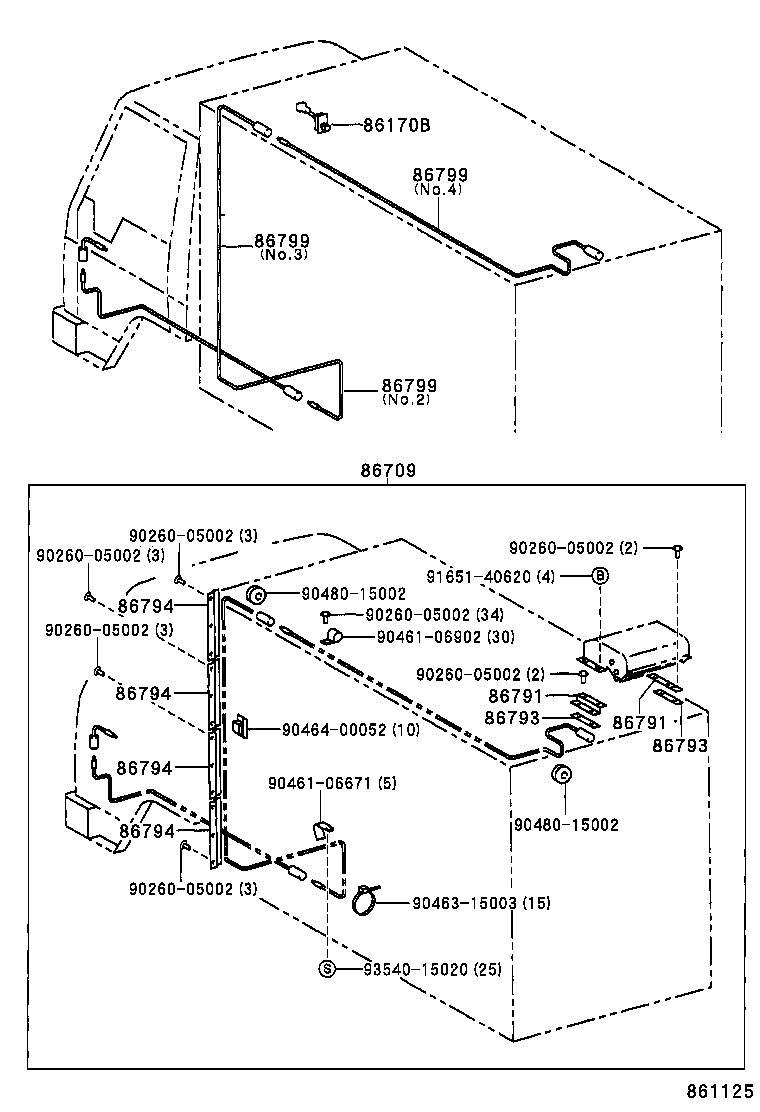

ILLUST NO. 2 OF 2(9505- )RZU100..EFI,LPG ; (9505- )BU10#,112,12#,13#,14#,162,172,182,202,212,2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86170B - SWITCH & VOLUME ASSY, TELEVISION | ||||
| 86170-36010B0 |
BU112,162..TR..IV3;BU10#,13#,14#,172,182,202,212,222,XZU130,140..(ALV,DM6,DM7,T1,T2,T3,T4,T5)..(DSL,TD)..IV3 GRAY,TRIM1# |
1 | ||
| 86709 - BRACKET SET, TELEVISION CAMERA | ||||
| 86709-95400 |
BU10#,112,13#,14#,162,172,182,202,212,222..(ALV,DM6,T1,T2,T3,T4,T5)..(DSL,TD)..IV3 *** |
1 | ||
| 86791 - BRACKET, TELEVISION CAMERA | ||||
| 86791-95400 |
BU10#,112,13#,14#,162,172,182,202,212,222..(ALV,DM6,T1,T2,T3,T4,T5)..(DSL,TD)..IV3 |
2 | ||
| 86791 - BRACKET, TELEVISION CAMERA | ||||
| 86791-95400 |
BU10#,112,13#,14#,162,172,182,202,212,222..(ALV,DM6,T1,T2,T3,T4,T5)..(DSL,TD)..IV3 |
2 | ||
| 86793 - SPACER, CAMERA BRACKET | ||||
| 86793-95400 |
BU10#,112,13#,14#,162,172,182,202,212,222..(ALV,DM6,T1,T2,T3,T4,T5)..(DSL,TD)..IV3 |
2 | ||
| 86793 - SPACER, CAMERA BRACKET | ||||
| 86793-95400 |
BU10#,112,13#,14#,162,172,182,202,212,222..(ALV,DM6,T1,T2,T3,T4,T5)..(DSL,TD)..IV3 |
2 | ||
| 86794 - COVER, TELEVISION CAMERA WIRE | ||||
| 86794-95400 |
BU10#,112,13#,14#,162,172,182,202,212,222..(ALV,DM6,T1,T2,T3,T4,T5)..(DSL,TD)..IV3 |
4 | ||
| 86794 - COVER, TELEVISION CAMERA WIRE | ||||
| 86794-95400 |
BU10#,112,13#,14#,162,172,182,202,212,222..(ALV,DM6,T1,T2,T3,T4,T5)..(DSL,TD)..IV3 |
4 | ||
| 86794 - COVER, TELEVISION CAMERA WIRE | ||||
| 86794-95400 |
BU10#,112,13#,14#,162,172,182,202,212,222..(ALV,DM6,T1,T2,T3,T4,T5)..(DSL,TD)..IV3 |
4 | ||
| 86794 - COVER, TELEVISION CAMERA WIRE | ||||
| 86794-95400 |
BU10#,112,13#,14#,162,172,182,202,212,222..(ALV,DM6,T1,T2,T3,T4,T5)..(DSL,TD)..IV3 |
4 | ||
| 86799 - WIRE, TELEVISION CAMERA | ||||
| 86799-36040 |
BU112,162..TR..IV3;BU10#,13#,14#,172,182,202,212,222,XZU130,140..(ALV,DM6,DM7,T1,T2,T3,T4,T5)..(DSL,TD)..IV3 NO.4 |
1 | ||
| 86799-36020 |
BU112,162..TR..IV3;BU10#,13#,14#,172,182,202,212,222,XZU130,140..(ALV,DM6,DM7,T1,T2,T3,T4,T5)..(DSL,TD)..IV3 NO.2 |
1 | ||
| 86799-36010 |
BU112,162..TR..IV3;BU10#,13#,14#,172,182,202,212,222,XZU130,140..(ALV,DM6,DM7,T1,T2,T3,T4,T5)..(DSL,TD)..IV3 NO.1 |
1 | ||
| 86799-36030 |
BU112,162..TR..IV3;BU10#,13#,14#,172,182,202,212,222,XZU130,140..(ALV,DM6,DM7,T1,T2,T3,T4,T5)..(DSL,TD)..IV3 NO.3 |
1 | ||
| 86799 - WIRE, TELEVISION CAMERA | ||||
| 86799-36040 |
BU112,162..TR..IV3;BU10#,13#,14#,172,182,202,212,222,XZU130,140..(ALV,DM6,DM7,T1,T2,T3,T4,T5)..(DSL,TD)..IV3 NO.4 |
1 | ||
| 86799-36020 |
BU112,162..TR..IV3;BU10#,13#,14#,172,182,202,212,222,XZU130,140..(ALV,DM6,DM7,T1,T2,T3,T4,T5)..(DSL,TD)..IV3 NO.2 |
1 | ||
| 86799-36010 |
BU112,162..TR..IV3;BU10#,13#,14#,172,182,202,212,222,XZU130,140..(ALV,DM6,DM7,T1,T2,T3,T4,T5)..(DSL,TD)..IV3 NO.1 |
1 | ||
| 86799-36030 |
BU112,162..TR..IV3;BU10#,13#,14#,172,182,202,212,222,XZU130,140..(ALV,DM6,DM7,T1,T2,T3,T4,T5)..(DSL,TD)..IV3 NO.3 |
1 | ||
| 86799 - WIRE, TELEVISION CAMERA | ||||
| 86799-36040 |
BU112,162..TR..IV3;BU10#,13#,14#,172,182,202,212,222,XZU130,140..(ALV,DM6,DM7,T1,T2,T3,T4,T5)..(DSL,TD)..IV3 NO.4 |
1 | ||
| 86799-36020 |
BU112,162..TR..IV3;BU10#,13#,14#,172,182,202,212,222,XZU130,140..(ALV,DM6,DM7,T1,T2,T3,T4,T5)..(DSL,TD)..IV3 NO.2 |
1 | ||
| 86799-36010 |
BU112,162..TR..IV3;BU10#,13#,14#,172,182,202,212,222,XZU130,140..(ALV,DM6,DM7,T1,T2,T3,T4,T5)..(DSL,TD)..IV3 NO.1 |
1 | ||
| 86799-36030 |
BU112,162..TR..IV3;BU10#,13#,14#,172,182,202,212,222,XZU130,140..(ALV,DM6,DM7,T1,T2,T3,T4,T5)..(DSL,TD)..IV3 NO.3 |
1 | ||
| Common parts | ||||
| 90260-05002 | ||||
| 90461-06671 | ||||
| 90461-06902 | ||||
| 90463-15003 | ||||
| 90464-00052 | ||||
| 90480-15002 | ||||
| 91651-40620 | ||||
| 93540-15020 | ||||
