BU112-TKPMS3 (1995)

Toyota Dyna 200/Toyoace G25

Production May 1995 - May 1999
Engine 15BF
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140

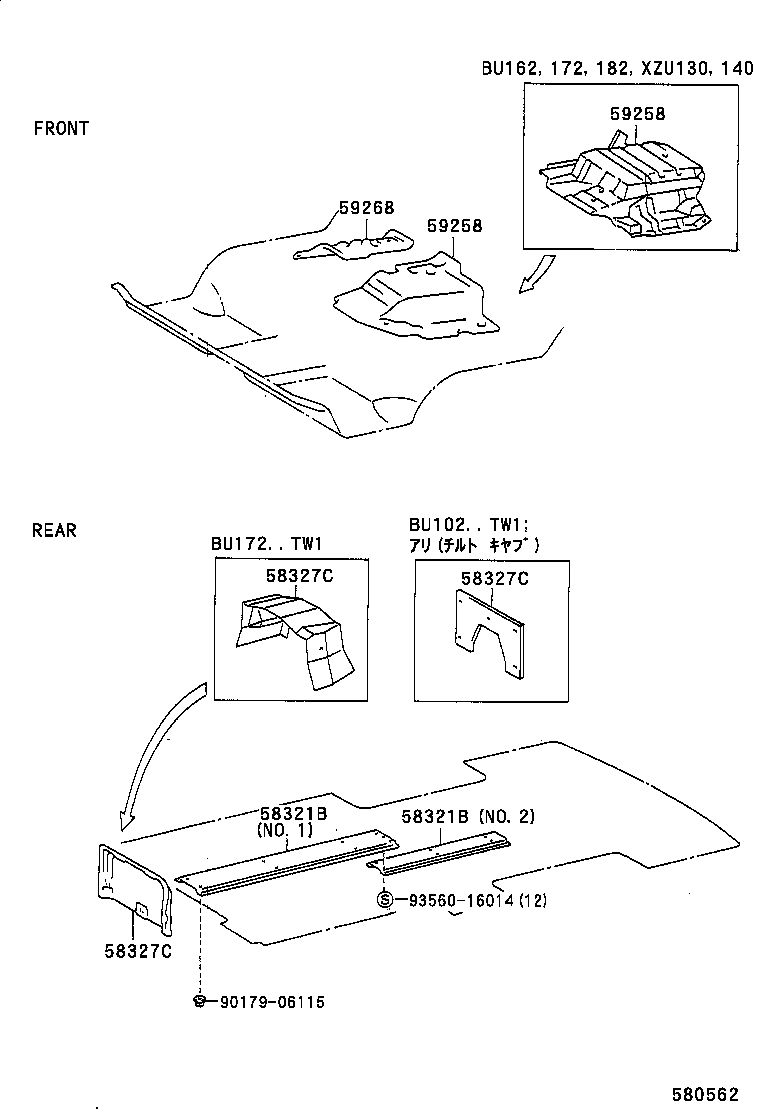

Click highlighted areas on diagram

diagram 58321B 58321B 58327C 58327C 58327C 59258 59258 59268 9017906115 9356016014
Part # Description Qty Price
59258 - INSULATOR, ENGINE SERVICE HOLE COVER MAIN
59258-37060

BU10#,112,12#,13#,14#,202,212,222,297,RZU100,140

 1
59258 - INSULATOR, ENGINE SERVICE HOLE COVER MAIN
59258-37060

BU10#,112,12#,13#,14#,202,212,222,297,RZU100,140

 1
59268 - INSULATOR, ENGINE SUB COVER
59268-37030

BU10#,112,12#,13#,14#,202,212,222,RZU100,140

 1
Common parts
90179-06115
93560-16014
