BU112-TKPMS3 (1995)

Toyota Dyna 200/Toyoace G25

Production May 1995 - May 1999
Engine 15BF
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )BU132,RZU140..T3,T4 ; (9505- )BU10#,112,12#,137,14#,RZU100..DSL,LPGB

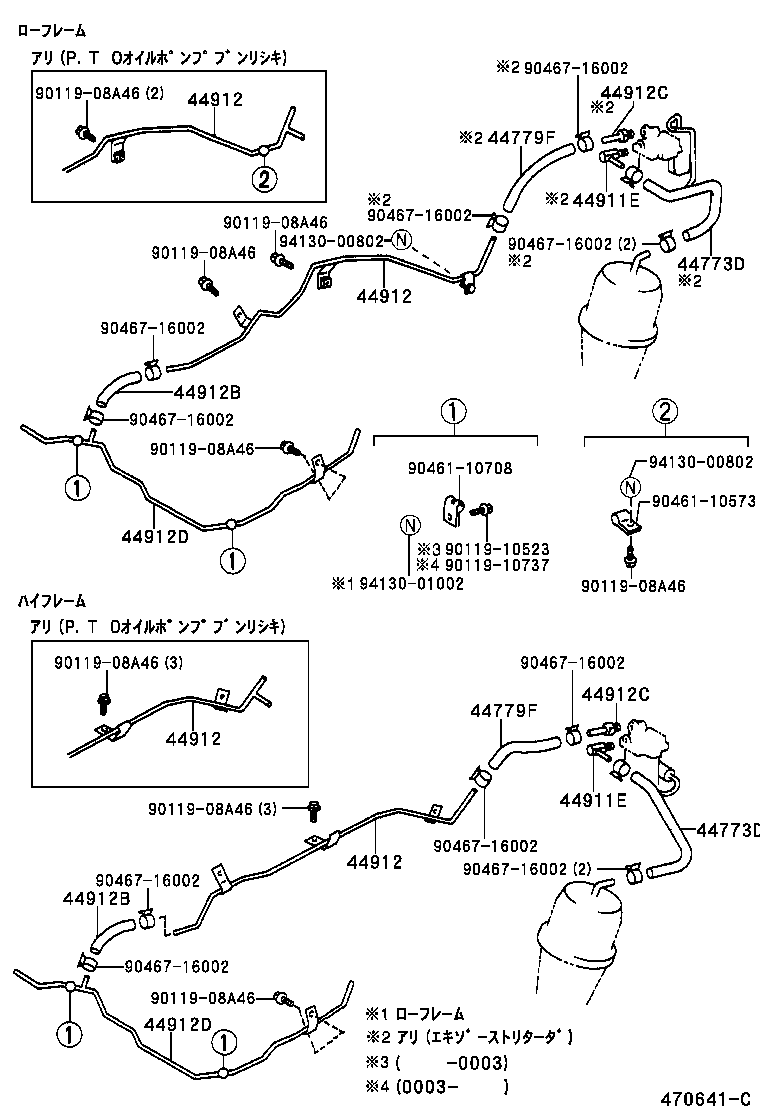

Click highlighted areas on diagram

diagram 44773D 44773D 44779F 44779F 44911E 44911E 44912 44912 44912 44912 44912B 44912B 44912C 44912C 44912D 44912D 9011908A46 9011908A46 9011908A46 9011908A46 9011908A46 9011908A46 9011908A46 9011908A46 9011910523 9011910737 9046110573 9046110708 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9413000802 9413000802 9413001002
Part # Description Qty Price
44773D - HOSE, SOLENOIDO TO RETARDER
44773-37020

BU10#,12#,13#,14#..DSL..(4FC,5F)

 1
44773-36031

BU112

 1
44773D - HOSE, SOLENOIDO TO RETARDER
44773-37020

BU10#,12#,13#,14#..DSL..(4FC,5F)

 1
44773-36031

BU112

 1
44779F - HOSE, CONNECTOR TUBE TO SOLENOID, NO.1
95446-09180

BU10#,112,12#,13#,14#,XZU130,140..DSL

 1
44779F - HOSE, CONNECTOR TUBE TO SOLENOID, NO.1
95446-09180

BU10#,112,12#,13#,14#,XZU130,140..DSL

 1
44911E - ELBOW (FOR MAGNETIC VALVE TO VACUUM CYLINDER TUBE)
90407-51002

BU10#,112,12#,13#,14#,162,172,182,297..DSL,TD

 1
44911E - ELBOW (FOR MAGNETIC VALVE TO VACUUM CYLINDER TUBE)
90407-51002

BU10#,112,12#,13#,14#,162,172,182,297..DSL,TD

 1
44912 - TUBE, 3 WAY TO MAGNETIC VALVE
44765-37020

BU112

 1
44765-37010

BU10#,12#,132,14#

 1
44912 - TUBE, 3 WAY TO MAGNETIC VALVE
44765-37020

BU112

 1
44765-37010

BU10#,12#,132,14#

 1
44912 - TUBE, 3 WAY TO MAGNETIC VALVE
44765-37020

BU112

 1
44765-37010

BU10#,12#,132,14#

 1
44912 - TUBE, 3 WAY TO MAGNETIC VALVE
44765-37020

BU112

 1
44765-37010

BU10#,12#,132,14#

 1
44912B - HOSE(FOR 3 WAY TO MAGNETIC VALVE TUBE)
95446-09110

BU132,142..(T2,T3,T4,TW4)..DSL;BU10#,112,12#,137,140,145,147,202,212,222,RZU100..DSL,LPGB,TD

 1
95446-09110

BU10#,112,12#,132,14#,202,212,222

 1
44912B - HOSE(FOR 3 WAY TO MAGNETIC VALVE TUBE)
95446-09110

BU132,142..(T2,T3,T4,TW4)..DSL;BU10#,112,12#,137,140,145,147,202,212,222,RZU100..DSL,LPGB,TD

 1
95446-09110

BU10#,112,12#,132,14#,202,212,222

 1
44912C - UNION(FOR 3 WAY TO MAGNETIC VALVE TUBE)
90404-51319

BU10#,112,12#,13#,14#,162,172,182..DSL

 1
44912C - UNION(FOR 3 WAY TO MAGNETIC VALVE TUBE)
90404-51319

BU10#,112,12#,13#,14#,162,172,182..DSL

 1
44912D - TUBE, VACUUM(FOR MAGNETIC VALVE TO RESERVOIR)
44912-37050

BU132..T3,T4;BU100,102,112,12#,140,142..DSL

 1
44912-37180

BU120..03S;BU142..DSL;BU107,137,147..5F;BU100,102,105,112,132,140,145,RZU100..(DM2,DM3,DM5,DM6,DM7,DM8,T1,T2,T3,T4,TW1,TW2,TW4)..(DSL,LPGB)

ｱﾘ(P.T.O ｵｲﾙﾎﾟﾝﾌﾟ ﾌﾞﾝﾘｼｷ)

 1
44912-37180

BU132..T3,T4;BU107,147..5F;BU100,102,112,12#,137,140,142

ｱﾘ(P.T.O ｵｲﾙﾎﾟﾝﾌﾟ ﾌﾞﾝﾘｼｷ)

 1
44912D - TUBE, VACUUM(FOR MAGNETIC VALVE TO RESERVOIR)
44912-37050

BU132..T3,T4;BU100,102,112,12#,140,142..DSL

 1
44912-37180

BU120..03S;BU142..DSL;BU107,137,147..5F;BU100,102,105,112,132,140,145,RZU100..(DM2,DM3,DM5,DM6,DM7,DM8,T1,T2,T3,T4,TW1,TW2,TW4)..(DSL,LPGB)

ｱﾘ(P.T.O ｵｲﾙﾎﾟﾝﾌﾟ ﾌﾞﾝﾘｼｷ)

 1
44912-37180

BU132..T3,T4;BU107,147..5F;BU100,102,112,12#,137,140,142

ｱﾘ(P.T.O ｵｲﾙﾎﾟﾝﾌﾟ ﾌﾞﾝﾘｼｷ)

 1
Common parts
90119-08A46
90119-10523
90119-10737
90461-10573
90461-10708
90467-16002
94130-00802
94130-01002
