BU112-TKMMS3 (1995)

Toyota Dyna 200/Toyoace G25

Production May 1995 - May 1999
Engine 15BF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

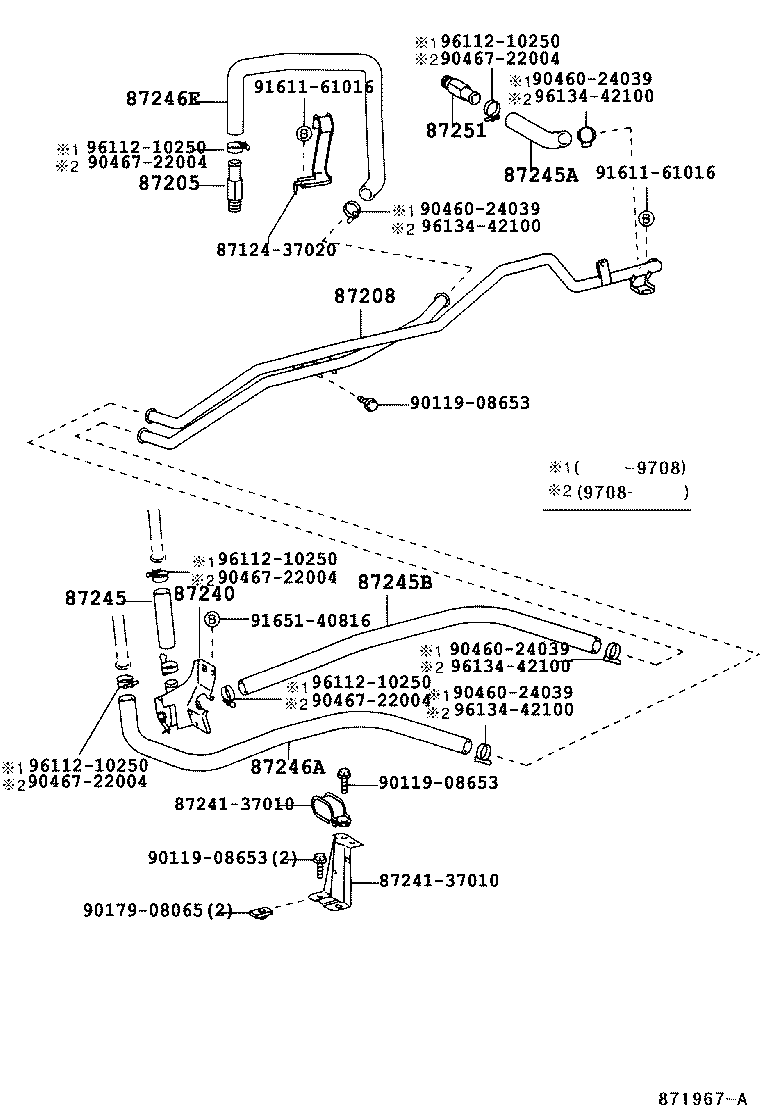

ILLUST NO. 1 OF 2(9505- )BU10#,12#,13#,14#..DSL

Click highlighted areas on diagram

ﾌﾛﾝﾄ

diagram 8712437010 8712437020 87205 87208 87240 8724137010 87245 87245A 87245B 87246A 87246E 87251 9011908653 9011908653 9011908653 9017908065 9046024039 9046024039 9046024039 9046024039 9046722004 9046722004 9046722004 9046722004 9046722004 9161161016 9161161016 9165140816 9611210250 9611210250 9611210250 9611210250 9611210250 9613442100 9613442100 9613442100 9613442100
Part # Description Qty Price
87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV
87251-30200

BU10#,112,12#,13#,14#,202,212,222..DSL,TD

 1
87208 - PIPE SUB-ASSY, HEATER WATER
87208-37140

BU112

 1
87208-37030

BU132..T3,T4;BU100,102,12#,140,142..DSL

 1
87208-37340

BU112

EGR 2ｺﾂｷ ｼﾔ

 1
87240 - VALVE ASSY, HEATER WATER
87240-37010

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140

 1
87245 - HOSE, HEATER WATER, INLET
99556-30100

BU297;BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140..02S,03S,06S,07S

 1
87245A - HOSE, HEATER WATER, INLET A
87245-37590

BU112

長さ=260

 1
87245-37630

BU112

 1
99556-30300

BU10#,12#,13#,14#..DSL

*H,L=230

 1
99556-30300

BU112,202,212,222

*H,L=260

 1
87245B - HOSE, HEATER WATER, INLET B
87245-37060

BU132..T3,T4;BU100,102,112,12#,140,142,RZU100,140..DSL,EFI

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-37070

BU132..T3,T4;BU100,102,112,12#,140,142,RZU100,140..DSL,EFI

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-37080

BU10#,112,12#,13#,14#..DSL

 1
87251 - JOINT OR UNION, WATER HOSE THROUGH
87251-30200

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297

 1
87251-30200

BU10#,112,120,13#,14#,202,212,222,297,RZU100..DSL,LPGB,TD

 1
Common parts
87124-37010
87124-37020
87241-37010
90119-08653
90179-08065
90460-24039
90467-22004
91611-61016
91651-40816
96112-10250
96134-42100

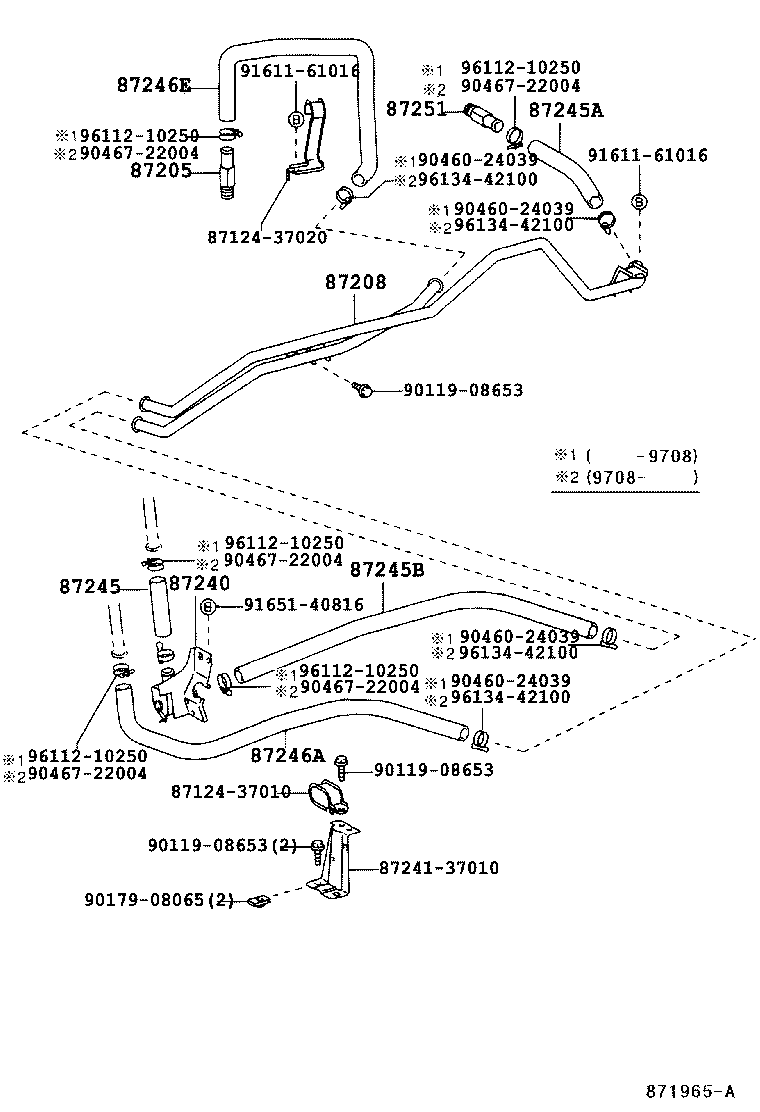

ILLUST NO. 1 OF 2(9505- )BU112

Click highlighted areas on diagram

ﾌﾛﾝﾄ

diagram 8712437020 87205 87208 87240 8724137010 8724137010 87245 87245A 87245B 87246A 87246E 87251 9011908653 9011908653 9011908653 9017908065 9046024039 9046024039 9046024039 9046024039 9046722004 9046722004 9046722004 9046722004 9046722004 9161161016 9161161016 9165140816 9611210250 9611210250 9611210250 9611210250 9611210250 9613442100 9613442100 9613442100 9613442100
Part # Description Qty Price
87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV
87251-30200

BU10#,112,12#,13#,14#,202,212,222..DSL,TD

 1
87208 - PIPE SUB-ASSY, HEATER WATER
87208-37140

BU112

 1
87208-37030

BU132..T3,T4;BU100,102,12#,140,142..DSL

 1
87208-37340

BU112

EGR 2ｺﾂｷ ｼﾔ

 1
87240 - VALVE ASSY, HEATER WATER
87240-37010

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140

 1
87245 - HOSE, HEATER WATER, INLET
99556-30100

BU297;BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140..02S,03S,06S,07S

 1
87245A - HOSE, HEATER WATER, INLET A
87245-37590

BU112

長さ=260

 1
87245-37630

BU112

 1
99556-30300

BU10#,12#,13#,14#..DSL

*H,L=230

 1
99556-30300

BU112,202,212,222

*H,L=260

 1
87245B - HOSE, HEATER WATER, INLET B
87245-37060

BU132..T3,T4;BU100,102,112,12#,140,142,RZU100,140..DSL,EFI

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-37070

BU132..T3,T4;BU100,102,112,12#,140,142,RZU100,140..DSL,EFI

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-37080

BU10#,112,12#,13#,14#..DSL

 1
87251 - JOINT OR UNION, WATER HOSE THROUGH
87251-30200

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297

 1
87251-30200

BU10#,112,120,13#,14#,202,212,222,297,RZU100..DSL,LPGB,TD

 1
Common parts
87124-37020
87241-37010
90119-08653
90179-08065
90460-24039
90467-22004
91611-61016
91651-40816
96112-10250
96134-42100
