BU107-TQMMS (1996)

Toyota Dyna 200/Toyoace G25

Production Oct 1996 - May 1999
Engine 15BF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

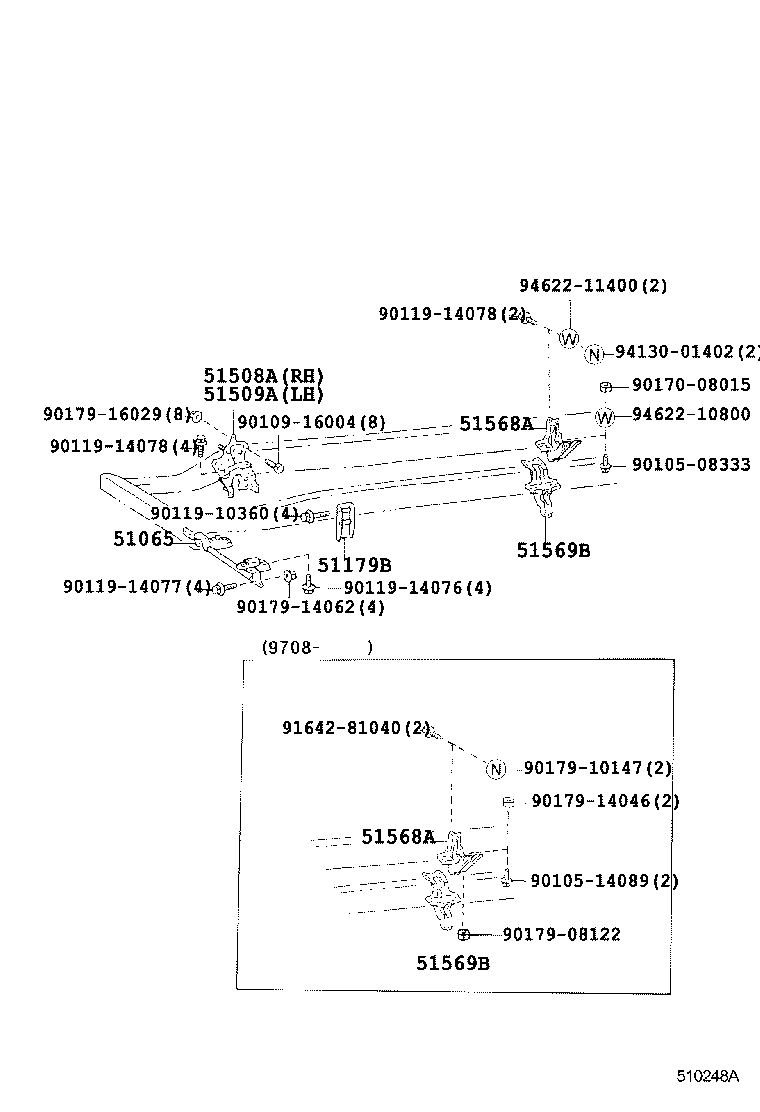

ILLUST NO. 5 OF 5(9610- )BU105,107,137,145,147,RZU100..DSL,LPGB

Click highlighted areas on diagram

diagram 51065 51179B 51508A 51509A 51568A 51568A 51569B 51569B 9010508333 9010514089 9010916004 9011910360 9011914076 9011914077 9011914078 9011914078 9017008015 9017908122 9017910147 9017914046 9017914062 9017916029 9164281040 9413001402 9462210800 9462211400
Part # Description Qty Price
51065 - SUPPORT SUB-ASSY, STEERING GEAR BOX
51065-37010

BU105,107,137,145,147

 1
51179B - SUPPORT, JACK UP
51179-37010

BU105,107,137,145,147

 2
51508A - BRACKET SUB-ASSY, LOWER ARM, RH
51508-37010

BU105,107,137,145,147

 1
51509A - BRACKET SUB-ASSY, LOWER ARM, LH
51509-37010

BU105,107,137,145,147

 1
51568A - SUPPORT, ANCHOR ARM, LOWER RH
51568-37130

BU105,107,137,145,147

 1
51568A - SUPPORT, ANCHOR ARM, LOWER RH
51568-37130

BU105,107,137,145,147

 1
51569B - SUPPORT, ANCHOR ARM, LOWER LH
51569-37130

BU105,107,137,145,147

 1
51569B - SUPPORT, ANCHOR ARM, LOWER LH
51569-37130

BU105,107,137,145,147

 1
Common parts
90105-08333
90105-14089
90109-16004
90119-10360
90119-14076
90119-14077
90119-14078
90170-08015
90179-08122
90179-10147
90179-14046
90179-14062
90179-16029
91642-81040
94130-01402
94622-10800
94622-11400
