BU107-TGPMS (1996)

Toyota Dyna 200/Toyoace G25

Production Oct 1996 - May 1999
Engine 15BF
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9610- )15BF,3B..BU105,107

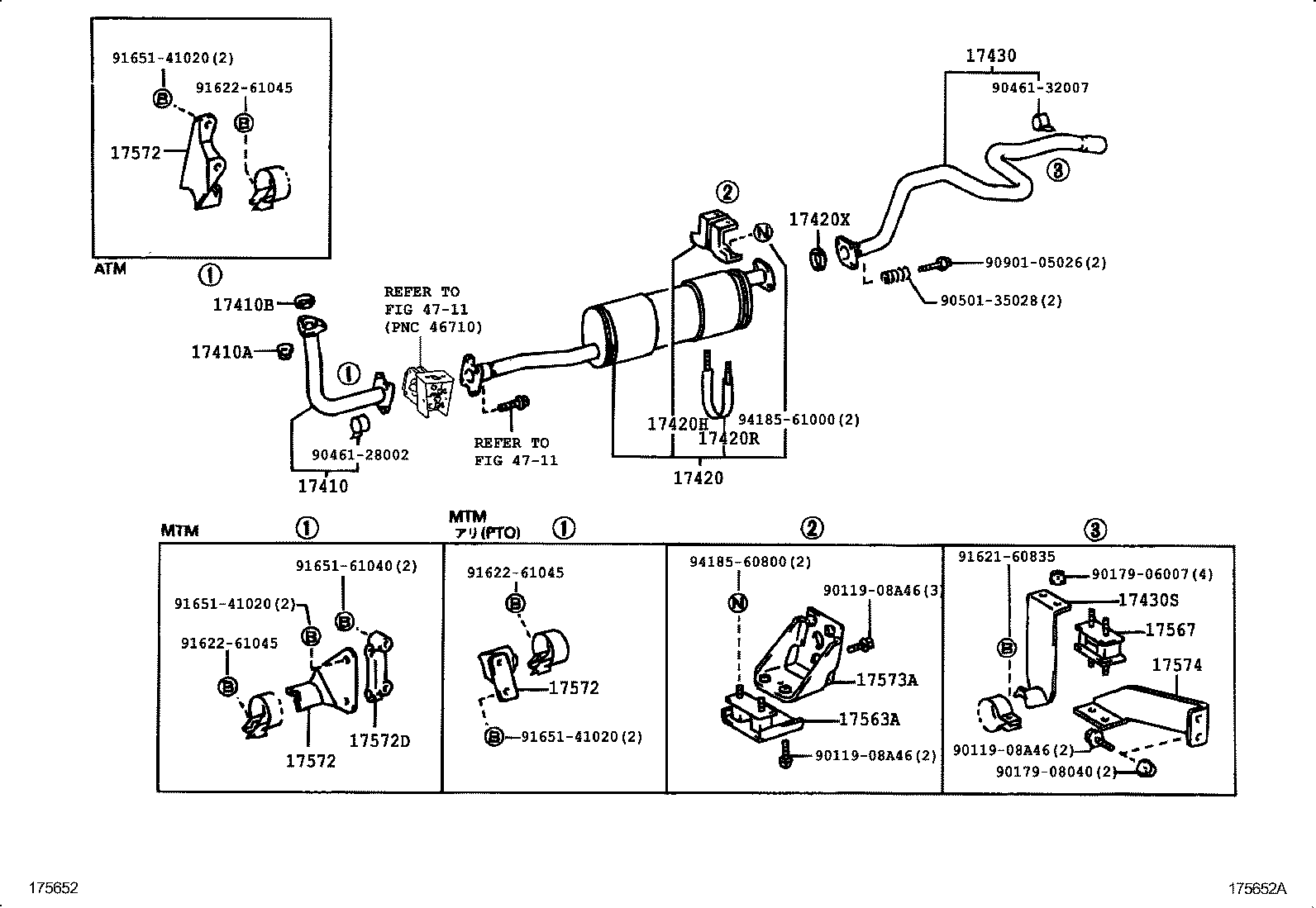

Click highlighted areas on diagram

diagram 17410 17410A 17410B 17420 17420H 17420R 17420X 17430 17430S 17563A 17567 17572 17572 17572 17572D 17573A 17574 4711 4711 9011908A46 9011908A46 9011908A46 9017906007 9017908040 9046128002 9046132007 9050135028 9090105026 9162160835 9162261045 9162261045 9162261045 9165141020 9165141020 9165141020 9165161040 9418560800 9418561000
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-58190

15BF,3B..BU10#,112,12#,132,14#

 1
17410-58260

15BF,3B..BU105,107,137,145,147

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

15B#,3B,3RZ#..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140

 3
17410B - GASKET, EXHAUST PIPE
90917-06067

15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-58580

15BF,3B..BU10#..WT

 1
17420-58850

15BF,3B..BU105,107

 1
17420H - CLAMP NO.1, EXHAUST PIPE CENTER, CENTER
17576-58030

15BF,15BFP,3B,3RZ#..BU10#,112,12#,13#,14#,162,172,182,RZU100

 1
17420R - CLAMP NO.2, EXHAUST PIPE CENTER, CENTER
17504-58020

15BF,15BFP,3B,3RZ#..BU10#,112,12#,13#,14#,162,172,182,RZU100

 1
17420X - GASKET, EXHAUST PIPE, CENTER
17451-67010

15BF,3B..BU105,107,137,145,147

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-58640

15BF,3B..BU105,107

 1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17561-47010

J05C,15B#,3B,3RZ#..BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140

 1
17563A - SUPPORT, EXHAUST PIPE, NO.3
17563-58010

15BF,15BFP,3B,3RZ#..BU10#,12#,13#,162,172,RZU100,140

 1
17567 - CUSHION, EXHAUST PIPE SUPPORT
17567-17010

J05C,15B#,3B,3RZ#..BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140

 1
17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT
17571-58330

15BF..BU107,137,147..4FC

 1
17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT
17571-58330

15BF..BU107,137,147..4FC

 1
17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT
17571-58330

15BF..BU107,137,147..4FC

 1
17573A - BRACKET, EXHAUST PIPE SUPPORT, NO.3
17573-58040

15BF..BU107,13#,142,147,182;15BF,15BFP,3B,3RZ#..BU100,102,105,140,142,145,RZU100..(DM3,DM6,T2,T3,T4,T5,TW1,TW4)..WT

 1
17574 - BRACKET, EXHAUST PIPE SUPPORT, NO.4
17574-58040

15BF..BU132..TL4;3RZFE..RZU100..DM5,T2,T4,TW4;15BF..BU142,147,212..ALV,T3,T4,TW1,TW4;15BF,15BFP..BU102,RZU100..T3..(275T,30T);15BFP,15BFT,3B..BU140,142,145,212..T3,T4;15BF,3B,3RZFP..BU100,102,RZU100..(DM2,T2,T4,TW4)..20T;J05C,15BFT,15BF,3B,3RZFE..BU105,107,182,202,222,RZU140,XZU140

 1
Common parts
90119-08A46
90179-06007
90179-08040
90461-28002
90461-32007
90501-35028
90901-05026
91621-60835
91622-61045
91651-41020
91651-61040
94185-60800
94185-61000
Linked diagrams
4711
