BU107-TGMMS3 (1996)

Toyota Dyna 200/Toyoace G25

Production Oct 1996 - May 1999
Engine 15BF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(9710- )BU100,102,RZU100..T4,TW4..20T ; (9805- )T4..LPG..IV3 ; (9805- )BU1

Click highlighted areas on diagram

diagram 48110 48110F 48110F 48110F 48110F 48111 48112 48120 48141 48141 48147 48153 48252D 48253C 48253C 48253C 9017910043
Part # Description Qty Price
48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING)
48299-36010

BU10#,112,12#,132,14#,162,172,182,RZU100,XZU130

 8
48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING)
48299-36010

BU10#,112,12#,132,14#,162,172,182,RZU100,XZU130

 8
48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING)
48299-36010

BU10#,112,12#,132,14#,162,172,182,RZU100,XZU130

 8
48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING)
48299-36010

BU10#,112,12#,132,14#,162,172,182,RZU100,XZU130

 8
48111 - LEAF, FRONT SPRING, NO.1
48101-3B170

BU112..DMP;BU10#..T2..IV3;BU10#..(DM2,DM3,DM5,T1,T3,T4,TW2)..(175T,20T)

3-LEAF,運転席側

 1
48101-3B180

BU112..DMP;BU10#..T2..IV3;BU10#..(DM2,DM3,DM5,T1,T3,T4,TW2)..(175T,20T)

3-LEAF,助手席側

 1
48112 - LEAF, FRONT SPRING, NO.2
48112-3B170

BU112..DMP;BU10#..T2..IV3;BU10#..(DM2,DM3,DM5,T1,T3,T4,TW2)..(175T,20T)

3-LEAF,運転席側

 1
48112-3B180

BU112..DMP;BU10#..T2..IV3;BU10#..(DM2,DM3,DM5,T1,T3,T4,TW2)..(175T,20T)

3-LEAF,助手席側

 1
48147 - BOLT, FRONT SPRING, CENTER
48147-3B130

BU132,14#..20T;BU112,12#..DMP,V;RZU100..(T2,T3,TW1)..20T;BU10#..(DM2,DM3,DM5,T1,T2,T3,T4,TW2)..(175T,20T)

L=56

 2
Common parts
90179-10043

(9610- )BU105,107,137,145,147

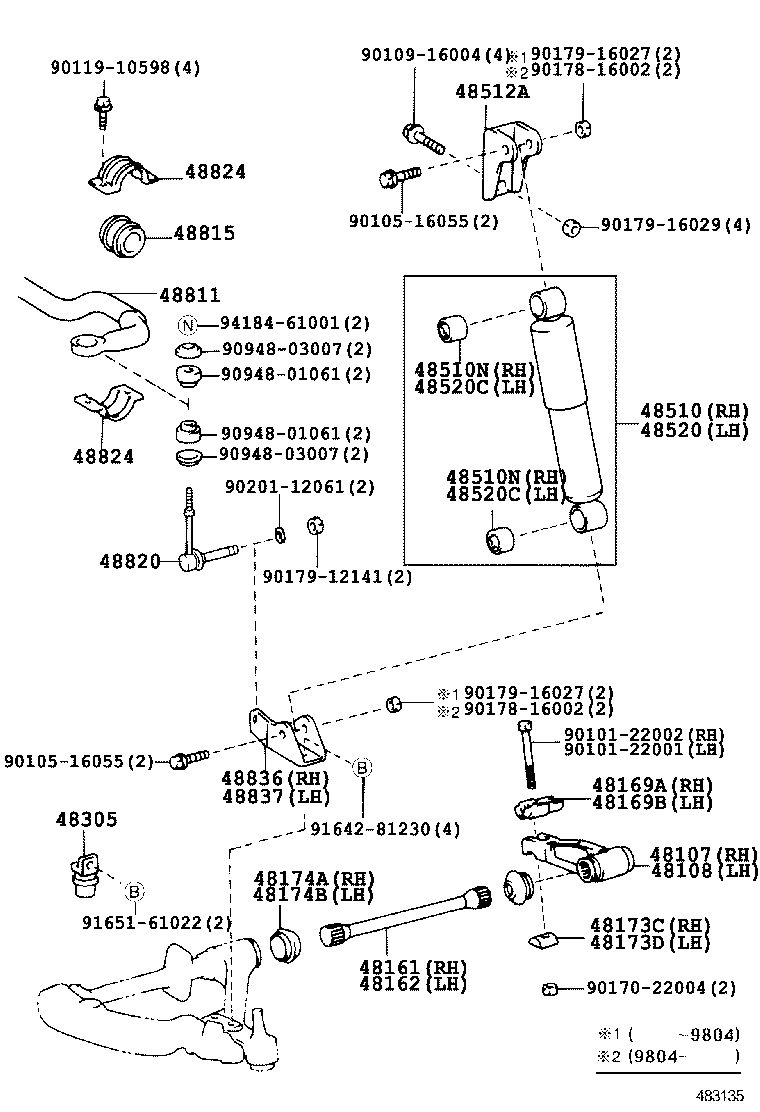

Click highlighted areas on diagram

diagram 48107 48108 48161 48162 48169A 48169B 48173C 48173D 48174A 48174B 48305 48510 48510N 48510N 48512A 48520 48520C 48520C 48811 48815 48820 48824 48824 48836 48837 9010122001 9010122002 9010516055 9010516055 9010916004 9011910598 9017022004 9017816002 9017816002 9017912141 9017916027 9017916027 9017916029 9020112061 9094801061 9094801061 9094803007 9094803007 9164281230 9165161022 9418461001
Part # Description Qty Price
48107 - ARM SUB-ASSY, ANCHOR, RH
48107-37010

BU105,107,137,145,147

 1
48108 - ARM SUB-ASSY, ANCHOR, LH
48108-37010

BU105,107,137,145,147

 1
48161 - SPRING, TORSION BAR, RH
48161-37010

BU105,107,137,145,147..03S

 1
48162 - SPRING, TORSION BAR, LH
48162-37010

BU105,107,137,145,147..03S

 1
48169A - SWIVEL, ANCHOR ARM, RH
48169-37010

BU105,107,137,145,147

 1
48169B - SWIVEL, ANCHOR ARM, LH
48169-37010

BU105,107,137,145,147

 1
48173C - SEAT, ANCHOR ARM ADJUSTER, RH
48173-37010

BU105,107,137,145,147

 1
48173D - SEAT, ANCHOR ARM ADJUSTER, LH
48173-37010

BU105,107,137,145,147

 1
48174A - COVER, TORSION BAR DUST, RH
48174-36010

BU105,107,137,145,147

 2
48174B - COVER, TORSION BAR DUST, LH
48174-36010

BU105,107,137,145,147

 2
48305 - BUMPER SUB-ASSY, FRONT SPRING, NO.2
48305-37010

BU105,107,137,145,147

 2
48510 - ABSORBER ASSY, SHOCK, FRONT RH
48510-37010

BU105,107,137,145,147

 1
48510N - BUSH(FOR FRONT SHOCK ABSORBER RH)
90389-16023

BU105,107,137,145,147

 2
48510N - BUSH(FOR FRONT SHOCK ABSORBER RH)
90389-16023

BU105,107,137,145,147

 2
48512A - BRACKET, FRONT SHOCK ABSORBER, UPPER RH
48512-37030

BU105,107,137,145,147

 2
48520 - ABSORBER ASSY, SHOCK, FRONT LH
48510-37010

BU105,107,137,145,147

 1
48520C - BUSH(FOR FRONT SHOCK ABSORBER LH)
90389-16023

BU105,107,137,145,147

 2
48520C - BUSH(FOR FRONT SHOCK ABSORBER LH)
90389-16023

BU105,107,137,145,147

 2
48811 - BAR, STABILIZER, FRONT
48811-37020

BU105,107,137,145,147

 1
48815 - BUSH, FRONT STABILIZER BAR, NO.1
48815-36020

BU132..TL4;BU202,212..IV3;BU105,107,137,145,147,222

 2
48820 - LINK ASSY, FRONT STABILIZER
48820-37010

BU105,107,137,145,147

 2
48824 - BRACKET, STABILIZER, FRONT
48824-37010

BU105,107,137,145,147

 4
48824 - BRACKET, STABILIZER, FRONT
48824-37010

BU105,107,137,145,147

 4
48836 - BRACKET, FRONT STABILIZER END, RH
48836-37011

BU105,107,137,145,147

 1
48837 - BRACKET, FRONT STABILIZER END, LH
48837-37021

BU105,107,137,145,147

 1
Common parts
90101-22001
90101-22002
90105-16055
90109-16004
90119-10598
90170-22004
90178-16002
90179-12141
90179-16027
90179-16029
90201-12061
90948-01061
90948-03007
91642-81230
91651-61022
94184-61001
