BU107-TGMMS (1996)

Toyota Dyna 200/Toyoace G25

Production Oct 1996 - May 1999
Engine 15BF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9610- )BU105,107,137,145,147

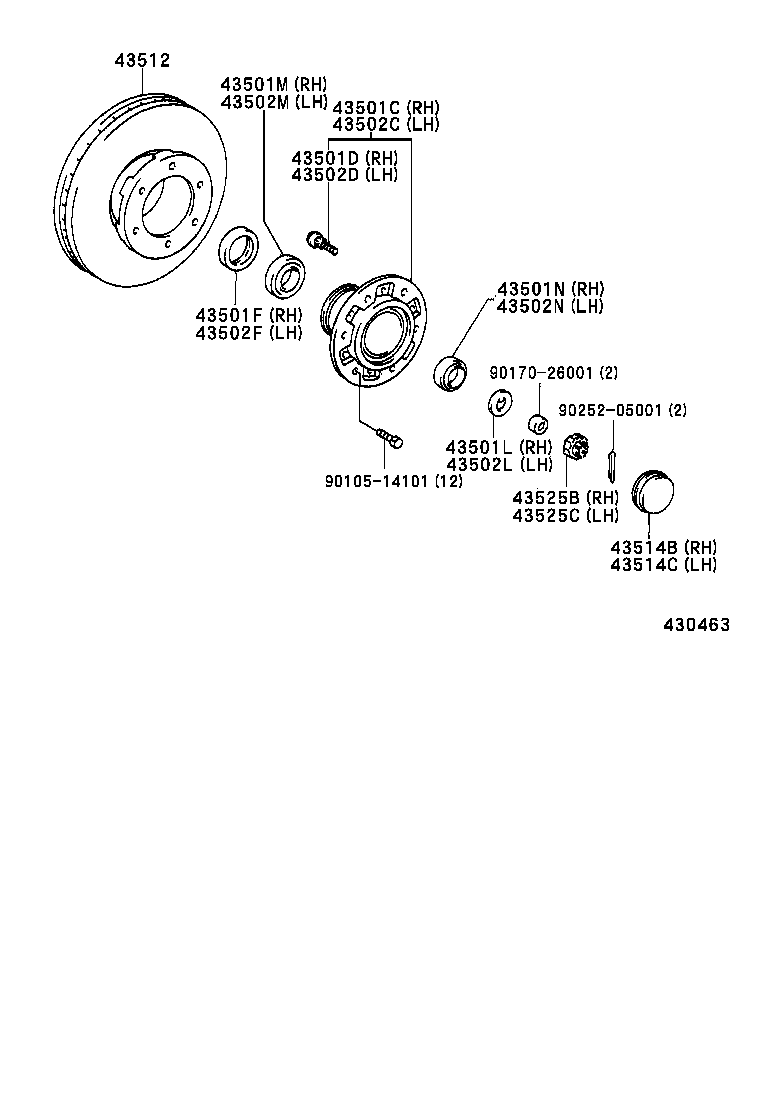

Click highlighted areas on diagram

ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｨｽｸﾌﾞﾚｰｷ)

diagram 43501C 43501D 43501F 43501L 43501M 43501N 43502C 43502D 43502F 43502L 43502M 43502N 43512 43514B 43514C 43525B 43525C 9010514101 9017026001 9025205001
Part # Description Qty Price
43501C - HUB SUB-ASSY, FRONT AXLE, RH
43501-37010

BU105,107,137,145,147..T2,T4,TW4

 1
43501F - SEAL, OIL (FOR FRONT AXLE HUB RH)
90311-68001

BU10#,112,12#,13#,14#,202,212,222,RZU100,140,XZU130,140

 1
43501L - WASHER, CLAW (FOR FRONT AXLE HUB RH)
90214-27001

BU10#,112,12#,13#,14#,202,212,222,RZU100,140,XZU130,140

 1
43501M - BEARING (FOR FRONT AXLE HUB INNER RH)
90368-42045

BU10#,112,12#,13#,14#,202,212,222,RZU100,140,XZU130,140

 1
43501N - BEARING (FOR FRONT AXLE HUB OUTER RH)
90368-28001

BU10#,112,12#,13#,14#,202,212,222,RZU100,140,XZU130,140

 1
43502C - HUB SUB-ASSY, FRONT AXLE, LH
43502-37010

BU105,107,137,145,147..T2,T4,TW4

 1
43502F - SEAL, OIL (FOR FRONT AXLE HUB LH)
90311-68001

BU10#,112,12#,13#,14#,202,212,222,RZU100,140,XZU130,140

 1
43502L - WASHER, CLAW (FOR FRONT AXLE HUB LH)
90214-27001

BU10#,112,12#,13#,14#,202,212,222,RZU100,140,XZU130,140

 1
43502M - BEARING (FOR FRONT AXLE HUB INNER LH)
90368-42045

BU10#,112,12#,13#,14#,202,212,222,RZU100,140,XZU130,140

 1
43502N - BEARING (FOR FRONT AXLE HUB OUTER LH)
90368-28001

BU10#,112,12#,13#,14#,202,212,222,RZU100,140,XZU130,140

 1
43512 - DISC, FRONT
43512-37060

BU105,107,137,145,147..T2,T4,TW4

 2
43514B - CAP, FRONT AXLE HUB GREASE, RH
43514-36050

BU105,107,137,145,147

 1
43514C - CAP, FRONT AXLE HUB GREASE, LH
43514-36050

BU105,107,137,145,147

 1
43525B - CAP, FRONT WHEEL ADJUSTING LOCK, RH
43525-36010

BU10#,112,12#,13#,14#,202,212,222,RZU100,140,XZU130,140

 1
43525C - CAP, FRONT WHEEL ADJUSTING LOCK, LH
43525-36010

BU10#,112,12#,13#,14#,202,212,222,RZU100,140,XZU130,140

 1
Common parts
90105-14101
90170-26001
90252-05001
