BU105-PQMMS3 (1997)

Toyota Dyna 200/Toyoace G25

Production Aug 1997 - May 1999
Engine 3B
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9708- )BU105,145

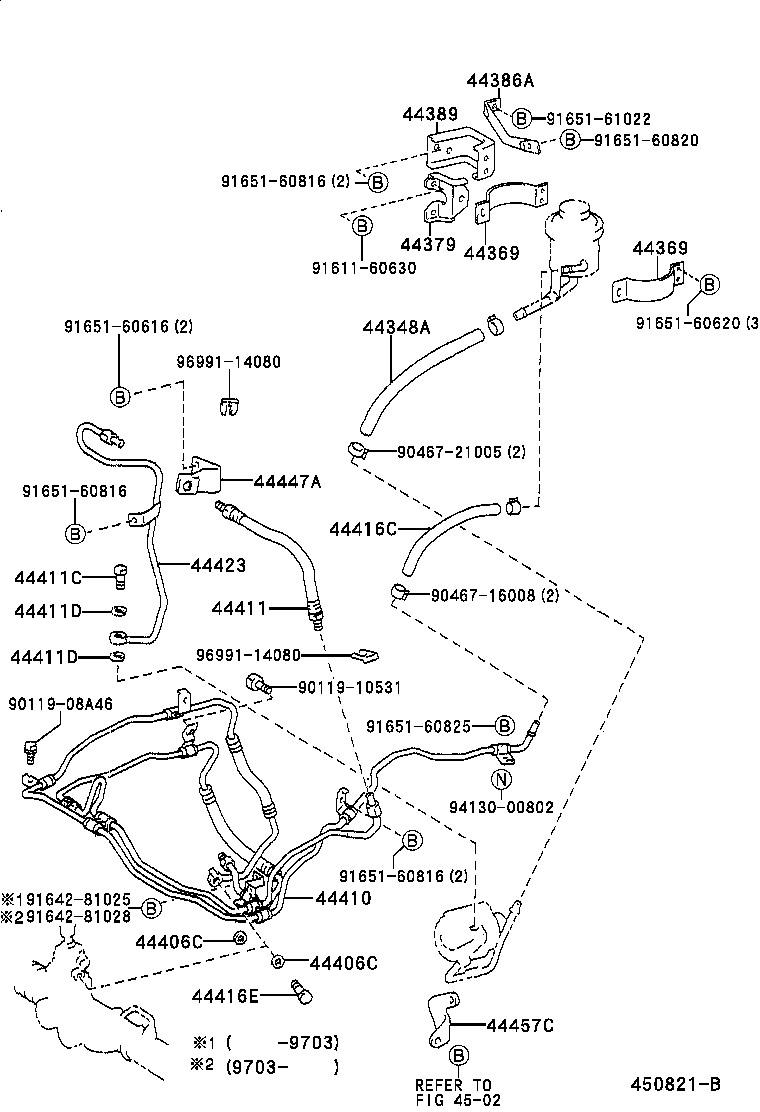

Click highlighted areas on diagram

diagram 44348A 44369 44369 44379 44386A 44389 44406C 44406C 44410 44411 44411C 44411D 44411D 44416C 44416E 44423 44447A 44457C 4502 9011908A46 9011910531 9046716008 9046721005 9161160630 9164281025 9164281028 9165160616 9165160620 9165160816 9165160816 9165160816 9165160820 9165160825 9165161022 9413000802 9699114080 9699114080
Part # Description Qty Price
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-36210

BU100,105,120,140,145

 1
44369 - BRACKET, OIL RESERVOIR, NO.1
44369-36020

BU212..03S..DSL;BU100,105,112,120,140,145,202,222..DSL;BU102,132,142..(DM2,DM3,DM5,DM6,T2,T3,T4,TW1)..DSL

 2
44369 - BRACKET, OIL RESERVOIR, NO.1
44369-36020

BU212..03S..DSL;BU100,105,112,120,140,145,202,222..DSL;BU102,132,142..(DM2,DM3,DM5,DM6,T2,T3,T4,TW1)..DSL

 2
44379 - BRACKET, OIL RESERVOIR, NO.2
44379-37020

BU100,105,120,140,145

 1
44386A - SUPPORT, OIL RESERVOIR
44386-36100

BU100,105,120,140,145

 1
44389 - BRACKET, OIL RESERVOIR, NO.3
44389-36060

BU100,105,120,140,145

 1
44410 - TUBE ASSY, PRESSURE FEED
44410-37050

BU105,145

 1
44411 - HOSE, PRESSURE FEED
44411-37030

BU10#,112,12#,13#,14#,RZU100..DSL,LPGB

 1
44411C - BOLT, UNION(FOR PRESSURE FEED HOSE)
90401-16027

BU100,105,120,140,145,RZU100,XZU130,140..DSL,LPG

 1
44411D - GASKET(FOR PRESSURE FEED HOSE)
90430-16168

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140

 2
44411D - GASKET(FOR PRESSURE FEED HOSE)
90430-16168

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140

 2
44416C - HOSE(FOR RETURN TUBE TO RESERVIOR)
90445-18144

BU10#,12#,13#,14#,162,172,182..DSL

 1
44423 - TUBE, OIL PUMP TO GEAR BOX
44423-37040

BU10#,112,12#,132,14#

 1
44447A - BRACKET, HOSE SUPPORT, NO.1
44447-37030

BU10#,112,12#,13#,14#,RZU100..DSL,LPGB

 1
44457C - BRACKET, POWER STEERING TUBE SUPPORT, NO.1
44457-36040

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100..DSL,LPGB,TD

 1
Common parts
90119-08A46
90119-10531
90467-16008
90467-21005
91611-60630
91642-81025
91642-81028
91651-60616
91651-60620
91651-60816
91651-60820
91651-60825
91651-61022
94130-00802
96991-14080
Linked diagrams
4502
