BU102H-TPMQS3 (1995)
Toyota Dyna 200/Toyoace G25
(9505- )15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297
| Part # | Description | Qty | Price |
|---|

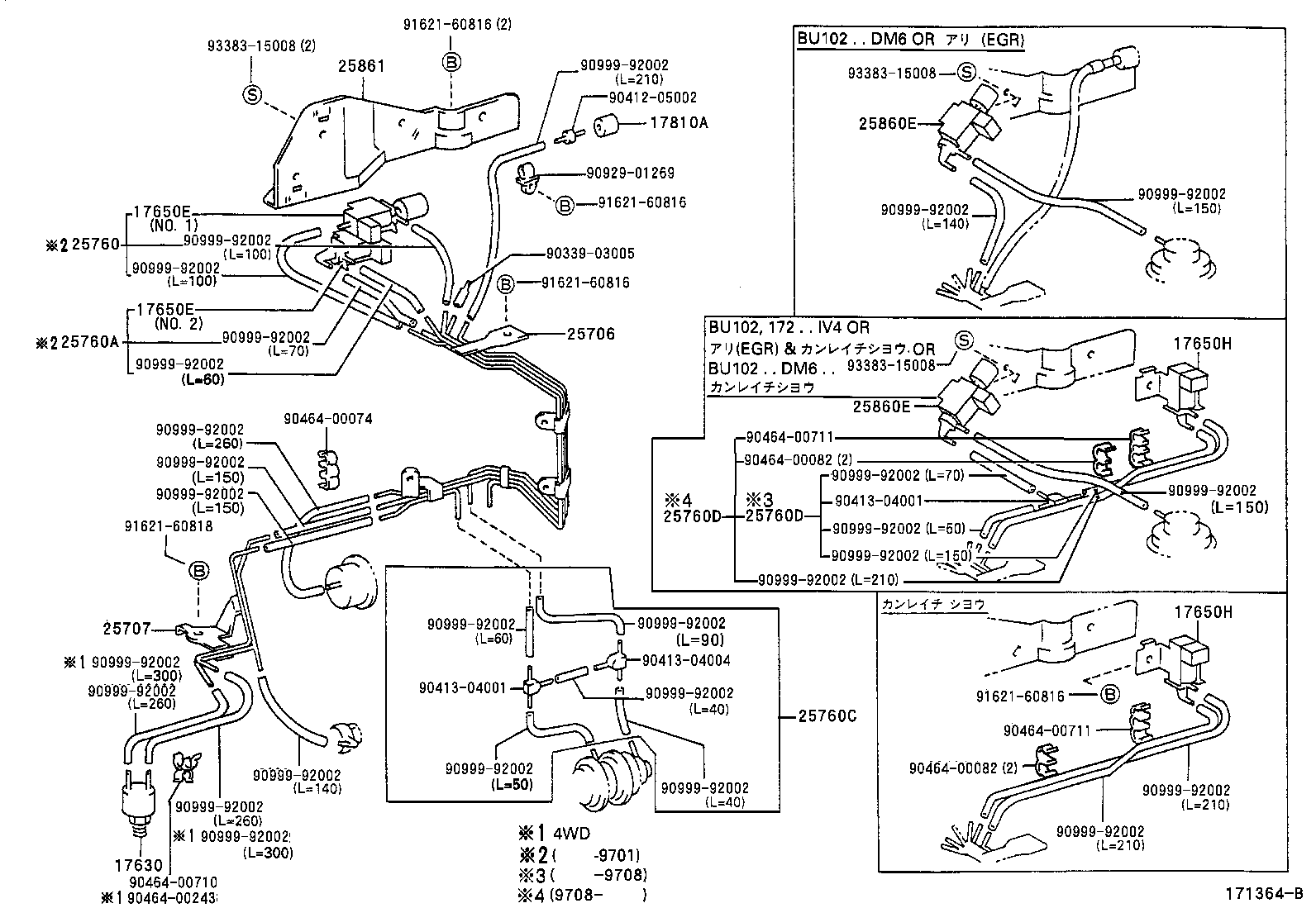

ILLUST NO. 1 OF 2(9505-9906)15BF..5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17630 - VALVE ASSY, AIR CONTROL | ||||
| 17630-15010 |
15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297 |
1 | ||
| 17650E - VALVE, VACUUM SWITCHING | ||||
| 90910-12162 |
15BF..BU102,107,112,122,13#,142,147,162,172,182,202,212,222..5F NO.1 |
1 | ||
| 90910-12163 |
15BF..BU102,107,112,122,13#,142,147,162,172,182,202,212,222..5F NO.2 |
1 | ||
| 17650E - VALVE, VACUUM SWITCHING | ||||
| 90910-12162 |
15BF..BU102,107,112,122,13#,142,147,162,172,182,202,212,222..5F NO.1 |
1 | ||
| 90910-12163 |
15BF..BU102,107,112,122,13#,142,147,162,172,182,202,212,222..5F NO.2 |
1 | ||
| 17650H - VALVE, VACUUM SWITCHING | ||||
| 90910-12167 |
15BFT..BU212,222;15BF..BU102..T4..20T..5F;15BF..BU107,147..(T2,T4,TW4)..5F;15BF..BU112,122,13#,142,162,202,212,222..5F;15BF..BU102,172,182..(DM2,DM3,DM5,DM6,T2,T3,T5,TW1,TW4)..(CBU,IV3)..5F ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 17650H - VALVE, VACUUM SWITCHING | ||||
| 90910-12167 |
15BFT..BU212,222;15BF..BU102..T4..20T..5F;15BF..BU107,147..(T2,T4,TW4)..5F;15BF..BU112,122,13#,142,162,202,212,222..5F;15BF..BU102,172,182..(DM2,DM3,DM5,DM6,T2,T3,T5,TW1,TW4)..(CBU,IV3)..5F ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 17810A - FILTER ASSY, AIR | ||||
| 90925-06007 |
15BFT..BU297;15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222..MTM..(CBU,IV3) |
1 | ||
| 25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1 | ||||
| 25706-58060 |
15BF..BU102,107,112,122,13#,142,147,162,172,182,202,212,222 |
1 | ||
| 25707 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2 | ||||
| 25707-58050 |
15BF..BU102,107,112,122,13#,142,147,162,172,182,202,212,222 |
1 | ||
| 25760 - HOSE ASSY, VACUUM TRANSMITTING | ||||
| 25760-58200 |
15BF..BU102,107,112,122,13#,142,147,162,172,182,202,212,222..5F |
1 | ||
| 25760A - HOSE ASSY, VACUUM TRANSMITTING | ||||
| 25760-58220 |
15BF..BU102,107,112,122,13#,142,147,162,172,182,202,212,222 |
1 | ||
| 25760C - HOSE ASSY, VACUUM TRANSMITTING, NO.3 | ||||
| 25760-58130 |
15BF..BU102,107,112,122,13#,142,147,162,172,182,202,212,222 |
1 | ||
| 25760D - HOSE ASSY, VACUUM TRANSMITTING, NO.4 | ||||
| 25760-58230 |
15BF..BU102..DM2,DM3,DM5,T2,T3,T4,T5,TW1,TW4;15BF..BU107,112,122,13#,142,147,162,172,182,202,212,222 |
1 | ||
| 25760D - HOSE ASSY, VACUUM TRANSMITTING, NO.4 | ||||
| 25760-58230 |
15BF..BU102..DM2,DM3,DM5,T2,T3,T4,T5,TW1,TW4;15BF..BU107,112,122,13#,142,147,162,172,182,202,212,222 |
1 | ||
| 25860E - VALVE, VACUUM SWITCHING, NO.2 | ||||
| 90910-12165 |
15BF..BU102,107,112,122,13#,142,147,162,172,182,202,212,222 |
1 | ||
| 25860E - VALVE, VACUUM SWITCHING, NO.2 | ||||
| 90910-12165 |
15BF..BU102,107,112,122,13#,142,147,162,172,182,202,212,222 |
1 | ||
| 25861 - BRACKET, VACUUM SWITCHING VALVE | ||||
| 25861-58010 |
15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222 |
1 | ||
| Common parts | ||||
| 90339-03005 | ||||
| 90412-05002 | ||||
| 90413-04001 | ||||
| 90413-04004 | ||||
| 90464-00074 | ||||
| 90464-00082 | ||||
| 90464-00243 | ||||
| 90464-00710 | ||||
| 90464-00711 | ||||
| 90929-01269 | ||||
| 90999-92002 | ||||
| 91621-60816 | ||||
| 91621-60818 | ||||
| 93383-15008 | ||||
