BU102H-TPMQS (1995)

Toyota Dyna 200/Toyoace G25

Production May 1995 - Aug 1997
Engine 15BF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )BU102..275T,30T ; (9505- )T2,T3,TW1..EFI,LPG

Click highlighted areas on diagram

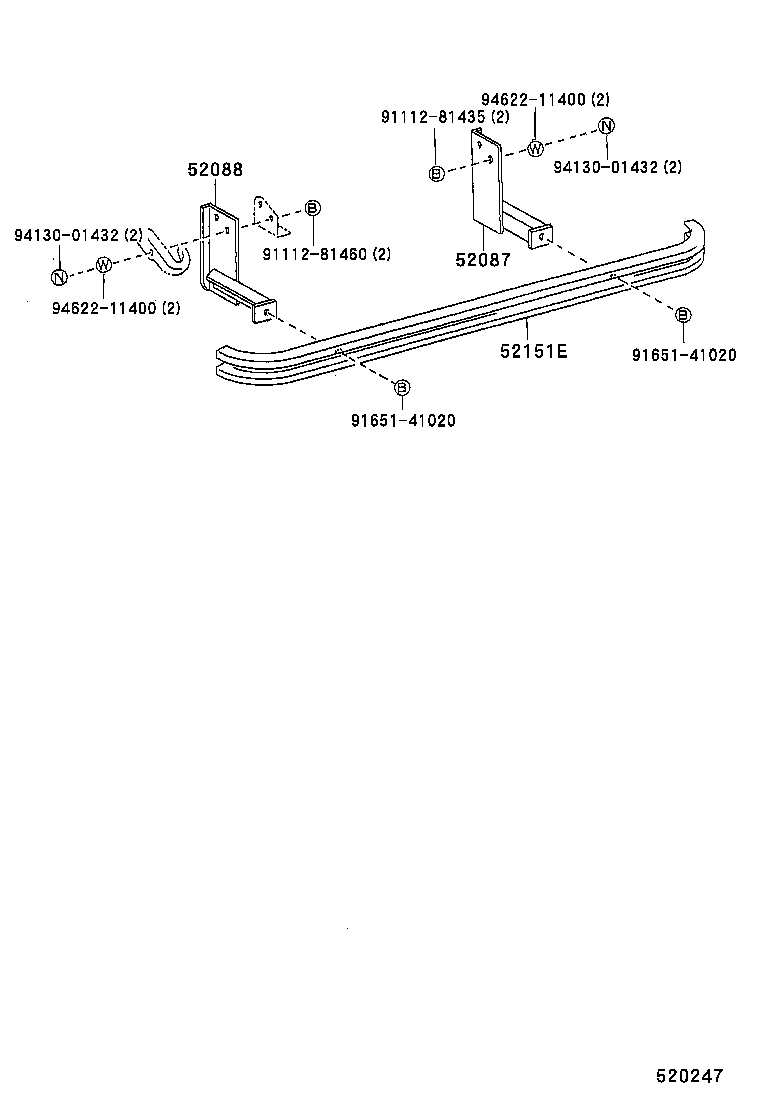

diagram 52087 52088 52151E 9111281435 9111281460 9165141020 9165141020 9413001432 9413001432 9462211400 9462211400
Part # Description Qty Price
52087 - STAY SUB-ASSY, REAR BUMPER SIDE, RH
52087-37050

RZU100..(T3,TW1)..CBU;BU102..(T4,T5)..30T..CBU

 1
52088 - STAY SUB-ASSY, REAR BUMPER SIDE, LH
52088-37050

RZU100..(T3,TW1)..CBU;BU102..(T4,T5)..30T..CBU

 1
52151E - BAR, REAR BUMPER
52151-92805

BU222..T4..CBU;BU102..(275T,30T)..CBU;RZU100..(T2,T3,TW1)..CBU;BU14#,182,212,RZU140,XZU140..CBU

 1
Common parts
91112-81435
91112-81460
91651-41020
94130-01432
94622-11400
