BU102H-TKPQS (1997)

Toyota Dyna 200/Toyoace G25

Production Aug 1997 - May 1999
Engine 15BF
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

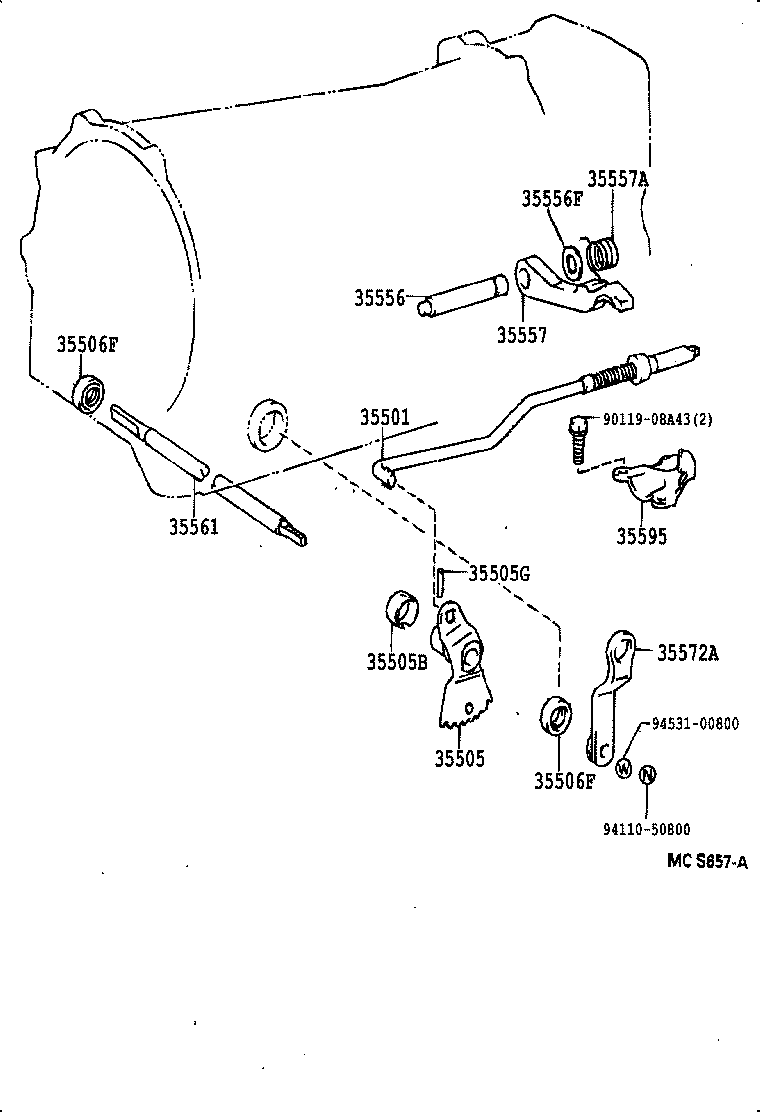

ILLUST NO. 1 OF 2(9505-9906)4FC

Click highlighted areas on diagram

A443E,A443F

diagram 35501 35505 35505B 35505G 35506F 35506F 35556 35556F 35557 35557A 35561 35572A 35595 9011908A43 9411050800 9453100800
Part # Description Qty Price
35501 - ROD SUB-ASSY, PARKING LOCK
35501-36021

BU112..20T..4FC;BU102,132,142,212,297..4FC

 1
35505 - LEVER SUB-ASSY, MANUAL VALVE
35505-36030

BU102,107,112,13#,142,147,212,297..4FC

 1
35505B - SPACER (FOR MANUAL VALVE LEVER)
90560-20008

BU102,107,112,13#,142,147,212,297..4FC

 1
35505G - PIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER)
90254-04012

BU102,107,112,13#,142,147,212,297..4FC

 1
35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)
90311-12002

BU102,107,112,13#,142,147,212,297..4FC

 2
35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)
90311-12002

BU102,107,112,13#,142,147,212,297..4FC

 2
35556 - SHAFT, PARKING LOCK PAWL
35556-36010

BU102,107,112,13#,142,147,212,297..4FC

 1
35556F - WASHER, PLATE (FOR PARKING LOCK PAWL SHAFT)
90201-16012

BU102,107,112,13#,142,147,212,297..4FC

 1
35557 - PAWL, PARKING LOCK
35557-36010

BU102,107,112,13#,142,147,212,297..4FC

 1
35557A - SPRING, TORSION (FOR PARKING LOCK PAWL)
90508-30010

BU102,107,112,13#,142,147,212,297..4FC

 1
35561 - SHAFT, MANUAL VALVE LEVER
35561-36010

BU102,107,112,13#,142,147,212,297..4FC

 1
35572A - LEVER, TRANSMISSION CONTROL SHAFT
35573-37010

BU102,107,112,13#,142,147,212,297..TR..4FC

 1
35573-37020

BU112..DM7..4FC;BU102,112..TR..IV3..4FC;BU102..T4..20T..CBU..4FC;BU102..(T2,T3)..CBU..4FC;BU107,13#,142,147,212..(T2,T3,T4,TW4)..4FC

ｱﾘ(P.T.O)

 1
35595 - BRACKET, PARKING LOCK PAWL
35595-36010

BU112..20T..4FC;BU102,132,142,212,297..4FC

 1
Common parts
90119-08A43
94110-50800
94531-00800

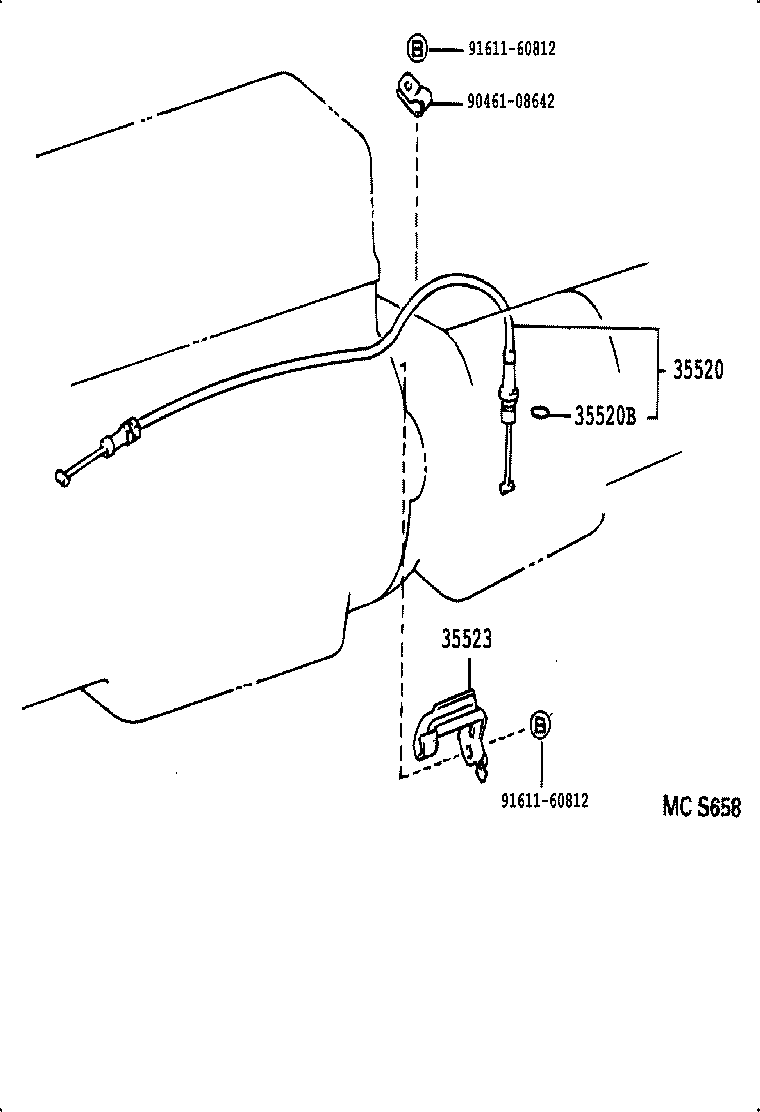

ILLUST NO. 2 OF 2(9505-9906)BU102,107,112,13#,142,147,212..4FC

Click highlighted areas on diagram

A443E

diagram 35520 35520B 35523 9046108642 9161160812 9161160812
Part # Description Qty Price
35520 - CABLE ASSY, THROTTLE
35520-37010

BU102,107,112,13#,142,147,212,297..4FC

 1
35520B - RING, O(FOR THROTTLE CABLE)
90301-09012

BU102,107,112,13#,142,147,212,297..4FC

 1
35523 - CLAMP, THROTTLE CABLE
35523-37010

BU102,107,112,13#,142,147,212..4FC

 1
Common parts
90461-08642
91611-60812
