BU102H-PKMMS4 (1995)
Toyota Dyna 200/Toyoace G25

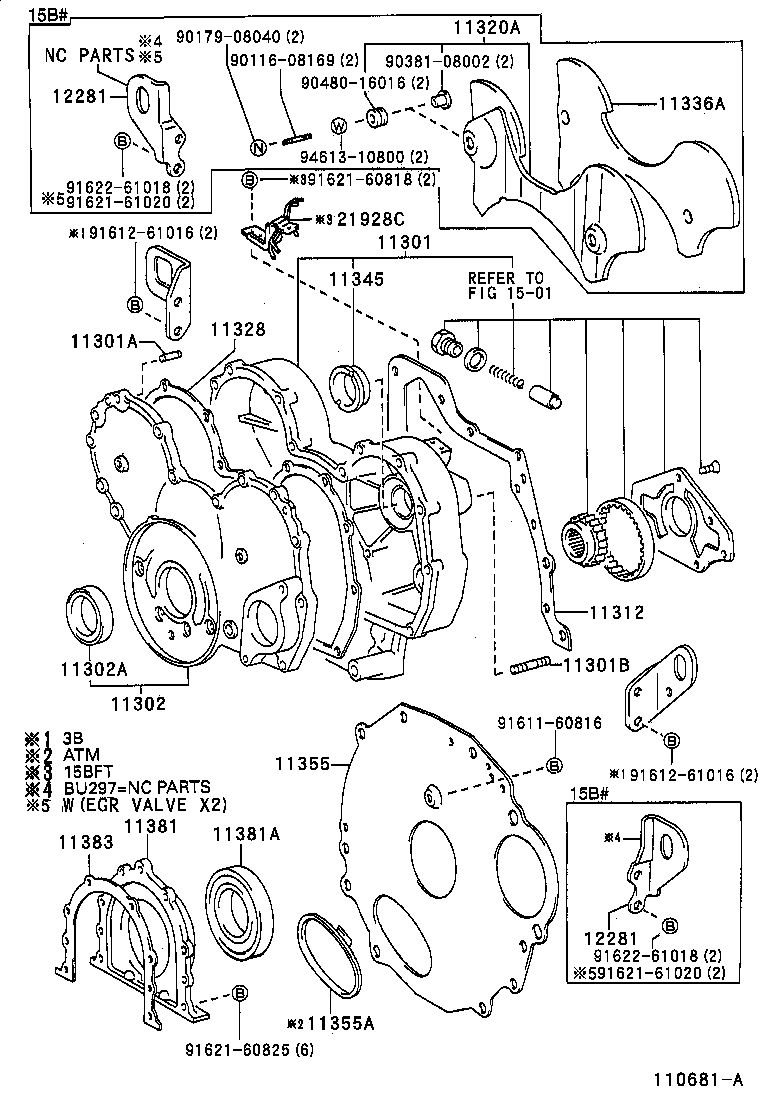

ILLUST NO. 1 OF 2(9505-9905)15B#,3B ; (9905-9906)15BF,3B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11301 - CASE SUB-ASSY, TIMING GEAR | ||||
| 11301-58011 |
15B#..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297 |
1 | ||
| 11301-58010 |
15B#..BU102,107,112,122,13#,142,147,162,172,182,202,212,222 |
1 | ||
| 11301-58010 |
15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222 |
1 | ||
| 11301A - PIN, STRAIGHT(FOR TIMING GEAR CASE) | ||||
| 90250-08120 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 長さ=18,外径=8 |
2 | ||
| 11301B - BOLT,STUD(FOR TIMING GEAR CASE) | ||||
| 90116-08169 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
2 | ||
| 11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT | ||||
| 11302-58010 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER) | ||||
| 90311-50013 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 11312 - GASKET, FRONT END PLATE | ||||
| 11312-56040 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 11320A - COVER ASSY, TIMING GEAR, NO.2 | ||||
| 11320-58010 |
15B#..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297 |
1 | ||
| 11328 - GASKET, TIMING GEAR OR CHAIN COVER | ||||
| 11328-56050 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 11336A - INSULATOR, TIMING GEAR COVER | ||||
| 11336-58010 |
15B#..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297 |
1 | ||
| 11345 - BEARING, INJECTION PUMP GEAR THRUST | ||||
| 11345-48010 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 11355 - PLATE, REAR END | ||||
| 11355-56061 |
15BF..BU172,182;15BF,3B..BU10#,112,12#,13#,14#,162,202,212,222..(175T,20T)..5F |
1 | ||
| 11381 - RETAINER, ENGINE REAR OIL SEAL | ||||
| 11381-58010 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 11381A - SEAL, ENGINE REAR OIL | ||||
| 90311-95011 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 11383 - GASKET, ENGINE REAR OIL SEAL RETAINER | ||||
| 11383-56040 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 12281 - HANGER, ENGINE, NO.1 | ||||
| 12281-58010 |
15B#..BU102,107,112,122,13#,142,147,162,172,182,202,212,222 |
2 | ||
| 12281-58010 |
15BF..BU102..DM2,DM3,DM5,DM6,T2,T3,T4,TW1;15BF..BU112,132,142,202,212,222..ALV,DM7,DM8,T2,T3,T4 ｱﾘ(EGRﾊﾞﾙﾌﾞ X2 ｼﾖｳ) |
1 | ||
| 12281 - HANGER, ENGINE, NO.1 | ||||
| 12281-58010 |
15B#..BU102,107,112,122,13#,142,147,162,172,182,202,212,222 |
2 | ||
| 12281-58010 |
15BF..BU102..DM2,DM3,DM5,DM6,T2,T3,T4,TW1;15BF..BU112,132,142,202,212,222..ALV,DM7,DM8,T2,T3,T4 ｱﾘ(EGRﾊﾞﾙﾌﾞ X2 ｼﾖｳ) |
1 | ||
| Common parts | ||||
| 90116-08169 | ||||
| 90179-08040 | ||||
| 90381-08002 | ||||
| 90480-16016 | ||||
| 91611-60816 | ||||
| 91612-61016 | ||||
| 91621-60818 | ||||
| 91621-60825 | ||||
| 91621-61020 | ||||
| 91622-61018 | ||||
| 94613-10800 | ||||
| Linked diagrams | ||||
| 1501 | ||||
ILLUST NO. 2 OF 2(9505-9905)15B#,3B ; (9905-9906)15BF,3B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-08267 | ||||
| 91511-60835 | ||||
| 91511-60840 | ||||
| 91512-61060 | ||||
| 91512-61080 | ||||
| 91512-61085 | ||||
| 91621-60825 | ||||
