BU102D-TUMMS (1995)

Toyota Dyna 200/Toyoace G25

Production May 1995 - May 1999
Engine 15BF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )XZU130..IV3 ; (9505- )BU162..DM5,T4 ; (9505- )BU112..T3..CBU ; (95

Click highlighted areas on diagram

diagram 51900 51908 51911 5223392300 5223392300 57875 9020112064 9116281245 9161160820 91645C1032 9413001002 9413061200 9413061200
Part # Description Qty Price
51900 - CARRIER ASSY, SPARE WHEEL
51900-93302

BU102..DM3

 1
51900-93302

BU102..DM3

 1
51900-93300

BU102..DM3

 1
51900-93300

BU102..DM3

 1
51900-93300

BU102..DM3

 1
51900-93302

BU102..DM3

 1
Common parts
52233-92300
90201-12064
91162-81245
91611-60820
91645-C1032
94130-01002
94130-61200

(9708- )BU172..T4 ; (9708- )RZU100..DM5 ;(9708- )BU105,107..T3 ; (9708-

Click highlighted areas on diagram

diagram 51900 51908 51911 5223392300 5223392300 57875 9020112064 9116281245 9161160820 91645C1032 9413001002 9413061200 9413061200
Part # Description Qty Price
51900 - CARRIER ASSY, SPARE WHEEL
51900-93302

BU102..DM3

 1
51900-93302

BU102..DM3

 1
51900-93300

BU102..DM3

 1
51900-93300

BU102..DM3

 1
51900-93300

BU102..DM3

 1
51900-93302

BU102..DM3

 1
Common parts
52233-92300
90201-12064
91162-81245
91611-60820
91645-C1032
94130-01002
94130-61200

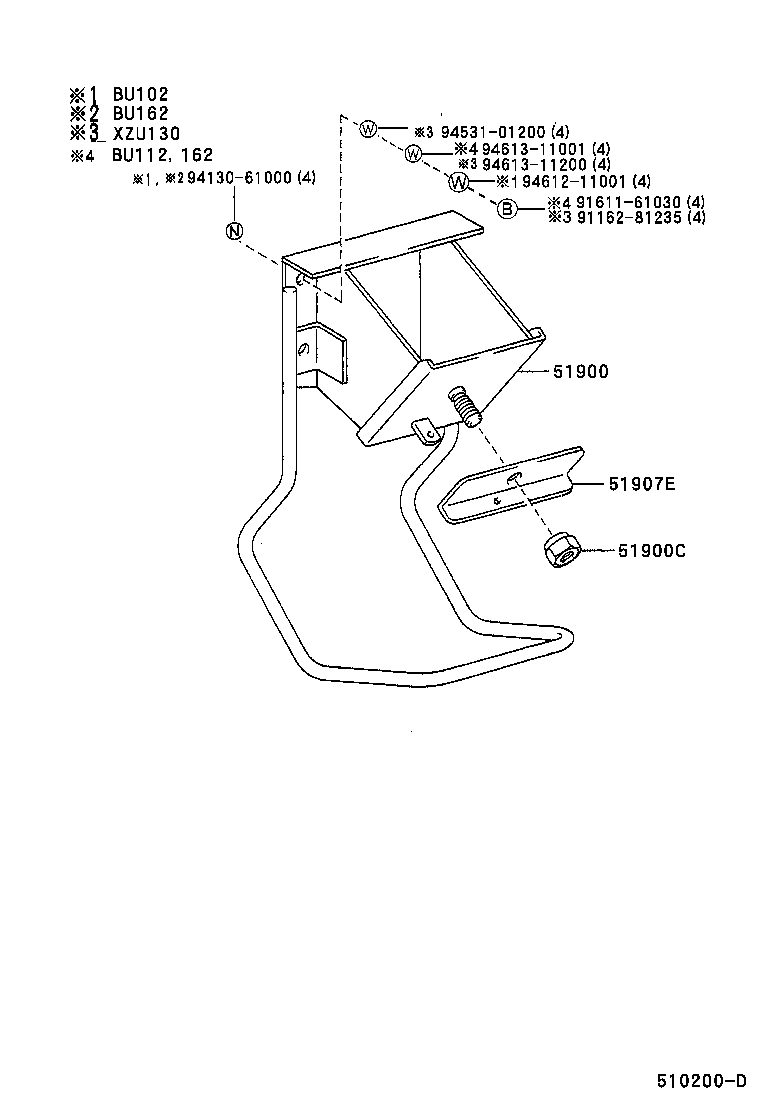

(9505- )BU162..DM7 ; (9505- )DM7..CBU..4FC; (9505- )BU102,XZU130..DM3,DM7

Click highlighted areas on diagram

diagram 51900 51900C 51907E 9116281235 9161161030 9413061000 9453101200 9461211001 9461311001 9461311200
Part # Description Qty Price
51900 - CARRIER ASSY, SPARE WHEEL
51900-93300

BU102..DM3

 1
51900-93302

BU102..DM3

 1
51900C - NUT, SPARE WHEEL, HUB
90942-01023

BU172..T3;BU102,112,162,XZU130..(DM3,DM7,DM8)..CBU

 1
51907E - RETAINER SUB-ASSY, SPARE TIRE CARRIER
51912-93100

BU172..T3;BU102,112,162,XZU130..(DM3,DM7,DM8)..CBU

 1
Common parts
91162-81235
91611-61030
94130-61000
94531-01200
94612-11001
94613-11001
94613-11200
