BU102D-TJMMS3 (1995)

Toyota Dyna 200/Toyoace G25

Production May 1995 - May 1999
Engine 15BF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(9505- )BU105..T4,TW4 ; (9505- )BU102..T4..30T ; (9505- )BU107..T4..4FC ;

Click highlighted areas on diagram

diagram 04483 04484 48046 48046 48046A 48047 48047 48210A 48210A 48343 48344 48414B 48415B 48416 48422A 48481 48516 48517 48530 48530A 48530A 48530B 48530C 48530D 48530E 48533 48533A 48540 48542 9010116025 9010116026 9011908276 9011910355 9017016016 9017016016 9017908141 9017916030 9020116035 9020116035 9020116035 9161161020 9413061600 9418461201 9418461601
Part # Description Qty Price
04483 - SHACKLE KIT, REAR SPRING
04483-36100

BU102..T3..20T;RZU100..T3..(EFI,LPG);BU100,105,107,112,12#,162;BU102,RZU100..(DM2,DM3,DM5,DM6,T2,T4,T5,TW1,TW4)..(CBU,IV3)

 2
04483-36100

BU102..T3..20T;RZU100..T3..(EFI,LPG);BU100,105,107,112,12#,162;BU102,RZU100..(DM2,DM3,DM5,DM6,T2,T4,T5,TW1,TW4)..(CBU,IV3)

 2
04484 - PIN KIT, REAR SPRING
04484-36070

BU102..T3..20T;BU100,105,107,112,12#;RZU100..T3..(EFI,LPG);BU102,RZU100..(DM2,DM3,DM5,DM6,T2,T4,T5,TW1,TW4)..(CBU,IV3)

 2
04484-36070

BU102..T3..20T;BU100,105,107,112,12#;RZU100..T3..(EFI,LPG);BU102,RZU100..(DM2,DM3,DM5,DM6,T2,T4,T5,TW1,TW4)..(CBU,IV3)

 2
48046 - SEAT SUB-ASSY, SPRING U BOLT, RH
48046-36180

BU10#,RZU100..DM2,DM5,T4,TW4

 1
48046-36180

BU10#,RZU100..DM2,DM5,T4,TW4

 1
48046 - SEAT SUB-ASSY, SPRING U BOLT, RH
48046-36180

BU10#,RZU100..DM2,DM5,T4,TW4

 1
48046-36180

BU10#,RZU100..DM2,DM5,T4,TW4

 1
48046A - BOLT, U(FOR REAR SPRING)
90117-16014

BU10#,RZU100..DM2,T2

長さ=225

 4
90117-16014

BU10#,RZU100..DM2,T2

長さ=225

 4
90117-16052

RZU100..T2..CBU;BU105,107..T2,T3;RZU100..(T2,T4)..IV3;BU100,102..(DM2,T2,T4,TW4)..20T

長さ=235

 4
90117-16052

RZU100..T2..CBU;BU105,107..T2,T3;RZU100..(T2,T4)..IV3;BU100,102..(DM2,T2,T4,TW4)..20T

長さ=235

 4
48047 - SEAT SUB-ASSY, SPRING U BOLT, LH
48047-36180

BU10#,RZU100..DM2,DM5,T4,TW4

 1
48047-36180

BU10#,RZU100..DM2,DM5,T4,TW4

 1
48047 - SEAT SUB-ASSY, SPRING U BOLT, LH
48047-36180

BU10#,RZU100..DM2,DM5,T4,TW4

 1
48047-36180

BU10#,RZU100..DM2,DM5,T4,TW4

 1
48210A - BUSH(FOR REAR SPRING SHACKLE UPPER)
90385-23002

BU102..T3..20T;RZU100..T3..(EFI,LPG);BU100,105,107,112,12#,162;BU102,RZU100..(DM2,DM3,DM5,DM6,T2,T4,T5,TW1,TW4)..(CBU,IV3)

 4
90385-23002

BU102..T3..20T;RZU100..T3..(EFI,LPG);BU100,105,107,112,12#,162;BU102,RZU100..(DM2,DM3,DM5,DM6,T2,T4,T5,TW1,TW4)..(CBU,IV3)

 4
48210A - BUSH(FOR REAR SPRING SHACKLE UPPER)
90385-23002

BU102..T3..20T;RZU100..T3..(EFI,LPG);BU100,105,107,112,12#,162;BU102,RZU100..(DM2,DM3,DM5,DM6,T2,T4,T5,TW1,TW4)..(CBU,IV3)

 4
90385-23002

BU102..T3..20T;RZU100..T3..(EFI,LPG);BU100,105,107,112,12#,162;BU102,RZU100..(DM2,DM3,DM5,DM6,T2,T4,T5,TW1,TW4)..(CBU,IV3)

 4
48344 - STOPPER, BUMPER, REAR
48344-36310

BU107..T3..IV3;BU100,102,RZU100..(DM2,T3,TW1)..WT..20T..(CBU,IV3)

ｱﾘ(ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ)

 2
48344-36310

BU107..T3..IV3;BU100,102,RZU100..(DM2,T3,TW1)..WT..20T..(CBU,IV3)

ｱﾘ(ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ)

 2
48414B - BRACKET, SPRING, NO.3 RH
48414-36250

BU100,102,RZU100..(DM2,DM5,T4,TW4)..20T

 1
48414-36250

BU100,102,RZU100..(DM2,DM5,T4,TW4)..20T

 1
48415B - BRACKET, SPRING, NO.3 LH
48414-36250

BU100,102,RZU100..(DM2,DM5,T4,TW4)..20T

 1
48414-36250

BU100,102,RZU100..(DM2,DM5,T4,TW4)..20T

 1
48416 - BRACKET, SPRING, NO.4
48417-36120

BU10#,RZU100..(DM2,DM5,T4,TW4)..20T

左側

 1
48417-36120

BU10#,RZU100..(DM2,DM5,T4,TW4)..20T

左側

 1
48416-36240

BU10#,RZU100..(DM2,DM5,T4,TW4)..20T

右側

 1
48416-36240

BU10#,RZU100..(DM2,DM5,T4,TW4)..20T

右側

 1
48422A - SUPPORT, REAR SPRING PIN
48422-36090

BU102..T3..20T;BU100,105,107,112,12#;RZU100..T3..(EFI,LPG);BU102,RZU100..(DM2,DM3,DM5,DM6,T2,T4,T5,TW1,TW4)..(CBU,IV3)

 2
48422-36090

BU102..T3..20T;BU100,105,107,112,12#;RZU100..T3..(EFI,LPG);BU102,RZU100..(DM2,DM3,DM5,DM6,T2,T4,T5,TW1,TW4)..(CBU,IV3)

 2
48516 - BRACKET, REAR SHOCK ABSORBER, UPPER RH
48505-36040

BU222;BU102,RZU100..DM2,DM5;BU142,182,212,XZU140..30T

 1
48505-36040

BU222;BU102,RZU100..DM2,DM5;BU142,182,212,XZU140..30T

 1
48517 - BRACKET, REAR SHOCK ABSORBER, UPPER LH
48505-36040

BU222;BU102,RZU100..DM2,DM5;BU142,182,212,XZU140..30T

 1
48505-36040

BU222;BU102,RZU100..DM2,DM5;BU142,182,212,XZU140..30T

 1
48530 - ABSORBER ASSY, SHOCK, REAR RH
48531-80442

BU10#,RZU100..(DM2,DM5,T2,T3,T4,TW1,TW4)..WT..20T..(CBU,IV3)

 1
48531-80442

BU10#,RZU100..(DM2,DM5,T2,T3,T4,TW1,TW4)..WT..20T..(CBU,IV3)

 1
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16011

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140

 4
90385-16011

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140

 4
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16011

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140

 4
90385-16011

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140

 4
48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1
90948-03003

RZU100..TR..20T;BU10#,112,14#..(DM2,DM5,T2,T3,T4,TW1,TW4)..WT

 2
90948-03003

RZU100..TR..20T;BU10#,112,14#..(DM2,DM5,T2,T3,T4,TW1,TW4)..WT

 2
90948-03007

BU102..T3..WT..20T;BU102,112..DM2,DM3,DM5,DM6,DM7,DM8,T2,T4,TW4;BU100,105,107,13#,162,172,182,202,212,222,RZU100,XZU130..WT

 2
90948-03007

BU102..T3..WT..20T;BU102,112..DM2,DM3,DM5,DM6,DM7,DM8,T2,T4,TW4;BU100,105,107,13#,162,172,182,202,212,222,RZU100,XZU130..WT

 2
48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2
90948-03004

BU10#,112,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..WT

 2
90948-03004

BU10#,112,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..WT

 2
48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3
90948-03003

BU102..T3..20T;BU102..DM2,DM3,DM5,DM6,T2,T4,T5,TW4;BU100,105,107,12#,13#,162,172,182,202,212,222,RZU100,XZU130

 2
90948-03003

BU102..T3..20T;BU102..DM2,DM3,DM5,DM6,T2,T4,T5,TW4;BU100,105,107,12#,13#,162,172,182,202,212,222,RZU100,XZU130

 2
90948-03003

BU102..T3..WT..20T;RZU100..T3..(EFI,LPG);BU100,105,107,13#,162,172,182,202,212,222,XZU130..WT;BU102,RZU100..(DM2,DM3,DM5,DM6,T2,T4,TW1,TW4)..(CBU,IV3)

 2
90948-03003

BU102..T3..WT..20T;RZU100..T3..(EFI,LPG);BU100,105,107,13#,162,172,182,202,212,222,XZU130..WT;BU102,RZU100..(DM2,DM3,DM5,DM6,T2,T4,TW1,TW4)..(CBU,IV3)

 2
48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4
90948-03004

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140

 2
90948-03004

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140

 2
48533 - PIN, REAR SHOCK ABSORBER LOWER PIVOT, RH
48533-36070

BU112..DMP..20T;BU102..T3..WT..20T;BU100,105,107,162..WT;RZU100..T3..(EFI,LPG);BU102,RZU100..(DM2,DM3,DM5,DM6,T2,T4,TW1,TW4)..(CBU,IV3)

 1
48533-36070

BU112..DMP..20T;BU102..T3..WT..20T;BU100,105,107,162..WT;RZU100..T3..(EFI,LPG);BU102,RZU100..(DM2,DM3,DM5,DM6,T2,T4,TW1,TW4)..(CBU,IV3)

 1
48533A - PIN, REAR SHOCK ABSORBER LOWER PIVOT, LH
48533-36070

BU112..DMP..20T;BU102..T3..WT..20T;BU100,105,107,162..WT;RZU100..T3..(EFI,LPG);BU102,RZU100..(DM2,DM3,DM5,DM6,T2,T4,TW1,TW4)..(CBU,IV3)

 1
48533-36070

BU112..DMP..20T;BU102..T3..WT..20T;BU100,105,107,162..WT;RZU100..T3..(EFI,LPG);BU102,RZU100..(DM2,DM3,DM5,DM6,T2,T4,TW1,TW4)..(CBU,IV3)

 1
48540 - ABSORBER ASSY, SHOCK, REAR LH
48531-80442

BU10#,RZU100..(DM2,DM5,T2,T3,T4,TW1,TW4)..WT..20T..(CBU,IV3)

 1
48531-80442

BU10#,RZU100..(DM2,DM5,T2,T3,T4,TW1,TW4)..WT..20T..(CBU,IV3)

 1
Common parts
90101-16025
90101-16026
90119-08276
90119-10355
90170-16016
90179-08141
90179-16030
90201-16035
91611-61020
94130-61600
94184-61201
94184-61601

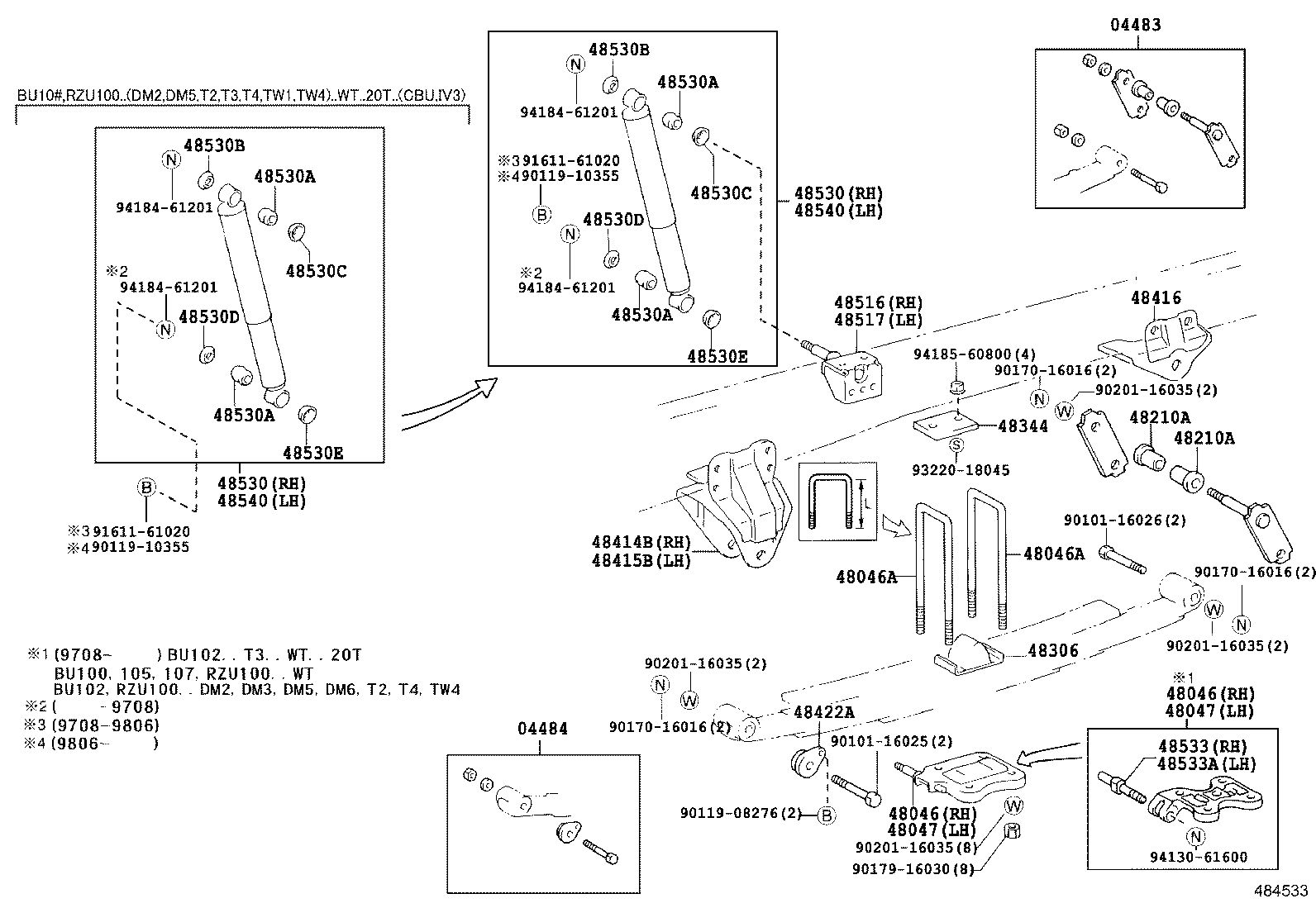

ILLUST NO. 1 OF 2(9505- )DM5,DM6,T2,T3,TW1..EFI,LPG ; (9505-)BU100,102..DM2,DM3,DM5,DM6,T1,T2

Click highlighted areas on diagram

diagram 04483 04484 48046 48046 48046A 48047 48047 48210A 48210A 48343 48344 48414B 48415B 48416 48422A 48481 48516 48517 48530 48530A 48530A 48530B 48530C 48530D 48530E 48533 48533A 48540 48542 9010116025 9010116026 9011908276 9011910355 9017016016 9017016016 9017908141 9017916030 9020116035 9020116035 9020116035 9161161020 9413061600 9418461201 9418461601
Part # Description Qty Price
04483 - SHACKLE KIT, REAR SPRING
04483-36100

BU102..T3..20T;RZU100..T3..(EFI,LPG);BU100,105,107,112,12#,162;BU102,RZU100..(DM2,DM3,DM5,DM6,T2,T4,T5,TW1,TW4)..(CBU,IV3)

 2
04483-36100

BU102..T3..20T;RZU100..T3..(EFI,LPG);BU100,105,107,112,12#,162;BU102,RZU100..(DM2,DM3,DM5,DM6,T2,T4,T5,TW1,TW4)..(CBU,IV3)

 2
04484 - PIN KIT, REAR SPRING
04484-36070

BU102..T3..20T;BU100,105,107,112,12#;RZU100..T3..(EFI,LPG);BU102,RZU100..(DM2,DM3,DM5,DM6,T2,T4,T5,TW1,TW4)..(CBU,IV3)

 2
04484-36070

BU102..T3..20T;BU100,105,107,112,12#;RZU100..T3..(EFI,LPG);BU102,RZU100..(DM2,DM3,DM5,DM6,T2,T4,T5,TW1,TW4)..(CBU,IV3)

 2
48046 - SEAT SUB-ASSY, SPRING U BOLT, RH
48046-36180

BU10#,RZU100..DM2,DM5,T4,TW4

 1
48046-36180

BU10#,RZU100..DM2,DM5,T4,TW4

 1
48046 - SEAT SUB-ASSY, SPRING U BOLT, RH
48046-36180

BU10#,RZU100..DM2,DM5,T4,TW4

 1
48046-36180

BU10#,RZU100..DM2,DM5,T4,TW4

 1
48046A - BOLT, U(FOR REAR SPRING)
90117-16014

BU10#,RZU100..DM2,T2

長さ=225

 4
90117-16014

BU10#,RZU100..DM2,T2

長さ=225

 4
90117-16052

RZU100..T2..CBU;BU105,107..T2,T3;RZU100..(T2,T4)..IV3;BU100,102..(DM2,T2,T4,TW4)..20T

長さ=235

 4
90117-16052

RZU100..T2..CBU;BU105,107..T2,T3;RZU100..(T2,T4)..IV3;BU100,102..(DM2,T2,T4,TW4)..20T

長さ=235

 4
48047 - SEAT SUB-ASSY, SPRING U BOLT, LH
48047-36180

BU10#,RZU100..DM2,DM5,T4,TW4

 1
48047-36180

BU10#,RZU100..DM2,DM5,T4,TW4

 1
48047 - SEAT SUB-ASSY, SPRING U BOLT, LH
48047-36180

BU10#,RZU100..DM2,DM5,T4,TW4

 1
48047-36180

BU10#,RZU100..DM2,DM5,T4,TW4

 1
48210A - BUSH(FOR REAR SPRING SHACKLE UPPER)
90385-23002

BU102..T3..20T;RZU100..T3..(EFI,LPG);BU100,105,107,112,12#,162;BU102,RZU100..(DM2,DM3,DM5,DM6,T2,T4,T5,TW1,TW4)..(CBU,IV3)

 4
90385-23002

BU102..T3..20T;RZU100..T3..(EFI,LPG);BU100,105,107,112,12#,162;BU102,RZU100..(DM2,DM3,DM5,DM6,T2,T4,T5,TW1,TW4)..(CBU,IV3)

 4
48210A - BUSH(FOR REAR SPRING SHACKLE UPPER)
90385-23002

BU102..T3..20T;RZU100..T3..(EFI,LPG);BU100,105,107,112,12#,162;BU102,RZU100..(DM2,DM3,DM5,DM6,T2,T4,T5,TW1,TW4)..(CBU,IV3)

 4
90385-23002

BU102..T3..20T;RZU100..T3..(EFI,LPG);BU100,105,107,112,12#,162;BU102,RZU100..(DM2,DM3,DM5,DM6,T2,T4,T5,TW1,TW4)..(CBU,IV3)

 4
48344 - STOPPER, BUMPER, REAR
48344-36310

BU107..T3..IV3;BU100,102,RZU100..(DM2,T3,TW1)..WT..20T..(CBU,IV3)

ｱﾘ(ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ)

 2
48344-36310

BU107..T3..IV3;BU100,102,RZU100..(DM2,T3,TW1)..WT..20T..(CBU,IV3)

ｱﾘ(ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ)

 2
48414B - BRACKET, SPRING, NO.3 RH
48414-36250

BU100,102,RZU100..(DM2,DM5,T4,TW4)..20T

 1
48414-36250

BU100,102,RZU100..(DM2,DM5,T4,TW4)..20T

 1
48415B - BRACKET, SPRING, NO.3 LH
48414-36250

BU100,102,RZU100..(DM2,DM5,T4,TW4)..20T

 1
48414-36250

BU100,102,RZU100..(DM2,DM5,T4,TW4)..20T

 1
48416 - BRACKET, SPRING, NO.4
48417-36120

BU10#,RZU100..(DM2,DM5,T4,TW4)..20T

左側

 1
48417-36120

BU10#,RZU100..(DM2,DM5,T4,TW4)..20T

左側

 1
48416-36240

BU10#,RZU100..(DM2,DM5,T4,TW4)..20T

右側

 1
48416-36240

BU10#,RZU100..(DM2,DM5,T4,TW4)..20T

右側

 1
48422A - SUPPORT, REAR SPRING PIN
48422-36090

BU102..T3..20T;BU100,105,107,112,12#;RZU100..T3..(EFI,LPG);BU102,RZU100..(DM2,DM3,DM5,DM6,T2,T4,T5,TW1,TW4)..(CBU,IV3)

 2
48422-36090

BU102..T3..20T;BU100,105,107,112,12#;RZU100..T3..(EFI,LPG);BU102,RZU100..(DM2,DM3,DM5,DM6,T2,T4,T5,TW1,TW4)..(CBU,IV3)

 2
48516 - BRACKET, REAR SHOCK ABSORBER, UPPER RH
48505-36040

BU222;BU102,RZU100..DM2,DM5;BU142,182,212,XZU140..30T

 1
48505-36040

BU222;BU102,RZU100..DM2,DM5;BU142,182,212,XZU140..30T

 1
48517 - BRACKET, REAR SHOCK ABSORBER, UPPER LH
48505-36040

BU222;BU102,RZU100..DM2,DM5;BU142,182,212,XZU140..30T

 1
48505-36040

BU222;BU102,RZU100..DM2,DM5;BU142,182,212,XZU140..30T

 1
48530 - ABSORBER ASSY, SHOCK, REAR RH
48531-80442

BU10#,RZU100..(DM2,DM5,T2,T3,T4,TW1,TW4)..WT..20T..(CBU,IV3)

 1
48531-80442

BU10#,RZU100..(DM2,DM5,T2,T3,T4,TW1,TW4)..WT..20T..(CBU,IV3)

 1
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16011

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140

 4
90385-16011

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140

 4
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16011

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140

 4
90385-16011

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140

 4
48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1
90948-03003

RZU100..TR..20T;BU10#,112,14#..(DM2,DM5,T2,T3,T4,TW1,TW4)..WT

 2
90948-03003

RZU100..TR..20T;BU10#,112,14#..(DM2,DM5,T2,T3,T4,TW1,TW4)..WT

 2
90948-03007

BU102..T3..WT..20T;BU102,112..DM2,DM3,DM5,DM6,DM7,DM8,T2,T4,TW4;BU100,105,107,13#,162,172,182,202,212,222,RZU100,XZU130..WT

 2
90948-03007

BU102..T3..WT..20T;BU102,112..DM2,DM3,DM5,DM6,DM7,DM8,T2,T4,TW4;BU100,105,107,13#,162,172,182,202,212,222,RZU100,XZU130..WT

 2
48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2
90948-03004

BU10#,112,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..WT

 2
90948-03004

BU10#,112,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..WT

 2
48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3
90948-03003

BU102..T3..20T;BU102..DM2,DM3,DM5,DM6,T2,T4,T5,TW4;BU100,105,107,12#,13#,162,172,182,202,212,222,RZU100,XZU130

 2
90948-03003

BU102..T3..20T;BU102..DM2,DM3,DM5,DM6,T2,T4,T5,TW4;BU100,105,107,12#,13#,162,172,182,202,212,222,RZU100,XZU130

 2
90948-03003

BU102..T3..WT..20T;RZU100..T3..(EFI,LPG);BU100,105,107,13#,162,172,182,202,212,222,XZU130..WT;BU102,RZU100..(DM2,DM3,DM5,DM6,T2,T4,TW1,TW4)..(CBU,IV3)

 2
90948-03003

BU102..T3..WT..20T;RZU100..T3..(EFI,LPG);BU100,105,107,13#,162,172,182,202,212,222,XZU130..WT;BU102,RZU100..(DM2,DM3,DM5,DM6,T2,T4,TW1,TW4)..(CBU,IV3)

 2
48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4
90948-03004

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140

 2
90948-03004

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140

 2
48533 - PIN, REAR SHOCK ABSORBER LOWER PIVOT, RH
48533-36070

BU112..DMP..20T;BU102..T3..WT..20T;BU100,105,107,162..WT;RZU100..T3..(EFI,LPG);BU102,RZU100..(DM2,DM3,DM5,DM6,T2,T4,TW1,TW4)..(CBU,IV3)

 1
48533-36070

BU112..DMP..20T;BU102..T3..WT..20T;BU100,105,107,162..WT;RZU100..T3..(EFI,LPG);BU102,RZU100..(DM2,DM3,DM5,DM6,T2,T4,TW1,TW4)..(CBU,IV3)

 1
48533A - PIN, REAR SHOCK ABSORBER LOWER PIVOT, LH
48533-36070

BU112..DMP..20T;BU102..T3..WT..20T;BU100,105,107,162..WT;RZU100..T3..(EFI,LPG);BU102,RZU100..(DM2,DM3,DM5,DM6,T2,T4,TW1,TW4)..(CBU,IV3)

 1
48533-36070

BU112..DMP..20T;BU102..T3..WT..20T;BU100,105,107,162..WT;RZU100..T3..(EFI,LPG);BU102,RZU100..(DM2,DM3,DM5,DM6,T2,T4,TW1,TW4)..(CBU,IV3)

 1
48540 - ABSORBER ASSY, SHOCK, REAR LH
48531-80442

BU10#,RZU100..(DM2,DM5,T2,T3,T4,TW1,TW4)..WT..20T..(CBU,IV3)

 1
48531-80442

BU10#,RZU100..(DM2,DM5,T2,T3,T4,TW1,TW4)..WT..20T..(CBU,IV3)

 1
Common parts
90101-16025
90101-16026
90119-08276
90119-10355
90170-16016
90179-08141
90179-16030
90201-16035
91611-61020
94130-61600
94184-61201
94184-61601

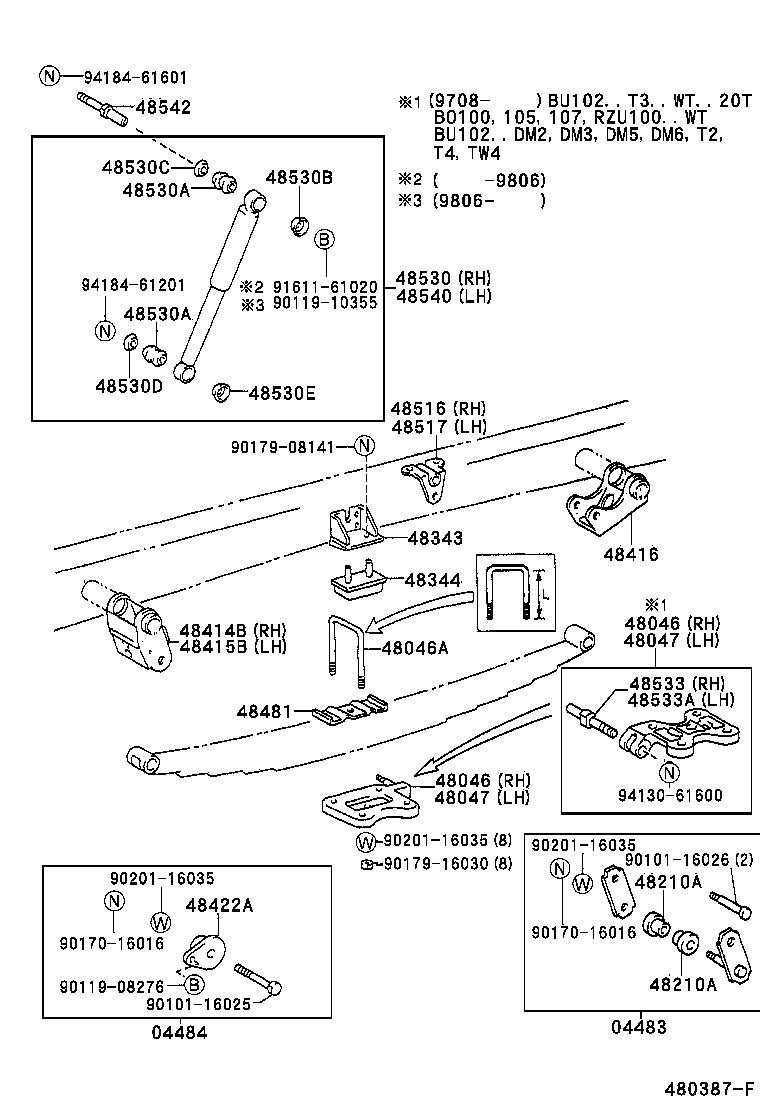

ILLUST NO. 1 OF 4(9505- )BU100,102..DM2,DM3,DM5,DM6,T1,T2,T3,T5,TW1,TW2 ; (9505- )BU13#,14#,17

Click highlighted areas on diagram

diagram 04483 04484 04484 48046 48046 48046A 48046A 48047 48047 48344 48344 48344 48414B 48415B 48416 48418A 48418A 48422A 48422A 48435 48435 48475R 48481 48516 48517 48533 48533A 48802 48802E 48805 48815R 48817R 48817R 48817S 48817S 48817S 48817S 48823R 48836R 48837R 9010116018 9010116021 9010116029 9010516021 9011908276 9017016016 9017016016 9017016016 9017016016 9017908141 9017910016 9017916030 9020116035 9020116035 9020116035 9020116035 9020116035 9038513004 9111281045 9161160832 9161161030 91645C1032 9165160820 9413061600 9418360801 9418401001 9418461001 9418461001 9418461001 9418560800
Part # Description Qty Price
04483 - SHACKLE KIT, REAR SPRING
04483-36100

BU102..T3..20T;RZU100..T3..(EFI,LPG);BU100,105,107,112,12#,162;BU102,RZU100..(DM2,DM3,DM5,DM6,T2,T4,T5,TW1,TW4)..(CBU,IV3)

 2
04483-36100

BU102..T3..20T;RZU100..T3..(EFI,LPG);BU100,105,107,112,12#,162;BU102,RZU100..(DM2,DM3,DM5,DM6,T2,T4,T5,TW1,TW4)..(CBU,IV3)

 2
04484 - PIN KIT, REAR SPRING
04484-36070

BU102..T3..20T;BU100,105,107,112,12#;RZU100..T3..(EFI,LPG);BU102,RZU100..(DM2,DM3,DM5,DM6,T2,T4,T5,TW1,TW4)..(CBU,IV3)

 2
04484-36070

BU102..T3..20T;BU100,105,107,112,12#;RZU100..T3..(EFI,LPG);BU102,RZU100..(DM2,DM3,DM5,DM6,T2,T4,T5,TW1,TW4)..(CBU,IV3)

 2
04484 - PIN KIT, REAR SPRING
04484-36070

BU102..T3..20T;BU100,105,107,112,12#;RZU100..T3..(EFI,LPG);BU102,RZU100..(DM2,DM3,DM5,DM6,T2,T4,T5,TW1,TW4)..(CBU,IV3)

 2
04484-36070

BU102..T3..20T;BU100,105,107,112,12#;RZU100..T3..(EFI,LPG);BU102,RZU100..(DM2,DM3,DM5,DM6,T2,T4,T5,TW1,TW4)..(CBU,IV3)

 2
48046 - SEAT SUB-ASSY, SPRING U BOLT, RH
48046-36180

BU10#,RZU100..DM2,DM5,T4,TW4

 1
48046-36180

BU10#,RZU100..DM2,DM5,T4,TW4

 1
48046 - SEAT SUB-ASSY, SPRING U BOLT, RH
48046-36180

BU10#,RZU100..DM2,DM5,T4,TW4

 1
48046-36180

BU10#,RZU100..DM2,DM5,T4,TW4

 1
48046A - BOLT, U(FOR REAR SPRING)
90117-16014

BU10#,RZU100..DM2,T2

長さ=225

 4
90117-16014

BU10#,RZU100..DM2,T2

長さ=225

 4
90117-16052

RZU100..T2..CBU;BU105,107..T2,T3;RZU100..(T2,T4)..IV3;BU100,102..(DM2,T2,T4,TW4)..20T

長さ=235

 4
90117-16052

RZU100..T2..CBU;BU105,107..T2,T3;RZU100..(T2,T4)..IV3;BU100,102..(DM2,T2,T4,TW4)..20T

長さ=235

 4
48046A - BOLT, U(FOR REAR SPRING)
90117-16014

BU10#,RZU100..DM2,T2

長さ=225

 4
90117-16014

BU10#,RZU100..DM2,T2

長さ=225

 4
90117-16052

RZU100..T2..CBU;BU105,107..T2,T3;RZU100..(T2,T4)..IV3;BU100,102..(DM2,T2,T4,TW4)..20T

長さ=235

 4
90117-16052

RZU100..T2..CBU;BU105,107..T2,T3;RZU100..(T2,T4)..IV3;BU100,102..(DM2,T2,T4,TW4)..20T

長さ=235

 4
48047 - SEAT SUB-ASSY, SPRING U BOLT, LH
48047-36180

BU10#,RZU100..DM2,DM5,T4,TW4

 1
48047-36180

BU10#,RZU100..DM2,DM5,T4,TW4

 1
48047 - SEAT SUB-ASSY, SPRING U BOLT, LH
48047-36180

BU10#,RZU100..DM2,DM5,T4,TW4

 1
48047-36180

BU10#,RZU100..DM2,DM5,T4,TW4

 1
48344 - STOPPER, BUMPER, REAR
48344-36310

BU107..T3..IV3;BU100,102,RZU100..(DM2,T3,TW1)..WT..20T..(CBU,IV3)

ｱﾘ(ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ)

 2
48344-36310

BU107..T3..IV3;BU100,102,RZU100..(DM2,T3,TW1)..WT..20T..(CBU,IV3)

ｱﾘ(ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ)

 2
48344 - STOPPER, BUMPER, REAR
48344-36310

BU107..T3..IV3;BU100,102,RZU100..(DM2,T3,TW1)..WT..20T..(CBU,IV3)

ｱﾘ(ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ)

 2
48344-36310

BU107..T3..IV3;BU100,102,RZU100..(DM2,T3,TW1)..WT..20T..(CBU,IV3)

ｱﾘ(ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ)

 2
48344 - STOPPER, BUMPER, REAR
48344-36310

BU107..T3..IV3;BU100,102,RZU100..(DM2,T3,TW1)..WT..20T..(CBU,IV3)

ｱﾘ(ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ)

 2
48344-36310

BU107..T3..IV3;BU100,102,RZU100..(DM2,T3,TW1)..WT..20T..(CBU,IV3)

ｱﾘ(ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ)

 2
48414B - BRACKET, SPRING, NO.3 RH
48414-36250

BU100,102,RZU100..(DM2,DM5,T4,TW4)..20T

 1
48414-36250

BU100,102,RZU100..(DM2,DM5,T4,TW4)..20T

 1
48415B - BRACKET, SPRING, NO.3 LH
48414-36250

BU100,102,RZU100..(DM2,DM5,T4,TW4)..20T

 1
48414-36250

BU100,102,RZU100..(DM2,DM5,T4,TW4)..20T

 1
48416 - BRACKET, SPRING, NO.4
48417-36120

BU10#,RZU100..(DM2,DM5,T4,TW4)..20T

左側

 1
48417-36120

BU10#,RZU100..(DM2,DM5,T4,TW4)..20T

左側

 1
48416-36240

BU10#,RZU100..(DM2,DM5,T4,TW4)..20T

右側

 1
48416-36240

BU10#,RZU100..(DM2,DM5,T4,TW4)..20T

右側

 1
48422A - SUPPORT, REAR SPRING PIN
48422-36090

BU102..T3..20T;BU100,105,107,112,12#;RZU100..T3..(EFI,LPG);BU102,RZU100..(DM2,DM3,DM5,DM6,T2,T4,T5,TW1,TW4)..(CBU,IV3)

 2
48422-36090

BU102..T3..20T;BU100,105,107,112,12#;RZU100..T3..(EFI,LPG);BU102,RZU100..(DM2,DM3,DM5,DM6,T2,T4,T5,TW1,TW4)..(CBU,IV3)

 2
48422A - SUPPORT, REAR SPRING PIN
48422-36090

BU102..T3..20T;BU100,105,107,112,12#;RZU100..T3..(EFI,LPG);BU102,RZU100..(DM2,DM3,DM5,DM6,T2,T4,T5,TW1,TW4)..(CBU,IV3)

 2
48422-36090

BU102..T3..20T;BU100,105,107,112,12#;RZU100..T3..(EFI,LPG);BU102,RZU100..(DM2,DM3,DM5,DM6,T2,T4,T5,TW1,TW4)..(CBU,IV3)

 2
48516 - BRACKET, REAR SHOCK ABSORBER, UPPER RH
48505-36040

BU222;BU102,RZU100..DM2,DM5;BU142,182,212,XZU140..30T

 1
48505-36040

BU222;BU102,RZU100..DM2,DM5;BU142,182,212,XZU140..30T

 1
48517 - BRACKET, REAR SHOCK ABSORBER, UPPER LH
48505-36040

BU222;BU102,RZU100..DM2,DM5;BU142,182,212,XZU140..30T

 1
48505-36040

BU222;BU102,RZU100..DM2,DM5;BU142,182,212,XZU140..30T

 1
48533 - PIN, REAR SHOCK ABSORBER LOWER PIVOT, RH
48533-36070

BU112..DMP..20T;BU102..T3..WT..20T;BU100,105,107,162..WT;RZU100..T3..(EFI,LPG);BU102,RZU100..(DM2,DM3,DM5,DM6,T2,T4,TW1,TW4)..(CBU,IV3)

 1
48533-36070

BU112..DMP..20T;BU102..T3..WT..20T;BU100,105,107,162..WT;RZU100..T3..(EFI,LPG);BU102,RZU100..(DM2,DM3,DM5,DM6,T2,T4,TW1,TW4)..(CBU,IV3)

 1
48533A - PIN, REAR SHOCK ABSORBER LOWER PIVOT, LH
48533-36070

BU112..DMP..20T;BU102..T3..WT..20T;BU100,105,107,162..WT;RZU100..T3..(EFI,LPG);BU102,RZU100..(DM2,DM3,DM5,DM6,T2,T4,TW1,TW4)..(CBU,IV3)

 1
48533-36070

BU112..DMP..20T;BU102..T3..WT..20T;BU100,105,107,162..WT;RZU100..T3..(EFI,LPG);BU102,RZU100..(DM2,DM3,DM5,DM6,T2,T4,TW1,TW4)..(CBU,IV3)

 1
Common parts
90101-16018
90101-16021
90101-16029
90105-16021
90119-08276
90170-16016
90179-08141
90179-10016
90179-16030
90201-16035
90385-13004
91112-81045
91611-60832
91611-61030
91645-C1032
91651-60820
94130-61600
94183-60801
94184-01001
94184-61001
94185-60800

ILLUST NO. 1 OF 4(9505- )RZU100..LPGB ; (9505- )BU107..T4..4FC ; (9505- )BU102..T4..30T ; (

Click highlighted areas on diagram

diagram 04483 04484 04484 48046 48046 48046A 48046A 48047 48047 48344 48344 48344 48414B 48415B 48416 48418A 48418A 48422A 48422A 48435 48435 48475R 48481 48516 48517 48533 48533A 48802 48802E 48805 48815R 48817R 48817R 48817S 48817S 48817S 48817S 48823R 48836R 48837R 9010116018 9010116021 9010116029 9010516021 9011908276 9017016016 9017016016 9017016016 9017016016 9017908141 9017910016 9017916030 9020116035 9020116035 9020116035 9020116035 9020116035 9038513004 9111281045 9161160832 9161161030 91645C1032 9165160820 9413061600 9418360801 9418401001 9418461001 9418461001 9418461001 9418560800
Part # Description Qty Price
04483 - SHACKLE KIT, REAR SPRING
04483-36100

BU102..T3..20T;RZU100..T3..(EFI,LPG);BU100,105,107,112,12#,162;BU102,RZU100..(DM2,DM3,DM5,DM6,T2,T4,T5,TW1,TW4)..(CBU,IV3)

 2
04483-36100

BU102..T3..20T;RZU100..T3..(EFI,LPG);BU100,105,107,112,12#,162;BU102,RZU100..(DM2,DM3,DM5,DM6,T2,T4,T5,TW1,TW4)..(CBU,IV3)

 2
04484 - PIN KIT, REAR SPRING
04484-36070

BU102..T3..20T;BU100,105,107,112,12#;RZU100..T3..(EFI,LPG);BU102,RZU100..(DM2,DM3,DM5,DM6,T2,T4,T5,TW1,TW4)..(CBU,IV3)

 2
04484-36070

BU102..T3..20T;BU100,105,107,112,12#;RZU100..T3..(EFI,LPG);BU102,RZU100..(DM2,DM3,DM5,DM6,T2,T4,T5,TW1,TW4)..(CBU,IV3)

 2
04484 - PIN KIT, REAR SPRING
04484-36070

BU102..T3..20T;BU100,105,107,112,12#;RZU100..T3..(EFI,LPG);BU102,RZU100..(DM2,DM3,DM5,DM6,T2,T4,T5,TW1,TW4)..(CBU,IV3)

 2
04484-36070

BU102..T3..20T;BU100,105,107,112,12#;RZU100..T3..(EFI,LPG);BU102,RZU100..(DM2,DM3,DM5,DM6,T2,T4,T5,TW1,TW4)..(CBU,IV3)

 2
48046 - SEAT SUB-ASSY, SPRING U BOLT, RH
48046-36180

BU10#,RZU100..DM2,DM5,T4,TW4

 1
48046-36180

BU10#,RZU100..DM2,DM5,T4,TW4

 1
48046 - SEAT SUB-ASSY, SPRING U BOLT, RH
48046-36180

BU10#,RZU100..DM2,DM5,T4,TW4

 1
48046-36180

BU10#,RZU100..DM2,DM5,T4,TW4

 1
48046A - BOLT, U(FOR REAR SPRING)
90117-16014

BU10#,RZU100..DM2,T2

長さ=225

 4
90117-16014

BU10#,RZU100..DM2,T2

長さ=225

 4
90117-16052

RZU100..T2..CBU;BU105,107..T2,T3;RZU100..(T2,T4)..IV3;BU100,102..(DM2,T2,T4,TW4)..20T

長さ=235

 4
90117-16052

RZU100..T2..CBU;BU105,107..T2,T3;RZU100..(T2,T4)..IV3;BU100,102..(DM2,T2,T4,TW4)..20T

長さ=235

 4
48046A - BOLT, U(FOR REAR SPRING)
90117-16014

BU10#,RZU100..DM2,T2

長さ=225

 4
90117-16014

BU10#,RZU100..DM2,T2

長さ=225

 4
90117-16052

RZU100..T2..CBU;BU105,107..T2,T3;RZU100..(T2,T4)..IV3;BU100,102..(DM2,T2,T4,TW4)..20T

長さ=235

 4
90117-16052

RZU100..T2..CBU;BU105,107..T2,T3;RZU100..(T2,T4)..IV3;BU100,102..(DM2,T2,T4,TW4)..20T

長さ=235

 4
48047 - SEAT SUB-ASSY, SPRING U BOLT, LH
48047-36180

BU10#,RZU100..DM2,DM5,T4,TW4

 1
48047-36180

BU10#,RZU100..DM2,DM5,T4,TW4

 1
48047 - SEAT SUB-ASSY, SPRING U BOLT, LH
48047-36180

BU10#,RZU100..DM2,DM5,T4,TW4

 1
48047-36180

BU10#,RZU100..DM2,DM5,T4,TW4

 1
48344 - STOPPER, BUMPER, REAR
48344-36310

BU107..T3..IV3;BU100,102,RZU100..(DM2,T3,TW1)..WT..20T..(CBU,IV3)

ｱﾘ(ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ)

 2
48344-36310

BU107..T3..IV3;BU100,102,RZU100..(DM2,T3,TW1)..WT..20T..(CBU,IV3)

ｱﾘ(ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ)

 2
48344 - STOPPER, BUMPER, REAR
48344-36310

BU107..T3..IV3;BU100,102,RZU100..(DM2,T3,TW1)..WT..20T..(CBU,IV3)

ｱﾘ(ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ)

 2
48344-36310

BU107..T3..IV3;BU100,102,RZU100..(DM2,T3,TW1)..WT..20T..(CBU,IV3)

ｱﾘ(ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ)

 2
48344 - STOPPER, BUMPER, REAR
48344-36310

BU107..T3..IV3;BU100,102,RZU100..(DM2,T3,TW1)..WT..20T..(CBU,IV3)

ｱﾘ(ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ)

 2
48344-36310

BU107..T3..IV3;BU100,102,RZU100..(DM2,T3,TW1)..WT..20T..(CBU,IV3)

ｱﾘ(ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ)

 2
48414B - BRACKET, SPRING, NO.3 RH
48414-36250

BU100,102,RZU100..(DM2,DM5,T4,TW4)..20T

 1
48414-36250

BU100,102,RZU100..(DM2,DM5,T4,TW4)..20T

 1
48415B - BRACKET, SPRING, NO.3 LH
48414-36250

BU100,102,RZU100..(DM2,DM5,T4,TW4)..20T

 1
48414-36250

BU100,102,RZU100..(DM2,DM5,T4,TW4)..20T

 1
48416 - BRACKET, SPRING, NO.4
48417-36120

BU10#,RZU100..(DM2,DM5,T4,TW4)..20T

左側

 1
48417-36120

BU10#,RZU100..(DM2,DM5,T4,TW4)..20T

左側

 1
48416-36240

BU10#,RZU100..(DM2,DM5,T4,TW4)..20T

右側

 1
48416-36240

BU10#,RZU100..(DM2,DM5,T4,TW4)..20T

右側

 1
48422A - SUPPORT, REAR SPRING PIN
48422-36090

BU102..T3..20T;BU100,105,107,112,12#;RZU100..T3..(EFI,LPG);BU102,RZU100..(DM2,DM3,DM5,DM6,T2,T4,T5,TW1,TW4)..(CBU,IV3)

 2
48422-36090

BU102..T3..20T;BU100,105,107,112,12#;RZU100..T3..(EFI,LPG);BU102,RZU100..(DM2,DM3,DM5,DM6,T2,T4,T5,TW1,TW4)..(CBU,IV3)

 2
48422A - SUPPORT, REAR SPRING PIN
48422-36090

BU102..T3..20T;BU100,105,107,112,12#;RZU100..T3..(EFI,LPG);BU102,RZU100..(DM2,DM3,DM5,DM6,T2,T4,T5,TW1,TW4)..(CBU,IV3)

 2
48422-36090

BU102..T3..20T;BU100,105,107,112,12#;RZU100..T3..(EFI,LPG);BU102,RZU100..(DM2,DM3,DM5,DM6,T2,T4,T5,TW1,TW4)..(CBU,IV3)

 2
48516 - BRACKET, REAR SHOCK ABSORBER, UPPER RH
48505-36040

BU222;BU102,RZU100..DM2,DM5;BU142,182,212,XZU140..30T

 1
48505-36040

BU222;BU102,RZU100..DM2,DM5;BU142,182,212,XZU140..30T

 1
48517 - BRACKET, REAR SHOCK ABSORBER, UPPER LH
48505-36040

BU222;BU102,RZU100..DM2,DM5;BU142,182,212,XZU140..30T

 1
48505-36040

BU222;BU102,RZU100..DM2,DM5;BU142,182,212,XZU140..30T

 1
48533 - PIN, REAR SHOCK ABSORBER LOWER PIVOT, RH
48533-36070

BU112..DMP..20T;BU102..T3..WT..20T;BU100,105,107,162..WT;RZU100..T3..(EFI,LPG);BU102,RZU100..(DM2,DM3,DM5,DM6,T2,T4,TW1,TW4)..(CBU,IV3)

 1
48533-36070

BU112..DMP..20T;BU102..T3..WT..20T;BU100,105,107,162..WT;RZU100..T3..(EFI,LPG);BU102,RZU100..(DM2,DM3,DM5,DM6,T2,T4,TW1,TW4)..(CBU,IV3)

 1
48533A - PIN, REAR SHOCK ABSORBER LOWER PIVOT, LH
48533-36070

BU112..DMP..20T;BU102..T3..WT..20T;BU100,105,107,162..WT;RZU100..T3..(EFI,LPG);BU102,RZU100..(DM2,DM3,DM5,DM6,T2,T4,TW1,TW4)..(CBU,IV3)

 1
48533-36070

BU112..DMP..20T;BU102..T3..WT..20T;BU100,105,107,162..WT;RZU100..T3..(EFI,LPG);BU102,RZU100..(DM2,DM3,DM5,DM6,T2,T4,TW1,TW4)..(CBU,IV3)

 1
Common parts
90101-16018
90101-16021
90101-16029
90105-16021
90119-08276
90170-16016
90179-08141
90179-10016
90179-16030
90201-16035
90385-13004
91112-81045
91611-60832
91611-61030
91645-C1032
91651-60820
94130-61600
94183-60801
94184-01001
94184-61001
94185-60800

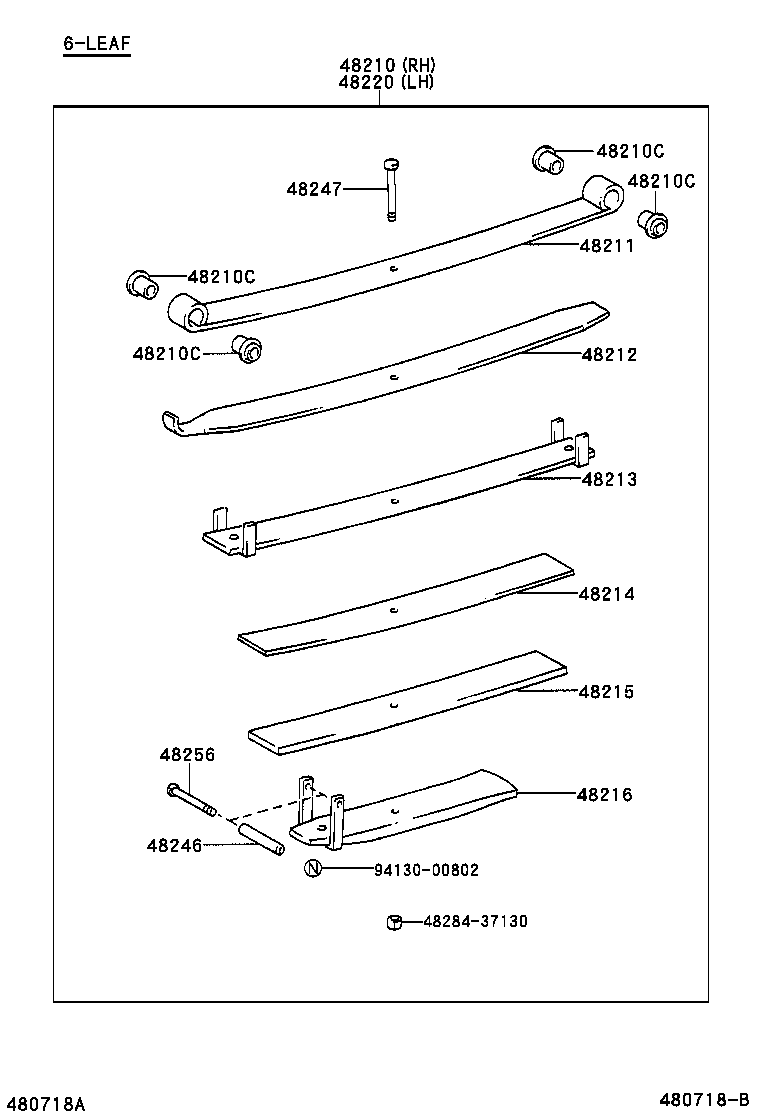

ILLUST NO. 2 OF 2(9505- )BU105,107..T2,T3 ; (9505- )BU100,102,RZU100..DM2,T2 ; (9610- )BU10

Click highlighted areas on diagram

diagram 48210 48210C 48210C 48210C 48210C 48211 48212 48213 48214 48215 48216 48220 48246 48247 48256 4828437130 9413000802
Part # Description Qty Price
48210 - SPRING ASSY, REAR RH
48210-3B240

BU102..DM2

6枚ﾘｰﾌ

 1
48210C - BUSH(FOR REAR SPRING LEAF)
90389-16013

BU102..T3..20T;BU100,105,107,112,162;RZU100..T3..(EFI,LPG);BU102,RZU100..(DM2,DM3,DM5,DM6,T2,T4,T5,TW1,TW4)..(CBU,IV3)

 8
48210C - BUSH(FOR REAR SPRING LEAF)
90389-16013

BU102..T3..20T;BU100,105,107,112,162;RZU100..T3..(EFI,LPG);BU102,RZU100..(DM2,DM3,DM5,DM6,T2,T4,T5,TW1,TW4)..(CBU,IV3)

 8
48210C - BUSH(FOR REAR SPRING LEAF)
90389-16013

BU102..T3..20T;BU100,105,107,112,162;RZU100..T3..(EFI,LPG);BU102,RZU100..(DM2,DM3,DM5,DM6,T2,T4,T5,TW1,TW4)..(CBU,IV3)

 8
48210C - BUSH(FOR REAR SPRING LEAF)
90389-16013

BU102..T3..20T;BU100,105,107,112,162;RZU100..T3..(EFI,LPG);BU102,RZU100..(DM2,DM3,DM5,DM6,T2,T4,T5,TW1,TW4)..(CBU,IV3)

 8
48211 - LEAF, REAR SPRING, NO.1
48201-3B240

BU102..DM2

 2
48212 - LEAF, REAR SPRING, NO.2
48212-3B240

BU102..DM2

 2
48213 - LEAF, REAR SPRING, NO.3
48202-3B240

BU102..DM2

 2
48214 - LEAF, REAR SPRING, NO.4
48214-3B240

BU102..DM2

 2
48215 - LEAF, REAR SPRING, NO.5
48215-3B240

BU102..DM2

 2
48216 - LEAF, REAR SPRING, NO.6
48203-3B240

BU102..DM2

 2
48220 - SPRING ASSY, REAR LH
48210-3B240

BU102..DM2

6枚ﾘｰﾌ

 1
48246 - CASE, REAR SPRING CLIP BOLT
48146-60070

BU10#,112,RZU100..(DM2,T1,T2,T3,T4,TW1,TW2,TW4)..(175T,20T)..(CBU,IV3)

 2
48146-60070

BU105,107,112..TR;BU100,102,RZU100..(DM2,T1,T2,T3,TW1,TW2)..(175T,20T)..(CBU,IV3)

 2
48247 - BOLT, REAR SPRING, CENTER
48247-36030

BU132..20T;BU102..DM2

L=88

 2
48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET)
48256-25050

BU102..T3..20T;BU107..T4..CBU;BU107..T2,T3,TW4;BU107..T4..IV3..4FC;BU102..DM2,DM3,DM5,DM6,T2,T4,T5,TW4;BU100,105,112,RZU100..DM5,DM6,T1,T2,T3,T4,TW1,TW2,TW4

 2
48256-25050

BU102..T3..20T;BU107..T4..CBU;BU107..T2,T3,TW4;BU107..T4..IV3..4FC;RZU100..(DM6,T2,T3,T4)..IV3;BU102..DM2,DM3,DM6,T2,T4,TW4;RZU100..(T2,T3,TW1,TW4)..CBU;BU100,105,112..DM6,T1,T2,T3,T4,TW2,TW4

 2
48256-25050

BU102..T3..20T;BU102..DM2,DM3,DM6,T2,T4;BU100,112..DM6,T1,T2,T3,T4,TW2;BU105,107,RZU100..DM6,T2,T3,TW1

 2
48256-25050

BU105,112..TR;BU102..ST..CBU;BU102..T4..30T..IV3;BU107..T4..IV3..4FC;RZU100..(T2,T3,TW1)..CBU;RZU100..(DM6,T2,T3,T4)..IV3;BU102,107..(DM2,DM3,T4)..CBU;BU100,107..DM6,T1,T2,T3,TW2,TW4;BU102..(DM2,DM6,T2,T3,TW4)..20T..IV3

 2
Common parts
48284-37130
94130-00802

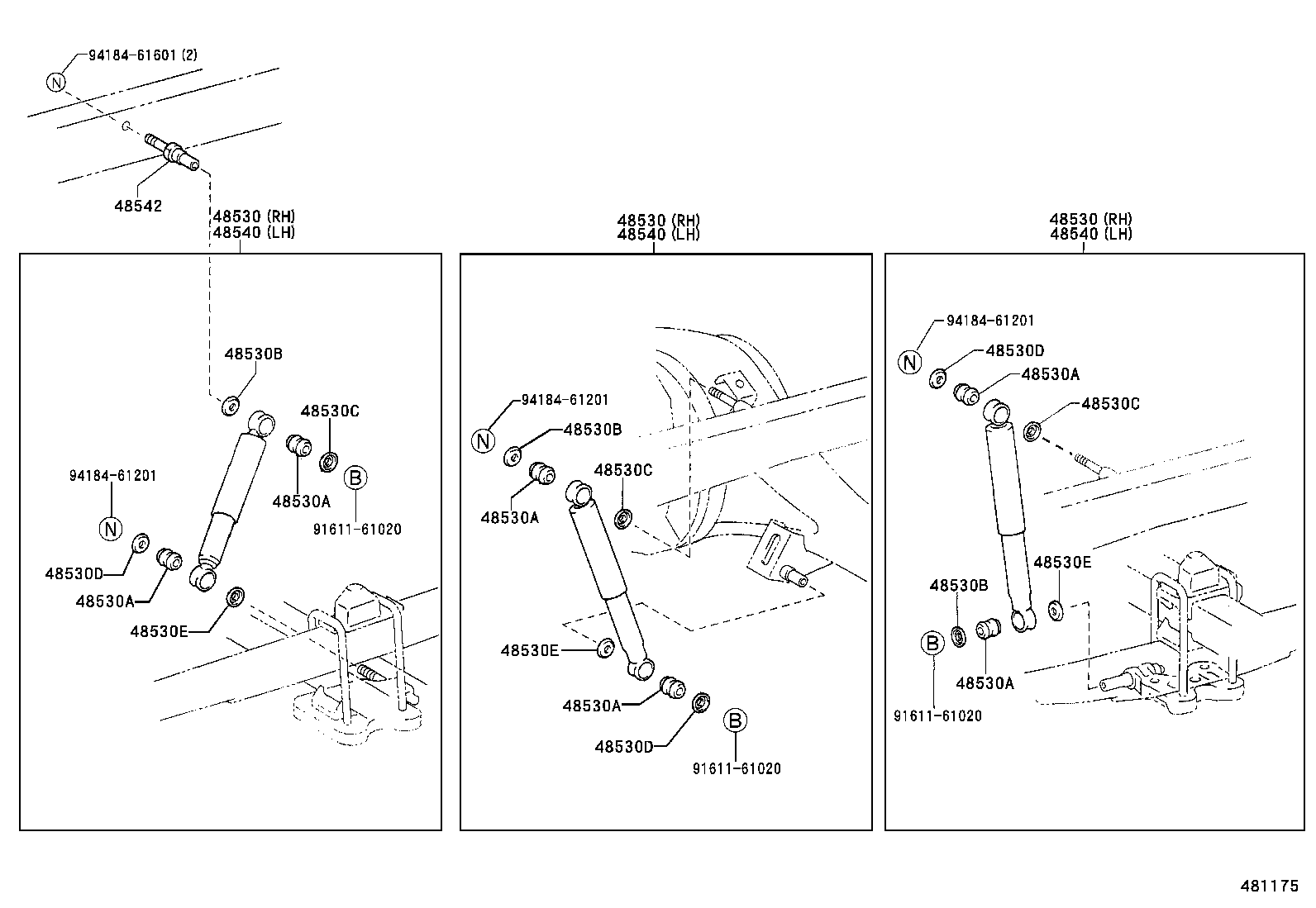

ILLUST NO. 3 OF 4(9505- )BU10#,13#,14#,172,182,202,212,222,RZU100,140,XZU130,140

Click highlighted areas on diagram

diagram 48530 48530 48530 48530A 48530A 48530A 48530A 48530A 48530A 48530B 48530B 48530B 48530C 48530C 48530C 48530D 48530D 48530D 48530E 48530E 48530E 48540 48540 48540 48542 9161161020 9161161020 9161161020 9418461201 9418461201 9418461201 9418461601
Part # Description Qty Price
48530 - ABSORBER ASSY, SHOCK, REAR RH
48531-80442

BU10#,RZU100..(DM2,DM5,T2,T3,T4,TW1,TW4)..WT..20T..(CBU,IV3)

 1
48530 - ABSORBER ASSY, SHOCK, REAR RH
48531-80442

BU10#,RZU100..(DM2,DM5,T2,T3,T4,TW1,TW4)..WT..20T..(CBU,IV3)

 1
48530 - ABSORBER ASSY, SHOCK, REAR RH
48531-80442

BU10#,RZU100..(DM2,DM5,T2,T3,T4,TW1,TW4)..WT..20T..(CBU,IV3)

 1
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16011

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140

 4
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16011

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140

 4
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16011

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140

 4
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16011

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140

 4
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16011

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140

 4
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16011

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140

 4
48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1
90948-03003

RZU100..TR..20T;BU10#,112,14#..(DM2,DM5,T2,T3,T4,TW1,TW4)..WT

 2
90948-03007

BU102..T3..WT..20T;BU102,112..DM2,DM3,DM5,DM6,DM7,DM8,T2,T4,TW4;BU100,105,107,13#,162,172,182,202,212,222,RZU100,XZU130..WT

 2
48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1
90948-03003

RZU100..TR..20T;BU10#,112,14#..(DM2,DM5,T2,T3,T4,TW1,TW4)..WT

 2
90948-03007

BU102..T3..WT..20T;BU102,112..DM2,DM3,DM5,DM6,DM7,DM8,T2,T4,TW4;BU100,105,107,13#,162,172,182,202,212,222,RZU100,XZU130..WT

 2
48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1
90948-03003

RZU100..TR..20T;BU10#,112,14#..(DM2,DM5,T2,T3,T4,TW1,TW4)..WT

 2
90948-03007

BU102..T3..WT..20T;BU102,112..DM2,DM3,DM5,DM6,DM7,DM8,T2,T4,TW4;BU100,105,107,13#,162,172,182,202,212,222,RZU100,XZU130..WT

 2
48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2
90948-03004

BU10#,112,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..WT

 2
48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2
90948-03004

BU10#,112,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..WT

 2
48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2
90948-03004

BU10#,112,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..WT

 2
48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3
90948-03003

BU102..T3..20T;BU102..DM2,DM3,DM5,DM6,T2,T4,T5,TW4;BU100,105,107,12#,13#,162,172,182,202,212,222,RZU100,XZU130

 2
90948-03003

BU102..T3..WT..20T;RZU100..T3..(EFI,LPG);BU100,105,107,13#,162,172,182,202,212,222,XZU130..WT;BU102,RZU100..(DM2,DM3,DM5,DM6,T2,T4,TW1,TW4)..(CBU,IV3)

 2
48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3
90948-03003

BU102..T3..20T;BU102..DM2,DM3,DM5,DM6,T2,T4,T5,TW4;BU100,105,107,12#,13#,162,172,182,202,212,222,RZU100,XZU130

 2
90948-03003

BU102..T3..WT..20T;RZU100..T3..(EFI,LPG);BU100,105,107,13#,162,172,182,202,212,222,XZU130..WT;BU102,RZU100..(DM2,DM3,DM5,DM6,T2,T4,TW1,TW4)..(CBU,IV3)

 2
48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3
90948-03003

BU102..T3..20T;BU102..DM2,DM3,DM5,DM6,T2,T4,T5,TW4;BU100,105,107,12#,13#,162,172,182,202,212,222,RZU100,XZU130

 2
90948-03003

BU102..T3..WT..20T;RZU100..T3..(EFI,LPG);BU100,105,107,13#,162,172,182,202,212,222,XZU130..WT;BU102,RZU100..(DM2,DM3,DM5,DM6,T2,T4,TW1,TW4)..(CBU,IV3)

 2
48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4
90948-03004

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140

 2
48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4
90948-03004

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140

 2
48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4
90948-03004

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140

 2
48540 - ABSORBER ASSY, SHOCK, REAR LH
48531-80442

BU10#,RZU100..(DM2,DM5,T2,T3,T4,TW1,TW4)..WT..20T..(CBU,IV3)

 1
48540 - ABSORBER ASSY, SHOCK, REAR LH
48531-80442

BU10#,RZU100..(DM2,DM5,T2,T3,T4,TW1,TW4)..WT..20T..(CBU,IV3)

 1
48540 - ABSORBER ASSY, SHOCK, REAR LH
48531-80442

BU10#,RZU100..(DM2,DM5,T2,T3,T4,TW1,TW4)..WT..20T..(CBU,IV3)

 1
Common parts
91611-61020
94184-61201
94184-61601

ILLUST NO. 4 OF 4(9505- )BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140

Click highlighted areas on diagram

diagram
Part # Description Qty Price

ILLUST NO. 1 OF 2(9505- )BU100,102..DM2,DM3,DM5,DM6,T1,T2,T3,T5,TW1,TW2

Click highlighted areas on diagram

diagram 04483 04484 48046 48046 48046A 48046A 48047 48047 48210A 48210A 48306 48344 48414B 48415B 48416 48422A 48516 48517 48530 48530 48530A 48530A 48530A 48530A 48530B 48530B 48530C 48530C 48530D 48530D 48530E 48530E 48533 48533A 48540 48540 9010116025 9010116026 9011908276 9011910355 9011910355 9017016016 9017016016 9017016016 9017916030 9020116035 9020116035 9020116035 9020116035 9161161020 9161161020 9322018045 9413061600 9418461201 9418461201 9418461201 9418461201 9418560800
Part # Description Qty Price
04483 - SHACKLE KIT, REAR SPRING
04483-36100

BU102..T3..20T;RZU100..T3..(EFI,LPG);BU100,105,107,112,12#,162;BU102,RZU100..(DM2,DM3,DM5,DM6,T2,T4,T5,TW1,TW4)..(CBU,IV3)

 2
04483-36100

BU102..T3..20T;RZU100..T3..(EFI,LPG);BU100,105,107,112,12#,162;BU102,RZU100..(DM2,DM3,DM5,DM6,T2,T4,T5,TW1,TW4)..(CBU,IV3)

 2
04484 - PIN KIT, REAR SPRING
04484-36070

BU102..T3..20T;BU100,105,107,112,12#;RZU100..T3..(EFI,LPG);BU102,RZU100..(DM2,DM3,DM5,DM6,T2,T4,T5,TW1,TW4)..(CBU,IV3)

 2
04484-36070

BU102..T3..20T;BU100,105,107,112,12#;RZU100..T3..(EFI,LPG);BU102,RZU100..(DM2,DM3,DM5,DM6,T2,T4,T5,TW1,TW4)..(CBU,IV3)

 2
48046 - SEAT SUB-ASSY, SPRING U BOLT, RH
48046-36180

BU10#,RZU100..DM2,DM5,T4,TW4

 1
48046-36180

BU10#,RZU100..DM2,DM5,T4,TW4

 1
48046 - SEAT SUB-ASSY, SPRING U BOLT, RH
48046-36180

BU10#,RZU100..DM2,DM5,T4,TW4

 1
48046-36180

BU10#,RZU100..DM2,DM5,T4,TW4

 1
48046A - BOLT, U(FOR REAR SPRING)
90117-16014

BU10#,RZU100..DM2,T2

長さ=225

 4
90117-16014

BU10#,RZU100..DM2,T2

長さ=225

 4
90117-16052

RZU100..T2..CBU;BU105,107..T2,T3;RZU100..(T2,T4)..IV3;BU100,102..(DM2,T2,T4,TW4)..20T

長さ=235

 4
90117-16052

RZU100..T2..CBU;BU105,107..T2,T3;RZU100..(T2,T4)..IV3;BU100,102..(DM2,T2,T4,TW4)..20T

長さ=235

 4
48046A - BOLT, U(FOR REAR SPRING)
90117-16014

BU10#,RZU100..DM2,T2

長さ=225

 4
90117-16014

BU10#,RZU100..DM2,T2

長さ=225

 4
90117-16052

RZU100..T2..CBU;BU105,107..T2,T3;RZU100..(T2,T4)..IV3;BU100,102..(DM2,T2,T4,TW4)..20T

長さ=235

 4
90117-16052

RZU100..T2..CBU;BU105,107..T2,T3;RZU100..(T2,T4)..IV3;BU100,102..(DM2,T2,T4,TW4)..20T

長さ=235

 4
48047 - SEAT SUB-ASSY, SPRING U BOLT, LH
48047-36180

BU10#,RZU100..DM2,DM5,T4,TW4

 1
48047-36180

BU10#,RZU100..DM2,DM5,T4,TW4

 1
48047 - SEAT SUB-ASSY, SPRING U BOLT, LH
48047-36180

BU10#,RZU100..DM2,DM5,T4,TW4

 1
48047-36180

BU10#,RZU100..DM2,DM5,T4,TW4

 1
48210A - BUSH(FOR REAR SPRING SHACKLE UPPER)
90385-23002

BU102..T3..20T;RZU100..T3..(EFI,LPG);BU100,105,107,112,12#,162;BU102,RZU100..(DM2,DM3,DM5,DM6,T2,T4,T5,TW1,TW4)..(CBU,IV3)

 4
90385-23002

BU102..T3..20T;RZU100..T3..(EFI,LPG);BU100,105,107,112,12#,162;BU102,RZU100..(DM2,DM3,DM5,DM6,T2,T4,T5,TW1,TW4)..(CBU,IV3)

 4
48210A - BUSH(FOR REAR SPRING SHACKLE UPPER)
90385-23002

BU102..T3..20T;RZU100..T3..(EFI,LPG);BU100,105,107,112,12#,162;BU102,RZU100..(DM2,DM3,DM5,DM6,T2,T4,T5,TW1,TW4)..(CBU,IV3)

 4
90385-23002

BU102..T3..20T;RZU100..T3..(EFI,LPG);BU100,105,107,112,12#,162;BU102,RZU100..(DM2,DM3,DM5,DM6,T2,T4,T5,TW1,TW4)..(CBU,IV3)

 4
48306 - BUMPER SUB-ASSY, REAR SPRING
48306-36031

BU10#..(T4,TW4)..20T..IV3;BU10#..(DM2,DM5,T2,T3)..WT..20T;RZU100..(DM5,T2,T3,T4)..20T..IV3;RZU100..(DM5,T2,T3,TW1)..20T..CBU

ｱﾘ(ｷｮｳｶ ｽﾌﾟﾘﾝｸﾞ) OR ｱﾘ(ｼｬｺｳ UP ｽﾌﾟﾘﾝｸﾞ)

 2
48306-36031

BU10#..(T4,TW4)..20T..IV3;BU10#..(DM2,DM5,T2,T3)..WT..20T;RZU100..(DM5,T2,T3,T4)..20T..IV3;RZU100..(DM5,T2,T3,TW1)..20T..CBU

ｱﾘ(ｷｮｳｶ ｽﾌﾟﾘﾝｸﾞ) OR ｱﾘ(ｼｬｺｳ UP ｽﾌﾟﾘﾝｸﾞ)

 2
48306-36031

BU105,107..T2,T3;BU105,107..(T4,TW4)..IV3;RZU100..(DM5,T2,T3,T4)..20T..IV3;RZU100..(DM5,T2,T3,TW1,TW4)..20T..CBU;BU100,102..(DM2,DM5,T2,T3,T4,TW4)..WT..20T

ｱﾘ(ｷｮｳｶ ｽﾌﾟﾘﾝｸﾞ) OR ｱﾘ(ｼｬｺｳ UP ｽﾌﾟﾘﾝｸﾞ)

 2
48306-36031

BU105,107..T2,T3;BU105,107..(T4,TW4)..IV3;RZU100..(DM5,T2,T3,T4)..20T..IV3;RZU100..(DM5,T2,T3,TW1,TW4)..20T..CBU;BU100,102..(DM2,DM5,T2,T3,T4,TW4)..WT..20T

ｱﾘ(ｷｮｳｶ ｽﾌﾟﾘﾝｸﾞ) OR ｱﾘ(ｼｬｺｳ UP ｽﾌﾟﾘﾝｸﾞ)

 2
48344 - STOPPER, BUMPER, REAR
48344-36310

BU107..T3..IV3;BU100,102,RZU100..(DM2,T3,TW1)..WT..20T..(CBU,IV3)

ｱﾘ(ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ)

 2
48344-36310

BU107..T3..IV3;BU100,102,RZU100..(DM2,T3,TW1)..WT..20T..(CBU,IV3)

ｱﾘ(ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ)

 2
48414B - BRACKET, SPRING, NO.3 RH
48414-36250

BU100,102,RZU100..(DM2,DM5,T4,TW4)..20T

 1
48414-36250

BU100,102,RZU100..(DM2,DM5,T4,TW4)..20T

 1
48415B - BRACKET, SPRING, NO.3 LH
48414-36250

BU100,102,RZU100..(DM2,DM5,T4,TW4)..20T

 1
48414-36250

BU100,102,RZU100..(DM2,DM5,T4,TW4)..20T

 1
48416 - BRACKET, SPRING, NO.4
48417-36120

BU10#,RZU100..(DM2,DM5,T4,TW4)..20T

左側

 1
48417-36120

BU10#,RZU100..(DM2,DM5,T4,TW4)..20T

左側

 1
48416-36240

BU10#,RZU100..(DM2,DM5,T4,TW4)..20T

右側

 1
48416-36240

BU10#,RZU100..(DM2,DM5,T4,TW4)..20T

右側

 1
48422A - SUPPORT, REAR SPRING PIN
48422-36090

BU102..T3..20T;BU100,105,107,112,12#;RZU100..T3..(EFI,LPG);BU102,RZU100..(DM2,DM3,DM5,DM6,T2,T4,T5,TW1,TW4)..(CBU,IV3)

 2
48422-36090

BU102..T3..20T;BU100,105,107,112,12#;RZU100..T3..(EFI,LPG);BU102,RZU100..(DM2,DM3,DM5,DM6,T2,T4,T5,TW1,TW4)..(CBU,IV3)

 2
48516 - BRACKET, REAR SHOCK ABSORBER, UPPER RH
48505-36040

BU222;BU102,RZU100..DM2,DM5;BU142,182,212,XZU140..30T

 1
48505-36040

BU222;BU102,RZU100..DM2,DM5;BU142,182,212,XZU140..30T

 1
48517 - BRACKET, REAR SHOCK ABSORBER, UPPER LH
48505-36040

BU222;BU102,RZU100..DM2,DM5;BU142,182,212,XZU140..30T

 1
48505-36040

BU222;BU102,RZU100..DM2,DM5;BU142,182,212,XZU140..30T

 1
48530 - ABSORBER ASSY, SHOCK, REAR RH
48531-80442

BU10#,RZU100..(DM2,DM5,T2,T3,T4,TW1,TW4)..WT..20T..(CBU,IV3)

 1
48531-80442

BU10#,RZU100..(DM2,DM5,T2,T3,T4,TW1,TW4)..WT..20T..(CBU,IV3)

 1
48530 - ABSORBER ASSY, SHOCK, REAR RH
48531-80442

BU10#,RZU100..(DM2,DM5,T2,T3,T4,TW1,TW4)..WT..20T..(CBU,IV3)

 1
48531-80442

BU10#,RZU100..(DM2,DM5,T2,T3,T4,TW1,TW4)..WT..20T..(CBU,IV3)

 1
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16011

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140

 4
90385-16011

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140

 4
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16011

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140

 4
90385-16011

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140

 4
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16011

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140

 4
90385-16011

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140

 4
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16011

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140

 4
90385-16011

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140

 4
48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1
90948-03003

RZU100..TR..20T;BU10#,112,14#..(DM2,DM5,T2,T3,T4,TW1,TW4)..WT

 2
90948-03003

RZU100..TR..20T;BU10#,112,14#..(DM2,DM5,T2,T3,T4,TW1,TW4)..WT

 2
90948-03007

BU102..T3..WT..20T;BU102,112..DM2,DM3,DM5,DM6,DM7,DM8,T2,T4,TW4;BU100,105,107,13#,162,172,182,202,212,222,RZU100,XZU130..WT

 2
90948-03007

BU102..T3..WT..20T;BU102,112..DM2,DM3,DM5,DM6,DM7,DM8,T2,T4,TW4;BU100,105,107,13#,162,172,182,202,212,222,RZU100,XZU130..WT

 2
48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1
90948-03003

RZU100..TR..20T;BU10#,112,14#..(DM2,DM5,T2,T3,T4,TW1,TW4)..WT

 2
90948-03003

RZU100..TR..20T;BU10#,112,14#..(DM2,DM5,T2,T3,T4,TW1,TW4)..WT

 2
90948-03007

BU102..T3..WT..20T;BU102,112..DM2,DM3,DM5,DM6,DM7,DM8,T2,T4,TW4;BU100,105,107,13#,162,172,182,202,212,222,RZU100,XZU130..WT

 2
90948-03007

BU102..T3..WT..20T;BU102,112..DM2,DM3,DM5,DM6,DM7,DM8,T2,T4,TW4;BU100,105,107,13#,162,172,182,202,212,222,RZU100,XZU130..WT

 2
48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2
90948-03004

BU10#,112,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..WT

 2
90948-03004

BU10#,112,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..WT

 2
48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2
90948-03004

BU10#,112,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..WT

 2
90948-03004

BU10#,112,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..WT

 2
48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3
90948-03003

BU102..T3..20T;BU102..DM2,DM3,DM5,DM6,T2,T4,T5,TW4;BU100,105,107,12#,13#,162,172,182,202,212,222,RZU100,XZU130

 2
90948-03003

BU102..T3..20T;BU102..DM2,DM3,DM5,DM6,T2,T4,T5,TW4;BU100,105,107,12#,13#,162,172,182,202,212,222,RZU100,XZU130

 2
90948-03003

BU102..T3..WT..20T;RZU100..T3..(EFI,LPG);BU100,105,107,13#,162,172,182,202,212,222,XZU130..WT;BU102,RZU100..(DM2,DM3,DM5,DM6,T2,T4,TW1,TW4)..(CBU,IV3)

 2
90948-03003

BU102..T3..WT..20T;RZU100..T3..(EFI,LPG);BU100,105,107,13#,162,172,182,202,212,222,XZU130..WT;BU102,RZU100..(DM2,DM3,DM5,DM6,T2,T4,TW1,TW4)..(CBU,IV3)

 2
48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3
90948-03003

BU102..T3..20T;BU102..DM2,DM3,DM5,DM6,T2,T4,T5,TW4;BU100,105,107,12#,13#,162,172,182,202,212,222,RZU100,XZU130

 2
90948-03003

BU102..T3..20T;BU102..DM2,DM3,DM5,DM6,T2,T4,T5,TW4;BU100,105,107,12#,13#,162,172,182,202,212,222,RZU100,XZU130

 2
90948-03003

BU102..T3..WT..20T;RZU100..T3..(EFI,LPG);BU100,105,107,13#,162,172,182,202,212,222,XZU130..WT;BU102,RZU100..(DM2,DM3,DM5,DM6,T2,T4,TW1,TW4)..(CBU,IV3)

 2
90948-03003

BU102..T3..WT..20T;RZU100..T3..(EFI,LPG);BU100,105,107,13#,162,172,182,202,212,222,XZU130..WT;BU102,RZU100..(DM2,DM3,DM5,DM6,T2,T4,TW1,TW4)..(CBU,IV3)

 2
48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4
90948-03004

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140

 2
90948-03004

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140

 2
48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4
90948-03004

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140

 2
90948-03004

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140

 2
48533 - PIN, REAR SHOCK ABSORBER LOWER PIVOT, RH
48533-36070

BU112..DMP..20T;BU102..T3..WT..20T;BU100,105,107,162..WT;RZU100..T3..(EFI,LPG);BU102,RZU100..(DM2,DM3,DM5,DM6,T2,T4,TW1,TW4)..(CBU,IV3)

 1
48533-36070

BU112..DMP..20T;BU102..T3..WT..20T;BU100,105,107,162..WT;RZU100..T3..(EFI,LPG);BU102,RZU100..(DM2,DM3,DM5,DM6,T2,T4,TW1,TW4)..(CBU,IV3)

 1
48533A - PIN, REAR SHOCK ABSORBER LOWER PIVOT, LH
48533-36070

BU112..DMP..20T;BU102..T3..WT..20T;BU100,105,107,162..WT;RZU100..T3..(EFI,LPG);BU102,RZU100..(DM2,DM3,DM5,DM6,T2,T4,TW1,TW4)..(CBU,IV3)

 1
48533-36070

BU112..DMP..20T;BU102..T3..WT..20T;BU100,105,107,162..WT;RZU100..T3..(EFI,LPG);BU102,RZU100..(DM2,DM3,DM5,DM6,T2,T4,TW1,TW4)..(CBU,IV3)

 1
48540 - ABSORBER ASSY, SHOCK, REAR LH
48531-80442

BU10#,RZU100..(DM2,DM5,T2,T3,T4,TW1,TW4)..WT..20T..(CBU,IV3)

 1
48531-80442

BU10#,RZU100..(DM2,DM5,T2,T3,T4,TW1,TW4)..WT..20T..(CBU,IV3)

 1
48540 - ABSORBER ASSY, SHOCK, REAR LH
48531-80442

BU10#,RZU100..(DM2,DM5,T2,T3,T4,TW1,TW4)..WT..20T..(CBU,IV3)

 1
48531-80442

BU10#,RZU100..(DM2,DM5,T2,T3,T4,TW1,TW4)..WT..20T..(CBU,IV3)

 1
Common parts
90101-16025
90101-16026
90119-08276
90119-10355
90170-16016
90179-16030
90201-16035
91611-61020
93220-18045
94130-61600
94184-61201
94185-60800

ILLUST NO. 1 OF 2(9505- )BU105..06S ; (9505- )RZU100..LPGB; (9505- )BU107..T4..4FC ; (9505

Click highlighted areas on diagram

diagram 04483 04484 48046 48046 48046A 48046A 48047 48047 48210A 48210A 48306 48344 48414B 48415B 48416 48422A 48516 48517 48530 48530 48530A 48530A 48530A 48530A 48530B 48530B 48530C 48530C 48530D 48530D 48530E 48530E 48533 48533A 48540 48540 9010116025 9010116026 9011908276 9011910355 9011910355 9017016016 9017016016 9017016016 9017916030 9020116035 9020116035 9020116035 9020116035 9161161020 9161161020 9322018045 9413061600 9418461201 9418461201 9418461201 9418461201 9418560800
Part # Description Qty Price
04483 - SHACKLE KIT, REAR SPRING
04483-36100

BU102..T3..20T;RZU100..T3..(EFI,LPG);BU100,105,107,112,12#,162;BU102,RZU100..(DM2,DM3,DM5,DM6,T2,T4,T5,TW1,TW4)..(CBU,IV3)

 2
04483-36100

BU102..T3..20T;RZU100..T3..(EFI,LPG);BU100,105,107,112,12#,162;BU102,RZU100..(DM2,DM3,DM5,DM6,T2,T4,T5,TW1,TW4)..(CBU,IV3)

 2
04484 - PIN KIT, REAR SPRING
04484-36070

BU102..T3..20T;BU100,105,107,112,12#;RZU100..T3..(EFI,LPG);BU102,RZU100..(DM2,DM3,DM5,DM6,T2,T4,T5,TW1,TW4)..(CBU,IV3)

 2
04484-36070

BU102..T3..20T;BU100,105,107,112,12#;RZU100..T3..(EFI,LPG);BU102,RZU100..(DM2,DM3,DM5,DM6,T2,T4,T5,TW1,TW4)..(CBU,IV3)

 2
48046 - SEAT SUB-ASSY, SPRING U BOLT, RH
48046-36180

BU10#,RZU100..DM2,DM5,T4,TW4

 1
48046-36180

BU10#,RZU100..DM2,DM5,T4,TW4

 1
48046 - SEAT SUB-ASSY, SPRING U BOLT, RH
48046-36180

BU10#,RZU100..DM2,DM5,T4,TW4

 1
48046-36180

BU10#,RZU100..DM2,DM5,T4,TW4

 1
48046A - BOLT, U(FOR REAR SPRING)
90117-16014

BU10#,RZU100..DM2,T2

長さ=225

 4
90117-16014

BU10#,RZU100..DM2,T2

長さ=225

 4
90117-16052

RZU100..T2..CBU;BU105,107..T2,T3;RZU100..(T2,T4)..IV3;BU100,102..(DM2,T2,T4,TW4)..20T

長さ=235

 4
90117-16052

RZU100..T2..CBU;BU105,107..T2,T3;RZU100..(T2,T4)..IV3;BU100,102..(DM2,T2,T4,TW4)..20T

長さ=235

 4
48046A - BOLT, U(FOR REAR SPRING)
90117-16014

BU10#,RZU100..DM2,T2

長さ=225

 4
90117-16014

BU10#,RZU100..DM2,T2

長さ=225

 4
90117-16052

RZU100..T2..CBU;BU105,107..T2,T3;RZU100..(T2,T4)..IV3;BU100,102..(DM2,T2,T4,TW4)..20T

長さ=235

 4
90117-16052

RZU100..T2..CBU;BU105,107..T2,T3;RZU100..(T2,T4)..IV3;BU100,102..(DM2,T2,T4,TW4)..20T

長さ=235

 4
48047 - SEAT SUB-ASSY, SPRING U BOLT, LH
48047-36180

BU10#,RZU100..DM2,DM5,T4,TW4

 1
48047-36180

BU10#,RZU100..DM2,DM5,T4,TW4

 1
48047 - SEAT SUB-ASSY, SPRING U BOLT, LH
48047-36180

BU10#,RZU100..DM2,DM5,T4,TW4

 1
48047-36180

BU10#,RZU100..DM2,DM5,T4,TW4

 1
48210A - BUSH(FOR REAR SPRING SHACKLE UPPER)
90385-23002

BU102..T3..20T;RZU100..T3..(EFI,LPG);BU100,105,107,112,12#,162;BU102,RZU100..(DM2,DM3,DM5,DM6,T2,T4,T5,TW1,TW4)..(CBU,IV3)

 4
90385-23002

BU102..T3..20T;RZU100..T3..(EFI,LPG);BU100,105,107,112,12#,162;BU102,RZU100..(DM2,DM3,DM5,DM6,T2,T4,T5,TW1,TW4)..(CBU,IV3)

 4
48210A - BUSH(FOR REAR SPRING SHACKLE UPPER)
90385-23002

BU102..T3..20T;RZU100..T3..(EFI,LPG);BU100,105,107,112,12#,162;BU102,RZU100..(DM2,DM3,DM5,DM6,T2,T4,T5,TW1,TW4)..(CBU,IV3)

 4
90385-23002

BU102..T3..20T;RZU100..T3..(EFI,LPG);BU100,105,107,112,12#,162;BU102,RZU100..(DM2,DM3,DM5,DM6,T2,T4,T5,TW1,TW4)..(CBU,IV3)

 4
48306 - BUMPER SUB-ASSY, REAR SPRING
48306-36031

BU10#..(T4,TW4)..20T..IV3;BU10#..(DM2,DM5,T2,T3)..WT..20T;RZU100..(DM5,T2,T3,T4)..20T..IV3;RZU100..(DM5,T2,T3,TW1)..20T..CBU

ｱﾘ(ｷｮｳｶ ｽﾌﾟﾘﾝｸﾞ) OR ｱﾘ(ｼｬｺｳ UP ｽﾌﾟﾘﾝｸﾞ)

 2
48306-36031

BU10#..(T4,TW4)..20T..IV3;BU10#..(DM2,DM5,T2,T3)..WT..20T;RZU100..(DM5,T2,T3,T4)..20T..IV3;RZU100..(DM5,T2,T3,TW1)..20T..CBU

ｱﾘ(ｷｮｳｶ ｽﾌﾟﾘﾝｸﾞ) OR ｱﾘ(ｼｬｺｳ UP ｽﾌﾟﾘﾝｸﾞ)

 2
48306-36031

BU105,107..T2,T3;BU105,107..(T4,TW4)..IV3;RZU100..(DM5,T2,T3,T4)..20T..IV3;RZU100..(DM5,T2,T3,TW1,TW4)..20T..CBU;BU100,102..(DM2,DM5,T2,T3,T4,TW4)..WT..20T

ｱﾘ(ｷｮｳｶ ｽﾌﾟﾘﾝｸﾞ) OR ｱﾘ(ｼｬｺｳ UP ｽﾌﾟﾘﾝｸﾞ)

 2
48306-36031

BU105,107..T2,T3;BU105,107..(T4,TW4)..IV3;RZU100..(DM5,T2,T3,T4)..20T..IV3;RZU100..(DM5,T2,T3,TW1,TW4)..20T..CBU;BU100,102..(DM2,DM5,T2,T3,T4,TW4)..WT..20T

ｱﾘ(ｷｮｳｶ ｽﾌﾟﾘﾝｸﾞ) OR ｱﾘ(ｼｬｺｳ UP ｽﾌﾟﾘﾝｸﾞ)

 2
48344 - STOPPER, BUMPER, REAR
48344-36310

BU107..T3..IV3;BU100,102,RZU100..(DM2,T3,TW1)..WT..20T..(CBU,IV3)

ｱﾘ(ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ)

 2
48344-36310

BU107..T3..IV3;BU100,102,RZU100..(DM2,T3,TW1)..WT..20T..(CBU,IV3)

ｱﾘ(ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ)

 2
48414B - BRACKET, SPRING, NO.3 RH
48414-36250

BU100,102,RZU100..(DM2,DM5,T4,TW4)..20T

 1
48414-36250

BU100,102,RZU100..(DM2,DM5,T4,TW4)..20T

 1
48415B - BRACKET, SPRING, NO.3 LH
48414-36250

BU100,102,RZU100..(DM2,DM5,T4,TW4)..20T

 1
48414-36250

BU100,102,RZU100..(DM2,DM5,T4,TW4)..20T

 1
48416 - BRACKET, SPRING, NO.4
48417-36120

BU10#,RZU100..(DM2,DM5,T4,TW4)..20T

左側

 1
48417-36120

BU10#,RZU100..(DM2,DM5,T4,TW4)..20T

左側

 1
48416-36240

BU10#,RZU100..(DM2,DM5,T4,TW4)..20T

右側

 1
48416-36240

BU10#,RZU100..(DM2,DM5,T4,TW4)..20T

右側

 1
48422A - SUPPORT, REAR SPRING PIN
48422-36090

BU102..T3..20T;BU100,105,107,112,12#;RZU100..T3..(EFI,LPG);BU102,RZU100..(DM2,DM3,DM5,DM6,T2,T4,T5,TW1,TW4)..(CBU,IV3)

 2
48422-36090

BU102..T3..20T;BU100,105,107,112,12#;RZU100..T3..(EFI,LPG);BU102,RZU100..(DM2,DM3,DM5,DM6,T2,T4,T5,TW1,TW4)..(CBU,IV3)

 2
48516 - BRACKET, REAR SHOCK ABSORBER, UPPER RH
48505-36040

BU222;BU102,RZU100..DM2,DM5;BU142,182,212,XZU140..30T

 1
48505-36040

BU222;BU102,RZU100..DM2,DM5;BU142,182,212,XZU140..30T

 1
48517 - BRACKET, REAR SHOCK ABSORBER, UPPER LH
48505-36040

BU222;BU102,RZU100..DM2,DM5;BU142,182,212,XZU140..30T

 1
48505-36040

BU222;BU102,RZU100..DM2,DM5;BU142,182,212,XZU140..30T

 1
48530 - ABSORBER ASSY, SHOCK, REAR RH
48531-80442

BU10#,RZU100..(DM2,DM5,T2,T3,T4,TW1,TW4)..WT..20T..(CBU,IV3)

 1
48531-80442

BU10#,RZU100..(DM2,DM5,T2,T3,T4,TW1,TW4)..WT..20T..(CBU,IV3)

 1
48530 - ABSORBER ASSY, SHOCK, REAR RH
48531-80442

BU10#,RZU100..(DM2,DM5,T2,T3,T4,TW1,TW4)..WT..20T..(CBU,IV3)

 1
48531-80442

BU10#,RZU100..(DM2,DM5,T2,T3,T4,TW1,TW4)..WT..20T..(CBU,IV3)

 1
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16011

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140

 4
90385-16011

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140

 4
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16011

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140

 4
90385-16011

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140

 4
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16011

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140

 4
90385-16011

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140

 4
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16011

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140

 4
90385-16011

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140

 4
48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1
90948-03003

RZU100..TR..20T;BU10#,112,14#..(DM2,DM5,T2,T3,T4,TW1,TW4)..WT

 2
90948-03003

RZU100..TR..20T;BU10#,112,14#..(DM2,DM5,T2,T3,T4,TW1,TW4)..WT

 2
90948-03007

BU102..T3..WT..20T;BU102,112..DM2,DM3,DM5,DM6,DM7,DM8,T2,T4,TW4;BU100,105,107,13#,162,172,182,202,212,222,RZU100,XZU130..WT

 2
90948-03007

BU102..T3..WT..20T;BU102,112..DM2,DM3,DM5,DM6,DM7,DM8,T2,T4,TW4;BU100,105,107,13#,162,172,182,202,212,222,RZU100,XZU130..WT

 2
48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1
90948-03003

RZU100..TR..20T;BU10#,112,14#..(DM2,DM5,T2,T3,T4,TW1,TW4)..WT

 2
90948-03003

RZU100..TR..20T;BU10#,112,14#..(DM2,DM5,T2,T3,T4,TW1,TW4)..WT

 2
90948-03007

BU102..T3..WT..20T;BU102,112..DM2,DM3,DM5,DM6,DM7,DM8,T2,T4,TW4;BU100,105,107,13#,162,172,182,202,212,222,RZU100,XZU130..WT

 2
90948-03007

BU102..T3..WT..20T;BU102,112..DM2,DM3,DM5,DM6,DM7,DM8,T2,T4,TW4;BU100,105,107,13#,162,172,182,202,212,222,RZU100,XZU130..WT

 2
48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2
90948-03004

BU10#,112,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..WT

 2
90948-03004

BU10#,112,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..WT

 2
48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2
90948-03004

BU10#,112,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..WT

 2
90948-03004

BU10#,112,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..WT

 2
48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3
90948-03003

BU102..T3..20T;BU102..DM2,DM3,DM5,DM6,T2,T4,T5,TW4;BU100,105,107,12#,13#,162,172,182,202,212,222,RZU100,XZU130

 2
90948-03003

BU102..T3..20T;BU102..DM2,DM3,DM5,DM6,T2,T4,T5,TW4;BU100,105,107,12#,13#,162,172,182,202,212,222,RZU100,XZU130

 2
90948-03003

BU102..T3..WT..20T;RZU100..T3..(EFI,LPG);BU100,105,107,13#,162,172,182,202,212,222,XZU130..WT;BU102,RZU100..(DM2,DM3,DM5,DM6,T2,T4,TW1,TW4)..(CBU,IV3)

 2
90948-03003

BU102..T3..WT..20T;RZU100..T3..(EFI,LPG);BU100,105,107,13#,162,172,182,202,212,222,XZU130..WT;BU102,RZU100..(DM2,DM3,DM5,DM6,T2,T4,TW1,TW4)..(CBU,IV3)

 2
48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3
90948-03003

BU102..T3..20T;BU102..DM2,DM3,DM5,DM6,T2,T4,T5,TW4;BU100,105,107,12#,13#,162,172,182,202,212,222,RZU100,XZU130

 2
90948-03003

BU102..T3..20T;BU102..DM2,DM3,DM5,DM6,T2,T4,T5,TW4;BU100,105,107,12#,13#,162,172,182,202,212,222,RZU100,XZU130

 2
90948-03003

BU102..T3..WT..20T;RZU100..T3..(EFI,LPG);BU100,105,107,13#,162,172,182,202,212,222,XZU130..WT;BU102,RZU100..(DM2,DM3,DM5,DM6,T2,T4,TW1,TW4)..(CBU,IV3)

 2
90948-03003

BU102..T3..WT..20T;RZU100..T3..(EFI,LPG);BU100,105,107,13#,162,172,182,202,212,222,XZU130..WT;BU102,RZU100..(DM2,DM3,DM5,DM6,T2,T4,TW1,TW4)..(CBU,IV3)

 2
48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4
90948-03004

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140

 2
90948-03004

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140

 2
48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4
90948-03004

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140

 2
90948-03004

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140

 2
48533 - PIN, REAR SHOCK ABSORBER LOWER PIVOT, RH
48533-36070

BU112..DMP..20T;BU102..T3..WT..20T;BU100,105,107,162..WT;RZU100..T3..(EFI,LPG);BU102,RZU100..(DM2,DM3,DM5,DM6,T2,T4,TW1,TW4)..(CBU,IV3)

 1
48533-36070

BU112..DMP..20T;BU102..T3..WT..20T;BU100,105,107,162..WT;RZU100..T3..(EFI,LPG);BU102,RZU100..(DM2,DM3,DM5,DM6,T2,T4,TW1,TW4)..(CBU,IV3)

 1
48533A - PIN, REAR SHOCK ABSORBER LOWER PIVOT, LH
48533-36070

BU112..DMP..20T;BU102..T3..WT..20T;BU100,105,107,162..WT;RZU100..T3..(EFI,LPG);BU102,RZU100..(DM2,DM3,DM5,DM6,T2,T4,TW1,TW4)..(CBU,IV3)

 1
48533-36070

BU112..DMP..20T;BU102..T3..WT..20T;BU100,105,107,162..WT;RZU100..T3..(EFI,LPG);BU102,RZU100..(DM2,DM3,DM5,DM6,T2,T4,TW1,TW4)..(CBU,IV3)

 1
48540 - ABSORBER ASSY, SHOCK, REAR LH
48531-80442

BU10#,RZU100..(DM2,DM5,T2,T3,T4,TW1,TW4)..WT..20T..(CBU,IV3)

 1
48531-80442

BU10#,RZU100..(DM2,DM5,T2,T3,T4,TW1,TW4)..WT..20T..(CBU,IV3)

 1
48540 - ABSORBER ASSY, SHOCK, REAR LH
48531-80442

BU10#,RZU100..(DM2,DM5,T2,T3,T4,TW1,TW4)..WT..20T..(CBU,IV3)

 1
48531-80442

BU10#,RZU100..(DM2,DM5,T2,T3,T4,TW1,TW4)..WT..20T..(CBU,IV3)

 1
Common parts
90101-16025
90101-16026
90119-08276
90119-10355
90170-16016
90179-16030
90201-16035
91611-61020
93220-18045
94130-61600
94184-61201
94185-60800
