Toyota Dyna 200/toyoace g25 BU102 POWER TAKE-OFF LEVER & LINK

Manufacturers Home
Toyota
JP
DYNA 200/TOYOACE G25
BU102A-TYMMS3 (1995)
3605 - POWER TAKE-OFF LEVER & LINK

BU102A-TYMMS3 (1995)

Toyota Dyna 200/Toyoace G25

Production May 1995 - May 1999

Engine 15BF

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

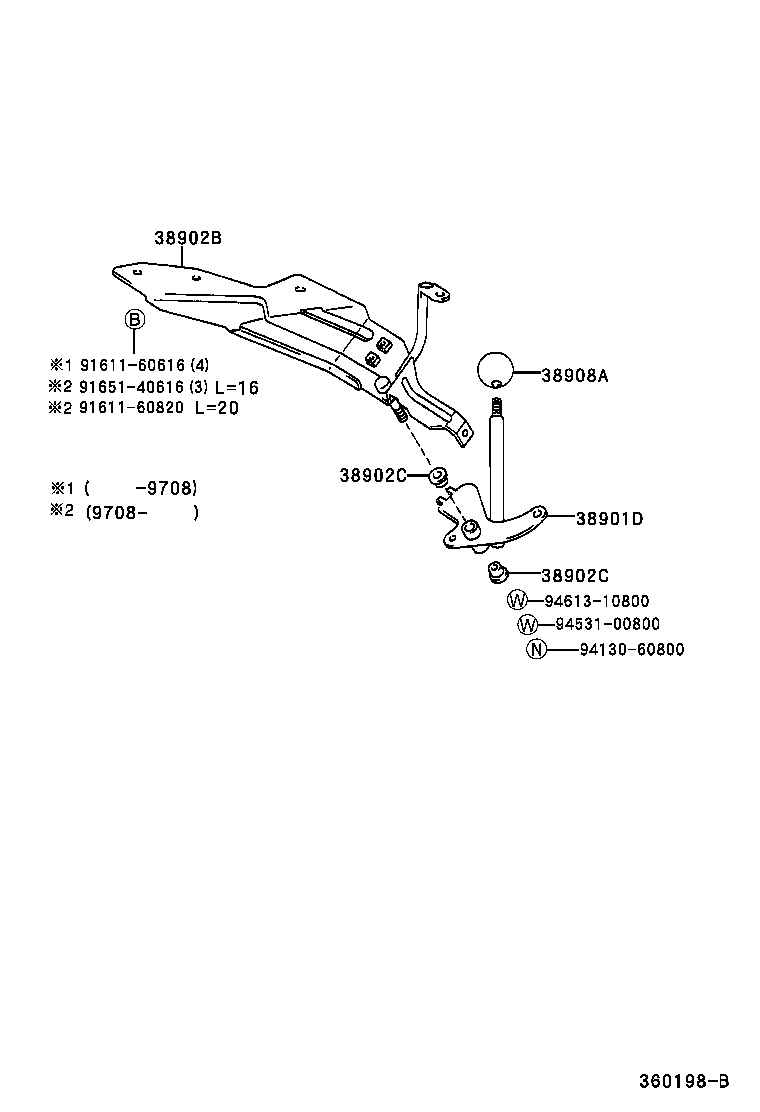

ILLUST NO. 1 OF 2(9505- )BU102..T4..20T..CBU..5F ; (9505- )BU102..DM6,T2,T3..DSL..5F ; (9505-

Click highlighted areas on diagram

Part #	Description	Period	Qty
38901D - LEVER SUB-ASSY, VALVE CONTROL
38901-37010	BU172..IV4;BU112,162..DMP;BU112..T3..4FC;BU102..03S..(20T,30T)..IV3..5F;BU102..(DM2,DM3,DM5,T2,T3)..20T..CBU..5F	05/1995 - 10/1995	1
38901-37010	BU172..IV4;BU112,162..DMP;BU112..T3..4FC;BU102..03S..(20T,30T)..IV3..5F;BU102..(DM2,DM3,DM5,T2,T3)..20T..CBU..5F	05/1995 - 10/1995	1
38901-37010	BU172..IV4;BU102..20T..CBU;BU112..30T..4FC;BU112..T3..IV3..4FC;BU102,RZU100..T3..LPGB;BU112..DM7..20T..CBU..4FC;BU107,XZU130..(DM7,T2,T4)..CBU..5F;BU102,107..03S..(20T,30T)..DSL..IV3..5F;BU112,132,162,RZU100..(DM5,DM7,DM8,TL4)..5F	08/1997 - 12/2999	1
38901-37010	BU172..IV4;BU102..20T..CBU;BU112..30T..4FC;BU112..T3..IV3..4FC;BU102,RZU100..T3..LPGB;BU112..DM7..20T..CBU..4FC;BU107,XZU130..(DM7,T2,T4)..CBU..5F;BU102,107..03S..(20T,30T)..DSL..IV3..5F;BU112,132,162,RZU100..(DM5,DM7,DM8,TL4)..5F	08/1997 - 12/2999	1
38901-37010	BU172..IV4;BU107..03S..5F;BU112..T3..4FC;BU112,162..DMP..20T;BU112..30T..IV3..5F;BU112,XZU130..30T..CBU;BU102..03S..20T..CBU..5F;BU102..03S..(20T,30T)..IV3..5F	10/1995 - 08/1997	1
38901-37010	BU172..IV4;BU107..03S..5F;BU112..T3..4FC;BU112,162..DMP..20T;BU112..30T..IV3..5F;BU112,XZU130..30T..CBU;BU102..03S..20T..CBU..5F;BU102..03S..(20T,30T)..IV3..5F	10/1995 - 08/1997	1
38902B - BRACKET SUB-ASSY, VALVE CONTROL LEVER
38902-37010	BU112,162..DMP;BU112..T3..4FC;BU102..03S..(20T,30T)..IV3..5F;BU102..(DM2,DM3,DM5,T2,T3)..20T..CBU..5F	05/1995 - 10/1995	1
38902-37010	BU112,162..DMP;BU112..T3..4FC;BU102..03S..(20T,30T)..IV3..5F;BU102..(DM2,DM3,DM5,T2,T3)..20T..CBU..5F	05/1995 - 10/1995	1
38902-37011	BU102..20T..CBU;BU112..30T..4FC;BU112..T3..IV3..4FC;BU102,RZU100..T3..LPGB;BU112..DM7..20T..CBU..4FC;BU107,XZU130..(DM7,T2,T4)..CBU..5F;BU102,107..03S..(20T,30T)..DSL..IV3..5F;BU112,132,162,RZU100..(DM5,DM7,DM8,TL4)..5F	08/1997 - 12/2999	1
38902-37011	BU102..20T..CBU;BU112..30T..4FC;BU112..T3..IV3..4FC;BU102,RZU100..T3..LPGB;BU112..DM7..20T..CBU..4FC;BU107,XZU130..(DM7,T2,T4)..CBU..5F;BU102,107..03S..(20T,30T)..DSL..IV3..5F;BU112,132,162,RZU100..(DM5,DM7,DM8,TL4)..5F	08/1997 - 12/2999	1
38902-37010	BU107..03S..5F;BU112..T3..4FC;BU112,162..DMP..20T;BU112..30T..IV3..5F;BU112,XZU130..30T..CBU;BU102..03S..20T..CBU..5F;BU102..03S..(20T,30T)..IV3..5F	10/1995 - 08/1997	1
38902-37010	BU107..03S..5F;BU112..T3..4FC;BU112,162..DMP..20T;BU112..30T..IV3..5F;BU112,XZU130..30T..CBU;BU102..03S..20T..CBU..5F;BU102..03S..(20T,30T)..IV3..5F	10/1995 - 08/1997	1
38902C - BUSH (FOR VALVE CONTROL LEVER)
90386-13007	BU172..IV4;BU112,162..DMP;BU112..T3..4FC;BU102..03S..(20T,30T)..IV3..5F;BU102..(DM2,DM3,DM5,T2,T3)..20T..CBU..5F	05/1995 - 10/1995	2
90386-13007	BU172..IV4;BU112,162..DMP;BU112..T3..4FC;BU102..03S..(20T,30T)..IV3..5F;BU102..(DM2,DM3,DM5,T2,T3)..20T..CBU..5F	05/1995 - 10/1995	2
90386-13007	BU172..IV4;BU107..03S..5F;BU112..T3..4FC;BU112,162..DMP..20T;BU112..30T..IV3..5F;BU112,XZU130..30T..CBU;BU102..03S..20T..CBU..5F;BU102..03S..(20T,30T)..IV3..5F	10/1995 - 08/1997	2
90386-13007	BU172..IV4;BU107..03S..5F;BU112..T3..4FC;BU112,162..DMP..20T;BU112..30T..IV3..5F;BU112,XZU130..30T..CBU;BU102..03S..20T..CBU..5F;BU102..03S..(20T,30T)..IV3..5F	10/1995 - 08/1997	2
90386-13007	BU172..IV4;BU102..20T..CBU;BU112..30T..4FC;BU112..T3..IV3..4FC;BU102,RZU100..T3..LPGB;BU112..DM7..20T..CBU..4FC;BU107,XZU130..(DM7,T2,T4)..CBU..5F;BU102,107..03S..(20T,30T)..DSL..IV3..5F;BU112,132,162,RZU100..(DM5,DM7,DM8,TL4)..5F	08/1997 - 12/2999	2
90386-13007	BU172..IV4;BU102..20T..CBU;BU112..30T..4FC;BU112..T3..IV3..4FC;BU102,RZU100..T3..LPGB;BU112..DM7..20T..CBU..4FC;BU107,XZU130..(DM7,T2,T4)..CBU..5F;BU102,107..03S..(20T,30T)..DSL..IV3..5F;BU112,132,162,RZU100..(DM5,DM7,DM8,TL4)..5F	08/1997 - 12/2999	2
38902C - BUSH (FOR VALVE CONTROL LEVER)
90386-13007	BU172..IV4;BU112,162..DMP;BU112..T3..4FC;BU102..03S..(20T,30T)..IV3..5F;BU102..(DM2,DM3,DM5,T2,T3)..20T..CBU..5F	05/1995 - 10/1995	2
90386-13007	BU172..IV4;BU112,162..DMP;BU112..T3..4FC;BU102..03S..(20T,30T)..IV3..5F;BU102..(DM2,DM3,DM5,T2,T3)..20T..CBU..5F	05/1995 - 10/1995	2
90386-13007	BU172..IV4;BU107..03S..5F;BU112..T3..4FC;BU112,162..DMP..20T;BU112..30T..IV3..5F;BU112,XZU130..30T..CBU;BU102..03S..20T..CBU..5F;BU102..03S..(20T,30T)..IV3..5F	10/1995 - 08/1997	2
90386-13007	BU172..IV4;BU107..03S..5F;BU112..T3..4FC;BU112,162..DMP..20T;BU112..30T..IV3..5F;BU112,XZU130..30T..CBU;BU102..03S..20T..CBU..5F;BU102..03S..(20T,30T)..IV3..5F	10/1995 - 08/1997	2
90386-13007	BU172..IV4;BU102..20T..CBU;BU112..30T..4FC;BU112..T3..IV3..4FC;BU102,RZU100..T3..LPGB;BU112..DM7..20T..CBU..4FC;BU107,XZU130..(DM7,T2,T4)..CBU..5F;BU102,107..03S..(20T,30T)..DSL..IV3..5F;BU112,132,162,RZU100..(DM5,DM7,DM8,TL4)..5F	08/1997 - 12/2999	2
90386-13007	BU172..IV4;BU102..20T..CBU;BU112..30T..4FC;BU112..T3..IV3..4FC;BU102,RZU100..T3..LPGB;BU112..DM7..20T..CBU..4FC;BU107,XZU130..(DM7,T2,T4)..CBU..5F;BU102,107..03S..(20T,30T)..DSL..IV3..5F;BU112,132,162,RZU100..(DM5,DM7,DM8,TL4)..5F	08/1997 - 12/2999	2
38908A - KNOB SUB-ASSY, CONTROL LEVER
38908-36010	BU172..IV4;BU107..03S..5F;BU102..TR..03S..20T..CBU..5F;BU102..(DM6,T2,T3,T4,T5)..(20T,30T)..IV3..5F	10/1995 - 08/1997	1
38908-36010	BU172..IV4;BU107..03S..5F;BU102..TR..03S..20T..CBU..5F;BU102..(DM6,T2,T3,T4,T5)..(20T,30T)..IV3..5F	10/1995 - 08/1997	1
38908-36010	BU172..IV4;BU102..(T2,T3)..20T..CBU..5F;BU102..(DM6,T2,T3,T4,T5)..(20T,30T)..IV3..5F	05/1995 - 10/1995	1
38908-36010	BU172..IV4;BU102..(T2,T3)..20T..CBU..5F;BU102..(DM6,T2,T3,T4,T5)..(20T,30T)..IV3..5F	05/1995 - 10/1995	1
38908-36010	BU172..IV4;BU102..ST..CBU;BU132..TL4..5F;BU102,RZU100..T3..LPGB;BU107..(T2,T4)..CBU..5F;BU102,107..(DM6,T2,T3,T4)..(20T,30T)..DSL..IV3..5F	08/1997 - 12/2999	1
38908-36010	BU172..IV4;BU102..ST..CBU;BU132..TL4..5F;BU102,RZU100..T3..LPGB;BU107..(T2,T4)..CBU..5F;BU102,107..(DM6,T2,T3,T4)..(20T,30T)..DSL..IV3..5F	08/1997 - 12/2999	1
Common parts
91611-60616
91611-60820
91651-40616
94130-60800
94531-00800
94613-10800

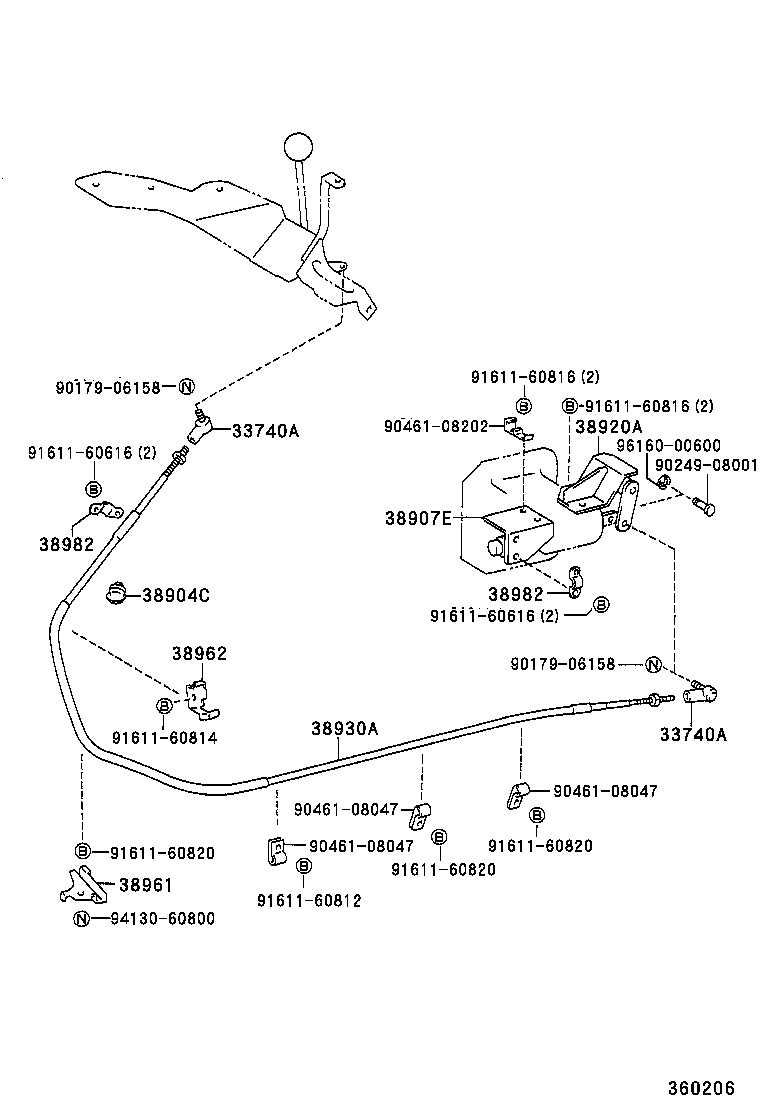

ILLUST NO. 2 OF 2(9505- )BU102..T4..20T..CBU..5F ; (9505- )BU102..DM6,T2,T3..DSL..5F ; (9505-

Click highlighted areas on diagram

Part #	Description	Period	Qty
33740A - END ASSY, PUSH-PULL CONTROL CABLE
33740-96301	BU172..IV4;BU102..(T2,T3)..20T..CBU..5F;BU102..(DM6,T2,T3,T4,T5)..(20T,30T)..IV3..5F	05/1995 - 10/1995	2
33740-96301	BU172..IV4;BU132..TL4..5F;BU102,RZU100..T3..LPGB;BU107..(T2,T4)..CBU..5F;BU102..TR..03S..20T..CBU..5F;BU102,107..(DM6,T2,T3,T4,T5)..(20T,30T)..DSL..IV3..5F	10/1995 - 12/2999	2
33740A - END ASSY, PUSH-PULL CONTROL CABLE
33740-96301	BU172..IV4;BU102..(T2,T3)..20T..CBU..5F;BU102..(DM6,T2,T3,T4,T5)..(20T,30T)..IV3..5F	05/1995 - 10/1995	2
33740-96301	BU172..IV4;BU132..TL4..5F;BU102,RZU100..T3..LPGB;BU107..(T2,T4)..CBU..5F;BU102..TR..03S..20T..CBU..5F;BU102,107..(DM6,T2,T3,T4,T5)..(20T,30T)..DSL..IV3..5F	10/1995 - 12/2999	2
38904C - GROMMET, PUSH PULL CABLE
90480-22023	BU112..4FC;BU102..(T2,T3)..20T..CBU..5F;BU102..(DM6,T2,T3,T4,T5)..(20T,30T)..IV3..5F	05/1995 - 10/1995	1
90480-22023	BU102..ST..CBU;BU132..TL4..5F;BU112..DM7..4FC;BU112..T3..IV3..4FC;BU102,RZU100..T3..LPGB;BU107,XZU130..(DM7,T2,T4)..CBU..5F;BU102,107..(DM6,T2,T3,T4)..(20T,30T)..DSL..IV3..5F	08/1997 - 12/2999	1
90480-22023	BU112..4FC;XZU130..CBU;BU107..03S..5F;BU132..TL4..5F;BU102..TR..03S..20T..CBU..5F;BU102..(DM6,T2,T3,T4,T5)..(20T,30T)..IV3..5F	10/1995 - 08/1997	1
38907E - STAY SUB-ASSY, POWER TEKE-OFF CONTROL
38907-93116	BU102..(T2,T3)..20T..CBU..5F;BU102..(DM6,T2,T3,T4,T5)..(20T,30T)..IV3..5F	05/1995 - 10/1995	1
38907-93116	BU132..TL4..5F;BU102,RZU100..T3..LPGB;BU102..TR..03S..20T..CBU..5F;BU102..(DM6,T2,T3,T4,T5)..(20T,30T)..DSL..IV3..5F	10/1995 - 12/2999	1
38920A - LEVER ASSY, POWER TAKE-OFF CONTROL, NO.1
38920-93108	BU102..(T2,T3)..20T..CBU..5F;BU102..(DM6,T2,T3,T4,T5)..(20T,30T)..IV3..5F	05/1995 - 10/1995	1
38920-93108	BU132..TL4..5F;BU102,RZU100..T3..LPGB;BU102..TR..03S..20T..CBU..5F;BU102..(DM6,T2,T3,T4,T5)..(20T,30T)..DSL..IV3..5F	10/1995 - 12/2999	1
38930A - CABLE ASSY, PUSH PULL
38930-93128	BU102..(T2,T3)..20T..CBU..5F;BU102..(DM6,T2,T3,T4,T5)..(20T,30T)..IV3..5F	05/1995 - 10/1995	1
38930-93128	BU102,RZU100..T3..LPGB;BU107..(T2,T4)..CBU..5F;BU102..TR..03S..20T..CBU..5F;BU102,107..(DM6,T2,T3,T4,T5)..(20T,30T)..DSL..IV3..5F	10/1995 - 12/2999	1
38961 - BRACKET, CABLE CLAMP, NO.1
38961-37040	BU112,162..DMP;BU112..T3..4FC;BU102..03S..(20T,30T)..IV3..5F;BU102..(DM2,DM5,T2,T3)..20T..CBU..5F	05/1995 - 10/1995	1
38961-37040	BU112..T3..IV3..4FC;BU102,RZU100..T3..LPGB;BU112,162,RZU100..DM5,DM7,DM8;BU102..(DM2,DM5,T3)..20T..CBU;BU107,XZU130..(DM7,T2,T4)..CBU..5F;BU102,107..03S..(20T,30T)..DSL..IV3..5F	08/1997 - 12/2999	1
38961-37040	XZU130..CBU;BU112,162..DMP;BU107..03S..5F;BU112..T3..4FC;BU102..03S..(20T,30T)..IV3..5F;BU102..(DM2,DM5,T2,T3,T4)..20T..CBU..5F	10/1995 - 08/1997	1
38962 - BRACKET, CABLE CLAMP, NO.2
38962-37010	BU172..IV4;BU112,162..DMP;BU112..T3..4FC;BU102..03S..(20T,30T)..IV3..5F;BU102..(DM2,DM3,DM5,T2,T3)..20T..CBU..5F	05/1995 - 10/1995	1
38962-37010	BU172..IV4;XZU130..CBU;BU112,162..DMP;BU107..03S..5F;BU112..T3..4FC;BU132..TL4..5F;BU102..03S..20T..CBU..5F;BU102..03S..(20T,30T)..IV3..5F	10/1995 - 08/1997	1
38962-37010	BU172..IV4;BU132..TL4..5F;BU102..20T..CBU;BU112..T3..IV3..4FC;BU102,RZU100..T3..LPGB;BU112,162,RZU100..DM5,DM7,DM8;BU107,XZU130..(DM7,T2,T4)..CBU..5F;BU102,107..03S..(20T,30T)..DSL..IV3..5F	08/1997 - 12/2999	1
38982 - CLAMP, PUSH PULL CABLE, NO.1
38982-96302	BU172..IV4;BU102..(T2,T3)..20T..CBU..5F;BU102..(DM6,T2,T3,T4,T5)..(20T,30T)..IV3..5F	05/1995 - 10/1995	2
38982-96302	BU172..IV4;BU132..TL4..5F;BU102,RZU100..T3..LPGB;BU107..(T2,T4)..CBU..5F;BU102..TR..03S..20T..CBU..5F;BU102,107..(DM6,T2,T3,T4,T5)..(20T,30T)..DSL..IV3..5F	10/1995 - 12/2999	2
38982 - CLAMP, PUSH PULL CABLE, NO.1
38982-96302	BU172..IV4;BU102..(T2,T3)..20T..CBU..5F;BU102..(DM6,T2,T3,T4,T5)..(20T,30T)..IV3..5F	05/1995 - 10/1995	2
38982-96302	BU172..IV4;BU132..TL4..5F;BU102,RZU100..T3..LPGB;BU107..(T2,T4)..CBU..5F;BU102..TR..03S..20T..CBU..5F;BU102,107..(DM6,T2,T3,T4,T5)..(20T,30T)..DSL..IV3..5F	10/1995 - 12/2999	2
Common parts
90179-06158
90249-08001
90461-08047
90461-08202
91611-60616
91611-60812
91611-60814
91611-60816
91611-60820
94130-60800
96160-00600
