BU102-TQPMS3 (1995)

Toyota Dyna 200/Toyoace G25

Production May 1995 - Jun 1999
Engine 15BF
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

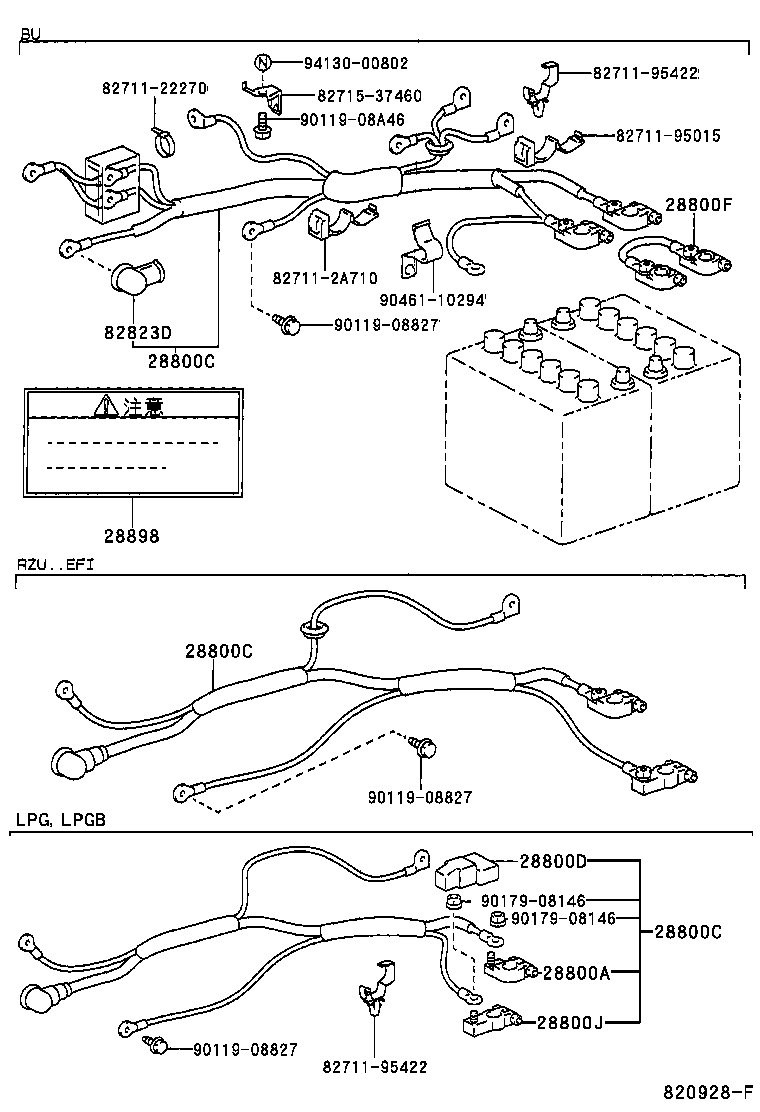

ILLUST NO. 1 OF 3(9505- )T3..EFI,LPG ; (9505- )RZU100..DM5,DM6,T2,T4,TW1,TW4 ; (9505- )BU10

Click highlighted areas on diagram

diagram 28800A 28800C 28800C 28800C 28800D 28800F 28800J 28898 8271122270 827112A710 8271195015 8271195422 8271195422 8271537460 82823D 9011908827 9011908827 9011908827 9011908A46 9017908146 9017908146 9046110294 9413000802
Part # Description Qty Price
28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
82021-37251

15BF..BU107,13#..4FC;15BF..BU102..(T2,T4)..4FC

 1
82021-37252

15BF..BU107,13#..4FC;15BF..BU102..(T2,T4)..4FC

 1
28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
82021-37251

15BF..BU107,13#..4FC;15BF..BU102..(T2,T4)..4FC

 1
82021-37252

15BF..BU107,13#..4FC;15BF..BU102..(T2,T4)..4FC

 1
28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
82021-37251

15BF..BU107,13#..4FC;15BF..BU102..(T2,T4)..4FC

 1
82021-37252

15BF..BU107,13#..4FC;15BF..BU102..(T2,T4)..4FC

 1
28800F - CABLE, BATTERY TO BATTERY
82123-37010

J05C,15BFT,15BF,3B..BU10#,112,13#,14#,162,172,182,202,212,222,297,XZU130,140

 1
Common parts
82711-22270
82711-2A710
82711-95015
82711-95422
82715-37460
90119-08827
90119-08A46
90179-08146
90461-10294
94130-00802

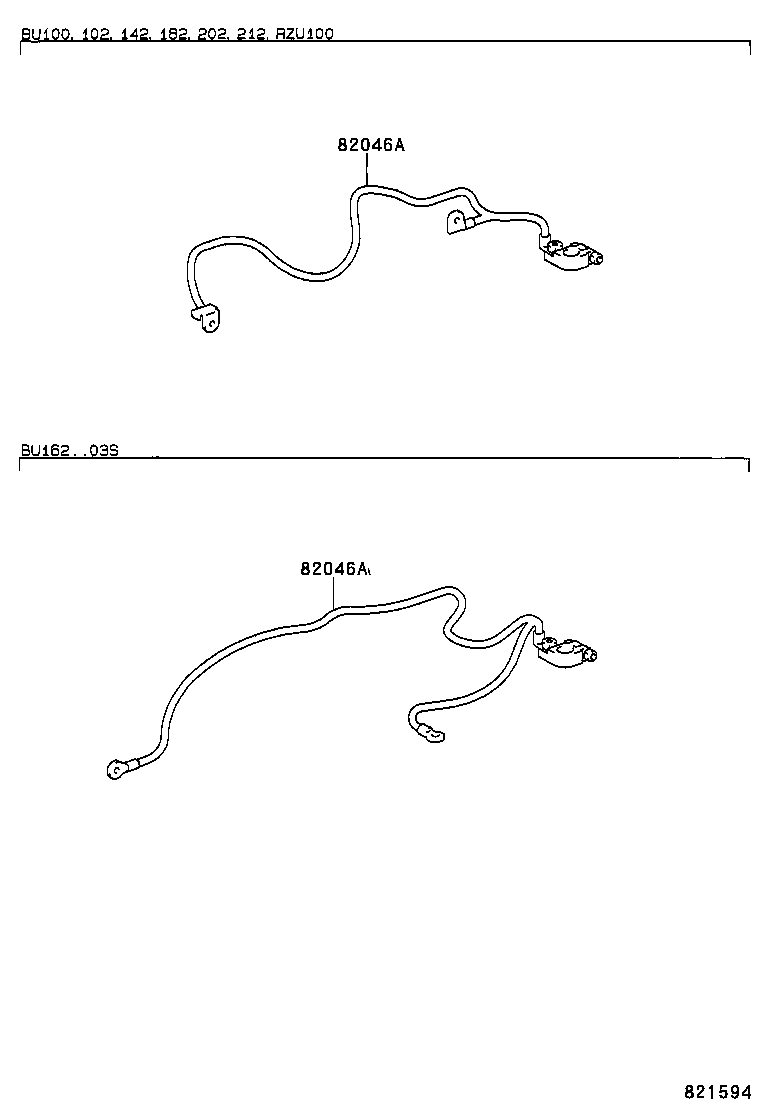

ILLUST NO. 2 OF 3(9806- )BU100,102,142,162,182,202,212,RZU100

Click highlighted areas on diagram

ﾘﾍﾟｱ ﾜｲｱ

diagram 82046A 82046A
Part # Description Qty Price
82046A - WIRE SUB-ASSY, BODY GROUND, NO.1
82046-37040

BU102..T4..20T..4FC

 1
82046A - WIRE SUB-ASSY, BODY GROUND, NO.1
82046-37040

BU102..T4..20T..4FC

 1

ILLUST NO. 3 OF 3(9505- )BU10#,112,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140

Click highlighted areas on diagram

diagram
Part # Description Qty Price
