BU102-TQMMS (1995)

Toyota Dyna 200/Toyoace G25

Production May 1995 - Oct 1996
Engine 15BF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )

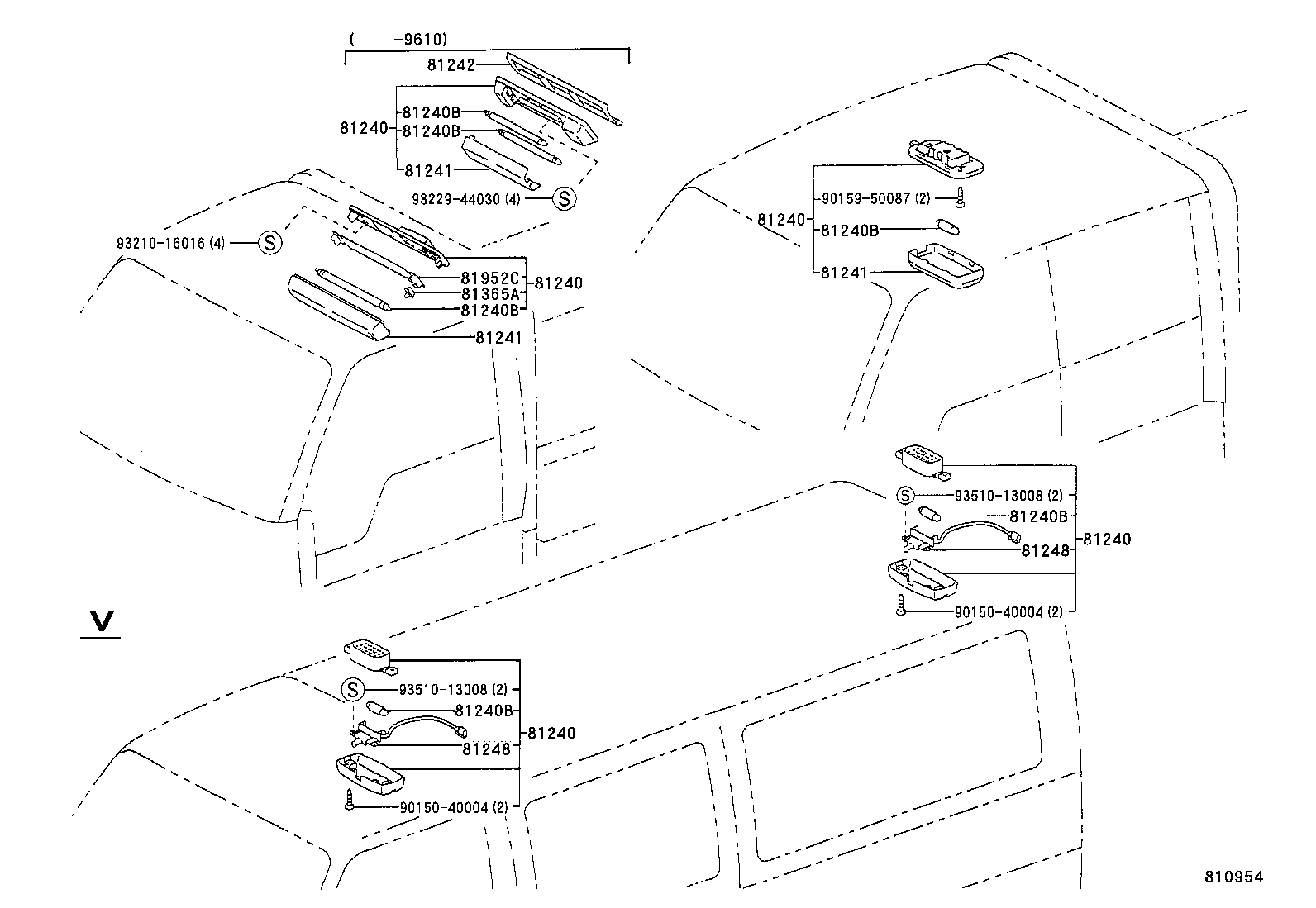

Click highlighted areas on diagram

diagram 81240 81240 81240 81240 81240 81240B 81240B 81240B 81240B 81240B 81240B 81241 81241 81241 81242 81248 81248 81365A 81952C 9015040004 9015040004 9015950087 9321016016 9322944030 9351013008 9351013008
Part # Description Qty Price
81240 - LAMP ASSY, ROOM, NO.1
81240-95404B0

BU10#,112,132,14#,162,172,182,XZU130..(02S,03S)..DSL

ｱﾘ(ｹｲｺｳﾄｳ),LT.GRAY,TRIM1#

 1
81240 - LAMP ASSY, ROOM, NO.1
81240-95404B0

BU10#,112,132,14#,162,172,182,XZU130..(02S,03S)..DSL

ｱﾘ(ｹｲｺｳﾄｳ),LT.GRAY,TRIM1#

 1
81240 - LAMP ASSY, ROOM, NO.1
81240-95404B0

BU10#,112,132,14#,162,172,182,XZU130..(02S,03S)..DSL

ｱﾘ(ｹｲｺｳﾄｳ),LT.GRAY,TRIM1#

 1
81240 - LAMP ASSY, ROOM, NO.1
81240-95404B0

BU10#,112,132,14#,162,172,182,XZU130..(02S,03S)..DSL

ｱﾘ(ｹｲｺｳﾄｳ),LT.GRAY,TRIM1#

 1
81240 - LAMP ASSY, ROOM, NO.1
81240-95404B0

BU10#,112,132,14#,162,172,182,XZU130..(02S,03S)..DSL

ｱﾘ(ｹｲｺｳﾄｳ),LT.GRAY,TRIM1#

 1
81240B - BULB, ROOM LAMP, NO.1
90981-11033

BU10#,112,132,14#,162,172,182,202,212,222,RZU100,XZU130..02S,03S

100V 6W(ﾏｰｸ FL−6W)

 2
81240B - BULB, ROOM LAMP, NO.1
90981-11033

BU10#,112,132,14#,162,172,182,202,212,222,RZU100,XZU130..02S,03S

100V 6W(ﾏｰｸ FL−6W)

 2
81240B - BULB, ROOM LAMP, NO.1
90981-11033

BU10#,112,132,14#,162,172,182,202,212,222,RZU100,XZU130..02S,03S

100V 6W(ﾏｰｸ FL−6W)

 2
81240B - BULB, ROOM LAMP, NO.1
90981-11033

BU10#,112,132,14#,162,172,182,202,212,222,RZU100,XZU130..02S,03S

100V 6W(ﾏｰｸ FL−6W)

 2
81240B - BULB, ROOM LAMP, NO.1
90981-11033

BU10#,112,132,14#,162,172,182,202,212,222,RZU100,XZU130..02S,03S

100V 6W(ﾏｰｸ FL−6W)

 2
81240B - BULB, ROOM LAMP, NO.1
90981-11033

BU10#,112,132,14#,162,172,182,202,212,222,RZU100,XZU130..02S,03S

100V 6W(ﾏｰｸ FL−6W)

 2
81241 - LENS, ROOM LAMP, NO.1
81241-95J00

BU10#,112,132,14#,162,172,182,202,212,222,RZU100,XZU130..02S,03S

ｱﾘ(ｹｲｺｳﾄｳ)

 1
81241 - LENS, ROOM LAMP, NO.1
81241-95J00

BU10#,112,132,14#,162,172,182,202,212,222,RZU100,XZU130..02S,03S

ｱﾘ(ｹｲｺｳﾄｳ)

 1
81241 - LENS, ROOM LAMP, NO.1
81241-95J00

BU10#,112,132,14#,162,172,182,202,212,222,RZU100,XZU130..02S,03S

ｱﾘ(ｹｲｺｳﾄｳ)

 1
81242 - GASKET, ROOM LAMP, NO.1
81242-95400

BU10#,112,132,14#,162,172,182,XZU130..(02S,03S)..DSL

 1
81242-95400

BU10#,112,132,14#,162,172,182,RZU100,XZU130..02S,03S

 1
81242-37040

BU10#,112,132,14#,162,172,182,RZU100,XZU130..02S,03S

 1
Common parts
90150-40004
90159-50087
93210-16016
93229-44030
93510-13008
