BU102-TKMLS3 (1995)

Toyota Dyna 200/Toyoace G25

Production May 1995 - May 1999
Engine 15BF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )BU10#,112,12#,13#,14#,162,172,182,RZU100,140,XZU130,140

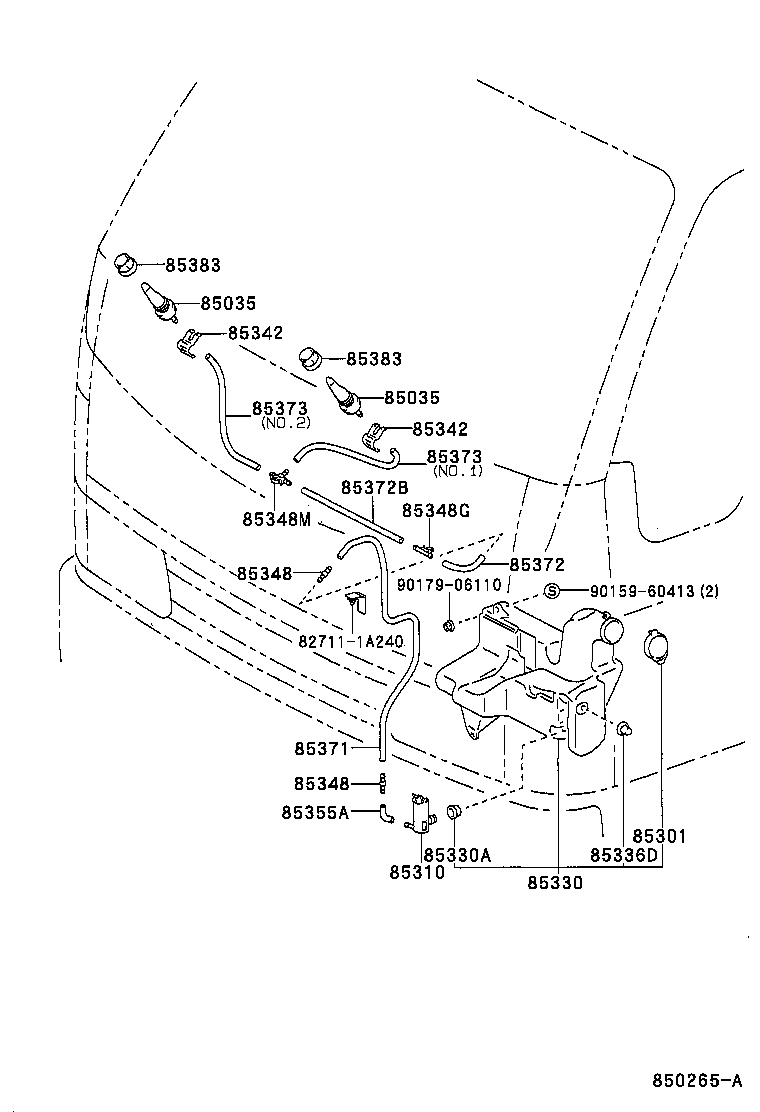

Click highlighted areas on diagram

diagram 827111A240 85035 85035 85301 85310 85330 85330A 85336D 85342 85342 85348 85348 85348G 85348M 85355A 85371 85372 85372B 85373 85373 85383 85383 9015960413 9017906110
Part # Description Qty Price
85035 - NOZZLE SUB-ASSY, WASHER
85381-37020

BU10#,112,12#,13#,14#,162,172,182,297,RZU100,140,XZU130,140

 2
85035 - NOZZLE SUB-ASSY, WASHER
85381-37020

BU10#,112,12#,13#,14#,162,172,182,297,RZU100,140,XZU130,140

 2
85301 - INLET SUB-ASSY, WASHER
85301-17010

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85310-90B00

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,XZU130,140..DSL,TD

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85315-37030

BU10#,112,12#,13#,14#,162,172,182,RZU100,140,XZU130,140

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140

 1
85336D - PACKING, WINDSHIELD WASHER JAR
85336-20340

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140

 1
85342 - HOLDER, WASHER NOZZLE
85342-95J01

BU10#,112,12#,13#,14#,162,172,182,RZU100,140,XZU130,140

 2
85342 - HOLDER, WASHER NOZZLE
85342-95J01

BU10#,112,12#,13#,14#,162,172,182,RZU100,140,XZU130,140

 2
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85349-89122

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140

 2
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85349-89122

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140

 2
85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2
85375-20800

BU10#,112,12#,13#,14#,162,172,182,RZU100,140,XZU130,140

 1
85348M - JOINT, WINDSHIELD WASHER HOSE, NO.3
85378-33030

BU10#,112,12#,13#,14#,162,172,182,RZU100,140,XZU130,140

 1
85355A - JOINT, WINDSHIELD WASHER ELBOW
85355-14481

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90446-07001

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140

*H,L=760

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90099-59135

BU10#,112,12#,13#,14#,162,172,182,RZU100,140,XZU130,140

長さ=130

 1
85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
90446-07001

BU10#,112,12#,13#,14#,162,172,182,RZU100,140,XZU130,140

*H,L=330

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

BU10#,112,12#,13#,14#,162,172,182,RZU100,140,XZU130,140

*H,L=340,NO.1

 1
90099-33299

BU10#,112,12#,13#,14#,162,172,182,RZU100,140,XZU130,140

*H,L=410,NO.2

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

BU10#,112,12#,13#,14#,162,172,182,RZU100,140,XZU130,140

*H,L=340,NO.1

 1
90099-33299

BU10#,112,12#,13#,14#,162,172,182,RZU100,140,XZU130,140

*H,L=410,NO.2

 1
85383 - HOLDER, FRONT WASHER NOZZLE
85383-37010

BU10#,112,12#,13#,14#,162,172,182,RZU100,140,XZU130,140

 2
85383 - HOLDER, FRONT WASHER NOZZLE
85383-37010

BU10#,112,12#,13#,14#,162,172,182,RZU100,140,XZU130,140

 2
Common parts
82711-1A240
90159-60413
90179-06110
