BU102-TKMLS3 (1995)

Toyota Dyna 200/Toyoace G25

Production May 1995 - May 1999
Engine 15BF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

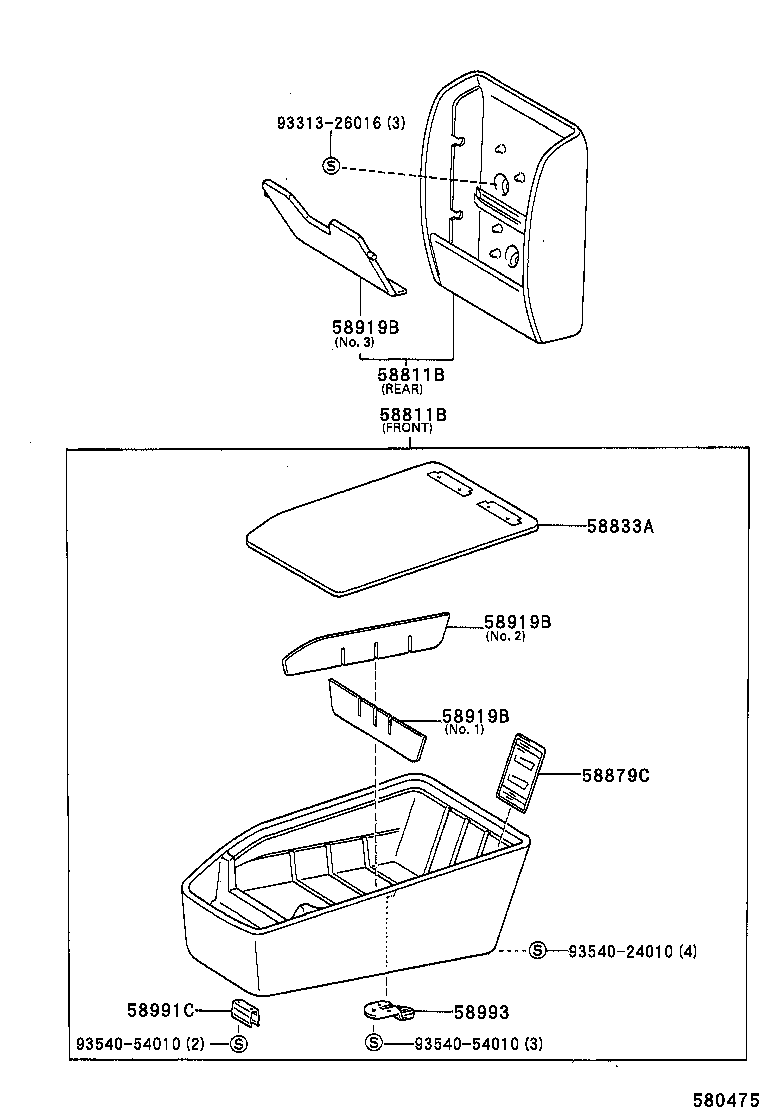

ILLUST NO. 2 OF 2(9505- )

Click highlighted areas on diagram

diagram 58811B 58811B 58833A 58879C 58919B 58919B 58919B 58991C 58993 9331326016 9354024010 9354054010 9354054010
Part # Description Qty Price
58811B - BOX, CONSOLE
58910-37010B0

BU10#,112,13#,14#,202,212,222,RZU100,140..TR..03S

GRAY,TRIM1#,REAR

 1
58810-37010B0

BU10#,112,13#,14#,202,212,222,RZU100,140..TR..03S

GRAY,TRIM1#,FRONT

 1
58811B - BOX, CONSOLE
58910-37010B0

BU10#,112,13#,14#,202,212,222,RZU100,140..TR..03S

GRAY,TRIM1#,REAR

 1
58810-37010B0

BU10#,112,13#,14#,202,212,222,RZU100,140..TR..03S

GRAY,TRIM1#,FRONT

 1
58833A - COVER, CONSOLE, UPPER
58833-37010B0

BU10#,112,13#,14#,202,212,222,RZU100,140..TR..03S

GRAY,TRIM1#

 1
58879C - LABEL, CONSOLE DOOR LOCK INFORMATION
58879-37010

BU10#,112,13#,14#,202,212,222,RZU100,140..TR..03S

 1
58919B - PLATE, CONSOLE BOX
58919-37020

BU10#,112,13#,14#,202,212,222,RZU100,140..TR..03S

NO.2

 1
58919-37030B0

BU10#,112,13#,14#,202,212,222,RZU100,140..TR..03S

GRAY,TRIM1#

 1
58919-37010

BU10#,112,13#,14#,202,212,222,RZU100,140..TR..03S

NO.1

 1
58919B - PLATE, CONSOLE BOX
58919-37020

BU10#,112,13#,14#,202,212,222,RZU100,140..TR..03S

NO.2

 1
58919-37030B0

BU10#,112,13#,14#,202,212,222,RZU100,140..TR..03S

GRAY,TRIM1#

 1
58919-37010

BU10#,112,13#,14#,202,212,222,RZU100,140..TR..03S

NO.1

 1
58919B - PLATE, CONSOLE BOX
58919-37020

BU10#,112,13#,14#,202,212,222,RZU100,140..TR..03S

NO.2

 1
58919-37030B0

BU10#,112,13#,14#,202,212,222,RZU100,140..TR..03S

GRAY,TRIM1#

 1
58919-37010

BU10#,112,13#,14#,202,212,222,RZU100,140..TR..03S

NO.1

 1
58991C - BRACKET, CONSOLE BOX MOUNTING, FRONT
58991-37010

BU10#,112,13#,14#,202,212,222,RZU100,140..TR..03S

 1
58993 - BRACKET, CONSOLE BOX MOUNTING, REAR
58993-37010

BU10#,112,13#,14#,202,212,222,RZU100,140..TR..03S

 1
Common parts
93313-26016
93540-24010
93540-54010

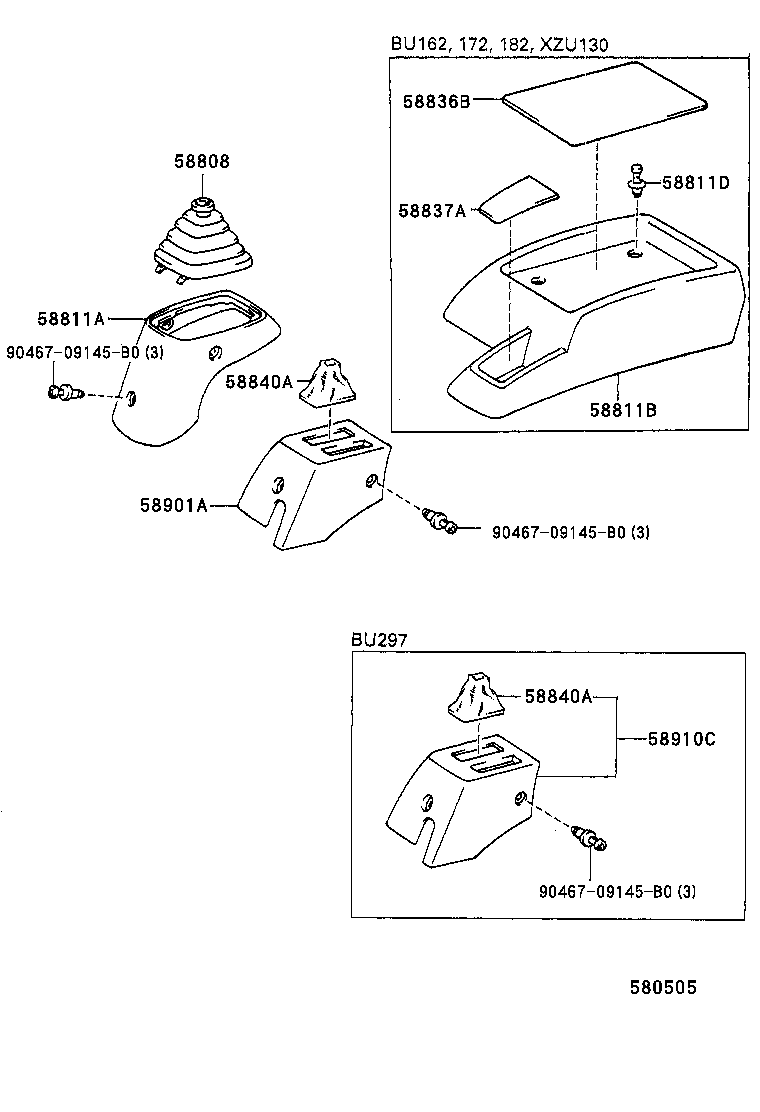

ILLUST NO. 1 OF 2(9505- )

Click highlighted areas on diagram

diagram 58808 58811A 58811B 58811D 58836B 58837A 58840A 58840A 58901A 58910C 9046709145B0 9046709145B0 9046709145B0
Part # Description Qty Price
58808 - COVER SUB-ASSY, SHIFTING HOLE
58808-37010C0

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,XZU130..5F

BLACK,TRIM1#

 1
58811A - BOX, CONSOLE, FRONT
58811-37020B0

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140

BLUISH GRAY,TRIM1#

 1
58811B - BOX, CONSOLE
58910-37010B0

BU10#,112,13#,14#,202,212,222,RZU100,140..TR..03S

GRAY,TRIM1#,REAR

 1
58810-37010B0

BU10#,112,13#,14#,202,212,222,RZU100,140..TR..03S

GRAY,TRIM1#,FRONT

 1
Common parts
90467-09145B0
