BU102-TKMLS3 (1995)

Toyota Dyna 200/Toyoace G25

Production May 1995 - May 1999
Engine 15BF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )BU132..T3,T4 ; (9505- )BU10#,112,12#,137,14#,RZU100..DSL,LPGB

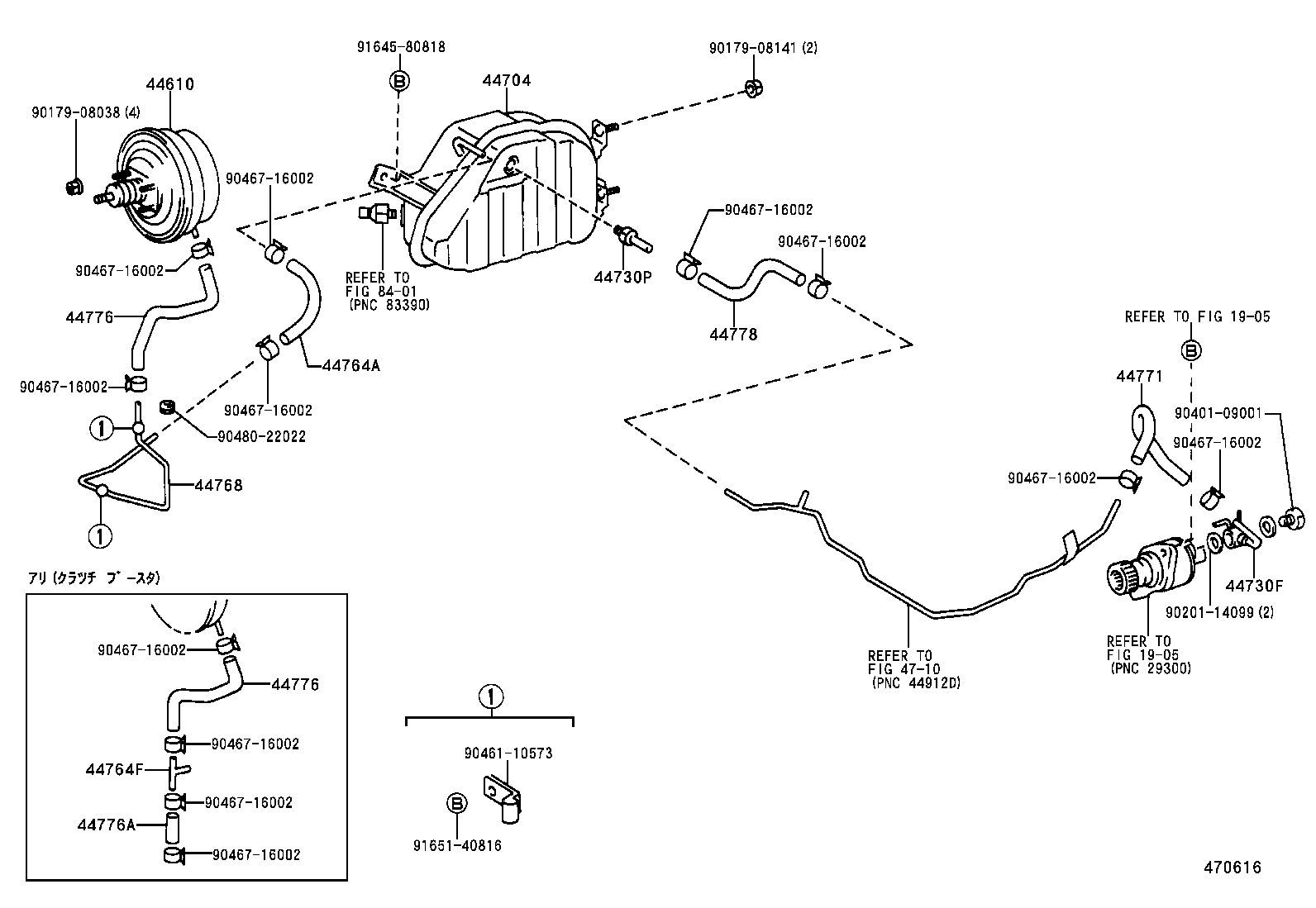

Click highlighted areas on diagram

diagram 1905 1905 44610 44704 44730F 44730P 44764A 44764F 44768 44771 44776 44776 44776A 44778 4710 8401 9017908038 9017908141 9020114099 9040109001 9046110573 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9048022022 9164580818 9165140816
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-37070

BU182..T4;BU102,162..(DM2,DM5,T2,T3,T4,TW4)..20T;BU100,112,12#,132,140,142,172,202,212,222..(TR,V)..(175T,20T)..(CBU,IV3)

 1
44704 - RESERVOIR SUB-ASSY, VACUUM
44704-37030

BU132..T3,T4;BU10#,112,12#,137,14#,162,172,182,202,212,222,297,RZU100,XZU130,140..DSL,LPGB,TD

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90405-09164

BU102,107,112,12#,13#,142,147,162,172,182,202,212,222,RZU100..DSL,LPGB,TD

 1
44730P - VALVE ASSY, VACUUM CHECK, NO.1
44730-60050

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,XZU130,140..DSL,LPGB,TD

 1
44764A - HOSE, BOOSTER VACUUM
90445-17141

BU132..T3,T4;BU10#,112,12#,137,14#,162,172,182,202,212,222,297,RZU100,XZU130,140..DSL,LPGB,TD

 1
44764F - WAY(FOR BOOSTER VACUUM TUBE)
90413-09038

BU102,107,112,122,13#,142,147,162,172,182,202,212,222,RZU100,XZU130,140..MTM..(DSL,LPGB,TD)

 1
44768 - TUBE, BOOSTER VACUUM
44768-37050

RZU100..LPGB;RZU100..(DM5,T2,T3,T4,TW1,TW4)..20T;BU10#,112,12#,13#,14#,162,172,182,RZU140,XZU130,140

 1
44771 - HOSE, VACUUM TUBE CONNECTOR
44774-37010

BU10#,112,12#,13#,14#,RZU100..DSL,LPGB

 1
44776 - HOSE, BRAKE BOOSTER
44776-37030

BU102,107,112,122,13#,142,147,162,172,182,202,212,222,RZU100,XZU130,140..MTM..(DSL,LPGB,TD)

 1
44776 - HOSE, BRAKE BOOSTER
44776-37030

BU102,107,112,122,13#,142,147,162,172,182,202,212,222,RZU100,XZU130,140..MTM..(DSL,LPGB,TD)

 1
44776A - HOSE, VACUUM RESERVOIR TO BRAKE BOOSTER
90445-17044

BU102,107,112,122,13#,142,147,162,172,182,202,212,222,RZU100,XZU130,140..MTM..(DSL,LPGB,TD)

 1
44778 - HOSE, CONNECTOR TO CHECK VALVE
44778-37010

BU132..T3,T4;BU10#,112,12#,137,14#,202,212,222,297,RZU100,XZU130,140..DSL,LPGB,TD

 1
Common parts
90179-08038
90179-08141
90201-14099
90401-09001
90461-10573
90467-16002
90480-22022
91645-80818
91651-40816
Linked diagrams
1905
4710
8401
