Toyota Dyna 200/toyoace g25 BU102 SHIFT LEVER & RETAINER

BU102-TKMLS3 (1995)

Toyota Dyna 200/Toyoace G25

Production May 1995 - May 1999

Engine 15BF

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

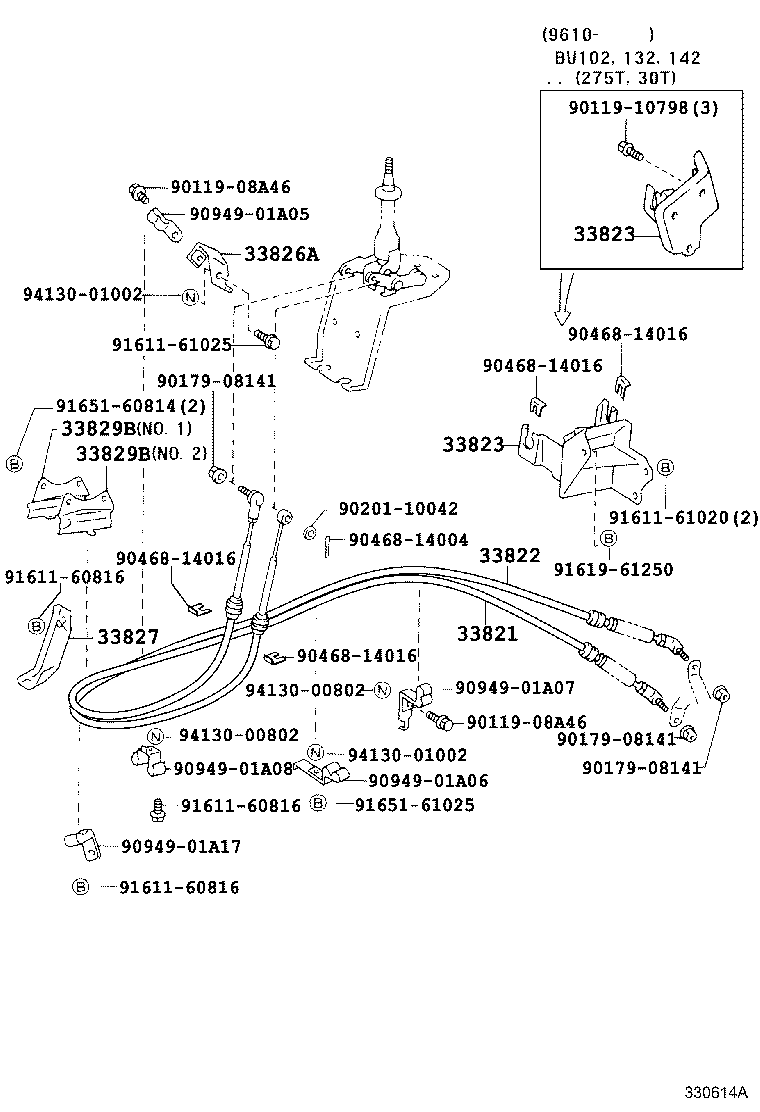

ILLUST NO. 2 OF 2(9610- )BU102..DM6,T2,T3,T4..IV3..5F ; (9707-)BU102..IV4

Click highlighted areas on diagram

ﾌﾗｲﾎｲ-ﾙ P.T.O

Part #	Description	Period	Qty
33821 - CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT)
33820-37131	BU10#,12#,132,14#..(175T,20T)..(CBU,IV3)..5F	05/1995 - 10/1996	1
33822 - CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT)
33820-37141	BU100,102,12#,132,140,142..(175T,20T)..DSL..(CBU,IV3)..5F	05/1995 - 12/2999	1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-37080	BU10#,12#,132,14#..(175T,20T)..(CBU,IV3)..5F	05/1995 - 10/1996	1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-37080	BU10#,12#,132,14#..(175T,20T)..(CBU,IV3)..5F	05/1995 - 10/1996	1
33826A - BRACKET, TRANSMISSION CONTROL CABLE, NO.2
33826-37020	BU112..4FC;BU132..T3,T4;BU10#,12#,137,14#,RZU100,140,XZU130,140	05/1995 - 12/2999	1
33827 - BRACKET, TRANSMISSION CONTROL CABLE, NO.3
33827-37050	BU132,XZU130..DM7,T3,T4;BU10#,112,12#,137,14#,172,RZU100,140,XZU140..03S,05S,06S	05/1995 - 12/2999	1
33829B - CLAMP, TRANSMISSION CONTROL CABLE
33829-37060	BU132..T3,T4;BU100,102,112,12#,140,142,RZU100,140,XZU130,140 NO.2	05/1995 - 12/2999	1
33829-37050	BU132..T3,T4;BU100,102,112,12#,140,142,RZU100,140,XZU130,140 NO.1	05/1995 - 12/2999	1
33829B - CLAMP, TRANSMISSION CONTROL CABLE
33829-37060	BU132..T3,T4;BU100,102,112,12#,140,142,RZU100,140,XZU130,140 NO.2	05/1995 - 12/2999	1
33829-37050	BU132..T3,T4;BU100,102,112,12#,140,142,RZU100,140,XZU130,140 NO.1	05/1995 - 12/2999	1
Common parts
90119-08A46
90119-10798
90179-08141
90201-10042
90468-14004
90468-14016
90949-01A05
90949-01A06
90949-01A07
90949-01A08
90949-01A17
91611-60816
91611-61020
91611-61025
91619-61250
91651-60814
91651-61025
94130-00802
94130-01002

ILLUST NO. 2 OF 2(9610- )BU100,102,12#,132,140,142..175T,20T..DSL..CBU,IV3..5F

Click highlighted areas on diagram

Part #	Description	Period	Qty
33705F - SUPPORT SUB-ASSY, CROSS SHAFT, NO.1 (FOR FLOOR SHIFT)
33705-37020	BU10#,12#,13#,14#..(175T,20T)..DSL..(CBU,IV3)..5F	10/1996 - 12/2999	1
33709B - BUSH (FOR CROSS SHAFT)
33772-26010	BU10#,12#,13#,14#,202,212,222,RZU100..(DSL,LPGB,TD)..(CBU,IV3)..5F	10/1996 - 12/2999	2
33709B - BUSH (FOR CROSS SHAFT)
33772-26010	BU10#,12#,13#,14#,202,212,222,RZU100..(DSL,LPGB,TD)..(CBU,IV3)..5F	10/1996 - 12/2999	2
33773G - SUPPORT, CROSS SHAFT
33773-20020	BU10#,12#,13#,14#,202,212,222,RZU100..(DSL,LPGB,TD)..(CBU,IV3)..5F	10/1996 - 12/2999	1
33773H - RING, SNAP (FOR CROSS SHAFT SUPPORT SNAP)
96151-01600	BU10#,12#,13#,14#,202,212,222,RZU100..(DSL,LPGB,TD)..(CBU,IV3)..5F	10/1996 - 12/2999	1
33775F - COVER, CROSS SHAFT DUST, NO.1 (FOR FLOOR SHIFT)
33775-20020	BU10#,12#,13#,14#,202,212,222,RZU100..(DSL,LPGB,TD)..(CBU,IV3)..5F NO.1	10/1996 - 12/2999	1
33775-20040	BU10#,12#,13#,14#,202,212,222,RZU100..(DSL,LPGB,TD)..(CBU,IV3)..5F NO.2	10/1996 - 12/2999	1
33775F - COVER, CROSS SHAFT DUST, NO.1 (FOR FLOOR SHIFT)
33775-20020	BU10#,12#,13#,14#,202,212,222,RZU100..(DSL,LPGB,TD)..(CBU,IV3)..5F NO.1	10/1996 - 12/2999	1
33775-20040	BU10#,12#,13#,14#,202,212,222,RZU100..(DSL,LPGB,TD)..(CBU,IV3)..5F NO.2	10/1996 - 12/2999	1
33793F - BRACKET, CROSS SHAFT, NO.2(FOR FLOOR SHIFT)
33793-37031	BU10#,12#,13#,14#..(175T,20T)..DSL..(CBU,IV3)..5F	10/1996 - 12/2999	1
33821 - CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT)
33820-37131	BU10#,12#,132,14#..(175T,20T)..(CBU,IV3)..5F	05/1995 - 10/1996	1
33822 - CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT)
33820-37141	BU100,102,12#,132,140,142..(175T,20T)..DSL..(CBU,IV3)..5F	05/1995 - 12/2999	1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-37080	BU10#,12#,132,14#..(175T,20T)..(CBU,IV3)..5F	05/1995 - 10/1996	1
33826A - BRACKET, TRANSMISSION CONTROL CABLE, NO.2
33826-37020	BU112..4FC;BU132..T3,T4;BU10#,12#,137,14#,RZU100,140,XZU130,140	05/1995 - 12/2999	1
33826B - BRACKET, TRANSMISSION CONTROL CABLE, NO.3
33826-37161	BU10#,12#,13#,14#..(175T,20T)..DSL..(CBU,IV3)..5F	11/1996 - 12/2999	1
33826-37160	BU10#,12#,13#,14#..(175T,20T)..(CBU,IV3)..5F	10/1996 - 11/1996	1
33827 - BRACKET, TRANSMISSION CONTROL CABLE, NO.3
33827-37050	BU132,XZU130..DM7,T3,T4;BU10#,112,12#,137,14#,172,RZU100,140,XZU140..03S,05S,06S	05/1995 - 12/2999	1
33829B - CLAMP, TRANSMISSION CONTROL CABLE
33829-37060	BU132..T3,T4;BU100,102,112,12#,140,142,RZU100,140,XZU130,140 NO.2	05/1995 - 12/2999	1
33829-37050	BU132..T3,T4;BU100,102,112,12#,140,142,RZU100,140,XZU130,140 NO.1	05/1995 - 12/2999	1
33829B - CLAMP, TRANSMISSION CONTROL CABLE
33829-37060	BU132..T3,T4;BU100,102,112,12#,140,142,RZU100,140,XZU130,140 NO.2	05/1995 - 12/2999	1
33829-37050	BU132..T3,T4;BU100,102,112,12#,140,142,RZU100,140,XZU130,140 NO.1	05/1995 - 12/2999	1
33840F - ROD ASSY, GEAR SHIFTING, NO.3
33840-37010	BU10#,12#,13#,14#..(175T,20T)..DSL..(CBU,IV3)..5F	10/1996 - 12/2999	1
Common parts
90119-08A46
90179-08141
90201-10042
90468-14004
90468-14016
90949-01A05
90949-01A06
90949-01A07
90949-01A08
91611-60816
91611-61020
91611-61025
91619-61250
91651-60814
91651-61025
94130-00802
94130-01002
94130-61000
94531-01000

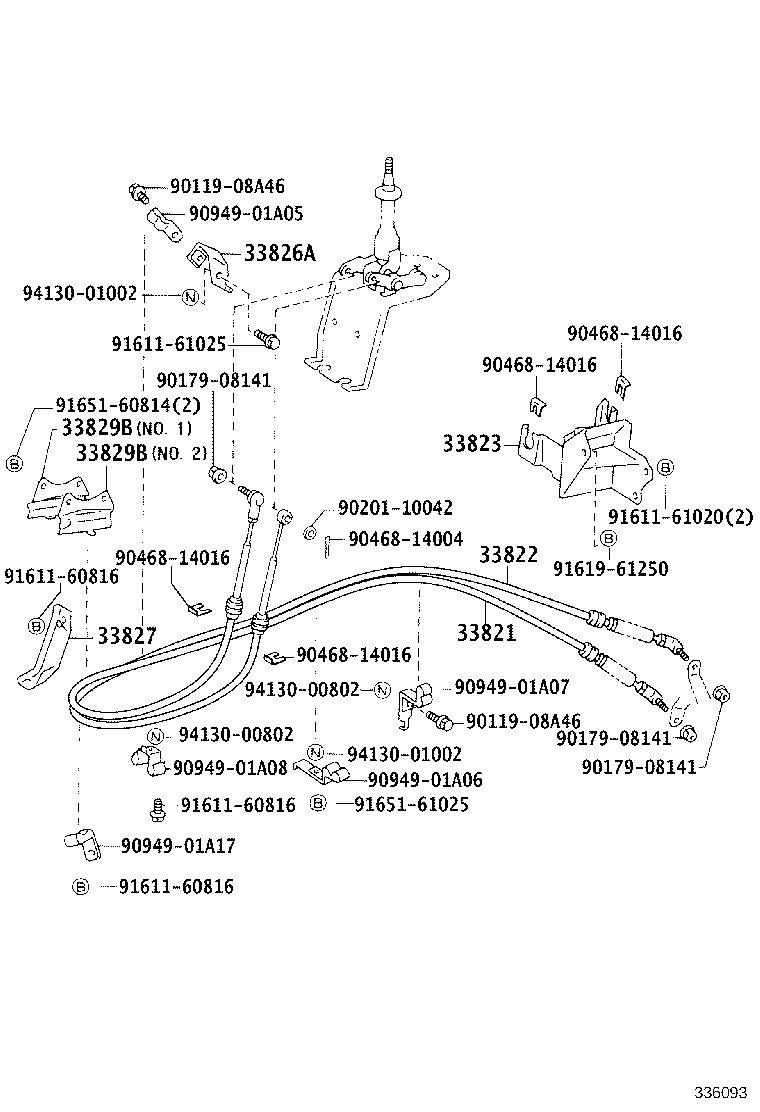

ILLUST NO. 2 OF 2(9505-9610)BU10#,12#,132,14#..5F

Click highlighted areas on diagram

Part #	Description	Period	Qty
33821 - CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT)
33820-37131	BU10#,12#,132,14#..(175T,20T)..(CBU,IV3)..5F	05/1995 - 10/1996	1
33822 - CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT)
33820-37141	BU100,102,12#,132,140,142..(175T,20T)..DSL..(CBU,IV3)..5F	05/1995 - 12/2999	1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-37080	BU10#,12#,132,14#..(175T,20T)..(CBU,IV3)..5F	05/1995 - 10/1996	1
33826A - BRACKET, TRANSMISSION CONTROL CABLE, NO.2
33826-37020	BU112..4FC;BU132..T3,T4;BU10#,12#,137,14#,RZU100,140,XZU130,140	05/1995 - 12/2999	1
33827 - BRACKET, TRANSMISSION CONTROL CABLE, NO.3
33827-37050	BU132,XZU130..DM7,T3,T4;BU10#,112,12#,137,14#,172,RZU100,140,XZU140..03S,05S,06S	05/1995 - 12/2999	1
33829B - CLAMP, TRANSMISSION CONTROL CABLE
33829-37060	BU132..T3,T4;BU100,102,112,12#,140,142,RZU100,140,XZU130,140 NO.2	05/1995 - 12/2999	1
33829-37050	BU132..T3,T4;BU100,102,112,12#,140,142,RZU100,140,XZU130,140 NO.1	05/1995 - 12/2999	1
33829B - CLAMP, TRANSMISSION CONTROL CABLE
33829-37060	BU132..T3,T4;BU100,102,112,12#,140,142,RZU100,140,XZU130,140 NO.2	05/1995 - 12/2999	1
33829-37050	BU132..T3,T4;BU100,102,112,12#,140,142,RZU100,140,XZU130,140 NO.1	05/1995 - 12/2999	1
Common parts
90119-08A46
90179-08141
90201-10042
90468-14004
90468-14016
90949-01A05
90949-01A06
90949-01A07
90949-01A08
90949-01A17
91611-60816
91611-61020
91611-61025
91619-61250
91651-60814
91651-61025
94130-00802
94130-01002

ILLUST NO. 1 OF 2(9505- )MTM

Click highlighted areas on diagram

Part #	Description	Period	Qty
33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)
33055-37010	BU10#,112,12#,13#,14#,202,212,222,RZU100,140,XZU130,140..MTM	05/1995 - 12/2999	1
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-36051B0	BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..5F GRAY,TRIM1#	05/1995 - 05/2000	1
33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT
33506-37010	BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..MTM	05/1995 - 12/2999	1
33506H - BUSH (FOR SHIFT LEVER RETAINER)
90386-12056	BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140	05/1995 - 12/2999	4
33506Q - GROMMET, NO.1(FOR CONTROL SHIFT LEVER RETAINER)
90480-19008	BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140	05/1995 - 12/2999	4
33534 - BELLCRANK, SELECTING
33534-37030	BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..MTM	05/1995 - 12/2999	1
33534C - BUSH (FOR SELECTING BELLCRANK NO.1)
90386-13007	BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..5F	05/1995 - 12/2999	2
33534C - BUSH (FOR SELECTING BELLCRANK NO.1)
90386-13007	BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..5F	05/1995 - 12/2999	2
33539 - CUSHION, SHIFT LEVER ANTI-RATTLE
33539-12010	BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..MTM	05/1995 - 12/2999	1
33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)
33548-12021	BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..MTM NO.1	05/1995 - 12/2999	1
33548-12040	BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..MTM NO.2	05/1995 - 12/2999	1
33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)
33548-12021	BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..MTM NO.1	05/1995 - 12/2999	1
33548-12040	BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..MTM NO.2	05/1995 - 12/2999	1
33586A - STOPPER, CONTROL LEVER (FOR FLOOR SHIFT)
33586-37010	BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..MTM	05/1995 - 12/2999	1
33602B - BUSHING (FOR SELECT LEVER)
90386-13007	BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..MTM	05/1995 - 12/2999	2
33602B - BUSHING (FOR SELECT LEVER)
90386-13007	BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..MTM	05/1995 - 12/2999	2
33602D - COLLAR (FOR SELECT LEVER)
90387-08063	BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..MTM	05/1995 - 12/2999	1
33602E - SPRING, TORSION (FOR SELECT LEVER)
90949-03034	BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..MTM	05/1995 - 12/2999	1
33602F - LEVER SUB-ASSY, SELECT (FOR FLOOR SHIFT)
33602-37010	BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..MTM	05/1995 - 12/2999	1
Common parts
33529-37020
90387-08130
90389-11006
91111-50840
91611-60614
91661-60825
94110-40800
94512-00800
94613-10601
96151-01700
