Toyota Dyna 200/toyoace g25 BU102 ALTERNATOR

BU102-TKMLS3 (1995)

Toyota Dyna 200/Toyoace G25

Production May 1995 - May 1999

Engine 15BF

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(9505- )15B#,3B..BU10#,112,12#,132,14#,162,172,182,202,212,222

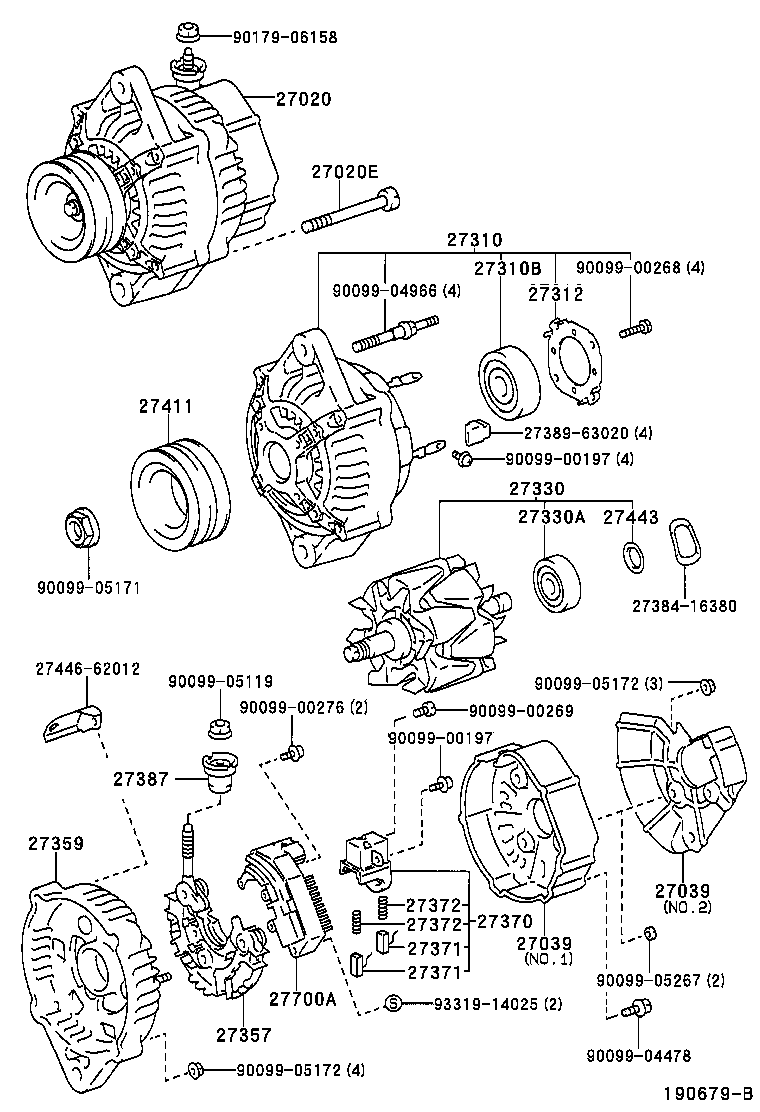

Click highlighted areas on diagram

24V 30A(TYPE B)

Part #	Description	Period	Qty
27020 - ALTERNATOR ASSY
27060-58300	15BF,15BFT,3B..BU10#,12#,13#,14#,202,212,222 24V 50A,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	05/1995 - 12/2999	1
27060-58290	15BF,15BFT,3B..BU10#,112,12#,13#,14#,202,212,222..CBU,IV3 24V 30A,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	05/1995 - 12/2999	1
27020E - BOLT(FOR ALTERNATOR)
90105-10240	15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222	07/1997 - 08/1997	1
90105-10240	15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222	05/1995 - 07/1997	1
27039 - COVER, ALTERNATOR REAR END
27039-16380	15BF,15BFT,3B..BU10#,112,120,13#,14#,202,212,222..CBU,IV3 ｵﾙﾀﾈｰﾀ 24V 30A,NO.1	08/1997 - 12/2999	1
27039-16380	3RZFE..RZU100..06S;3RZFE..RZU100..30T..IV3;3RZFE..RZU100..(DM6,T4)..IV3;15BF,15BFT,3B,3RZFP..BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100..CBU,IV3 ｵﾙﾀﾈｰﾀ 24V-30A,NO.1	01/1997 - 08/1997	1
27039-73020	3RZFE..RZU100..06S;3RZFE..RZU100..30T..IV3;3RZFE..RZU100..(DM6,T4)..IV3;15BF,15BFT,3B,3RZFP..BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100..CBU,IV3 ｵﾙﾀﾈｰﾀ 24V-30A,NO.1	05/1995 - 01/1997	1
27039-50090	15BF,15BFT..BU212..20T;15BF..BU172,182..T3,TW1;J05C,15B#,3B..BU10#,12#,13#,14#,162,202,222,XZU130 ｵﾙﾀﾈｰﾀ 24V 50A,NO.1	05/1995 - 12/2999	1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-58040	15BF,15BFT,3B..BU10#,112,12#,13#,14#,202,212,222..CBU,IV3 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ, ｵﾙﾀﾈｰﾀ 24V 30A	05/1995 - 12/2999	1
27310-58080	15BF,15BFT,3B..BU10#,12#,13#,14#,202,212,222 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ, ｵﾙﾀﾈｰﾀ 24V 50A	05/1995 - 12/2999	1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10178	15BF,15BFT,3B,3RZ#..BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100..CBU,IV3 ｵﾙﾀﾈｰﾀ 24V-30A	05/1995 - 08/1997	1
90099-10192	J05C,15B#,3B..BU10#,12#,13#,14#,162,172,182,202,212,222,XZU130,140 ｵﾙﾀﾈｰﾀ 24V 50A	05/1995 - 12/2999	1
90099-10178	15BF,15BFT,3B..BU10#,112,120,13#,14#,162,172,182,202,212,222..CBU,IV3 ｵﾙﾀﾈｰﾀ 24V 30A	08/1997 - 12/2999	1
27312 - PLATE, RETAINER
27312-70200	15BF,15BFT,3B..BU10#,112,120,13#,14#,162,172,182,202,212,222..CBU,IV3 ｵﾙﾀﾈｰﾀ 24V 30A	08/1997 - 12/2999	1
27312-70200	15BF,15BFT,3B,3RZ#..BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100..CBU,IV3 ｵﾙﾀﾈｰﾀ 24V-30A	05/1995 - 08/1997	1
27312-42010	15BF,15BFT..BU212..20T;J05C,15B#,3B..BU10#,12#,13#,14#,162,172,182,202,222,XZU130 ｵﾙﾀﾈｰﾀ 24V 50A	05/1995 - 12/2999	1
27330 - ROTOR ASSY, ALTERNATOR
27330-58040	15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222..CBU,IV3 ｵﾙﾀﾈｰﾀ 24V 30A	05/1995 - 12/2999	1
27330-58050	J05C,15BFT,15BF,3B..BU10#,12#,13#,14#,162,172,182,202,212,222,XZU130,140 ｵﾙﾀﾈｰﾀ 24V 50A	05/1995 - 12/2999	1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10140	J05C,15B#,3B,3RZ#..BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,XZU130	05/1995 - 08/1997	1
90099-10140	J05C,15B#,3B..BU10#,112,120,13#,14#,162,172,182,202,212,222,RZU100,XZU130,140	08/1997 - 12/2999	1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-63020	15BF,15BFT,3B,3RZ#..BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100..CBU,IV3 ｵﾙﾀﾈｰﾀ 24V-30A	05/1995 - 01/1997	1
27357-16380	15BF,15BFT,3B,3RZ#..BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100..CBU,IV3 ｵﾙﾀﾈｰﾀ 24V-30A	01/1997 - 08/1997	1
27357-17080	J05C,15B#,3B..BU10#,12#,13#,14#,162,172,182,202,212,222,XZU130,140 ｵﾙﾀﾈｰﾀ 24V 50A	05/1995 - 12/2999	1
27357-16380	15BF,15BFT,3B..BU10#,112,120,13#,14#,162,172,182,202,212,222..CBU,IV3 ｵﾙﾀﾈｰﾀ 24V 30A	08/1997 - 12/2999	1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-16180	15B#,3B,3RZ#..BU10#,112,12#,132,14#,162,172,182,202,212,222,RZU100..CBU,IV3 ｵﾙﾀﾈｰﾀ 24V-30A	05/1995 - 01/1996	1
27359-16182	15BF,15BFT,3B,3RZ#..BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100..CBU,IV3 ｵﾙﾀﾈｰﾀ 24V-30A	01/1997 - 08/1997	1
27359-16182	15BF,15BFT,3B..BU10#,112,120,13#,14#,162,172,182,202,212,222..CBU,IV3 ｵﾙﾀﾈｰﾀ 24V 30A	08/1997 - 12/2999	1
27359-16181	15BF,15BFT,3B,3RZ#..BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100..CBU,IV3 ｵﾙﾀﾈｰﾀ 24V-30A	01/1996 - 01/1997	1
27359-58050	15BF,15BFT..BU212..20T;J05C,15B#,3B..BU10#,12#,13#,14#,202,222,XZU130 ｵﾙﾀﾈｰﾀ 12V 100A OR TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ, ｵﾙﾀﾈｰﾀ 24V 50A	05/1995 - 12/2999	1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-75060	15BF,15BFT..BU212..20T;J05C,15B#,3B..BU10#,12#,13#,14#,162,172,182,202,222,XZU130 ｵﾙﾀﾈｰﾀ 12V 70A OR 12V 100A OR 24V 50A	05/1995 - 12/2999	1
27370-58320	15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222..CBU,IV3 ｵﾙﾀﾈｰﾀ 24V 30A	01/1996 - 12/2999	1
27370-58320	15B#,3B..BU10#,112,12#,132,14#,202,212,222..CBU,IV3 ｵﾙﾀﾈｰﾀ 24V-30A	05/1995 - 01/1996	1
27371 - BRUSH, ALTERNATOR
27371-70300	15BF,15BFT,3B,3RZ#..BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140..CBU,IV3	05/1995 - 12/2999	2
27371 - BRUSH, ALTERNATOR
27371-70300	15BF,15BFT,3B,3RZ#..BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140..CBU,IV3	05/1995 - 12/2999	2
27372 - SPRING, ALTERNATOR BRUSH
27372-63020	15BF,15BFT,3B,3RZ#..BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140..CBU,IV3	05/1995 - 12/2999	2
27372 - SPRING, ALTERNATOR BRUSH
27372-63020	15BF,15BFT,3B,3RZ#..BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140..CBU,IV3	05/1995 - 12/2999	2
27387 - INSULATOR, TERMINAL
27387-70171	15BF,15BFT,3B..BU10#,112,120,13#,14#,162,172,182,202,212,222..CBU,IV3 24V 30A	09/1997 - 12/2999	1
27387-42020	J05C,15B#,3B..BU10#,12#,13#,14#,162,172,182,202,212,222,XZU130 24V 50A	05/1995 - 08/1997	1
27387-42021	15BF,15BFT,3B..BU10#,120,13#,14#,162,172,182,202,212,222 24V 50A	08/1997 - 12/2999	1
27387-70170	15BF,15BFT,3B,3RZFE..BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU140..CBU,IV3 24V 30A	05/1995 - 09/1997	1
27411 - PULLEY, ALTERNATOR
27411-58290	15B#,3B..BU10#,12#,13#,14#,202,212,222 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ, ｵﾙﾀﾈｰﾀ 24V 50A	05/1995 - 01/1997	1
27411-58220	15BF,15BFT,3B..BU10#,112,12#,13#,14#,202,212,222..CBU,IV3 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ, ｵﾙﾀﾈｰﾀ 24V 30A	05/1995 - 12/2999	1
27411-58330	15BF,15BFT,3B..BU10#,12#,13#,14#,202,212,222 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ, ｵﾙﾀﾈｰﾀ 24V 50A	01/1997 - 12/2999	1
27443 - COVER, ALTERNATOR BEARING
27443-63020	J05C,15B#,3B,3RZ#..BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140	05/1995 - 12/2999	1
27700A - REGULATOR ASSY, GENERATOR
27700-58060	15BF,15BFT,3B..BU10#,112,12#,132,14#,202,212,222	04/1996 - 08/1996	1
27700-58040	J05C,15B#,3B..BU10#,112,12#,132,14#,162,172,182,202,212,222,XZU130	05/1995 - 04/1996	1
27700-58060	15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222	08/1996 - 12/2999	1
Common parts
27384-16380
27389-63020
27446-58050
90099-00197
90099-00268
90099-00269
90099-00276
90099-04478
90099-04966
90099-05119
90099-05171
90099-05172
90179-06158
93319-14025

(9505- )15B#,3B..BU10#,12#,13#,14#,162,172,182,202,212,222 ; (9510- )J05C

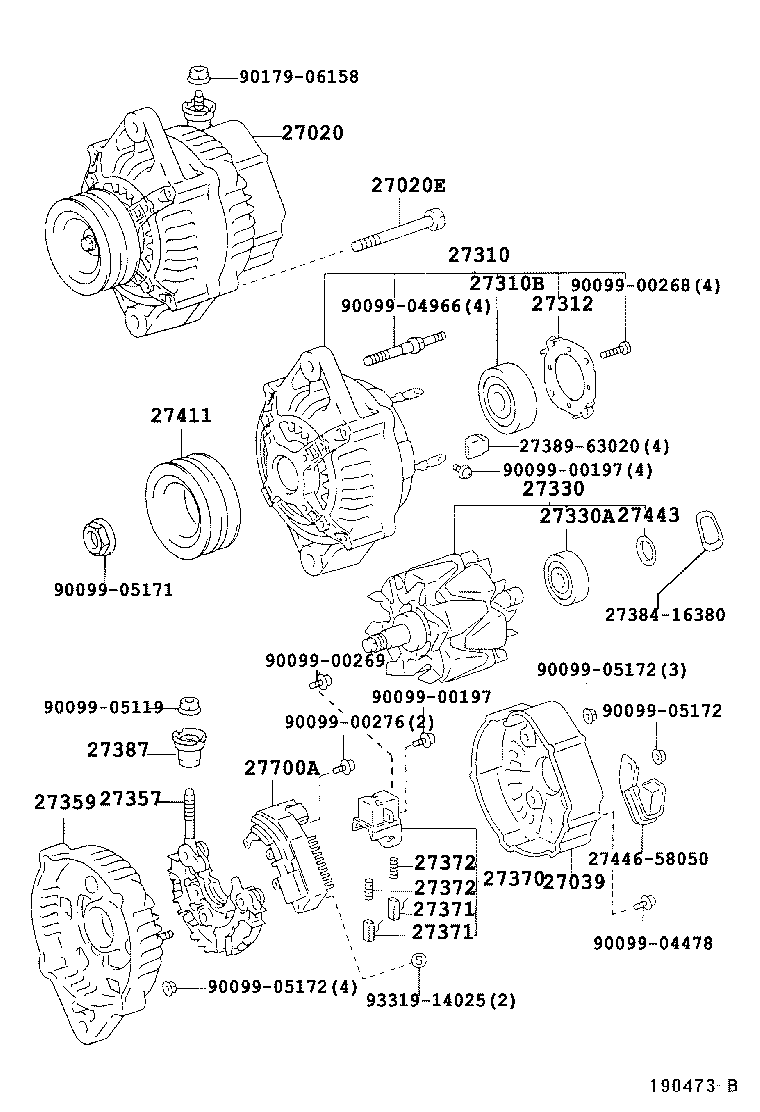

Click highlighted areas on diagram

24V 50A(TYPE B)

Part #	Description	Period	Qty
27020 - ALTERNATOR ASSY
27060-58300	15BF,15BFT,3B..BU10#,12#,13#,14#,202,212,222 24V 50A,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	05/1995 - 12/2999	1
27060-58290	15BF,15BFT,3B..BU10#,112,12#,13#,14#,202,212,222..CBU,IV3 24V 30A,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	05/1995 - 12/2999	1
27020E - BOLT(FOR ALTERNATOR)
90105-10240	15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222	07/1997 - 08/1997	1
90105-10240	15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222	05/1995 - 07/1997	1
27039 - COVER, ALTERNATOR REAR END
27039-16380	15BF,15BFT,3B..BU10#,112,120,13#,14#,202,212,222..CBU,IV3 ｵﾙﾀﾈｰﾀ 24V 30A,NO.1	08/1997 - 12/2999	1
27039-16380	3RZFE..RZU100..06S;3RZFE..RZU100..30T..IV3;3RZFE..RZU100..(DM6,T4)..IV3;15BF,15BFT,3B,3RZFP..BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100..CBU,IV3 ｵﾙﾀﾈｰﾀ 24V-30A,NO.1	01/1997 - 08/1997	1
27039-73020	3RZFE..RZU100..06S;3RZFE..RZU100..30T..IV3;3RZFE..RZU100..(DM6,T4)..IV3;15BF,15BFT,3B,3RZFP..BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100..CBU,IV3 ｵﾙﾀﾈｰﾀ 24V-30A,NO.1	05/1995 - 01/1997	1
27039-50090	15BF,15BFT..BU212..20T;15BF..BU172,182..T3,TW1;J05C,15B#,3B..BU10#,12#,13#,14#,162,202,222,XZU130 ｵﾙﾀﾈｰﾀ 24V 50A,NO.1	05/1995 - 12/2999	1
27064 - SEAL, ALTERNATOR PLATE
27064-42010	J05C,15B#,3B..BU10#,12#,13#,14#,162,172,182,202,212,222,RZU100,XZU130,140	05/1995 - 12/2999	1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-58040	15BF,15BFT,3B..BU10#,112,12#,13#,14#,202,212,222..CBU,IV3 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ, ｵﾙﾀﾈｰﾀ 24V 30A	05/1995 - 12/2999	1
27310-58080	15BF,15BFT,3B..BU10#,12#,13#,14#,202,212,222 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ, ｵﾙﾀﾈｰﾀ 24V 50A	05/1995 - 12/2999	1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10178	15BF,15BFT,3B,3RZ#..BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100..CBU,IV3 ｵﾙﾀﾈｰﾀ 24V-30A	05/1995 - 08/1997	1
90099-10192	J05C,15B#,3B..BU10#,12#,13#,14#,162,172,182,202,212,222,XZU130,140 ｵﾙﾀﾈｰﾀ 24V 50A	05/1995 - 12/2999	1
90099-10178	15BF,15BFT,3B..BU10#,112,120,13#,14#,162,172,182,202,212,222..CBU,IV3 ｵﾙﾀﾈｰﾀ 24V 30A	08/1997 - 12/2999	1
27312 - PLATE, RETAINER
27312-70200	15BF,15BFT,3B..BU10#,112,120,13#,14#,162,172,182,202,212,222..CBU,IV3 ｵﾙﾀﾈｰﾀ 24V 30A	08/1997 - 12/2999	1
27312-70200	15BF,15BFT,3B,3RZ#..BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100..CBU,IV3 ｵﾙﾀﾈｰﾀ 24V-30A	05/1995 - 08/1997	1
27312-42010	15BF,15BFT..BU212..20T;J05C,15B#,3B..BU10#,12#,13#,14#,162,172,182,202,222,XZU130 ｵﾙﾀﾈｰﾀ 24V 50A	05/1995 - 12/2999	1
27330 - ROTOR ASSY, ALTERNATOR
27330-58040	15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222..CBU,IV3 ｵﾙﾀﾈｰﾀ 24V 30A	05/1995 - 12/2999	1
27330-58050	J05C,15BFT,15BF,3B..BU10#,12#,13#,14#,162,172,182,202,212,222,XZU130,140 ｵﾙﾀﾈｰﾀ 24V 50A	05/1995 - 12/2999	1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10140	J05C,15B#,3B,3RZ#..BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,XZU130	05/1995 - 08/1997	1
90099-10140	J05C,15B#,3B..BU10#,112,120,13#,14#,162,172,182,202,212,222,RZU100,XZU130,140	08/1997 - 12/2999	1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-63020	15BF,15BFT,3B,3RZ#..BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100..CBU,IV3 ｵﾙﾀﾈｰﾀ 24V-30A	05/1995 - 01/1997	1
27357-16380	15BF,15BFT,3B,3RZ#..BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100..CBU,IV3 ｵﾙﾀﾈｰﾀ 24V-30A	01/1997 - 08/1997	1
27357-17080	J05C,15B#,3B..BU10#,12#,13#,14#,162,172,182,202,212,222,XZU130,140 ｵﾙﾀﾈｰﾀ 24V 50A	05/1995 - 12/2999	1
27357-16380	15BF,15BFT,3B..BU10#,112,120,13#,14#,162,172,182,202,212,222..CBU,IV3 ｵﾙﾀﾈｰﾀ 24V 30A	08/1997 - 12/2999	1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-16180	15B#,3B,3RZ#..BU10#,112,12#,132,14#,162,172,182,202,212,222,RZU100..CBU,IV3 ｵﾙﾀﾈｰﾀ 24V-30A	05/1995 - 01/1996	1
27359-16182	15BF,15BFT,3B,3RZ#..BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100..CBU,IV3 ｵﾙﾀﾈｰﾀ 24V-30A	01/1997 - 08/1997	1
27359-16182	15BF,15BFT,3B..BU10#,112,120,13#,14#,162,172,182,202,212,222..CBU,IV3 ｵﾙﾀﾈｰﾀ 24V 30A	08/1997 - 12/2999	1
27359-16181	15BF,15BFT,3B,3RZ#..BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100..CBU,IV3 ｵﾙﾀﾈｰﾀ 24V-30A	01/1996 - 01/1997	1
27359-58050	15BF,15BFT..BU212..20T;J05C,15B#,3B..BU10#,12#,13#,14#,202,222,XZU130 ｵﾙﾀﾈｰﾀ 12V 100A OR TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ, ｵﾙﾀﾈｰﾀ 24V 50A	05/1995 - 12/2999	1
27365 - PLATE, TERMINAL
27365-55080	J05C,15B#,3B..BU10#,12#,13#,14#,162,172,182,202,212,222,RZU100,XZU130,140	05/1995 - 12/2999	1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-75060	15BF,15BFT..BU212..20T;J05C,15B#,3B..BU10#,12#,13#,14#,162,172,182,202,222,XZU130 ｵﾙﾀﾈｰﾀ 12V 70A OR 12V 100A OR 24V 50A	05/1995 - 12/2999	1
27370-58320	15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222..CBU,IV3 ｵﾙﾀﾈｰﾀ 24V 30A	01/1996 - 12/2999	1
27370-58320	15B#,3B..BU10#,112,12#,132,14#,202,212,222..CBU,IV3 ｵﾙﾀﾈｰﾀ 24V-30A	05/1995 - 01/1996	1
27384 - WASHER
27384-50030	J05C,15B#,3B..BU10#,12#,13#,14#,162,172,182,202,212,222,RZU100,XZU130,140	05/1995 - 12/2999	1
27387 - INSULATOR, TERMINAL
27387-70171	15BF,15BFT,3B..BU10#,112,120,13#,14#,162,172,182,202,212,222..CBU,IV3 24V 30A	09/1997 - 12/2999	1
27387-42020	J05C,15B#,3B..BU10#,12#,13#,14#,162,172,182,202,212,222,XZU130 24V 50A	05/1995 - 08/1997	1
27387-42021	15BF,15BFT,3B..BU10#,120,13#,14#,162,172,182,202,212,222 24V 50A	08/1997 - 12/2999	1
27387-70170	15BF,15BFT,3B,3RZFE..BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU140..CBU,IV3 24V 30A	05/1995 - 09/1997	1
27388 - COVER, ALTERNATOR BRUSH
27388-42010	J05C,15B#,3B..BU10#,12#,13#,14#,162,172,182,202,212,222,RZU100,XZU130,140	05/1995 - 12/2999	1
27411 - PULLEY, ALTERNATOR
27411-58290	15B#,3B..BU10#,12#,13#,14#,202,212,222 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ, ｵﾙﾀﾈｰﾀ 24V 50A	05/1995 - 01/1997	1
27411-58220	15BF,15BFT,3B..BU10#,112,12#,13#,14#,202,212,222..CBU,IV3 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ, ｵﾙﾀﾈｰﾀ 24V 30A	05/1995 - 12/2999	1
27411-58330	15BF,15BFT,3B..BU10#,12#,13#,14#,202,212,222 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ, ｵﾙﾀﾈｰﾀ 24V 50A	01/1997 - 12/2999	1
27443 - COVER, ALTERNATOR BEARING
27443-63020	J05C,15B#,3B,3RZ#..BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140	05/1995 - 12/2999	1
27700A - REGULATOR ASSY, GENERATOR
27700-58060	15BF,15BFT,3B..BU10#,112,12#,132,14#,202,212,222	04/1996 - 08/1996	1
27700-58040	J05C,15B#,3B..BU10#,112,12#,132,14#,162,172,182,202,212,222,XZU130	05/1995 - 04/1996	1
27700-58060	15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222	08/1996 - 12/2999	1
Common parts
27389-42010
27446-58050
27446-62012
90099-00195
90099-00197
90099-00243
90099-00246
90099-04966
90099-05119
90099-05171
90099-05172
90099-05232
90179-06158
93319-14025

(9505- )15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222

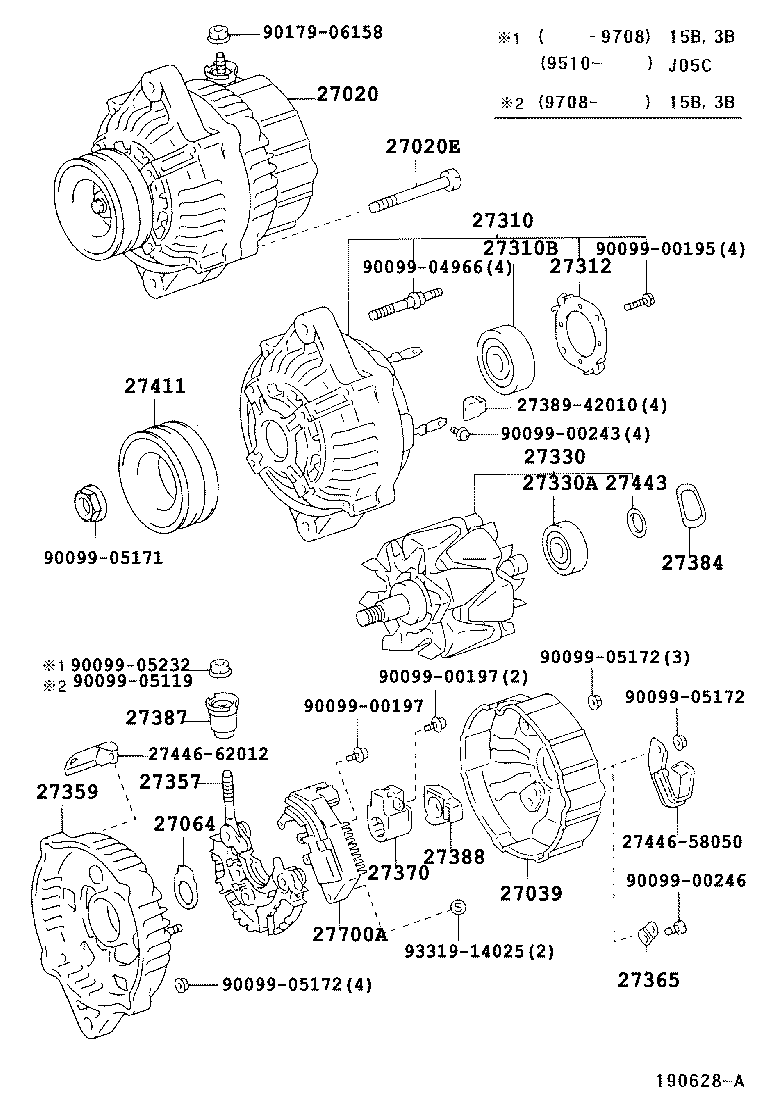

Click highlighted areas on diagram

24V 30A(TYPE A)

Part #	Description	Period	Qty
27020 - ALTERNATOR ASSY
27060-58300	15BF,15BFT,3B..BU10#,12#,13#,14#,202,212,222 24V 50A,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	05/1995 - 12/2999	1
27060-58290	15BF,15BFT,3B..BU10#,112,12#,13#,14#,202,212,222..CBU,IV3 24V 30A,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	05/1995 - 12/2999	1
27020E - BOLT(FOR ALTERNATOR)
90105-10240	15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222	07/1997 - 08/1997	1
90105-10240	15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222	05/1995 - 07/1997	1
27039 - COVER, ALTERNATOR REAR END
27039-16380	15BF,15BFT,3B..BU10#,112,120,13#,14#,202,212,222..CBU,IV3 ｵﾙﾀﾈｰﾀ 24V 30A,NO.1	08/1997 - 12/2999	1
27039-16380	3RZFE..RZU100..06S;3RZFE..RZU100..30T..IV3;3RZFE..RZU100..(DM6,T4)..IV3;15BF,15BFT,3B,3RZFP..BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100..CBU,IV3 ｵﾙﾀﾈｰﾀ 24V-30A,NO.1	01/1997 - 08/1997	1
27039-73020	3RZFE..RZU100..06S;3RZFE..RZU100..30T..IV3;3RZFE..RZU100..(DM6,T4)..IV3;15BF,15BFT,3B,3RZFP..BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100..CBU,IV3 ｵﾙﾀﾈｰﾀ 24V-30A,NO.1	05/1995 - 01/1997	1
27039-50090	15BF,15BFT..BU212..20T;15BF..BU172,182..T3,TW1;J05C,15B#,3B..BU10#,12#,13#,14#,162,202,222,XZU130 ｵﾙﾀﾈｰﾀ 24V 50A,NO.1	05/1995 - 12/2999	1
27039 - COVER, ALTERNATOR REAR END
27039-16380	15BF,15BFT,3B..BU10#,112,120,13#,14#,202,212,222..CBU,IV3 ｵﾙﾀﾈｰﾀ 24V 30A,NO.1	08/1997 - 12/2999	1
27039-16380	3RZFE..RZU100..06S;3RZFE..RZU100..30T..IV3;3RZFE..RZU100..(DM6,T4)..IV3;15BF,15BFT,3B,3RZFP..BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100..CBU,IV3 ｵﾙﾀﾈｰﾀ 24V-30A,NO.1	01/1997 - 08/1997	1
27039-73020	3RZFE..RZU100..06S;3RZFE..RZU100..30T..IV3;3RZFE..RZU100..(DM6,T4)..IV3;15BF,15BFT,3B,3RZFP..BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100..CBU,IV3 ｵﾙﾀﾈｰﾀ 24V-30A,NO.1	05/1995 - 01/1997	1
27039-50090	15BF,15BFT..BU212..20T;15BF..BU172,182..T3,TW1;J05C,15B#,3B..BU10#,12#,13#,14#,162,202,222,XZU130 ｵﾙﾀﾈｰﾀ 24V 50A,NO.1	05/1995 - 12/2999	1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-58040	15BF,15BFT,3B..BU10#,112,12#,13#,14#,202,212,222..CBU,IV3 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ, ｵﾙﾀﾈｰﾀ 24V 30A	05/1995 - 12/2999	1
27310-58080	15BF,15BFT,3B..BU10#,12#,13#,14#,202,212,222 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ, ｵﾙﾀﾈｰﾀ 24V 50A	05/1995 - 12/2999	1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10178	15BF,15BFT,3B,3RZ#..BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100..CBU,IV3 ｵﾙﾀﾈｰﾀ 24V-30A	05/1995 - 08/1997	1
90099-10192	J05C,15B#,3B..BU10#,12#,13#,14#,162,172,182,202,212,222,XZU130,140 ｵﾙﾀﾈｰﾀ 24V 50A	05/1995 - 12/2999	1
90099-10178	15BF,15BFT,3B..BU10#,112,120,13#,14#,162,172,182,202,212,222..CBU,IV3 ｵﾙﾀﾈｰﾀ 24V 30A	08/1997 - 12/2999	1
27312 - PLATE, RETAINER
27312-70200	15BF,15BFT,3B..BU10#,112,120,13#,14#,162,172,182,202,212,222..CBU,IV3 ｵﾙﾀﾈｰﾀ 24V 30A	08/1997 - 12/2999	1
27312-70200	15BF,15BFT,3B,3RZ#..BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100..CBU,IV3 ｵﾙﾀﾈｰﾀ 24V-30A	05/1995 - 08/1997	1
27312-42010	15BF,15BFT..BU212..20T;J05C,15B#,3B..BU10#,12#,13#,14#,162,172,182,202,222,XZU130 ｵﾙﾀﾈｰﾀ 24V 50A	05/1995 - 12/2999	1
27330 - ROTOR ASSY, ALTERNATOR
27330-58040	15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222..CBU,IV3 ｵﾙﾀﾈｰﾀ 24V 30A	05/1995 - 12/2999	1
27330-58050	J05C,15BFT,15BF,3B..BU10#,12#,13#,14#,162,172,182,202,212,222,XZU130,140 ｵﾙﾀﾈｰﾀ 24V 50A	05/1995 - 12/2999	1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10140	J05C,15B#,3B,3RZ#..BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,XZU130	05/1995 - 08/1997	1
90099-10140	J05C,15B#,3B..BU10#,112,120,13#,14#,162,172,182,202,212,222,RZU100,XZU130,140	08/1997 - 12/2999	1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-63020	15BF,15BFT,3B,3RZ#..BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100..CBU,IV3 ｵﾙﾀﾈｰﾀ 24V-30A	05/1995 - 01/1997	1
27357-16380	15BF,15BFT,3B,3RZ#..BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100..CBU,IV3 ｵﾙﾀﾈｰﾀ 24V-30A	01/1997 - 08/1997	1
27357-17080	J05C,15B#,3B..BU10#,12#,13#,14#,162,172,182,202,212,222,XZU130,140 ｵﾙﾀﾈｰﾀ 24V 50A	05/1995 - 12/2999	1
27357-16380	15BF,15BFT,3B..BU10#,112,120,13#,14#,162,172,182,202,212,222..CBU,IV3 ｵﾙﾀﾈｰﾀ 24V 30A	08/1997 - 12/2999	1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-16180	15B#,3B,3RZ#..BU10#,112,12#,132,14#,162,172,182,202,212,222,RZU100..CBU,IV3 ｵﾙﾀﾈｰﾀ 24V-30A	05/1995 - 01/1996	1
27359-16182	15BF,15BFT,3B,3RZ#..BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100..CBU,IV3 ｵﾙﾀﾈｰﾀ 24V-30A	01/1997 - 08/1997	1
27359-16182	15BF,15BFT,3B..BU10#,112,120,13#,14#,162,172,182,202,212,222..CBU,IV3 ｵﾙﾀﾈｰﾀ 24V 30A	08/1997 - 12/2999	1
27359-16181	15BF,15BFT,3B,3RZ#..BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100..CBU,IV3 ｵﾙﾀﾈｰﾀ 24V-30A	01/1996 - 01/1997	1
27359-58050	15BF,15BFT..BU212..20T;J05C,15B#,3B..BU10#,12#,13#,14#,202,222,XZU130 ｵﾙﾀﾈｰﾀ 12V 100A OR TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ, ｵﾙﾀﾈｰﾀ 24V 50A	05/1995 - 12/2999	1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-75060	15BF,15BFT..BU212..20T;J05C,15B#,3B..BU10#,12#,13#,14#,162,172,182,202,222,XZU130 ｵﾙﾀﾈｰﾀ 12V 70A OR 12V 100A OR 24V 50A	05/1995 - 12/2999	1
27370-58320	15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222..CBU,IV3 ｵﾙﾀﾈｰﾀ 24V 30A	01/1996 - 12/2999	1
27370-58320	15B#,3B..BU10#,112,12#,132,14#,202,212,222..CBU,IV3 ｵﾙﾀﾈｰﾀ 24V-30A	05/1995 - 01/1996	1
27371 - BRUSH, ALTERNATOR
27371-70300	15BF,15BFT,3B,3RZ#..BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140..CBU,IV3	05/1995 - 12/2999	2
27371 - BRUSH, ALTERNATOR
27371-70300	15BF,15BFT,3B,3RZ#..BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140..CBU,IV3	05/1995 - 12/2999	2
27372 - SPRING, ALTERNATOR BRUSH
27372-63020	15BF,15BFT,3B,3RZ#..BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140..CBU,IV3	05/1995 - 12/2999	2
27372 - SPRING, ALTERNATOR BRUSH
27372-63020	15BF,15BFT,3B,3RZ#..BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140..CBU,IV3	05/1995 - 12/2999	2
27387 - INSULATOR, TERMINAL
27387-70171	15BF,15BFT,3B..BU10#,112,120,13#,14#,162,172,182,202,212,222..CBU,IV3 24V 30A	09/1997 - 12/2999	1
27387-42020	J05C,15B#,3B..BU10#,12#,13#,14#,162,172,182,202,212,222,XZU130 24V 50A	05/1995 - 08/1997	1
27387-42021	15BF,15BFT,3B..BU10#,120,13#,14#,162,172,182,202,212,222 24V 50A	08/1997 - 12/2999	1
27387-70170	15BF,15BFT,3B,3RZFE..BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU140..CBU,IV3 24V 30A	05/1995 - 09/1997	1
27411 - PULLEY, ALTERNATOR
27411-58290	15B#,3B..BU10#,12#,13#,14#,202,212,222 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ, ｵﾙﾀﾈｰﾀ 24V 50A	05/1995 - 01/1997	1
27411-58220	15BF,15BFT,3B..BU10#,112,12#,13#,14#,202,212,222..CBU,IV3 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ, ｵﾙﾀﾈｰﾀ 24V 30A	05/1995 - 12/2999	1
27411-58330	15BF,15BFT,3B..BU10#,12#,13#,14#,202,212,222 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ, ｵﾙﾀﾈｰﾀ 24V 50A	01/1997 - 12/2999	1
27443 - COVER, ALTERNATOR BEARING
27443-63020	J05C,15B#,3B,3RZ#..BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140	05/1995 - 12/2999	1
27700A - REGULATOR ASSY, GENERATOR
27700-58060	15BF,15BFT,3B..BU10#,112,12#,132,14#,202,212,222	04/1996 - 08/1996	1
27700-58040	J05C,15B#,3B..BU10#,112,12#,132,14#,162,172,182,202,212,222,XZU130	05/1995 - 04/1996	1
27700-58060	15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222	08/1996 - 12/2999	1
Common parts
27384-16380
27389-63020
27446-62012
90099-00197
90099-00268
90099-00269
90099-00276
90099-04478
90099-04966
90099-05119
90099-05171
90099-05172
90099-05267
90179-06158
93319-14025

(9505- )15B#,3B..BU10#,12#,13#,14#,162,172,182,202,212,222

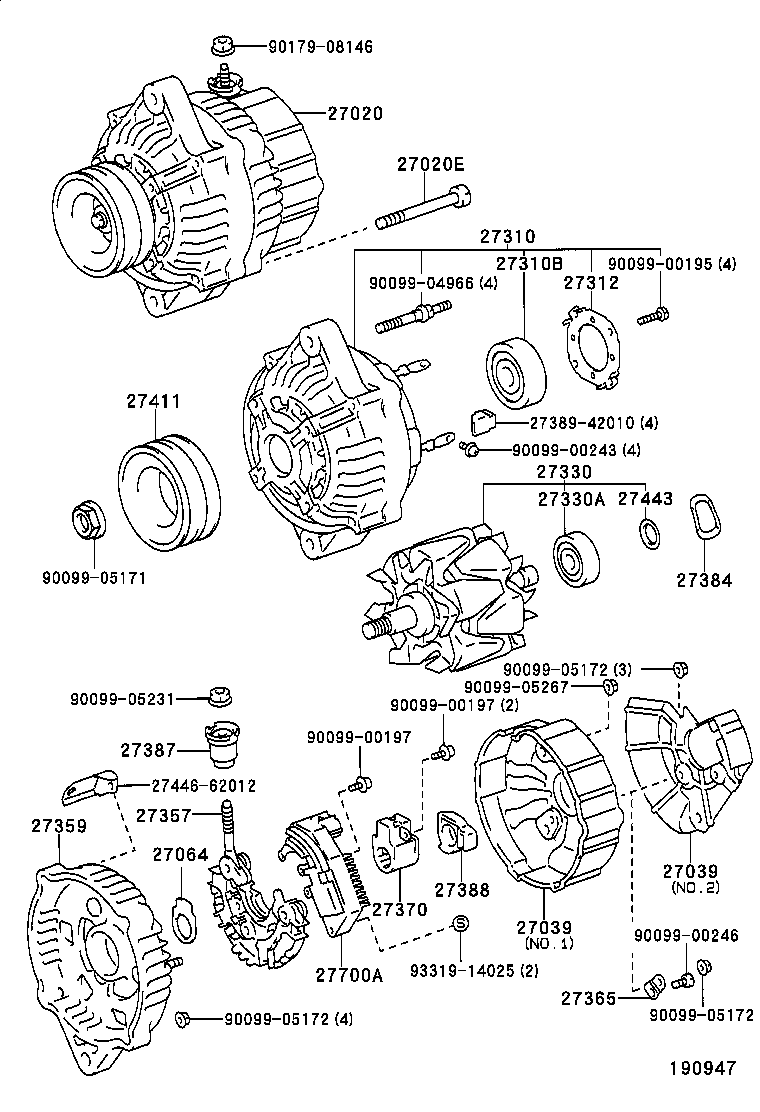

Click highlighted areas on diagram

24V 50A(TYPE A)

Part #	Description	Period	Qty
27020 - ALTERNATOR ASSY
27060-58300	15BF,15BFT,3B..BU10#,12#,13#,14#,202,212,222 24V 50A,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	05/1995 - 12/2999	1
27060-58290	15BF,15BFT,3B..BU10#,112,12#,13#,14#,202,212,222..CBU,IV3 24V 30A,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	05/1995 - 12/2999	1
27020E - BOLT(FOR ALTERNATOR)
90105-10240	15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222	07/1997 - 08/1997	1
90105-10240	15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222	05/1995 - 07/1997	1
27039 - COVER, ALTERNATOR REAR END
27039-16380	15BF,15BFT,3B..BU10#,112,120,13#,14#,202,212,222..CBU,IV3 ｵﾙﾀﾈｰﾀ 24V 30A,NO.1	08/1997 - 12/2999	1
27039-16380	3RZFE..RZU100..06S;3RZFE..RZU100..30T..IV3;3RZFE..RZU100..(DM6,T4)..IV3;15BF,15BFT,3B,3RZFP..BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100..CBU,IV3 ｵﾙﾀﾈｰﾀ 24V-30A,NO.1	01/1997 - 08/1997	1
27039-73020	3RZFE..RZU100..06S;3RZFE..RZU100..30T..IV3;3RZFE..RZU100..(DM6,T4)..IV3;15BF,15BFT,3B,3RZFP..BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100..CBU,IV3 ｵﾙﾀﾈｰﾀ 24V-30A,NO.1	05/1995 - 01/1997	1
27039-50090	15BF,15BFT..BU212..20T;15BF..BU172,182..T3,TW1;J05C,15B#,3B..BU10#,12#,13#,14#,162,202,222,XZU130 ｵﾙﾀﾈｰﾀ 24V 50A,NO.1	05/1995 - 12/2999	1
27039 - COVER, ALTERNATOR REAR END
27039-16380	15BF,15BFT,3B..BU10#,112,120,13#,14#,202,212,222..CBU,IV3 ｵﾙﾀﾈｰﾀ 24V 30A,NO.1	08/1997 - 12/2999	1
27039-16380	3RZFE..RZU100..06S;3RZFE..RZU100..30T..IV3;3RZFE..RZU100..(DM6,T4)..IV3;15BF,15BFT,3B,3RZFP..BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100..CBU,IV3 ｵﾙﾀﾈｰﾀ 24V-30A,NO.1	01/1997 - 08/1997	1
27039-73020	3RZFE..RZU100..06S;3RZFE..RZU100..30T..IV3;3RZFE..RZU100..(DM6,T4)..IV3;15BF,15BFT,3B,3RZFP..BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100..CBU,IV3 ｵﾙﾀﾈｰﾀ 24V-30A,NO.1	05/1995 - 01/1997	1
27039-50090	15BF,15BFT..BU212..20T;15BF..BU172,182..T3,TW1;J05C,15B#,3B..BU10#,12#,13#,14#,162,202,222,XZU130 ｵﾙﾀﾈｰﾀ 24V 50A,NO.1	05/1995 - 12/2999	1
27064 - SEAL, ALTERNATOR PLATE
27064-42010	J05C,15B#,3B..BU10#,12#,13#,14#,162,172,182,202,212,222,RZU100,XZU130,140	05/1995 - 12/2999	1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-58040	15BF,15BFT,3B..BU10#,112,12#,13#,14#,202,212,222..CBU,IV3 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ, ｵﾙﾀﾈｰﾀ 24V 30A	05/1995 - 12/2999	1
27310-58080	15BF,15BFT,3B..BU10#,12#,13#,14#,202,212,222 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ, ｵﾙﾀﾈｰﾀ 24V 50A	05/1995 - 12/2999	1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10178	15BF,15BFT,3B,3RZ#..BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100..CBU,IV3 ｵﾙﾀﾈｰﾀ 24V-30A	05/1995 - 08/1997	1
90099-10192	J05C,15B#,3B..BU10#,12#,13#,14#,162,172,182,202,212,222,XZU130,140 ｵﾙﾀﾈｰﾀ 24V 50A	05/1995 - 12/2999	1
90099-10178	15BF,15BFT,3B..BU10#,112,120,13#,14#,162,172,182,202,212,222..CBU,IV3 ｵﾙﾀﾈｰﾀ 24V 30A	08/1997 - 12/2999	1
27312 - PLATE, RETAINER
27312-70200	15BF,15BFT,3B..BU10#,112,120,13#,14#,162,172,182,202,212,222..CBU,IV3 ｵﾙﾀﾈｰﾀ 24V 30A	08/1997 - 12/2999	1
27312-70200	15BF,15BFT,3B,3RZ#..BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100..CBU,IV3 ｵﾙﾀﾈｰﾀ 24V-30A	05/1995 - 08/1997	1
27312-42010	15BF,15BFT..BU212..20T;J05C,15B#,3B..BU10#,12#,13#,14#,162,172,182,202,222,XZU130 ｵﾙﾀﾈｰﾀ 24V 50A	05/1995 - 12/2999	1
27330 - ROTOR ASSY, ALTERNATOR
27330-58040	15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222..CBU,IV3 ｵﾙﾀﾈｰﾀ 24V 30A	05/1995 - 12/2999	1
27330-58050	J05C,15BFT,15BF,3B..BU10#,12#,13#,14#,162,172,182,202,212,222,XZU130,140 ｵﾙﾀﾈｰﾀ 24V 50A	05/1995 - 12/2999	1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10140	J05C,15B#,3B,3RZ#..BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,XZU130	05/1995 - 08/1997	1
90099-10140	J05C,15B#,3B..BU10#,112,120,13#,14#,162,172,182,202,212,222,RZU100,XZU130,140	08/1997 - 12/2999	1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-63020	15BF,15BFT,3B,3RZ#..BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100..CBU,IV3 ｵﾙﾀﾈｰﾀ 24V-30A	05/1995 - 01/1997	1
27357-16380	15BF,15BFT,3B,3RZ#..BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100..CBU,IV3 ｵﾙﾀﾈｰﾀ 24V-30A	01/1997 - 08/1997	1
27357-17080	J05C,15B#,3B..BU10#,12#,13#,14#,162,172,182,202,212,222,XZU130,140 ｵﾙﾀﾈｰﾀ 24V 50A	05/1995 - 12/2999	1
27357-16380	15BF,15BFT,3B..BU10#,112,120,13#,14#,162,172,182,202,212,222..CBU,IV3 ｵﾙﾀﾈｰﾀ 24V 30A	08/1997 - 12/2999	1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-16180	15B#,3B,3RZ#..BU10#,112,12#,132,14#,162,172,182,202,212,222,RZU100..CBU,IV3 ｵﾙﾀﾈｰﾀ 24V-30A	05/1995 - 01/1996	1
27359-16182	15BF,15BFT,3B,3RZ#..BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100..CBU,IV3 ｵﾙﾀﾈｰﾀ 24V-30A	01/1997 - 08/1997	1
27359-16182	15BF,15BFT,3B..BU10#,112,120,13#,14#,162,172,182,202,212,222..CBU,IV3 ｵﾙﾀﾈｰﾀ 24V 30A	08/1997 - 12/2999	1
27359-16181	15BF,15BFT,3B,3RZ#..BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100..CBU,IV3 ｵﾙﾀﾈｰﾀ 24V-30A	01/1996 - 01/1997	1
27359-58050	15BF,15BFT..BU212..20T;J05C,15B#,3B..BU10#,12#,13#,14#,202,222,XZU130 ｵﾙﾀﾈｰﾀ 12V 100A OR TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ, ｵﾙﾀﾈｰﾀ 24V 50A	05/1995 - 12/2999	1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-75060	15BF,15BFT..BU212..20T;J05C,15B#,3B..BU10#,12#,13#,14#,162,172,182,202,222,XZU130 ｵﾙﾀﾈｰﾀ 12V 70A OR 12V 100A OR 24V 50A	05/1995 - 12/2999	1
27370-58320	15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222..CBU,IV3 ｵﾙﾀﾈｰﾀ 24V 30A	01/1996 - 12/2999	1
27370-58320	15B#,3B..BU10#,112,12#,132,14#,202,212,222..CBU,IV3 ｵﾙﾀﾈｰﾀ 24V-30A	05/1995 - 01/1996	1
27384 - WASHER
27384-50030	J05C,15B#,3B..BU10#,12#,13#,14#,162,172,182,202,212,222,RZU100,XZU130,140	05/1995 - 12/2999	1
27387 - INSULATOR, TERMINAL
27387-70171	15BF,15BFT,3B..BU10#,112,120,13#,14#,162,172,182,202,212,222..CBU,IV3 24V 30A	09/1997 - 12/2999	1
27387-42020	J05C,15B#,3B..BU10#,12#,13#,14#,162,172,182,202,212,222,XZU130 24V 50A	05/1995 - 08/1997	1
27387-42021	15BF,15BFT,3B..BU10#,120,13#,14#,162,172,182,202,212,222 24V 50A	08/1997 - 12/2999	1
27387-70170	15BF,15BFT,3B,3RZFE..BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU140..CBU,IV3 24V 30A	05/1995 - 09/1997	1
27411 - PULLEY, ALTERNATOR
27411-58290	15B#,3B..BU10#,12#,13#,14#,202,212,222 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ, ｵﾙﾀﾈｰﾀ 24V 50A	05/1995 - 01/1997	1
27411-58220	15BF,15BFT,3B..BU10#,112,12#,13#,14#,202,212,222..CBU,IV3 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ, ｵﾙﾀﾈｰﾀ 24V 30A	05/1995 - 12/2999	1
27411-58330	15BF,15BFT,3B..BU10#,12#,13#,14#,202,212,222 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ, ｵﾙﾀﾈｰﾀ 24V 50A	01/1997 - 12/2999	1
27443 - COVER, ALTERNATOR BEARING
27443-63020	J05C,15B#,3B,3RZ#..BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140	05/1995 - 12/2999	1
27700A - REGULATOR ASSY, GENERATOR
27700-58060	15BF,15BFT,3B..BU10#,112,12#,132,14#,202,212,222	04/1996 - 08/1996	1
27700-58040	J05C,15B#,3B..BU10#,112,12#,132,14#,162,172,182,202,212,222,XZU130	05/1995 - 04/1996	1
27700-58060	15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222	08/1996 - 12/2999	1
Common parts
27365-55080
27388-42010
27389-42010
27446-62012
90099-00195
90099-00197
90099-00243
90099-00246
90099-04966
90099-05119
90099-05171
90099-05172
90099-05232
90179-06158
93319-14025

(9605- )15BF,15BFP..BU102,142,RZU100

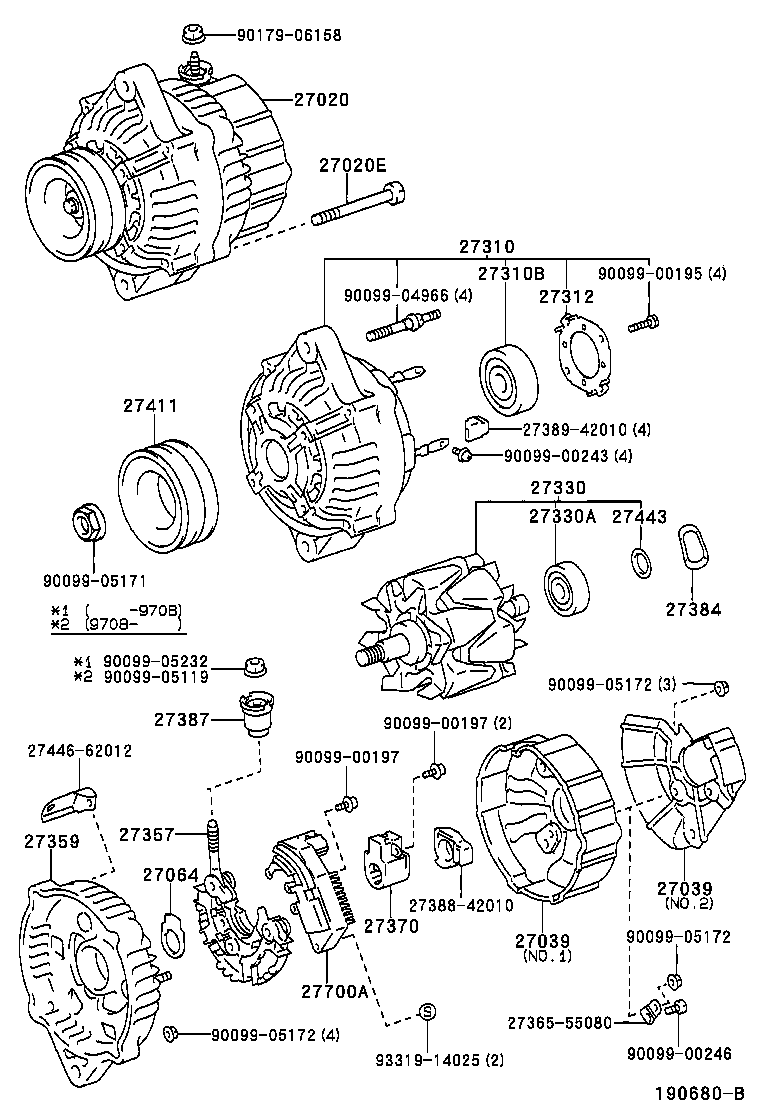

Click highlighted areas on diagram

12V 100A

Part #	Description	Period	Qty
27020 - ALTERNATOR ASSY
27060-58300	15BF,15BFT,3B..BU10#,12#,13#,14#,202,212,222 24V 50A,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	05/1995 - 12/2999	1
27060-58290	15BF,15BFT,3B..BU10#,112,12#,13#,14#,202,212,222..CBU,IV3 24V 30A,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	05/1995 - 12/2999	1
27020E - BOLT(FOR ALTERNATOR)
90105-10240	15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222	07/1997 - 08/1997	1
90105-10240	15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222	05/1995 - 07/1997	1
27039 - COVER, ALTERNATOR REAR END
27039-16380	15BF,15BFT,3B..BU10#,112,120,13#,14#,202,212,222..CBU,IV3 ｵﾙﾀﾈｰﾀ 24V 30A,NO.1	08/1997 - 12/2999	1
27039-16380	3RZFE..RZU100..06S;3RZFE..RZU100..30T..IV3;3RZFE..RZU100..(DM6,T4)..IV3;15BF,15BFT,3B,3RZFP..BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100..CBU,IV3 ｵﾙﾀﾈｰﾀ 24V-30A,NO.1	01/1997 - 08/1997	1
27039-73020	3RZFE..RZU100..06S;3RZFE..RZU100..30T..IV3;3RZFE..RZU100..(DM6,T4)..IV3;15BF,15BFT,3B,3RZFP..BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100..CBU,IV3 ｵﾙﾀﾈｰﾀ 24V-30A,NO.1	05/1995 - 01/1997	1
27039-50090	15BF,15BFT..BU212..20T;15BF..BU172,182..T3,TW1;J05C,15B#,3B..BU10#,12#,13#,14#,162,202,222,XZU130 ｵﾙﾀﾈｰﾀ 24V 50A,NO.1	05/1995 - 12/2999	1
27039 - COVER, ALTERNATOR REAR END
27039-16380	15BF,15BFT,3B..BU10#,112,120,13#,14#,202,212,222..CBU,IV3 ｵﾙﾀﾈｰﾀ 24V 30A,NO.1	08/1997 - 12/2999	1
27039-16380	3RZFE..RZU100..06S;3RZFE..RZU100..30T..IV3;3RZFE..RZU100..(DM6,T4)..IV3;15BF,15BFT,3B,3RZFP..BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100..CBU,IV3 ｵﾙﾀﾈｰﾀ 24V-30A,NO.1	01/1997 - 08/1997	1
27039-73020	3RZFE..RZU100..06S;3RZFE..RZU100..30T..IV3;3RZFE..RZU100..(DM6,T4)..IV3;15BF,15BFT,3B,3RZFP..BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100..CBU,IV3 ｵﾙﾀﾈｰﾀ 24V-30A,NO.1	05/1995 - 01/1997	1
27039-50090	15BF,15BFT..BU212..20T;15BF..BU172,182..T3,TW1;J05C,15B#,3B..BU10#,12#,13#,14#,162,202,222,XZU130 ｵﾙﾀﾈｰﾀ 24V 50A,NO.1	05/1995 - 12/2999	1
27064 - SEAL, ALTERNATOR PLATE
27064-42010	J05C,15B#,3B..BU10#,12#,13#,14#,162,172,182,202,212,222,RZU100,XZU130,140	05/1995 - 12/2999	1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-58040	15BF,15BFT,3B..BU10#,112,12#,13#,14#,202,212,222..CBU,IV3 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ, ｵﾙﾀﾈｰﾀ 24V 30A	05/1995 - 12/2999	1
27310-58080	15BF,15BFT,3B..BU10#,12#,13#,14#,202,212,222 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ, ｵﾙﾀﾈｰﾀ 24V 50A	05/1995 - 12/2999	1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10178	15BF,15BFT,3B,3RZ#..BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100..CBU,IV3 ｵﾙﾀﾈｰﾀ 24V-30A	05/1995 - 08/1997	1
90099-10192	J05C,15B#,3B..BU10#,12#,13#,14#,162,172,182,202,212,222,XZU130,140 ｵﾙﾀﾈｰﾀ 24V 50A	05/1995 - 12/2999	1
90099-10178	15BF,15BFT,3B..BU10#,112,120,13#,14#,162,172,182,202,212,222..CBU,IV3 ｵﾙﾀﾈｰﾀ 24V 30A	08/1997 - 12/2999	1
27312 - PLATE, RETAINER
27312-70200	15BF,15BFT,3B..BU10#,112,120,13#,14#,162,172,182,202,212,222..CBU,IV3 ｵﾙﾀﾈｰﾀ 24V 30A	08/1997 - 12/2999	1
27312-70200	15BF,15BFT,3B,3RZ#..BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100..CBU,IV3 ｵﾙﾀﾈｰﾀ 24V-30A	05/1995 - 08/1997	1
27312-42010	15BF,15BFT..BU212..20T;J05C,15B#,3B..BU10#,12#,13#,14#,162,172,182,202,222,XZU130 ｵﾙﾀﾈｰﾀ 24V 50A	05/1995 - 12/2999	1
27330 - ROTOR ASSY, ALTERNATOR
27330-58040	15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222..CBU,IV3 ｵﾙﾀﾈｰﾀ 24V 30A	05/1995 - 12/2999	1
27330-58050	J05C,15BFT,15BF,3B..BU10#,12#,13#,14#,162,172,182,202,212,222,XZU130,140 ｵﾙﾀﾈｰﾀ 24V 50A	05/1995 - 12/2999	1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10140	J05C,15B#,3B,3RZ#..BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,XZU130	05/1995 - 08/1997	1
90099-10140	J05C,15B#,3B..BU10#,112,120,13#,14#,162,172,182,202,212,222,RZU100,XZU130,140	08/1997 - 12/2999	1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-63020	15BF,15BFT,3B,3RZ#..BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100..CBU,IV3 ｵﾙﾀﾈｰﾀ 24V-30A	05/1995 - 01/1997	1
27357-16380	15BF,15BFT,3B,3RZ#..BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100..CBU,IV3 ｵﾙﾀﾈｰﾀ 24V-30A	01/1997 - 08/1997	1
27357-17080	J05C,15B#,3B..BU10#,12#,13#,14#,162,172,182,202,212,222,XZU130,140 ｵﾙﾀﾈｰﾀ 24V 50A	05/1995 - 12/2999	1
27357-16380	15BF,15BFT,3B..BU10#,112,120,13#,14#,162,172,182,202,212,222..CBU,IV3 ｵﾙﾀﾈｰﾀ 24V 30A	08/1997 - 12/2999	1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-16180	15B#,3B,3RZ#..BU10#,112,12#,132,14#,162,172,182,202,212,222,RZU100..CBU,IV3 ｵﾙﾀﾈｰﾀ 24V-30A	05/1995 - 01/1996	1
27359-16182	15BF,15BFT,3B,3RZ#..BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100..CBU,IV3 ｵﾙﾀﾈｰﾀ 24V-30A	01/1997 - 08/1997	1
27359-16182	15BF,15BFT,3B..BU10#,112,120,13#,14#,162,172,182,202,212,222..CBU,IV3 ｵﾙﾀﾈｰﾀ 24V 30A	08/1997 - 12/2999	1
27359-16181	15BF,15BFT,3B,3RZ#..BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100..CBU,IV3 ｵﾙﾀﾈｰﾀ 24V-30A	01/1996 - 01/1997	1
27359-58050	15BF,15BFT..BU212..20T;J05C,15B#,3B..BU10#,12#,13#,14#,202,222,XZU130 ｵﾙﾀﾈｰﾀ 12V 100A OR TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ, ｵﾙﾀﾈｰﾀ 24V 50A	05/1995 - 12/2999	1
27365 - PLATE, TERMINAL
27365-55080	J05C,15B#,3B..BU10#,12#,13#,14#,162,172,182,202,212,222,RZU100,XZU130,140	05/1995 - 12/2999	1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-75060	15BF,15BFT..BU212..20T;J05C,15B#,3B..BU10#,12#,13#,14#,162,172,182,202,222,XZU130 ｵﾙﾀﾈｰﾀ 12V 70A OR 12V 100A OR 24V 50A	05/1995 - 12/2999	1
27370-58320	15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222..CBU,IV3 ｵﾙﾀﾈｰﾀ 24V 30A	01/1996 - 12/2999	1
27370-58320	15B#,3B..BU10#,112,12#,132,14#,202,212,222..CBU,IV3 ｵﾙﾀﾈｰﾀ 24V-30A	05/1995 - 01/1996	1
27384 - WASHER
27384-50030	J05C,15B#,3B..BU10#,12#,13#,14#,162,172,182,202,212,222,RZU100,XZU130,140	05/1995 - 12/2999	1
27387 - INSULATOR, TERMINAL
27387-70171	15BF,15BFT,3B..BU10#,112,120,13#,14#,162,172,182,202,212,222..CBU,IV3 24V 30A	09/1997 - 12/2999	1
27387-42020	J05C,15B#,3B..BU10#,12#,13#,14#,162,172,182,202,212,222,XZU130 24V 50A	05/1995 - 08/1997	1
27387-42021	15BF,15BFT,3B..BU10#,120,13#,14#,162,172,182,202,212,222 24V 50A	08/1997 - 12/2999	1
27387-70170	15BF,15BFT,3B,3RZFE..BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU140..CBU,IV3 24V 30A	05/1995 - 09/1997	1
27388 - COVER, ALTERNATOR BRUSH
27388-42010	J05C,15B#,3B..BU10#,12#,13#,14#,162,172,182,202,212,222,RZU100,XZU130,140	05/1995 - 12/2999	1
27411 - PULLEY, ALTERNATOR
27411-58290	15B#,3B..BU10#,12#,13#,14#,202,212,222 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ, ｵﾙﾀﾈｰﾀ 24V 50A	05/1995 - 01/1997	1
27411-58220	15BF,15BFT,3B..BU10#,112,12#,13#,14#,202,212,222..CBU,IV3 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ, ｵﾙﾀﾈｰﾀ 24V 30A	05/1995 - 12/2999	1
27411-58330	15BF,15BFT,3B..BU10#,12#,13#,14#,202,212,222 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ, ｵﾙﾀﾈｰﾀ 24V 50A	01/1997 - 12/2999	1
27443 - COVER, ALTERNATOR BEARING
27443-63020	J05C,15B#,3B,3RZ#..BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140	05/1995 - 12/2999	1
27700A - REGULATOR ASSY, GENERATOR
27700-58060	15BF,15BFT,3B..BU10#,112,12#,132,14#,202,212,222	04/1996 - 08/1996	1
27700-58040	J05C,15B#,3B..BU10#,112,12#,132,14#,162,172,182,202,212,222,XZU130	05/1995 - 04/1996	1
27700-58060	15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222	08/1996 - 12/2999	1
Common parts
27389-42010
27446-62012
90099-00195
90099-00197
90099-00243
90099-00246
90099-04966
90099-05171
90099-05172
90099-05231
90099-05267
90179-08146
93319-14025

BU102-TKMLS3 (1995)

(9505- )15B#,3B..BU10#,112,12#,132,14#,162,172,182,202,212,222

(9505- )15B#,3B..BU10#,12#,13#,14#,162,172,182,202,212,222 ; (9510- )J05C

(9505- )15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222

(9505- )15B#,3B..BU10#,12#,13#,14#,162,172,182,202,212,222

(9605- )15BF,15BFP..BU102,142,RZU100

Part Price Details
