BU102-TGPMS (1995)
Toyota Dyna 200/Toyoace G25

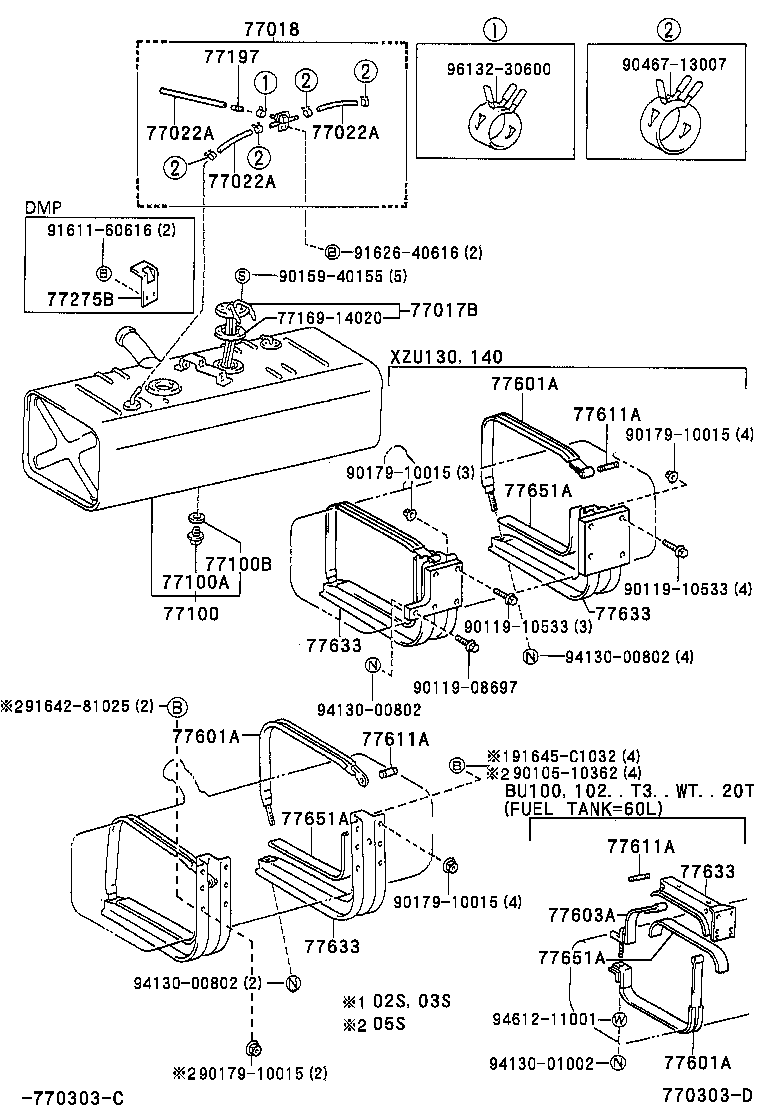

ILLUST NO. 1 OF 2(9505- )BU142..06S..CBU ; (9505- )BU10#,112,13#,14#,162,172,182,202,212,222,X
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77017B - TUBE SUB-ASSY, FUEL TANK VENT | ||||
| 77017-36340 |
BU10#,162,172,182..(DM2,DM5,T1,T2,T4,TW1)..20T 75L |
1 | ||
| 77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE | ||||
| 77018-37040 |
BU10#,162,172,182..(DM2,DM5,T1,T2,T4)..20T |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-06040 |
BU10#,162,172,182..(DM2,DM5,T1,T2,T4)..20T *H,L=360 |
1 | ||
| 95333-08030 |
BU147..T3..IV3;BU147..T2,T4,TW4;BU105,107..T2,T4;BU102..T4..20T..5F;BU132,147..T3..CBU..5F;BU142,222..T3..IV3..6F;BU212..(03S,07S)..IV3..6F;BU132,145..(T3,T4,TL4)..IV3;BU137,RZU100..(DSL,EFI)..5F;BU212..(T2,T4,TW4)..CBU..6F;BU142,212..(DSL,TD)..(4FC,5F);BU102,222..(T2,T4)..20T..(4FC,6F);BU102..(DM2,DM3,DM5,DM6,T2,T3,T5,TW1)..DSL..5F;BU100,112,140,162,172,182,202,222,297,RZU140,XZU130..(02S,03S,05S)..(4FC,5F) *H,L=280,内径=7.6 |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-06040 |
BU10#,162,172,182..(DM2,DM5,T1,T2,T4)..20T *H,L=360 |
1 | ||
| 95333-08030 |
BU147..T3..IV3;BU147..T2,T4,TW4;BU105,107..T2,T4;BU102..T4..20T..5F;BU132,147..T3..CBU..5F;BU142,222..T3..IV3..6F;BU212..(03S,07S)..IV3..6F;BU132,145..(T3,T4,TL4)..IV3;BU137,RZU100..(DSL,EFI)..5F;BU212..(T2,T4,TW4)..CBU..6F;BU142,212..(DSL,TD)..(4FC,5F);BU102,222..(T2,T4)..20T..(4FC,6F);BU102..(DM2,DM3,DM5,DM6,T2,T3,T5,TW1)..DSL..5F;BU100,112,140,162,172,182,202,222,297,RZU140,XZU130..(02S,03S,05S)..(4FC,5F) *H,L=280,内径=7.6 |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-06040 |
BU10#,162,172,182..(DM2,DM5,T1,T2,T4)..20T *H,L=360 |
1 | ||
| 95333-08030 |
BU147..T3..IV3;BU147..T2,T4,TW4;BU105,107..T2,T4;BU102..T4..20T..5F;BU132,147..T3..CBU..5F;BU142,222..T3..IV3..6F;BU212..(03S,07S)..IV3..6F;BU132,145..(T3,T4,TL4)..IV3;BU137,RZU100..(DSL,EFI)..5F;BU212..(T2,T4,TW4)..CBU..6F;BU142,212..(DSL,TD)..(4FC,5F);BU102,222..(T2,T4)..20T..(4FC,6F);BU102..(DM2,DM3,DM5,DM6,T2,T3,T5,TW1)..DSL..5F;BU100,112,140,162,172,182,202,222,297,RZU140,XZU130..(02S,03S,05S)..(4FC,5F) *H,L=280,内径=7.6 |
2 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-3B070 |
BU10#,162,172,182..(DM2,DM5,T1,T2,T4)..20T 75L,L=967,W=355,H=265 |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12116 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140..DSL,EFI,TD |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140..DSL,EFI,TD |
1 | ||
| 77197 - ORIFICE, FUEL VAPOR | ||||
| 90977-02001 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,XZU130,140..DSL,TD |
1 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-36090 |
RZU100..(T2,T4,TW1,TW4)..EFI;BU10#,162,172..DM2,DM5,T1,T2,T4,TW1 ﾌﾕ-ｴﾙ ﾀﾝｸ = W=355,H=265 |
2 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-36090 |
RZU100..(T2,T4,TW1,TW4)..EFI;BU10#,162,172..DM2,DM5,T1,T2,T4,TW1 ﾌﾕ-ｴﾙ ﾀﾝｸ = W=355,H=265 |
2 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-36090 |
RZU100..(T2,T4,TW1,TW4)..EFI;BU10#,162,172..DM2,DM5,T1,T2,T4,TW1 ﾌﾕ-ｴﾙ ﾀﾝｸ = W=355,H=265 |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77629-36010 |
BU142,147,212,RZU100..DSL,EFI,TD;BU10#,112,13#,140,162,172,182,202,222,297,XZU130..DM2,DM3,DM5,DM6,DM7,DM8,T1,T2,T3,T4,T5,TL4,TW1 |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77629-36010 |
BU142,147,212,RZU100..DSL,EFI,TD;BU10#,112,13#,140,162,172,182,202,222,297,XZU130..DM2,DM3,DM5,DM6,DM7,DM8,T1,T2,T3,T4,T5,TL4,TW1 |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77629-36010 |
BU142,147,212,RZU100..DSL,EFI,TD;BU10#,112,13#,140,162,172,182,202,222,297,XZU130..DM2,DM3,DM5,DM6,DM7,DM8,T1,T2,T3,T4,T5,TL4,TW1 |
2 | ||
| 77633 - STAY, FUEL TANK | ||||
| 77633-36121 |
BU100,102,162,172,182,RZU100..(DM2,DM5,T1,T2,T4)..20T..(DSL,EFI) ﾌﾕ-ｴﾙ ﾀﾝｸ = W=355,H=265 |
2 | ||
| 77633 - STAY, FUEL TANK | ||||
| 77633-36121 |
BU100,102,162,172,182,RZU100..(DM2,DM5,T1,T2,T4)..20T..(DSL,EFI) ﾌﾕ-ｴﾙ ﾀﾝｸ = W=355,H=265 |
2 | ||
| 77633 - STAY, FUEL TANK | ||||
| 77633-36121 |
BU100,102,162,172,182,RZU100..(DM2,DM5,T1,T2,T4)..20T..(DSL,EFI) ﾌﾕ-ｴﾙ ﾀﾝｸ = W=355,H=265 |
2 | ||
| 77633 - STAY, FUEL TANK | ||||
| 77633-36121 |
BU100,102,162,172,182,RZU100..(DM2,DM5,T1,T2,T4)..20T..(DSL,EFI) ﾌﾕ-ｴﾙ ﾀﾝｸ = W=355,H=265 |
2 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-36110 |
BU102..4FC;BU100..T2..CBU;BU102..DM2,DM5,TW1;RZU100..(T2,TW1,TW4)..CBU;BU107,162,172..DM5,T2,T4,TW1 |
2 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-36110 |
BU102..4FC;BU100..T2..CBU;BU102..DM2,DM5,TW1;RZU100..(T2,TW1,TW4)..CBU;BU107,162,172..DM5,T2,T4,TW1 |
2 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-36110 |
BU102..4FC;BU100..T2..CBU;BU102..DM2,DM5,TW1;RZU100..(T2,TW1,TW4)..CBU;BU107,162,172..DM5,T2,T4,TW1 |
2 | ||
| Common parts | ||||
| 77169-14020 | ||||
| 90105-10362 | ||||
| 90119-08697 | ||||
| 90119-10533 | ||||
| 90159-40155 | ||||
| 90179-10015 | ||||
| 90467-13007 | ||||
| 91611-60616 | ||||
| 91626-40616 | ||||
| 91642-81025 | ||||
| 91645-C1032 | ||||
| 94130-00802 | ||||
| 94130-01002 | ||||
| 94612-11001 | ||||
| 96132-30600 | ||||

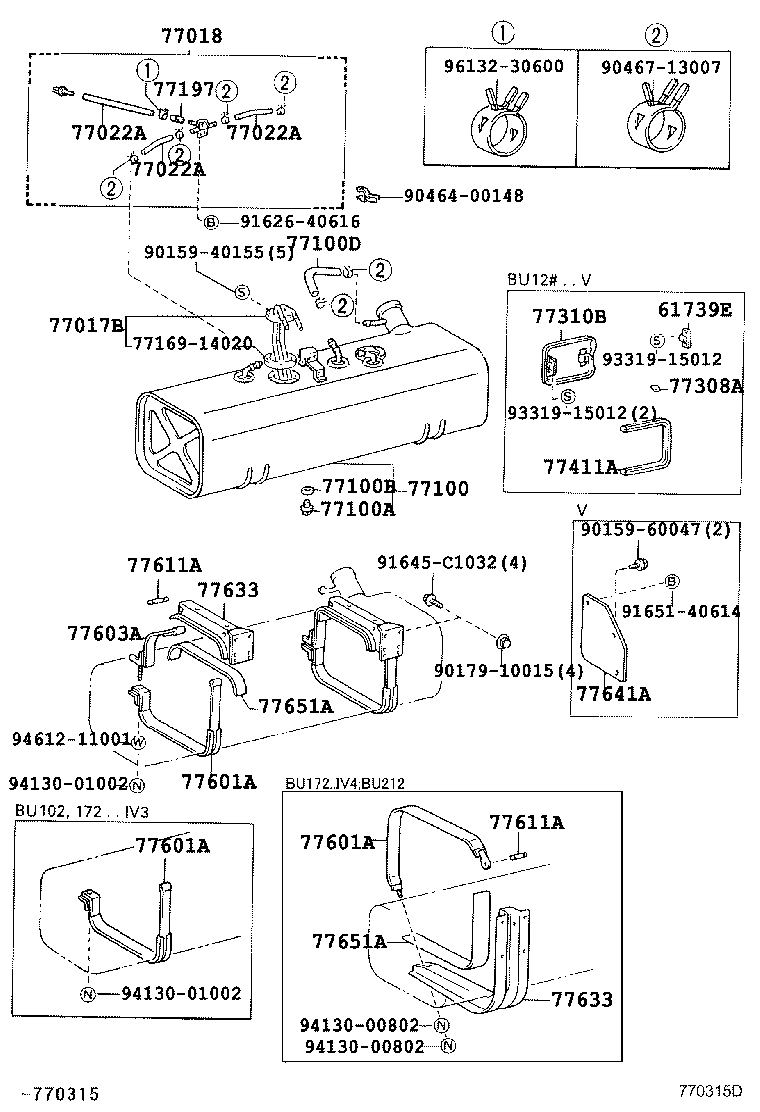

ILLUST NO. 1 OF 2(9505- )BU12# ; (9505- )BU142..06S..IV3 ;(9505- )BU10#,147,172,212..05S,0
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77017B - TUBE SUB-ASSY, FUEL TANK VENT | ||||
| 77017-36340 |
BU10#,162,172,182..(DM2,DM5,T1,T2,T4,TW1)..20T 75L |
1 | ||
| 77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE | ||||
| 77018-37040 |
BU10#,162,172,182..(DM2,DM5,T1,T2,T4)..20T |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-06040 |
BU10#,162,172,182..(DM2,DM5,T1,T2,T4)..20T *H,L=360 |
1 | ||
| 95333-08030 |
BU147..T3..IV3;BU147..T2,T4,TW4;BU105,107..T2,T4;BU102..T4..20T..5F;BU132,147..T3..CBU..5F;BU142,222..T3..IV3..6F;BU212..(03S,07S)..IV3..6F;BU132,145..(T3,T4,TL4)..IV3;BU137,RZU100..(DSL,EFI)..5F;BU212..(T2,T4,TW4)..CBU..6F;BU142,212..(DSL,TD)..(4FC,5F);BU102,222..(T2,T4)..20T..(4FC,6F);BU102..(DM2,DM3,DM5,DM6,T2,T3,T5,TW1)..DSL..5F;BU100,112,140,162,172,182,202,222,297,RZU140,XZU130..(02S,03S,05S)..(4FC,5F) *H,L=280,内径=7.6 |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-06040 |
BU10#,162,172,182..(DM2,DM5,T1,T2,T4)..20T *H,L=360 |
1 | ||
| 95333-08030 |
BU147..T3..IV3;BU147..T2,T4,TW4;BU105,107..T2,T4;BU102..T4..20T..5F;BU132,147..T3..CBU..5F;BU142,222..T3..IV3..6F;BU212..(03S,07S)..IV3..6F;BU132,145..(T3,T4,TL4)..IV3;BU137,RZU100..(DSL,EFI)..5F;BU212..(T2,T4,TW4)..CBU..6F;BU142,212..(DSL,TD)..(4FC,5F);BU102,222..(T2,T4)..20T..(4FC,6F);BU102..(DM2,DM3,DM5,DM6,T2,T3,T5,TW1)..DSL..5F;BU100,112,140,162,172,182,202,222,297,RZU140,XZU130..(02S,03S,05S)..(4FC,5F) *H,L=280,内径=7.6 |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-06040 |
BU10#,162,172,182..(DM2,DM5,T1,T2,T4)..20T *H,L=360 |
1 | ||
| 95333-08030 |
BU147..T3..IV3;BU147..T2,T4,TW4;BU105,107..T2,T4;BU102..T4..20T..5F;BU132,147..T3..CBU..5F;BU142,222..T3..IV3..6F;BU212..(03S,07S)..IV3..6F;BU132,145..(T3,T4,TL4)..IV3;BU137,RZU100..(DSL,EFI)..5F;BU212..(T2,T4,TW4)..CBU..6F;BU142,212..(DSL,TD)..(4FC,5F);BU102,222..(T2,T4)..20T..(4FC,6F);BU102..(DM2,DM3,DM5,DM6,T2,T3,T5,TW1)..DSL..5F;BU100,112,140,162,172,182,202,222,297,RZU140,XZU130..(02S,03S,05S)..(4FC,5F) *H,L=280,内径=7.6 |
2 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-3B070 |
BU10#,162,172,182..(DM2,DM5,T1,T2,T4)..20T 75L,L=967,W=355,H=265 |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12116 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140..DSL,EFI,TD |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140..DSL,EFI,TD |
1 | ||
| 77197 - ORIFICE, FUEL VAPOR | ||||
| 90977-02001 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,XZU130,140..DSL,TD |
1 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-36090 |
RZU100..(T2,T4,TW1,TW4)..EFI;BU10#,162,172..DM2,DM5,T1,T2,T4,TW1 ﾌﾕ-ｴﾙ ﾀﾝｸ = W=355,H=265 |
2 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-36090 |
RZU100..(T2,T4,TW1,TW4)..EFI;BU10#,162,172..DM2,DM5,T1,T2,T4,TW1 ﾌﾕ-ｴﾙ ﾀﾝｸ = W=355,H=265 |
2 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-36090 |
RZU100..(T2,T4,TW1,TW4)..EFI;BU10#,162,172..DM2,DM5,T1,T2,T4,TW1 ﾌﾕ-ｴﾙ ﾀﾝｸ = W=355,H=265 |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77629-36010 |
BU142,147,212,RZU100..DSL,EFI,TD;BU10#,112,13#,140,162,172,182,202,222,297,XZU130..DM2,DM3,DM5,DM6,DM7,DM8,T1,T2,T3,T4,T5,TL4,TW1 |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77629-36010 |
BU142,147,212,RZU100..DSL,EFI,TD;BU10#,112,13#,140,162,172,182,202,222,297,XZU130..DM2,DM3,DM5,DM6,DM7,DM8,T1,T2,T3,T4,T5,TL4,TW1 |
2 | ||
| 77633 - STAY, FUEL TANK | ||||
| 77633-36121 |
BU100,102,162,172,182,RZU100..(DM2,DM5,T1,T2,T4)..20T..(DSL,EFI) ﾌﾕ-ｴﾙ ﾀﾝｸ = W=355,H=265 |
2 | ||
| 77633 - STAY, FUEL TANK | ||||
| 77633-36121 |
BU100,102,162,172,182,RZU100..(DM2,DM5,T1,T2,T4)..20T..(DSL,EFI) ﾌﾕ-ｴﾙ ﾀﾝｸ = W=355,H=265 |
2 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-36110 |
BU102..4FC;BU100..T2..CBU;BU102..DM2,DM5,TW1;RZU100..(T2,TW1,TW4)..CBU;BU107,162,172..DM5,T2,T4,TW1 |
2 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-36110 |
BU102..4FC;BU100..T2..CBU;BU102..DM2,DM5,TW1;RZU100..(T2,TW1,TW4)..CBU;BU107,162,172..DM5,T2,T4,TW1 |
2 | ||
| Common parts | ||||
| 77169-14020 | ||||
| 90159-40155 | ||||
| 90159-60047 | ||||
| 90179-10015 | ||||
| 90464-00148 | ||||
| 90467-13007 | ||||
| 91626-40616 | ||||
| 91645-C1032 | ||||
| 91651-40614 | ||||
| 93319-15012 | ||||
| 94130-00802 | ||||
| 94130-01002 | ||||
| 94612-11001 | ||||
| 96132-30600 | ||||

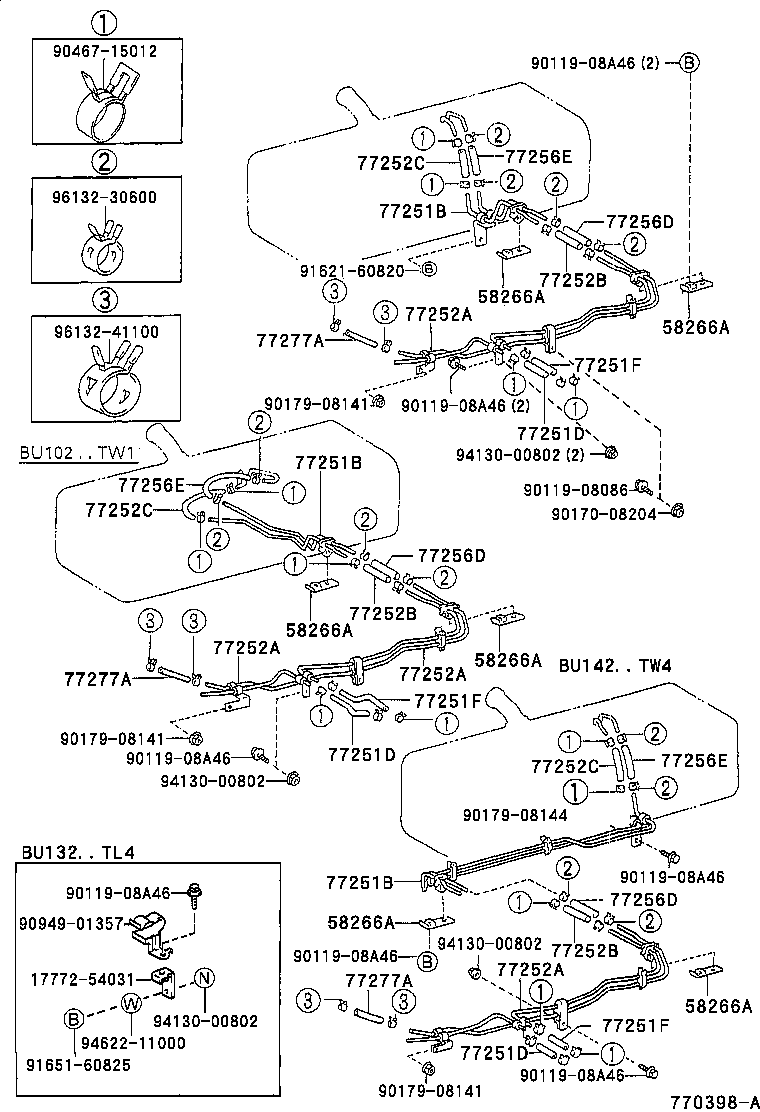

ILLUST NO. 2 OF 2(9505- )BU100,102,12#,132,140,142
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58266A - BRACKET, FUEL TUBE CLAMP | ||||
| 58266-36201 |
BU100,102,12#,132,140,142,XZU130,140..DSL |
2 | ||
| 58266A - BRACKET, FUEL TUBE CLAMP | ||||
| 58266-36201 |
BU100,102,12#,132,140,142,XZU130,140..DSL |
2 | ||
| 58266A - BRACKET, FUEL TUBE CLAMP | ||||
| 58266-36201 |
BU100,102,12#,132,140,142,XZU130,140..DSL |
2 | ||
| 58266A - BRACKET, FUEL TUBE CLAMP | ||||
| 58266-36201 |
BU100,102,12#,132,140,142,XZU130,140..DSL |
2 | ||
| 58266A - BRACKET, FUEL TUBE CLAMP | ||||
| 58266-36201 |
BU100,102,12#,132,140,142,XZU130,140..DSL |
2 | ||
| 58266A - BRACKET, FUEL TUBE CLAMP | ||||
| 58266-36201 |
BU100,102,12#,132,140,142,XZU130,140..DSL |
2 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77205-36481 |
BU142,147..03S..DSL..(4FC,5F);BU10#,12#,13#,140,145..DSL..(CBU,IV3) |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77205-36481 |
BU142,147..03S..DSL..(4FC,5F);BU10#,12#,13#,140,145..DSL..(CBU,IV3) |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77205-36481 |
BU142,147..03S..DSL..(4FC,5F);BU10#,12#,13#,140,145..DSL..(CBU,IV3) |
1 | ||
| 77251D - HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE) | ||||
| 77259-36171 |
BU132..T3,T4;BU10#,12#,137,14#,162,172,182..(02S,03S,06S)..DSL..(CBU,IV3) |
1 | ||
| 77251D - HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE) | ||||
| 77259-36171 |
BU132..T3,T4;BU10#,12#,137,14#,162,172,182..(02S,03S,06S)..DSL..(CBU,IV3) |
1 | ||
| 77251D - HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE) | ||||
| 77259-36171 |
BU132..T3,T4;BU10#,12#,137,14#,162,172,182..(02S,03S,06S)..DSL..(CBU,IV3) |
1 | ||
| 77251F - HOSE, FUEL | ||||
| 95332-10016 |
BU132..T3,T4;BU10#,12#,137,14#,162,172,182..(02S,03S,06S)..DSL..(CBU,IV3) *H,L=160 |
1 | ||
| 77251F - HOSE, FUEL | ||||
| 95332-10016 |
BU132..T3,T4;BU10#,12#,137,14#,162,172,182..(02S,03S,06S)..DSL..(CBU,IV3) *H,L=160 |
1 | ||
| 77251F - HOSE, FUEL | ||||
| 95332-10016 |
BU132..T3,T4;BU10#,12#,137,14#,162,172,182..(02S,03S,06S)..DSL..(CBU,IV3) *H,L=160 |
1 | ||
| 77252A - TUBE, FUEL MAIN, NO.2 | ||||
| 77206-37030 |
BU100,102,12#,132,140,142..DSL..(CBU,IV3)..(4FC,5F) |
1 | ||
| 77252A - TUBE, FUEL MAIN, NO.2 | ||||
| 77206-37030 |
BU100,102,12#,132,140,142..DSL..(CBU,IV3)..(4FC,5F) |
1 | ||
| 77252A - TUBE, FUEL MAIN, NO.2 | ||||
| 77206-37030 |
BU100,102,12#,132,140,142..DSL..(CBU,IV3)..(4FC,5F) |
1 | ||
| 77252A - TUBE, FUEL MAIN, NO.2 | ||||
| 77206-37030 |
BU100,102,12#,132,140,142..DSL..(CBU,IV3)..(4FC,5F) |
1 | ||
| 77252B - HOSE, FUEL, NO.1 (FOR FUEL MAIN NO.2 TUBE) | ||||
| 95332-10014 |
BU100,102,12#,132,140,142,162,172,182..DSL *H,L=140 |
1 | ||
| 77252B - HOSE, FUEL, NO.1 (FOR FUEL MAIN NO.2 TUBE) | ||||
| 95332-10014 |
BU100,102,12#,132,140,142,162,172,182..DSL *H,L=140 |
1 | ||
| 77252B - HOSE, FUEL, NO.1 (FOR FUEL MAIN NO.2 TUBE) | ||||
| 95332-10014 |
BU100,102,12#,132,140,142,162,172,182..DSL *H,L=140 |
1 | ||
| 77252C - HOSE, FUEL, NO.2(FOR FUEL MAIN NO.2 TUBE) | ||||
| 95332-10024 |
BU100,102..(T1,T2,T4)..20T |
1 | ||
| 77252C - HOSE, FUEL, NO.2(FOR FUEL MAIN NO.2 TUBE) | ||||
| 95332-10024 |
BU100,102..(T1,T2,T4)..20T |
1 | ||
| 77252C - HOSE, FUEL, NO.2(FOR FUEL MAIN NO.2 TUBE) | ||||
| 95332-10024 |
BU100,102..(T1,T2,T4)..20T |
1 | ||
| 77256D - HOSE, FUEL, NO.1 (FOR FUEL RETURN NO.2 TUBE) | ||||
| 95333-06020 |
BU100,102,12#,132,140,142,162,172,182,202,212..DSL,TD |
1 | ||
| 77256D - HOSE, FUEL, NO.1 (FOR FUEL RETURN NO.2 TUBE) | ||||
| 95333-06020 |
BU100,102,12#,132,140,142,162,172,182,202,212..DSL,TD |
1 | ||
| 77256D - HOSE, FUEL, NO.1 (FOR FUEL RETURN NO.2 TUBE) | ||||
| 95333-06020 |
BU100,102,12#,132,140,142,162,172,182,202,212..DSL,TD |
1 | ||
| 77256E - HOSE, FUEL, NO.2 (FOR FUEL RETURN NO.2 TUBE) | ||||
| 95333-06030 |
BU100..T1;BU147..06S;BU140,142..DSL..IV3;BU140,142..(T2,T4,TW4)..CBU;BU132,172,202,212,222..(03S,05S,06S,07S)..20T;BU100,102,162..(DM2,DM3,DM5,DM6,T2,T3,T4,TW1)..WT..20T |
1 | ||
| 77256E - HOSE, FUEL, NO.2 (FOR FUEL RETURN NO.2 TUBE) | ||||
| 95333-06030 |
BU100..T1;BU147..06S;BU140,142..DSL..IV3;BU140,142..(T2,T4,TW4)..CBU;BU132,172,202,212,222..(03S,05S,06S,07S)..20T;BU100,102,162..(DM2,DM3,DM5,DM6,T2,T3,T4,TW1)..WT..20T |
1 | ||
| 77256E - HOSE, FUEL, NO.2 (FOR FUEL RETURN NO.2 TUBE) | ||||
| 95333-06030 |
BU100..T1;BU147..06S;BU140,142..DSL..IV3;BU140,142..(T2,T4,TW4)..CBU;BU132,172,202,212,222..(03S,05S,06S,07S)..20T;BU100,102,162..(DM2,DM3,DM5,DM6,T2,T3,T4,TW1)..WT..20T |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 23273-56010 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222..DSL,TD 長さ=220 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 23273-56010 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222..DSL,TD 長さ=220 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 23273-56010 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222..DSL,TD 長さ=220 |
1 | ||
| Common parts | ||||
| 17772-54031 | ||||
| 90119-08086 | ||||
| 90119-08A46 | ||||
| 90170-08204 | ||||
| 90179-08141 | ||||
| 90179-08144 | ||||
| 90467-15012 | ||||
| 90949-01357 | ||||
| 91621-60820 | ||||
| 91651-60825 | ||||
| 94130-00802 | ||||
| 94622-11000 | ||||
| 96132-30600 | ||||
| 96132-41100 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
