BU102-TGPMS (1995)

Toyota Dyna 200/Toyoace G25

Production May 1995 - Oct 1996
Engine 15BF
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

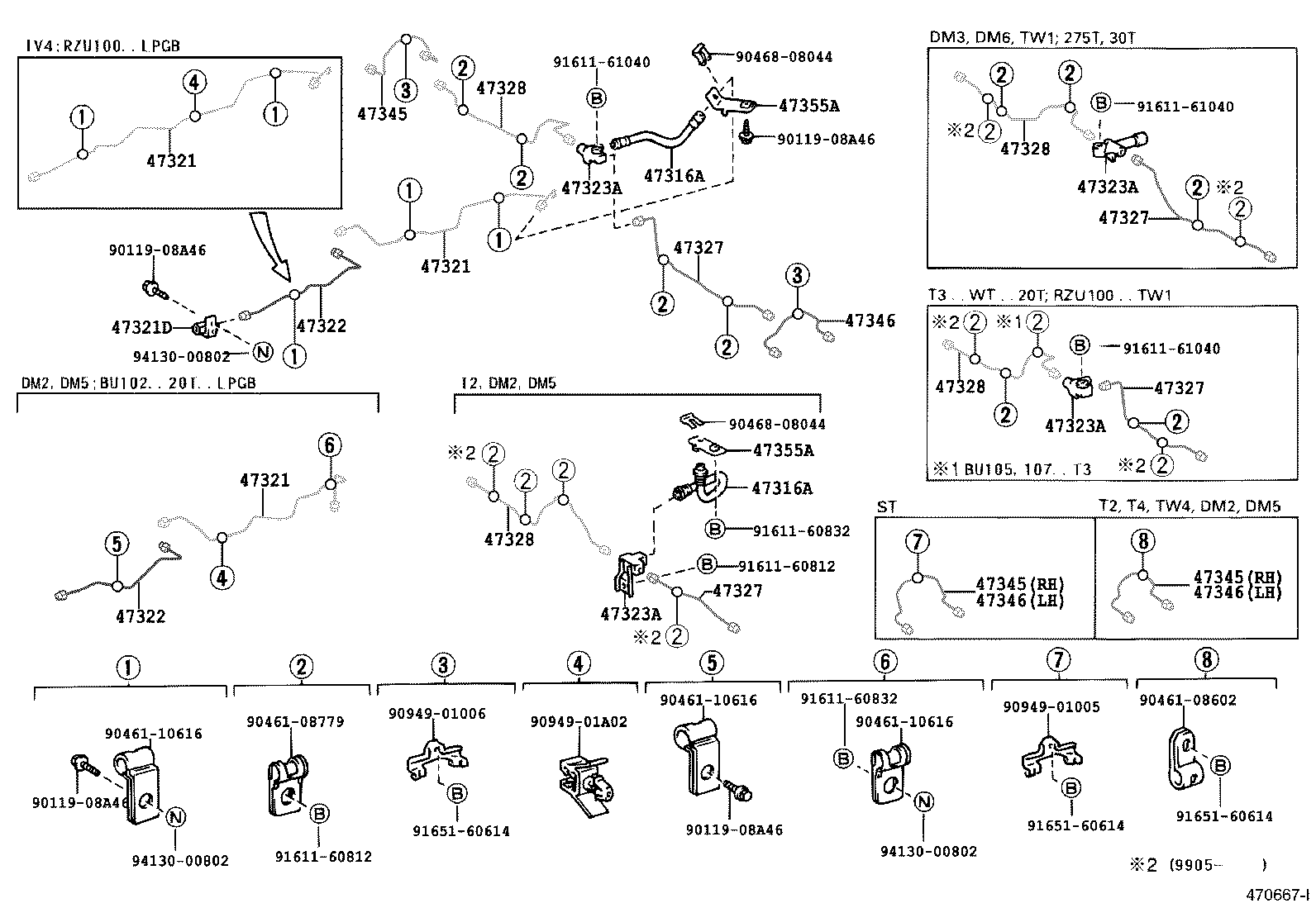

ILLUST NO. 2 OF 4(9505- )BU10#,12#,RZU100,140

Click highlighted areas on diagram

diagram 47316A 47316A 47321 47321 47321 47321D 47322 47322 47323A 47323A 47323A 47323A 47327 47327 47327 47327 47328 47328 47328 47328 47345 47345 47345 47346 47346 47346 47355A 47355A 9011908A46 9011908A46 9011908A46 9011908A46 9046108602 9046108779 9046110616 9046110616 9046110616 9046808044 9046808044 9094901005 9094901006 9094901A02 9161160812 9161160812 9161160832 9161160832 9161161040 9161161040 9161161040 9165160614 9165160614 9165160614 9413000802 9413000802 9413000802
Part # Description Qty Price
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
96912-33705

BU10#,RZU100..DM2,DM5,T2

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
96912-33705

BU10#,RZU100..DM2,DM5,T2

 1
47321 - TUBE, REAR BRAKE, NO.1
47325-36171

BU142..30T;BU102..30T..LPGB;BU140,142..(T2,T4,TW4)..20T;BU10#,145,147,182,RZU100,140,XZU140..(DM3,DM6,T2,T3,T4,T5,TW1,TW4)..WT..(DSL,EFI,LPG)..(CBU,IV3)

 1
47321 - TUBE, REAR BRAKE, NO.1
47325-36171

BU142..30T;BU102..30T..LPGB;BU140,142..(T2,T4,TW4)..20T;BU10#,145,147,182,RZU100,140,XZU140..(DM3,DM6,T2,T3,T4,T5,TW1,TW4)..WT..(DSL,EFI,LPG)..(CBU,IV3)

 1
47321 - TUBE, REAR BRAKE, NO.1
47325-36171

BU142..30T;BU102..30T..LPGB;BU140,142..(T2,T4,TW4)..20T;BU10#,145,147,182,RZU100,140,XZU140..(DM3,DM6,T2,T3,T4,T5,TW1,TW4)..WT..(DSL,EFI,LPG)..(CBU,IV3)

 1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90412-12049

BU10#,112,12#,13#,14#,162,172,182,202,212,RZU100,140,XZU130,140

 1
47322 - TUBE, REAR BRAKE, NO.2
47324-37050

BU10#..(DM3,DM6,T2,T3,T4,T5,TW4)..WT;RZU100..(DM6,T2,T3,T4,TW1,TW4)..(EFI,LPG)

 1
47322 - TUBE, REAR BRAKE, NO.2
47324-37050

BU10#..(DM3,DM6,T2,T3,T4,T5,TW4)..WT;RZU100..(DM6,T2,T3,T4,TW1,TW4)..(EFI,LPG)

 1
47323A - WAY, NO.3(FOR REAR BRAKE TUBE)
90413-12004

BU162;BU100,102,RZU100..DM2,DM5,T2

 1
47323A - WAY, NO.3(FOR REAR BRAKE TUBE)
90413-12004

BU162;BU100,102,RZU100..DM2,DM5,T2

 1
47323A - WAY, NO.3(FOR REAR BRAKE TUBE)
90413-12004

BU162;BU100,102,RZU100..DM2,DM5,T2

 1
47323A - WAY, NO.3(FOR REAR BRAKE TUBE)
90413-12004

BU162;BU100,102,RZU100..DM2,DM5,T2

 1
47327 - TUBE, REAR BRAKE, NO.7
47327-36160

BU162..DM5,T4;BU100,102,RZU100..DM2,DM5,T2

 1
47327 - TUBE, REAR BRAKE, NO.7
47327-36160

BU162..DM5,T4;BU100,102,RZU100..DM2,DM5,T2

 1
47327 - TUBE, REAR BRAKE, NO.7
47327-36160

BU162..DM5,T4;BU100,102,RZU100..DM2,DM5,T2

 1
47327 - TUBE, REAR BRAKE, NO.7
47327-36160

BU162..DM5,T4;BU100,102,RZU100..DM2,DM5,T2

 1
47328 - TUBE, REAR BRAKE, NO.8
47326-36100

BU162..DM5,T4;BU100,102,RZU100..DM2,DM5,T2

 1
47328 - TUBE, REAR BRAKE, NO.8
47326-36100

BU162..DM5,T4;BU100,102,RZU100..DM2,DM5,T2

 1
47328 - TUBE, REAR BRAKE, NO.8
47326-36100

BU162..DM5,T4;BU100,102,RZU100..DM2,DM5,T2

 1
47328 - TUBE, REAR BRAKE, NO.8
47326-36100

BU162..DM5,T4;BU100,102,RZU100..DM2,DM5,T2

 1
47345 - TUBE, WHEEL CYLINDER, REAR RH
47342-36060

BU212..T2;BU10#,13#,14#,162,172,182,RZU100,140..(DM2,DM5,T2,T4,TW4)..20T

 1
47345 - TUBE, WHEEL CYLINDER, REAR RH
47342-36060

BU212..T2;BU10#,13#,14#,162,172,182,RZU100,140..(DM2,DM5,T2,T4,TW4)..20T

 1
47345 - TUBE, WHEEL CYLINDER, REAR RH
47342-36060

BU212..T2;BU10#,13#,14#,162,172,182,RZU100,140..(DM2,DM5,T2,T4,TW4)..20T

 1
47346 - TUBE, WHEEL CYLINDER, REAR LH
47344-36060

BU212..T2;BU10#,13#,14#,162,172,182,RZU100,140..(DM2,DM5,T2,T4,TW4)..20T

 1
47346 - TUBE, WHEEL CYLINDER, REAR LH
47344-36060

BU212..T2;BU10#,13#,14#,162,172,182,RZU100,140..(DM2,DM5,T2,T4,TW4)..20T

 1
47346 - TUBE, WHEEL CYLINDER, REAR LH
47344-36060

BU212..T2;BU10#,13#,14#,162,172,182,RZU100,140..(DM2,DM5,T2,T4,TW4)..20T

 1
47355A - BRACKET, FLEXIBLE HOSE, NO.5
47353-36171

BU102,RZU100..DM3,DM6,T2,T3,T4,T5,TW1,TW4;BU100,105,107,12#,13#,14#,172,182,RZU140,XZU130,140

 1
47355A - BRACKET, FLEXIBLE HOSE, NO.5
47353-36171

BU102,RZU100..DM3,DM6,T2,T3,T4,T5,TW1,TW4;BU100,105,107,12#,13#,14#,172,182,RZU140,XZU130,140

 1
Common parts
90119-08A46
90461-08602
90461-08779
90461-10616
90468-08044
90949-01005
90949-01006
90949-01A02
91611-60812
91611-60832
91611-61040
91651-60614
94130-00802

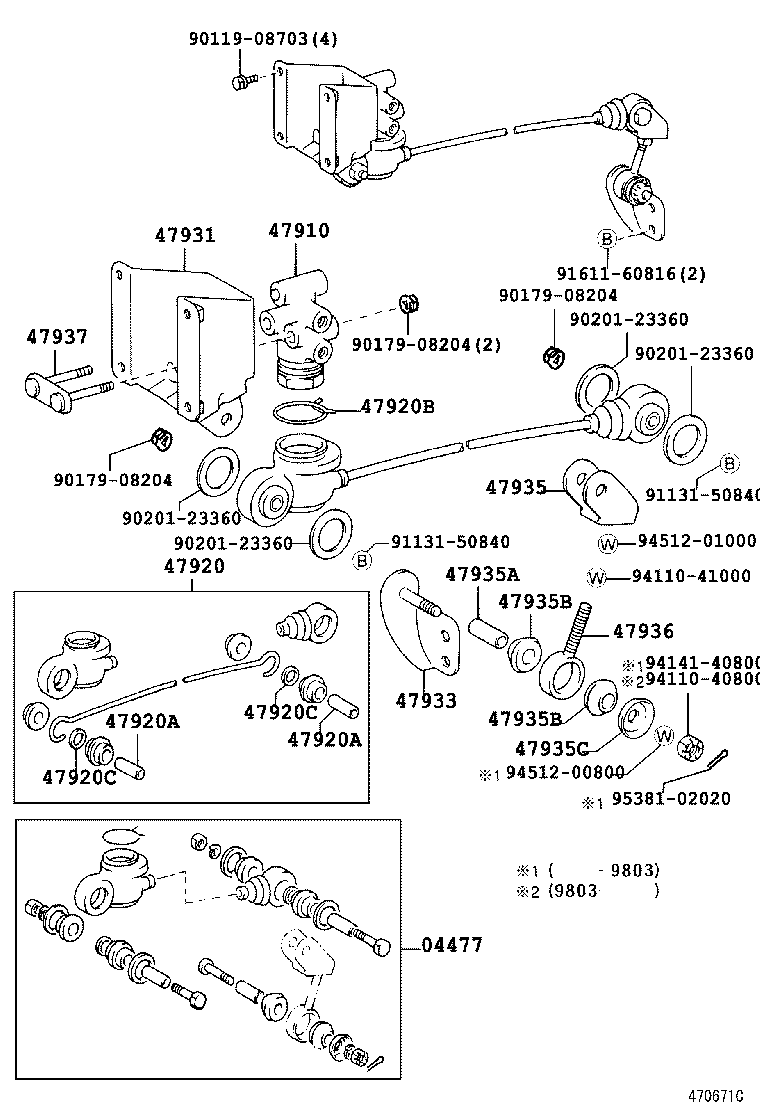

ILLUST NO. 4 OF 4(9505- )

Click highlighted areas on diagram

diagram 04477 47910 47920 47920A 47920A 47920B 47920C 47920C 47931 47933 47935 47935A 47935B 47935B 47935C 47936 47937 9011908703 9017908204 9017908204 9017908204 9020123360 9020123360 9020123360 9020123360 9113150840 9113150840 9161160816 9411040800 9411041000 9414140800 9451200800 9451201000 9538102020
Part # Description Qty Price
04477 - BUSH & BOOT KIT, LOAD SENSING SPRING
04477-60010

BU10#,RZU100..(T2,T4,TW4)..20T;BU14#,162,182,202,212,222,RZU140,XZU140..TR

 1
47910 - VALVE ASSY, LOAD SENSING PROPORTIONING
47910-36100

BU10#,RZU100..T2,T4,TW4

 1
47910-37030

BU10#,RZU100..T2,T4,TW4

 1
47920 - SPRING ASSY, LOAD SENSING
47920-36050

BU10#,RZU100..(T2,T4,TW4)..20T;BU14#,202,212,222,RZU140,XZU140

 1
47920A - COLLAR(FOR LOAD SENSING SPRING)
90387-08099

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..CBU,IV3

 2
47920A - COLLAR(FOR LOAD SENSING SPRING)
90387-08099

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..CBU,IV3

 2
47920B - CLIP(FOR LOAD SENSING VALVE BOOT)
90467-31110

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..CBU,IV3

 1
47920C - WASHER(FOR LOAD SENSING SPRING)
90202-10103

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..CBU,IV3

 2
47920C - WASHER(FOR LOAD SENSING SPRING)
90202-10103

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..CBU,IV3

 2
47931 - BRACKET, LOAD SENSING VALVE
47931-36061

BU10#,14#,182,202,212,222,RZU100,140,XZU140..(ALV,DM3,DM6,T2,T3,T4,T5,TW1,TW4)..WT..(CBU,IV3)

 1
47933 - BRACKET, LOAD SENSING SHACKLE, NO.1
47933-36050

BU100,105,107,12#,14#,182,202,212,222,RZU140,XZU140;BU102,RZU100..(DM3,DM6,T2,T3,T4,T5,TW1,TW4)..(CBU,IV3)

 1
47935 - SHACKLE, LOAD SENSING SPRING, NO.1
47935-35010

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..CBU,IV3

 1
47935A - COLLAR(FOR LOAD SENSING SPRING SHACKLE)
90387-08099

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..CBU,IV3

 1
47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE)
90385-10064

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..CBU,IV3

 2
47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE)
90385-10064

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..CBU,IV3

 2
47935C - RETAINER(FOR LOAD SENSING SPRING SHACKLE)
90948-02033

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..CBU,IV3

 1
47936 - SHACKLE, LOAD SENSING SPRING, NO.2
47936-35010

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..CBU,IV3

 1
47937 - PLATE, LOAD SENSING VALVE SET
47937-60010

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..CBU,IV3

 1
Common parts
90119-08703
90179-08204
90201-23360
91131-50840
91611-60816
94110-40800
94110-41000
94141-40800
94512-00800
94512-01000
95381-02020

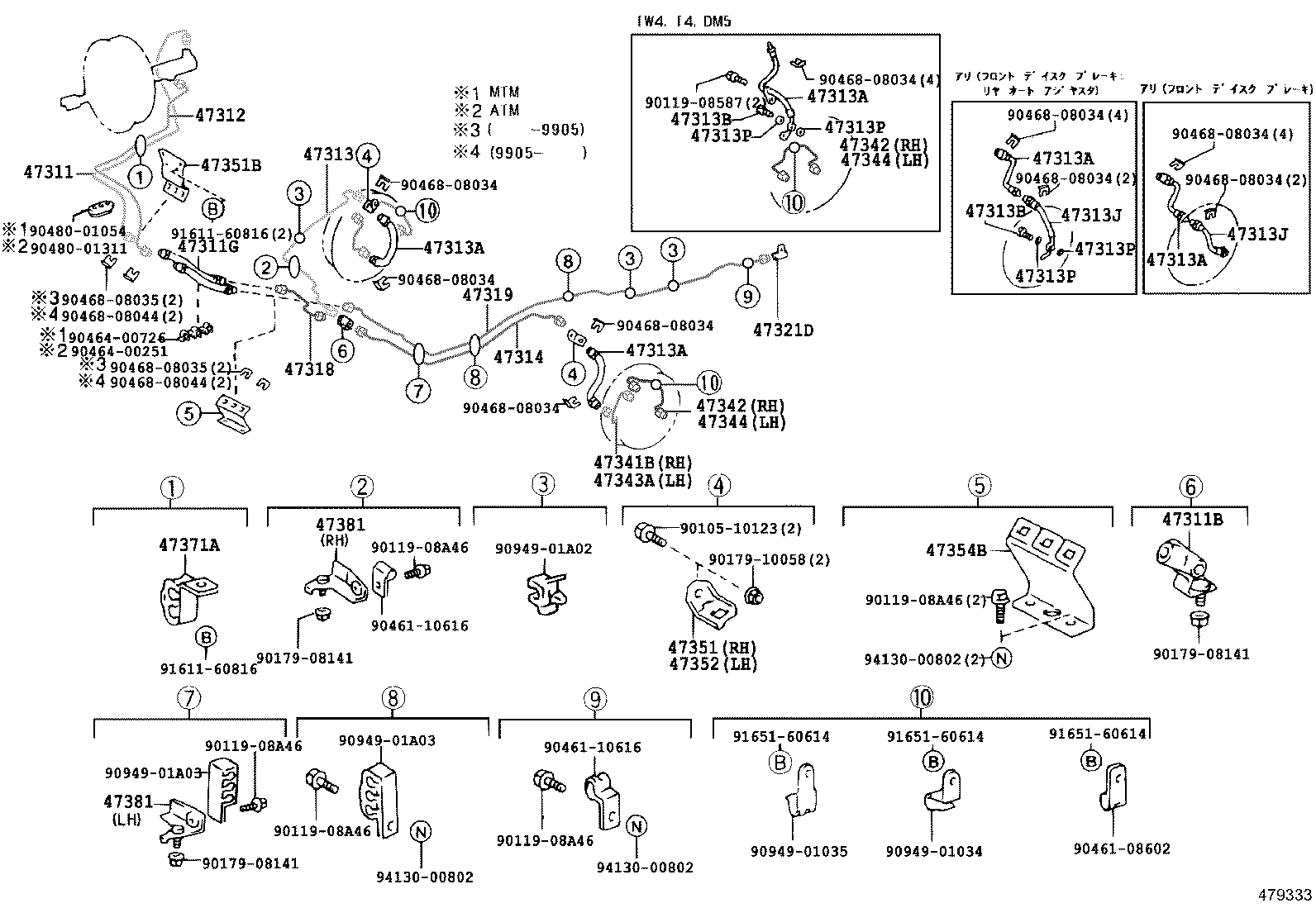

ILLUST NO. 1 OF 4(9505- )BU132..T3,T4 ; (9505- )BU100,102,12#,140,142,RZU100,140

Click highlighted areas on diagram

diagram 47311 47311B 47311G 47312 47313 47313A 47313A 47313A 47313A 47313A 47313B 47313B 47313J 47313J 47313P 47313P 47313P 47313P 47314 47318 47319 47321D 47341B 47342 47342 47343A 47344 47344 47351 47351B 47352 47354B 47371A 47381 47381 9010510123 9011908587 9011908A46 9011908A46 9011908A46 9011908A46 9011908A46 9017908141 9017908141 9017908141 9017910058 9046108602 9046110616 9046110616 9046400251 9046400726 9046808034 9046808034 9046808034 9046808034 9046808034 9046808034 9046808034 9046808034 9046808034 9046808035 9046808035 9046808044 9046808044 9048001054 9048001311 9094901034 9094901035 9094901A02 9094901A03 9094901A03 9161160816 9161160816 9165160614 9165160614 9165160614 9413000802 9413000802 9413000802
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-37130

BU102,162..(DM2,DM5,T2,T3,T4,TW4)..20T;BU100,112,12#,132,14#,172,RZU100..(TR,V)..(175T,20T)..(CBU,IV3)

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90413-12005

BU10#,112,12#,13#,14#,162,172,182,RZU100,140,XZU130,140

 1
47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE)
96932-33655

BU10#,112,12#,132,14#,RZU100,XZU130

 2
47312 - TUBE, FRONT BRAKE, NO.2
47321-37130

BU102,162..(DM2,DM5,T2,T3,T4,TW4)..20T;BU100,112,12#,132,14#,172,RZU100..(TR,V)..(175T,20T)..(CBU,IV3)

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-37080

BU132..T3,T4;BU100,102,12#,140,142,RZU100,140,XZU130,140

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02470

BU112,12#;BU100,102..ST;BU100,102,140,142,RZU100..DM2,T2

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02470

BU112,12#;BU100,102..ST;BU100,102,140,142,RZU100..DM2,T2

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02470

BU112,12#;BU100,102..ST;BU100,102,140,142,RZU100..DM2,T2

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02470

BU112,12#;BU100,102..ST;BU100,102,140,142,RZU100..DM2,T2

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02470

BU112,12#;BU100,102..ST;BU100,102,140,142,RZU100..DM2,T2

 2
47314 - TUBE, FRONT BRAKE, NO.4
47314-37090

BU132..T3,T4;BU100,102,12#,140,142,RZU100,140,XZU130,140

 1
47318 - TUBE, FRONT BRAKE, NO.8
47312-37040

BU10#,112,12#,13#,14#,162,172,182,RZU100,140,XZU130,140

 1
47319 - TUBE, FRONT BRAKE, NO.9
47322-37100

BU100,12#,132,140,142,RZU140,XZU130,140;BU102,RZU100..DM3,DM6,T2,T3,T4,T5,TW1,TW4

 1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90412-12049

BU10#,112,12#,13#,14#,162,172,182,202,212,RZU100,140,XZU130,140

 1
47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1
47341-36070

BU100,102,12#..ST;BU100,102,140,142,212,RZU100..DM2,T2

 1
47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2
47342-36020

BU100,102,12#..ST;BU100,102,140,142,212,RZU100..DM2,T2

 1
47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2
47342-36020

BU100,102,12#..ST;BU100,102,140,142,212,RZU100..DM2,T2

 1
47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1
47343-36070

BU100,102,12#..ST;BU100,102,140,142,212,RZU100..DM2,T2

 1
47344 - TUBE, WHEEL CYLINDER, FRONT LH NO.2
47342-36020

BU100,102,12#..ST;BU100,102,140,142,212,RZU100..DM2,T2

 1
47344 - TUBE, WHEEL CYLINDER, FRONT LH NO.2
47342-36020

BU100,102,12#..ST;BU100,102,140,142,212,RZU100..DM2,T2

 1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47351-37050

BU132..T3,T4;BU100,102,12#,140,142,RZU100,140,XZU130,140

 1
47351B - BRACKET, FLEXIBLE HOSE, NO.1
47351-37030

BU10#,112,12#,132,14#,162,172,182,202,212,222,RZU100,XZU130

 1
47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47352-37020

BU132..T3,T4;BU100,102,12#,140,142,RZU100,140,XZU130,140

 1
47354B - BRACKET, FLEXIBLE HOSE, NO.4
47354-37020

BU132..T3,T4;BU10#,112,12#,137,14#,162,172,182,297,RZU100,140,XZU130,140

 1
47371A - CLAMP, BRAKE TUBE, NO.1
90949-01188

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140

 1
47381 - BRACKET, BRAKE TUBE CLAMP NO.1
47381-37020

BU10#,12#,13#,14#,162,172,182,RZU100,140,XZU130,140

左側

 1
47381-37030

BU10#,12#,13#,14#,RZU100,140,XZU130,140

右側

 1
47381 - BRACKET, BRAKE TUBE CLAMP NO.1
47381-37020

BU10#,12#,13#,14#,162,172,182,RZU100,140,XZU130,140

左側

 1
47381-37030

BU10#,12#,13#,14#,RZU100,140,XZU130,140

右側

 1
Common parts
90105-10123
90119-08587
90119-08A46
90179-08141
90179-10058
90461-08602
90461-10616
90464-00251
90464-00726
90468-08034
90468-08035
90468-08044
90480-01054
90480-01311
90949-01034
90949-01035
90949-01A02
90949-01A03
91611-60816
91651-60614
94130-00802
