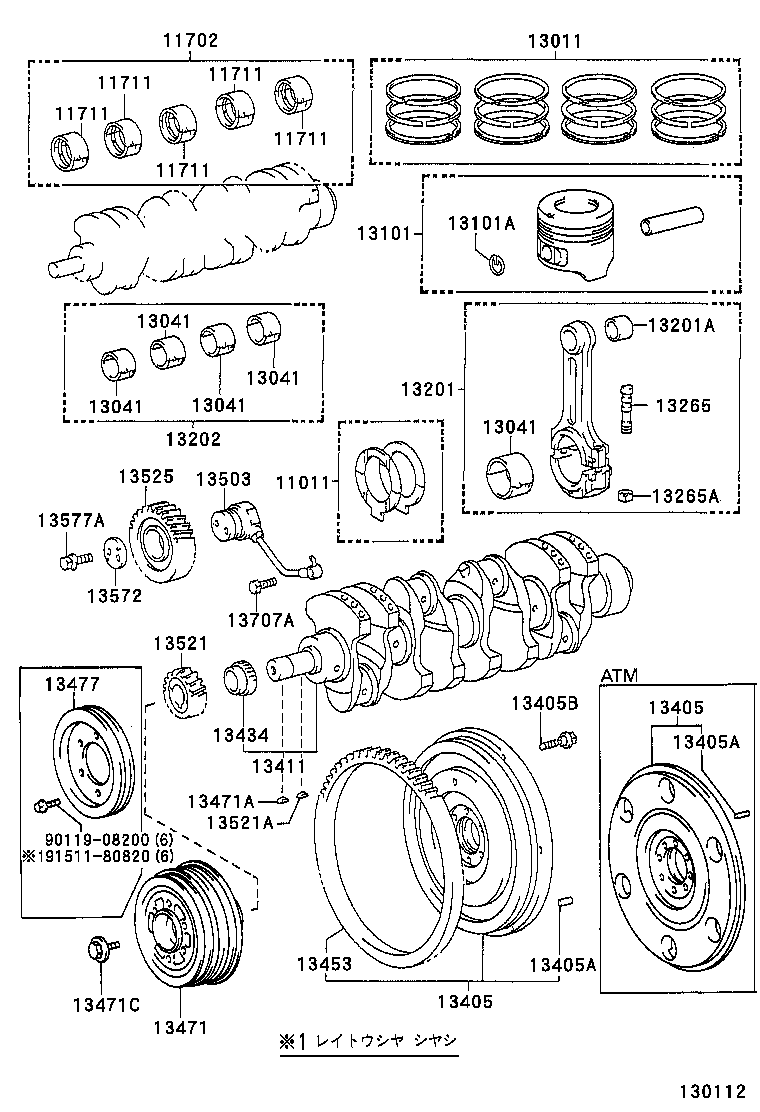

BU102-TGPMS (1995)
Toyota Dyna 200/Toyoace G25
(9505-9905)15B#,3B ; (9905-9906)15BF,3B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11011 - WASHER SET, CRANKSHAFT THRUST | ||||
| 11011-56020 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 STD |
1 | ||
| 11013-56020 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 O/S 0.250 |
1 | ||
| 11012-56020 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 O/S 0.125 |
1 | ||
| 11702 - BEARING SET, CRANKSHAFT | ||||
| 11707-56030 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 U/S 1.00 |
1 | ||
| 11705-56030 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 U/S 0.50 |
1 | ||
| 11704-56030 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 U/S 0.25 |
1 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-5602002 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 MARK2,修理書参照 |
5 | ||
| 11701-5602001 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 MARK1,修理書参照 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-5602002 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 MARK2,修理書参照 |
5 | ||
| 11701-5602001 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 MARK1,修理書参照 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-5602002 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 MARK2,修理書参照 |
5 | ||
| 11701-5602001 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 MARK1,修理書参照 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-5602002 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 MARK2,修理書参照 |
5 | ||
| 11701-5602001 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 MARK1,修理書参照 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-5602002 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 MARK2,修理書参照 |
5 | ||
| 11701-5602001 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 MARK1,修理書参照 |
5 | ||
| 13011 - RING SET, PISTON | ||||
| 13013-58090 |
15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297 O/S 0.50 |
1 | ||
| 13011-58090 |
15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297 STD |
1 | ||
| 13014-58090 |
15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297 O/S 0.75 |
1 | ||
| 13015-58090 |
15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297 O/S 1.00 |
1 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-5802002 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 MARK 2,修理書参照 |
4 | ||
| 13041-5802001 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 MARK 1,修理書参照 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-5802002 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 MARK 2,修理書参照 |
4 | ||
| 13041-5802001 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 MARK 1,修理書参照 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-5802002 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 MARK 2,修理書参照 |
4 | ||
| 13041-5802001 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 MARK 1,修理書参照 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-5802002 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 MARK 2,修理書参照 |
4 | ||
| 13041-5802001 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 MARK 1,修理書参照 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-5802002 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 MARK 2,修理書参照 |
4 | ||
| 13041-5802001 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 MARK 1,修理書参照 |
4 | ||
| 13101 - PISTON SUB-ASSY, W/PIN | ||||
| 13101-5809003 |
15BF..BU102,107,112,122,13#,142,147,162,172,182,202,212,222 STD,MARK 3,修理書参照 |
4 | ||
| 13101-5809001 |
15BF..BU102,107,112,122,13#,142,147,162,172,182,202,212,222 STD,MARK 1,修理書参照 |
4 | ||
| 13101-5809002 |
15BF..BU102,107,112,122,13#,142,147,162,172,182,202,212,222 STD,MARK 2,修理書参照 |
4 | ||
| 13103-58090 |
15BF..BU102,107,112,122,13#,142,147,162,172,182,202,212,222 O/S 0.50 |
4 | ||
| 13105-58090 |
15BF..BU102,107,112,122,13#,142,147,162,172,182,202,212,222 O/S 1.00 |
4 | ||
| 13104-58090 |
15BF..BU102,107,112,122,13#,142,147,162,172,182,202,212,222 O/S 0.75 |
4 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90521-37007 |
15B#..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297 |
8 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-59185 |
15B#..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297 |
4 | ||
| 13201A - BUSH(FOR CONNECTING ROD SMALL END) | ||||
| 90999-73134 |
15B#..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297 |
4 | ||
| 13202 - BEARING SET, CONNECTING ROD | ||||
| 13204-58020 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 U/S 0.25 |
1 | ||
| 13207-58020 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 U/S 1.00 |
1 | ||
| 13205-58020 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 U/S 0.50 |
1 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-58020 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
8 | ||
| 13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT) | ||||
| 13266-58010 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
8 | ||
| 13405 - FLYWHEEL SUB-ASSY | ||||
| 13405-58040 |
15BF,15BFT..BU102,107,112,13#,142,147,212,297..4FC |
1 | ||
| 13405 - FLYWHEEL SUB-ASSY | ||||
| 13405-58040 |
15BF,15BFT..BU102,107,112,13#,142,147,212,297..4FC |
1 | ||
| 13405A - PIN, STRAIGHT(FOR FLYWHEEL) | ||||
| 90250-05121 |
15BF,15BFT..BU102,107,112,13#,142,147,212,297..4FC 長さ=15,外径=5 |
1 | ||
| 13405A - PIN, STRAIGHT(FOR FLYWHEEL) | ||||
| 90250-05121 |
15BF,15BFT..BU102,107,112,13#,142,147,212,297..4FC 長さ=15,外径=5 |
1 | ||
| 13411 - CRANKSHAFT | ||||
| 13401-58050 |
15B#..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297 |
1 | ||
| 13434 - SPLINE, OIL PUMP DRIVE | ||||
| 13519-56010 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13470-58050 |
15BF,15BFT,3B..BU10#,112,12#,13#,14#,202,212,222,297 |
1 | ||
| 13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET) | ||||
| 95161-30416 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 13471C - BOLT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90901-19032 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 13503 - SHAFT SUB-ASSY, IDLE GEAR | ||||
| 13504-58010 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING | ||||
| 13521-56030 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 13521A - KEY(FOR CRANKSHAFT TIMING GEAR) | ||||
| 95161-30519 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 13525 - GEAR, IDLE, NO.1 | ||||
| 13508-56010 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 13572 - PLATE, IDLE GEAR THRUST | ||||
| 13572-56020 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 13577A - BOLT, HEXAGON(FOR IDLE GEAR BOLT LOCK) | ||||
| 90105-10194 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
2 | ||
| 13707A - UNION(FOR OIL PIPE, NO.1) | ||||
| 90401-10026 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| Common parts | ||||
| 90119-08200 | ||||
| 91511-80820 | ||||
