BU102-TGMMS3 (1995)

Toyota Dyna 200/Toyoace G25

Production May 1995 - Jun 1999
Engine 15BF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140

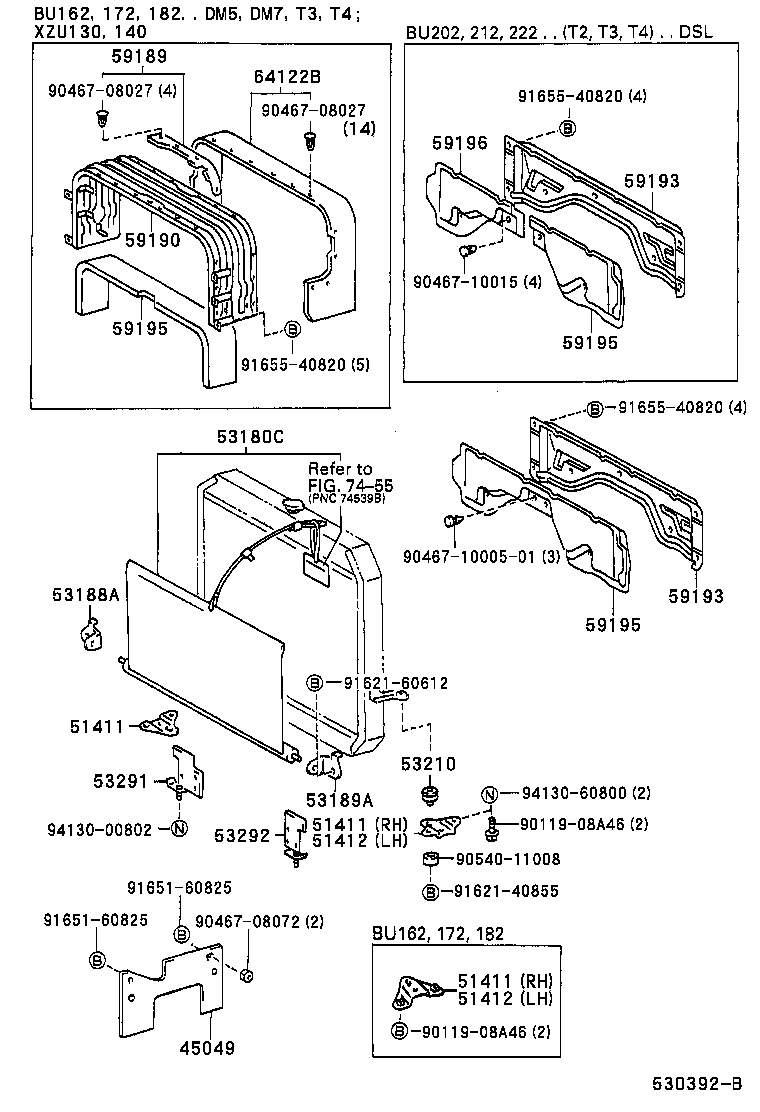

Click highlighted areas on diagram

diagram 45049 51411 51411 51411 51412 51412 53180C 53188A 53189A 53210 53291 53292 59189 59190 59193 59193 59195 59195 59195 59196 64122B 9011908A46 9011908A46 9046708027 9046708027 9046708072 904671000501 9046710015 9054011008 9162140855 9162160612 9165160825 9165160825 9165540820 9165540820 9165540820 9413000802 9413060800
Part # Description Qty Price
51411 - BRACKET, RADIATOR SUPPORT, RH
51411-36090

BU100,102,12#,132,140,142,RZU100,140,XZU130,140

 1
51411 - BRACKET, RADIATOR SUPPORT, RH
51411-36090

BU100,102,12#,132,140,142,RZU100,140,XZU130,140

 1
51411 - BRACKET, RADIATOR SUPPORT, RH
51411-36090

BU100,102,12#,132,140,142,RZU100,140,XZU130,140

 1
51412 - BRACKET, RADIATOR SUPPORT, LH
51412-36090

BU100,102,12#,132,140,142,RZU100,140,XZU130,140

 1
51412 - BRACKET, RADIATOR SUPPORT, LH
51412-36090

BU100,102,12#,132,140,142,RZU100,140,XZU130,140

 1
53180C - SHUTTER ASSY, RADIATOR
53180-37010

BU10#,112,13#,14#,RZU100..(DM2,DM3,DM5,DM6,DM7,DM8,T1,T2,T3,T4,T5,TW2,TW4)..MTM..(DSL,LPGB)

 1
53188A - BRACKET, RADIATOR SHUTTER SUPPORT, RH
53188-37010

BU100,105,107..5F;BU102,112,13#,14#,202,212,222,RZU100..(ALV,DM2,DM3,DM5,DM6,DM7,DM8,T2,T3,T4,T5,TW1,TW4)..MTM..(DSL,LPGB)..(CBU,IV3)

 1
53189A - BRACKET, RADIATOR SHUTTER SUPPORT, LH
53189-37010

BU100,105,107..5F;BU102,112,13#,14#,202,212,222,RZU100..(ALV,DM2,DM3,DM5,DM6,DM7,DM8,T2,T3,T4,T5,TW1,TW4)..MTM..(DSL,LPGB)..(CBU,IV3)

 1
53210 - SUPPORT ASSY, RADIATOR
53210-36010

BU100,102,112,12#,132,140,142,162,172,182,202,212,222,RZU100,140,XZU130,140

 2
53291 - SEAL, RADIATOR SUPPORT TO FRAME, RH
53291-36050

BU142..DSL;BU10#,12#,13#,140,145,147,RZU100,XZU130,140..DSL,LPGB

 1
53292 - SEAL, RADIATOR SUPPORT TO FRAME, LH
53292-36060

BU10#,12#,132,14#,XZU130..DSL

 1
53292-36060

BU10#,12#,132,14#,202,212,222,XZU130..DSL,TD

 1
53292-36061

BU142..DSL;BU10#,12#,13#,140,145,147,202,212,222,RZU100,XZU130,140..DSL,LPGB,TD

 1
59193 - GUARD, NOISE SHUTTER
59193-37041

BU10#,112,13#,14#,RZU100..(DM2,DM3,DM5,DM6,DM7,DM8,T1,T2,T3,T4,T5)..(DSL,LPGB)

 1
59193-37040

BU10#,112,13#,14#..DM2,DM3,DM5,DM6,DM7,DM8,T1,T2,T3,T4,T5

 1
59193 - GUARD, NOISE SHUTTER
59193-37041

BU10#,112,13#,14#,RZU100..(DM2,DM3,DM5,DM6,DM7,DM8,T1,T2,T3,T4,T5)..(DSL,LPGB)

 1
59193-37040

BU10#,112,13#,14#..DM2,DM3,DM5,DM6,DM7,DM8,T1,T2,T3,T4,T5

 1
59195 - INSULATOR, NOISE SHUTTER
59195-37030

BU10#,112,13#,14#..DM2,DM3,DM5,DM6,DM7,DM8,T1,T2,T3,T4,T5

 1
59195-37031

BU10#,112,13#,14#,RZU100..(DM2,DM3,DM5,DM6,DM7,DM8,T1,T2,T3,T4,T5)..(DSL,LPGB)

 1
59195 - INSULATOR, NOISE SHUTTER
59195-37030

BU10#,112,13#,14#..DM2,DM3,DM5,DM6,DM7,DM8,T1,T2,T3,T4,T5

 1
59195-37031

BU10#,112,13#,14#,RZU100..(DM2,DM3,DM5,DM6,DM7,DM8,T1,T2,T3,T4,T5)..(DSL,LPGB)

 1
59195 - INSULATOR, NOISE SHUTTER
59195-37030

BU10#,112,13#,14#..DM2,DM3,DM5,DM6,DM7,DM8,T1,T2,T3,T4,T5

 1
59195-37031

BU10#,112,13#,14#,RZU100..(DM2,DM3,DM5,DM6,DM7,DM8,T1,T2,T3,T4,T5)..(DSL,LPGB)

 1
Common parts
90119-08A46
90467-08027
90467-08072
90467-1000501
90467-10015
90540-11008
91621-40855
91621-60612
91651-60825
91655-40820
94130-00802
94130-60800
