BU102-PQMMS3 (1995)
Toyota Dyna 200/Toyoace G25

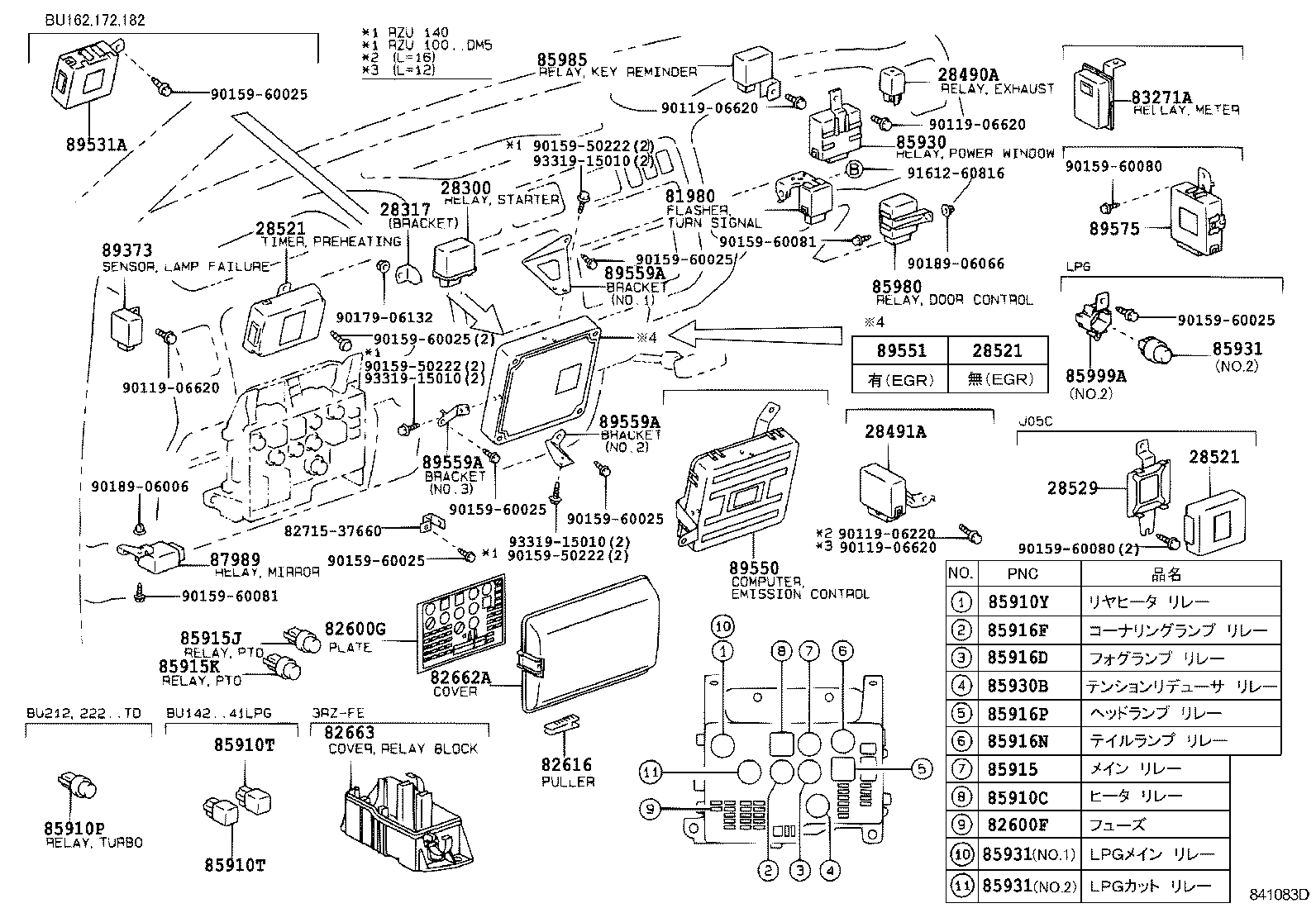

ILLUST NO. 3 OF 9(9505- )
INPANE & COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-58010 |
J05C,15BFT,15BF,3B..BU10#,112,13#,14#,162,172,182,202,212,222,297,XZU130,140 |
1 | ||
| 28490A - RELAY ASSY, EXHAUST RETARDER | ||||
| 28490-56080 |
J05C,15BFT,15BF,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,XZU130,140 |
1 | ||
| 28491A - COMPUTER, EXHAUST RETARDER | ||||
| 28491-56200 |
15BF,15BFT..BU212..MTM..20T;15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,222..MTM ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28521 - TIMER, PREHEATING | ||||
| 28521-58160 |
15BF..BU102..(DM2,DM3,DM5,T2,T3,T4,T5,TW4)..5F;15BF..BU107,112,122,13#,142,147,162,172,182,202,212,222..MTM..(CBU,IV3) |
1 | ||
| 28521 - TIMER, PREHEATING | ||||
| 28521-58160 |
15BF..BU102..(DM2,DM3,DM5,T2,T3,T4,T5,TW4)..5F;15BF..BU107,112,122,13#,142,147,162,172,182,202,212,222..MTM..(CBU,IV3) |
1 | ||
| 28521 - TIMER, PREHEATING | ||||
| 28521-58160 |
15BF..BU102..(DM2,DM3,DM5,T2,T3,T4,T5,TW4)..5F;15BF..BU107,112,122,13#,142,147,162,172,182,202,212,222..MTM..(CBU,IV3) |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-37011 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,XZU130..DSL,TD |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09010 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09007 |
BU212,RZU100..(DM5,DM6,T2,T3,T4,TW1,TW4)..(DSL,EFI,LPG,TD);BU10#,112,12#,13#,14#,162,172,182,202,222,297,RZU140,XZU130,140 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09008 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09011 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09013 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09009 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 82600G - PLATE, CAUTION(FOR FUSE) | ||||
| 82683-37010 |
BU10#,112,12#,132,14#,162,172,182,202,212,222..(02S,03S,06S,07S)..(CBU,IV3) |
1 | ||
| 82683-37010 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,XZU130..(02S,03S,06S,07S)..(DSL,TD)..(CBU,IV3)..5F |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-20010 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 85913-90K00 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,XZU130,140..DSL,TD |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 90987-02005 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,XZU130,140..DSL,TD |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02005 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,XZU130,140..DSL,TD |
1 | ||
| 85916F - RELAY, CORNERING LAMP | ||||
| 90987-02005 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,XZU130,140..DSL,TD |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 90987-02005 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,XZU130,140..DSL,TD |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02007 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,XZU130,140..DSL,TD |
1 | ||
| 85930 - RELAY ASSY, POWER WINDOW | ||||
| 85930-37010 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,XZU130,140..DSL,TD |
1 | ||
| 85980 - RELAY ASSY, DOOR CONTROL | ||||
| 85980-37011 |
BU10#,112,12#,132,14#,162,172,182,202,212,222,XZU130..(DSL,TD)..(CBU,IV3) |
1 | ||
| 85985 - RELAY, KEY REMINDER | ||||
| 80590-37011 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,XZU130,140..DSL,TD |
1 | ||
| 87989 - RELAY, MIRROR CONTROL | ||||
| 87989-37030 |
BU10#,112,12#,132,14#,162,172,182,202,212,222,XZU130..DSL,TD |
1 | ||
| 89373 - SENSOR, LAMP FAILURE INDICATOR | ||||
| 89370-37020 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,XZU130,140..DSL,TD |
1 | ||
| 89551 - COMPUTER, EMISSION CONTROL | ||||
| 89551-37010 |
BU102,112,132,142,162,172,182,202,212,222..(DM2,DM3,DM5,DM6,DM7,DM8,T2,T3,T4,TW1,TW4)..DSL..5F |
1 | ||
| 89551-37010 |
BU102,107,112,122,13#,142,147,162,172,182,202,212,222..DSL..5F |
1 | ||
| 89559A - BRACKET, EMISSION CONTROL COMPUTER | ||||
| 89559-37060 |
BU102,107,112,122,13#,142,147,162,172,182,202,212,222..DSL,LPGB NO.3 |
1 | ||
| 89559-37020 |
BU102,107,112,122,13#,142,147,162,172,182,202,212,222..DSL,LPGB NO.2 |
1 | ||
| 89559-37010 |
BU102,107,112,122,13#,142,147,162,172,182,202,212,222..DSL,LPGB NO.1 |
1 | ||
| 89559A - BRACKET, EMISSION CONTROL COMPUTER | ||||
| 89559-37060 |
BU102,107,112,122,13#,142,147,162,172,182,202,212,222..DSL,LPGB NO.3 |
1 | ||
| 89559-37020 |
BU102,107,112,122,13#,142,147,162,172,182,202,212,222..DSL,LPGB NO.2 |
1 | ||
| 89559-37010 |
BU102,107,112,122,13#,142,147,162,172,182,202,212,222..DSL,LPGB NO.1 |
1 | ||
| 89559A - BRACKET, EMISSION CONTROL COMPUTER | ||||
| 89559-37060 |
BU102,107,112,122,13#,142,147,162,172,182,202,212,222..DSL,LPGB NO.3 |
1 | ||
| 89559-37020 |
BU102,107,112,122,13#,142,147,162,172,182,202,212,222..DSL,LPGB NO.2 |
1 | ||
| 89559-37010 |
BU102,107,112,122,13#,142,147,162,172,182,202,212,222..DSL,LPGB NO.1 |
1 | ||
| Common parts | ||||
| 82715-37660 | ||||
| 90119-06220 | ||||
| 90119-06620 | ||||
| 90159-50222 | ||||
| 90159-60025 | ||||
| 90159-60080 | ||||
| 90159-60081 | ||||
| 90179-06132 | ||||
| 90189-06006 | ||||
| 90189-06066 | ||||
| 91612-60816 | ||||
| 93319-15010 | ||||

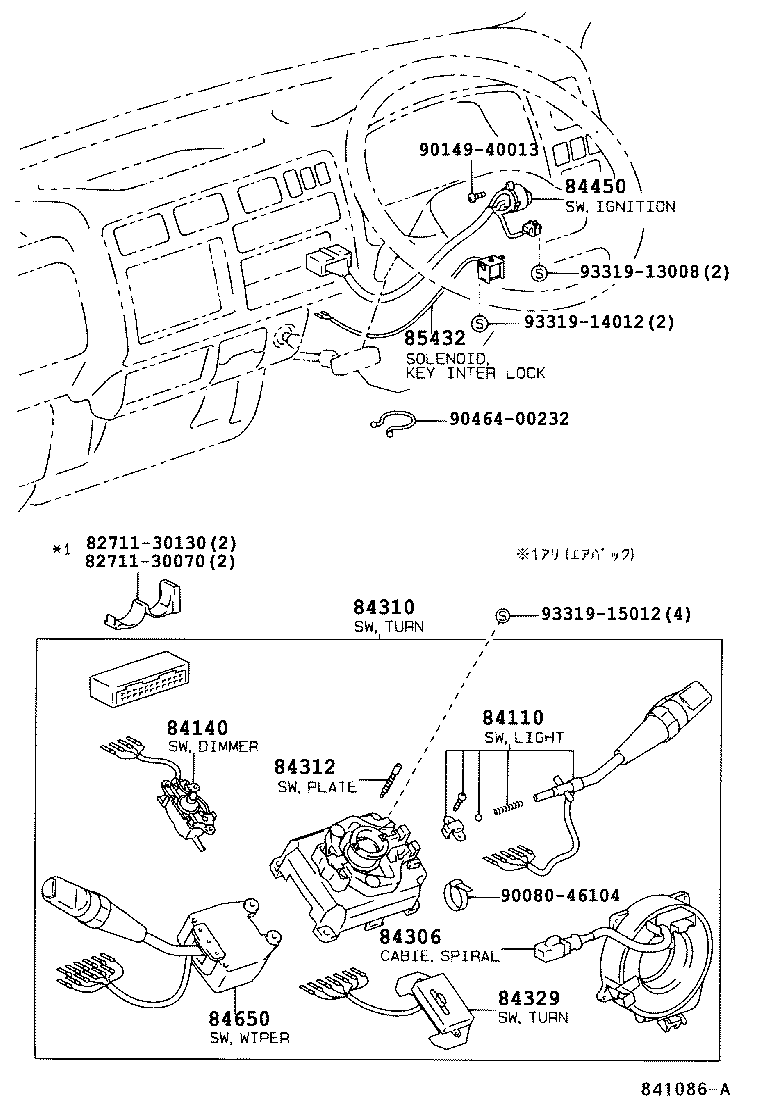

ILLUST NO. 5 OF 9(9505- )
IG. SW. & COMBINATION SW.
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-80190 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-37010 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-37060 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,XZU130,140..DSL,TD |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-20011 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 |
1 | ||
| 84329 - SWITCH, TURN SIGNAL | ||||
| 84329-37010 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-37040 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,XZU130..(DSL,LPG,LPGB,TD)..5F |
1 | ||
| 84450-37040 |
BU10#,112,120,13#,14#,162,172,182,202,212,222,RZU100,XZU130,140..MTM..(DSL,LPG,LPGB,TD) |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-37060 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,XZU130,140..DSL,TD |
1 | ||
| Common parts | ||||
| 82711-30070 | ||||
| 82711-30130 | ||||
| 90080-46104 | ||||
| 90149-40013 | ||||
| 90464-00232 | ||||
| 93319-13008 | ||||
| 93319-14012 | ||||
| 93319-15012 | ||||

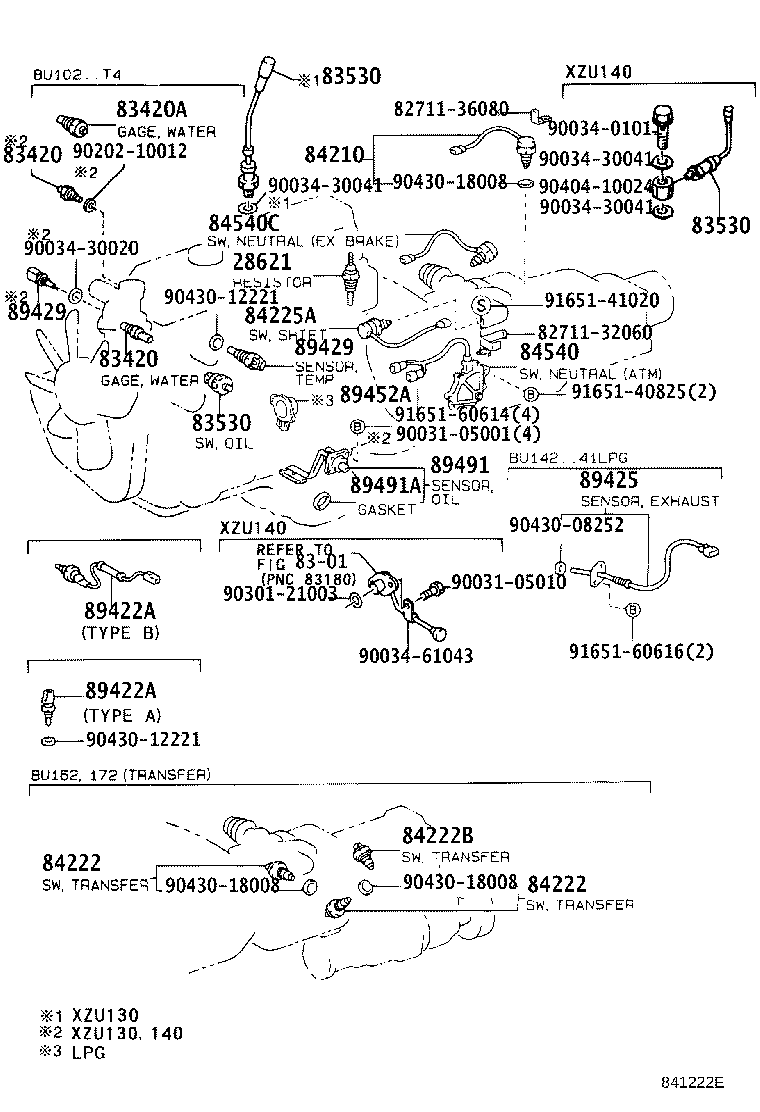

ILLUST NO. 1 OF 9(9505- )BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,XZU130,140..DSL,LPG
E/G,T/M,T/F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-16040 |
BU10#,112,12#,132,14#,162,172,182,202,212,222 NIPPONDENSO |
1 | ||
| 83420-20030 |
BU10#,112,12#,132,14#,162,172,182,202,212,222 YAZAKI |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-16040 |
BU10#,112,12#,132,14#,162,172,182,202,212,222 NIPPONDENSO |
1 | ||
| 83420-20030 |
BU10#,112,12#,132,14#,162,172,182,202,212,222 YAZAKI |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-14070 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 NIPPONDENSO |
1 | ||
| 83530-30100 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 YAZAKI |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-14070 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 NIPPONDENSO |
1 | ||
| 83530-30100 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 YAZAKI |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-14070 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 NIPPONDENSO |
1 | ||
| 83530-30100 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 YAZAKI |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-60030 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..5F |
1 | ||
| 84225A - SWITCH, SHIFT POSITION | ||||
| 84225-35010 |
BU212..30T;BU212,222..TD..6F;BU102,107,112,122,13#,142,147,162,172,182,202,212,222,XZU130,140..(DSL,TD)..5F |
1 | ||
| 84540C - SWITCH ASSY, NEUTRAL (FOR EXHAUST BRAKE) | ||||
| 84540-36090 |
BU132..TL4..5F;BU132..CBU..5F;BU132..(T3,T4)..IV3;BU10#,112,12#,137,14#,162,172,182,202,212,222,XZU130,140..MTM..(DSL,TD) |
1 | ||
| 89422A - SENSOR, WATER TEMPERATURE | ||||
| 89422-20010 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222..DSL,TD ﾀｲﾌﾟ A |
1 | ||
| 89422A - SENSOR, WATER TEMPERATURE | ||||
| 89422-20010 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222..DSL,TD ﾀｲﾌﾟ A |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-37020 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100..DSL,LPGB,TD |
1 | ||
| 89491A - GASKET, ENGINE OIL LEVEL SENSOR | ||||
| 90430-27001 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222..DSL,TD |
1 | ||
| Common parts | ||||
| 82711-32060 | ||||
| 82711-36080 | ||||
| 90031-05001 | ||||
| 90031-05010 | ||||
| 90034-01011 | ||||
| 90034-30020 | ||||
| 90034-30041 | ||||
| 90034-61043 | ||||
| 90202-10012 | ||||
| 90301-21003 | ||||
| 90404-10024 | ||||
| 90430-08252 | ||||
| 90430-12221 | ||||
| 90430-18008 | ||||
| 91651-40825 | ||||
| 91651-41020 | ||||
| 91651-60614 | ||||
| 91651-60616 | ||||
| Linked diagrams | ||||
| 8301 | ||||

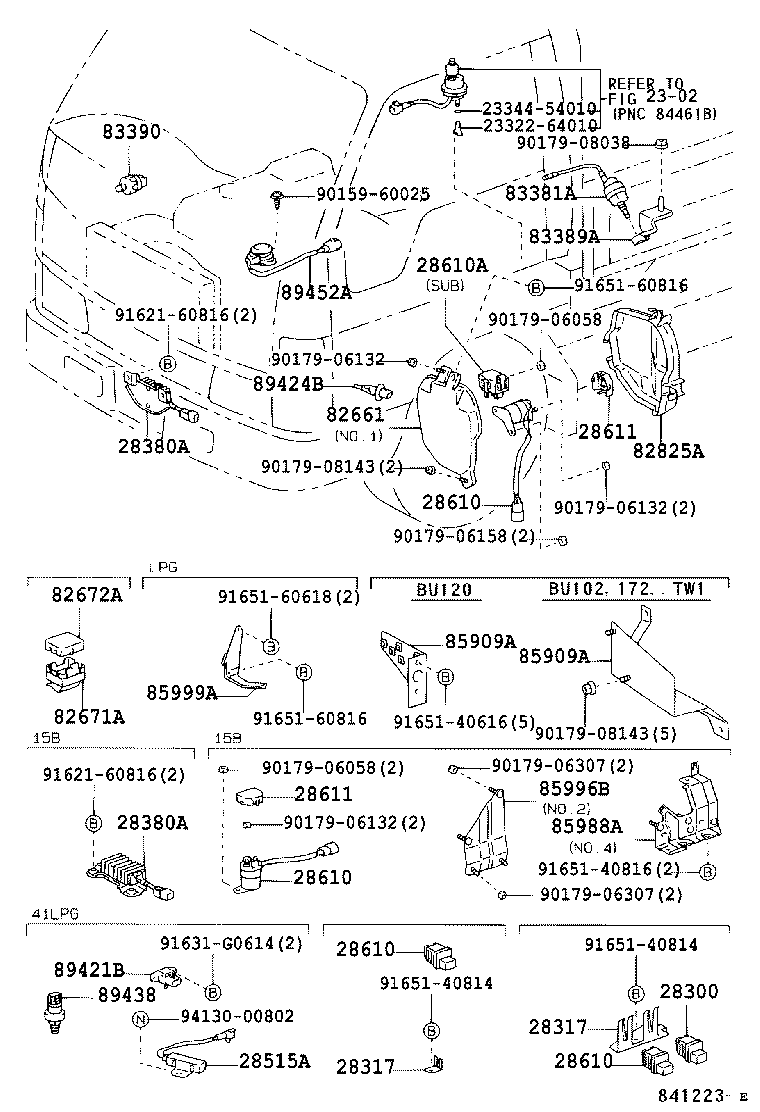

ILLUST NO. 2 OF 9(9505- )BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-58010 |
J05C,15BFT,15BF,3B..BU10#,112,13#,14#,162,172,182,202,212,222,297,XZU130,140 |
1 | ||
| 28380A - RESISTER, FUEL PUMP | ||||
| 23080-58010 |
15BF..BU102,107,112,122,13#,142,147,162,172,182 |
1 | ||
| 28380A - RESISTER, FUEL PUMP | ||||
| 23080-58010 |
15BF..BU102,107,112,122,13#,142,147,162,172,182 |
1 | ||
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-58170 |
J05C,15BF,3B..BU10#,112,13#,14#,162,172,182,XZU140 |
1 | ||
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-58170 |
J05C,15BF,3B..BU10#,112,13#,14#,162,172,182,XZU140 |
1 | ||
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-58170 |
J05C,15BF,3B..BU10#,112,13#,14#,162,172,182,XZU140 |
1 | ||
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-58170 |
J05C,15BF,3B..BU10#,112,13#,14#,162,172,182,XZU140 |
1 | ||
| 28611 - COVER, GLOW PLUG RELAY | ||||
| 28611-55010 |
J05C,15BFT,15BF,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,XZU130,140 |
1 | ||
| 28611 - COVER, GLOW PLUG RELAY | ||||
| 28611-55010 |
J05C,15BFT,15BF,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,XZU130,140 |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-37010 |
BU10#,112,13#,14#,162,172,182,RZU100,140,XZU130,140..DSL,EFI |
1 | ||
| 82825A - COVER, RELAY | ||||
| 82825-37010 |
BU10#,112,13#,14#,162,172,182,RZU100,140,XZU130,140..DSL,EFI |
1 | ||
| 83390 - SWITCH ASSY, VACUUM WARNING | ||||
| 83390-12340 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 |
1 | ||
| 89424B - SWITCH, INLET AIR TEMPERATURE | ||||
| 89424-12010 |
BU102,107,112,122,13#,142,147,162,172,182,202,212,222..DSL |
1 | ||
| Common parts | ||||
| 23322-64010 | ||||
| 23344-54010 | ||||
| 90159-60025 | ||||
| 90179-06058 | ||||
| 90179-06132 | ||||
| 90179-06158 | ||||
| 90179-06307 | ||||
| 90179-08038 | ||||
| 90179-08143 | ||||
| 91621-60816 | ||||
| 91631-G0614 | ||||
| 91651-40616 | ||||
| 91651-40814 | ||||
| 91651-40816 | ||||
| 91651-60618 | ||||
| 91651-60816 | ||||
| 94130-00802 | ||||
| Linked diagrams | ||||
| 2302 | ||||

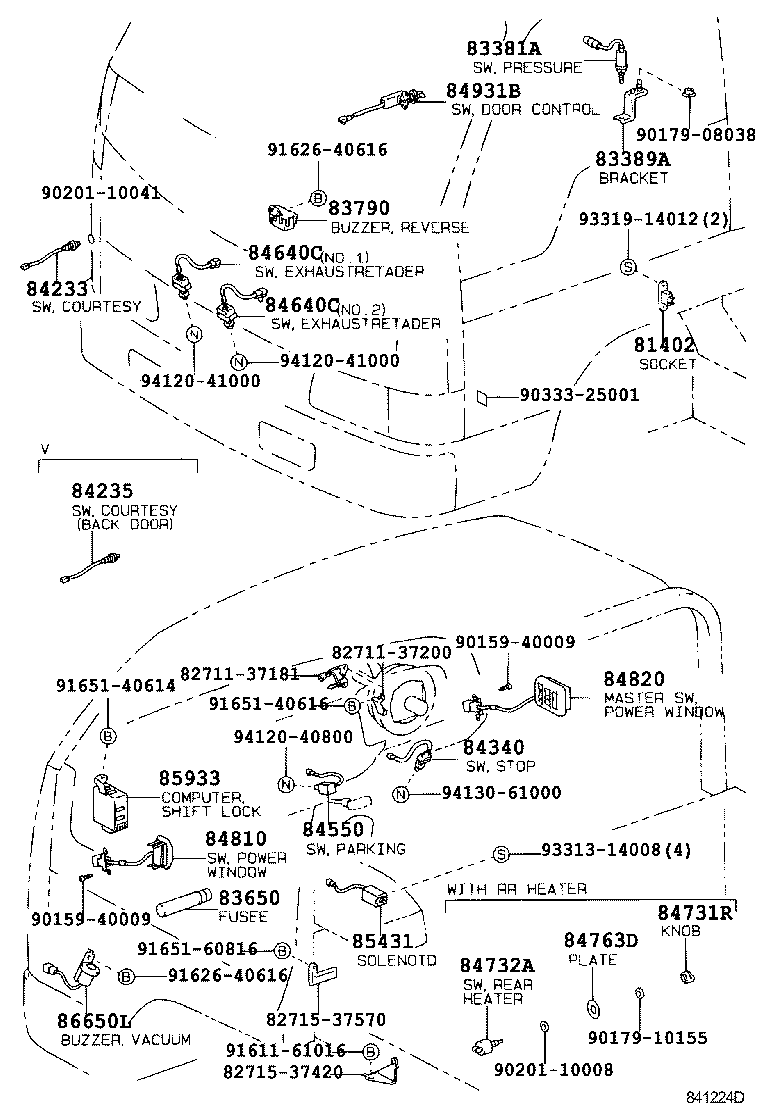

ILLUST NO. 6 OF 9(9505- )
DOOR, ROOF & FLOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83650 - FUSEE | ||||
| 90986-01005 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140 |
1 | ||
| 83790 - BUZZER ASSY, REVERSE WARNING | ||||
| 83970-37030 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,XZU130,140..DSL,TD |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-28020 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-36070 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-37010 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 |
1 | ||
| 84640C - SWITCH ASSY, EXHAUST RETARDER | ||||
| 84640-36060 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,XZU130,140..DSL,TD NO.1 |
1 | ||
| 84640-37040 |
BU132..TL4..5F;BU132..CBU..5F;BU132..(T3,T4)..IV3;BU10#,112,12#,137,14#,162,172,182,202,212,222,XZU130,140..MTM..(DSL,TD) NO.2 |
1 | ||
| 84640C - SWITCH ASSY, EXHAUST RETARDER | ||||
| 84640-36060 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,XZU130,140..DSL,TD NO.1 |
1 | ||
| 84640-37040 |
BU132..TL4..5F;BU132..CBU..5F;BU132..(T3,T4)..IV3;BU10#,112,12#,137,14#,162,172,182,202,212,222,XZU130,140..MTM..(DSL,TD) NO.2 |
1 | ||
| 84731R - KNOB, REAR HEATER BLOWER SWITCH | ||||
| 84731-12010 |
BU102..TW4;BU100,107,142,147,172,212..05S,06S,07S |
1 | ||
| 84732A - SWITCH, REAR HEATER BLOWER | ||||
| 84732-87001 |
BU102..TW4;BU100,107,142,147,172,212..05S,06S,07S |
1 | ||
| 84763D - PLATE, SWITCH | ||||
| 84763-95010 |
BU102..TW4;BU100,107,142,147,172,212..05S,06S,07S |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-37020B0 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,XZU130,140..DSL,TD BLUISH GRAY,TRIM1# |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-37020B4 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 BLUISH GRAY,TRIM1# |
1 | ||
| 84931B - SWITCH, DOOR CONTROL | ||||
| 84931-37020 |
BU10#,112,12#,132,14#,162,172,182,202,212,222,RZU100,XZU130..CBU,IV3 |
1 | ||
| 86650L - BUZZER ASSY, VACUUM WARNING | ||||
| 86650-37010 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,XZU130,140..DSL,TD |
1 | ||
| Common parts | ||||
| 82711-37181 | ||||
| 82711-37200 | ||||
| 82715-37420 | ||||
| 82715-37570 | ||||
| 90159-40009 | ||||
| 90179-08038 | ||||
| 90179-10155 | ||||
| 90201-10008 | ||||
| 90201-10041 | ||||
| 90333-25001 | ||||
| 91611-61016 | ||||
| 91626-40616 | ||||
| 91651-40614 | ||||
| 91651-40616 | ||||
| 91651-60816 | ||||
| 93313-14008 | ||||
| 93319-14012 | ||||
| 94120-40800 | ||||
| 94120-41000 | ||||
| 94130-61000 | ||||

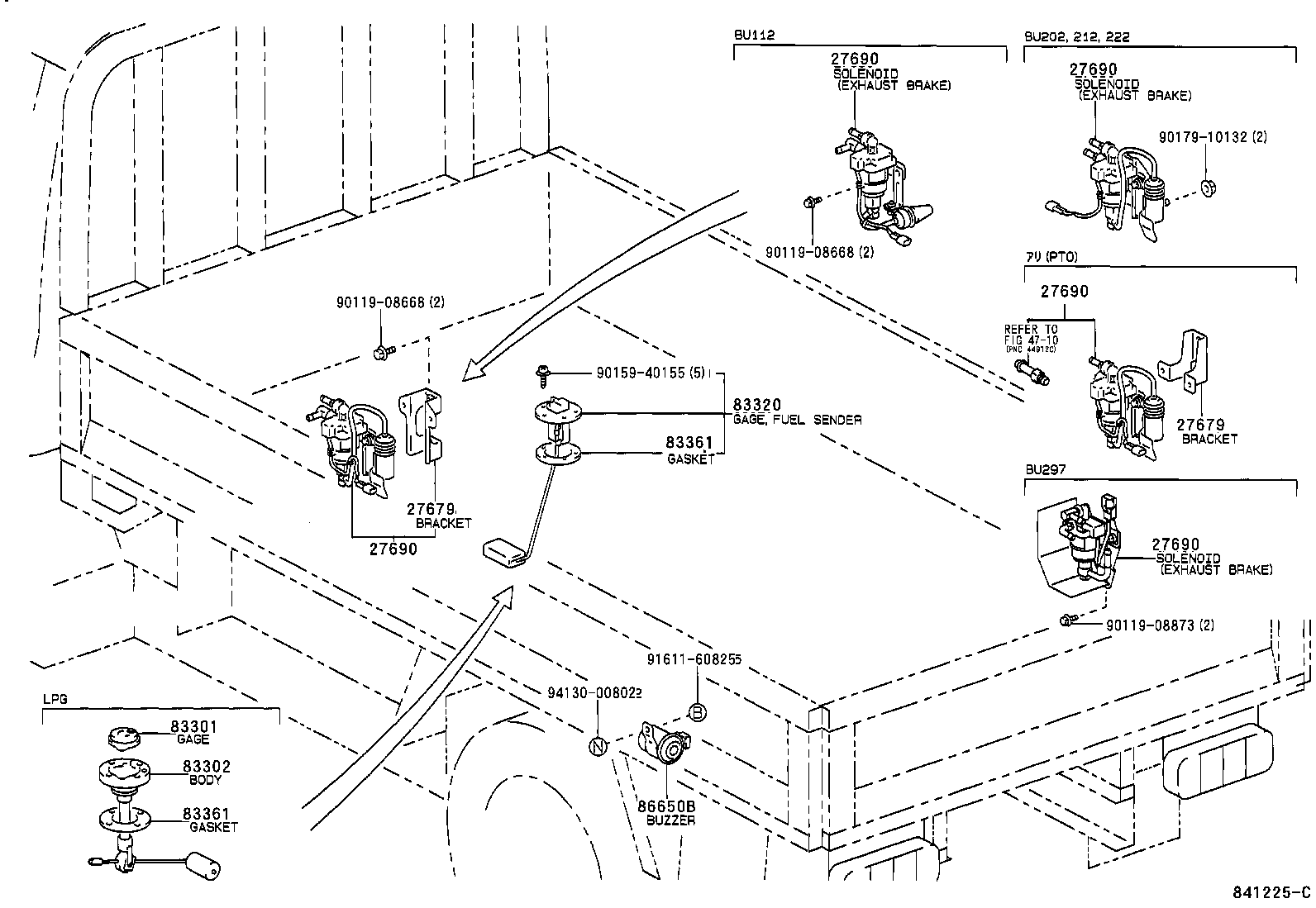

ILLUST NO. 7 OF 9(9505- )
REAR BODY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27679 - BRACKET, EXHAUST BRAKE(FOR SOLENOID) | ||||
| 27679-93104 |
3B..BU100..175T..IV3;J05C,15BF,3B..BU100,102,142,XZU130..DM7,TW4;15BF..BU107,137,147,162,172,182..TR..(02S,03S,06S)..5F ｱﾘ(ﾌﾞﾝﾘｼｷ PTO) |
1 | ||
| 27679-93104 |
15BF..BU142..6F;3B..BU100..06S..IV3;J05C,15BF,3RZFE..BU102,142,RZU100,XZU130..(DM7,TW1,TW4)..(CBU,IV3);J05C,15BF,3B..BU105,107,137,145,147,162,172,182,XZU140..TR..(02S,03S,06S)..5F ｱﾘ(ﾌﾞﾝﾘｼｷ PTO) |
1 | ||
| 27679-93104 |
J05C..XZU130;15BF..BU107,137,147,162..TR..5F;15BF,3B..BU100,102,142,172,182..(02S,06S)..(CBU,IV3) ｱﾘ(ﾌﾞﾝﾘｼｷ PTO) |
1 | ||
| 27679-56010 |
15BF,3B..BU10#,12#,13#,14# |
1 | ||
| 27679 - BRACKET, EXHAUST BRAKE(FOR SOLENOID) | ||||
| 27679-93104 |
3B..BU100..175T..IV3;J05C,15BF,3B..BU100,102,142,XZU130..DM7,TW4;15BF..BU107,137,147,162,172,182..TR..(02S,03S,06S)..5F ｱﾘ(ﾌﾞﾝﾘｼｷ PTO) |
1 | ||
| 27679-93104 |
15BF..BU142..6F;3B..BU100..06S..IV3;J05C,15BF,3RZFE..BU102,142,RZU100,XZU130..(DM7,TW1,TW4)..(CBU,IV3);J05C,15BF,3B..BU105,107,137,145,147,162,172,182,XZU140..TR..(02S,03S,06S)..5F ｱﾘ(ﾌﾞﾝﾘｼｷ PTO) |
1 | ||
| 27679-93104 |
J05C..XZU130;15BF..BU107,137,147,162..TR..5F;15BF,3B..BU100,102,142,172,182..(02S,06S)..(CBU,IV3) ｱﾘ(ﾌﾞﾝﾘｼｷ PTO) |
1 | ||
| 27679-56010 |
15BF,3B..BU10#,12#,13#,14# |
1 | ||
| 27690 - SOLENOID ASSY, W/BRACKET(FOR EXHAUST BRAKE) | ||||
| 27690-56062 |
15BF..BU112..T3..5F;J05C,15BFT,15BF..BU172,182,212,XZU130..MTM..(02S,03S,06S,07S);J05C,15BFT,15BF,3B..BU10#,12#,13#,14#,162,202,222,XZU140..03S,06S ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=27690-56062 |
1 | ||
| 27690 - SOLENOID ASSY, W/BRACKET(FOR EXHAUST BRAKE) | ||||
| 27690-56062 |
15BF..BU112..T3..5F;J05C,15BFT,15BF..BU172,182,212,XZU130..MTM..(02S,03S,06S,07S);J05C,15BFT,15BF,3B..BU10#,12#,13#,14#,162,202,222,XZU140..03S,06S ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=27690-56062 |
1 | ||
| 27690 - SOLENOID ASSY, W/BRACKET(FOR EXHAUST BRAKE) | ||||
| 27690-56062 |
15BF..BU112..T3..5F;J05C,15BFT,15BF..BU172,182,212,XZU130..MTM..(02S,03S,06S,07S);J05C,15BFT,15BF,3B..BU10#,12#,13#,14#,162,202,222,XZU140..03S,06S ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=27690-56062 |
1 | ||
| 27690 - SOLENOID ASSY, W/BRACKET(FOR EXHAUST BRAKE) | ||||
| 27690-56062 |
15BF..BU112..T3..5F;J05C,15BFT,15BF..BU172,182,212,XZU130..MTM..(02S,03S,06S,07S);J05C,15BFT,15BF,3B..BU10#,12#,13#,14#,162,202,222,XZU140..03S,06S ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=27690-56062 |
1 | ||
| 27690 - SOLENOID ASSY, W/BRACKET(FOR EXHAUST BRAKE) | ||||
| 27690-56062 |
15BF..BU112..T3..5F;J05C,15BFT,15BF..BU172,182,212,XZU130..MTM..(02S,03S,06S,07S);J05C,15BFT,15BF,3B..BU10#,12#,13#,14#,162,202,222,XZU140..03S,06S ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=27690-56062 |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80316 |
BU12#;BU100..T3..WT..IV3;BU102..(DM2,DM5,T2,T3,T4,TW1,TW4)..WT..20T;BU100,105,107,162,172,182..DM5,T1,T2,T4,TW1,TW2,TW4 MARK 36120 |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-20030 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140..DSL,EFI,TD |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-20030 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140..DSL,EFI,TD |
1 | ||
| 86650B - BUZZER ASSY, REVERSE WARNING | ||||
| 86650-95417 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,XZU130,140..DSL,TD |
1 | ||
| Common parts | ||||
| 90119-08668 | ||||
| 90119-08873 | ||||
| 90159-40155 | ||||
| 90179-10132 | ||||
| 91611-60825 | ||||
| 94130-00802 | ||||

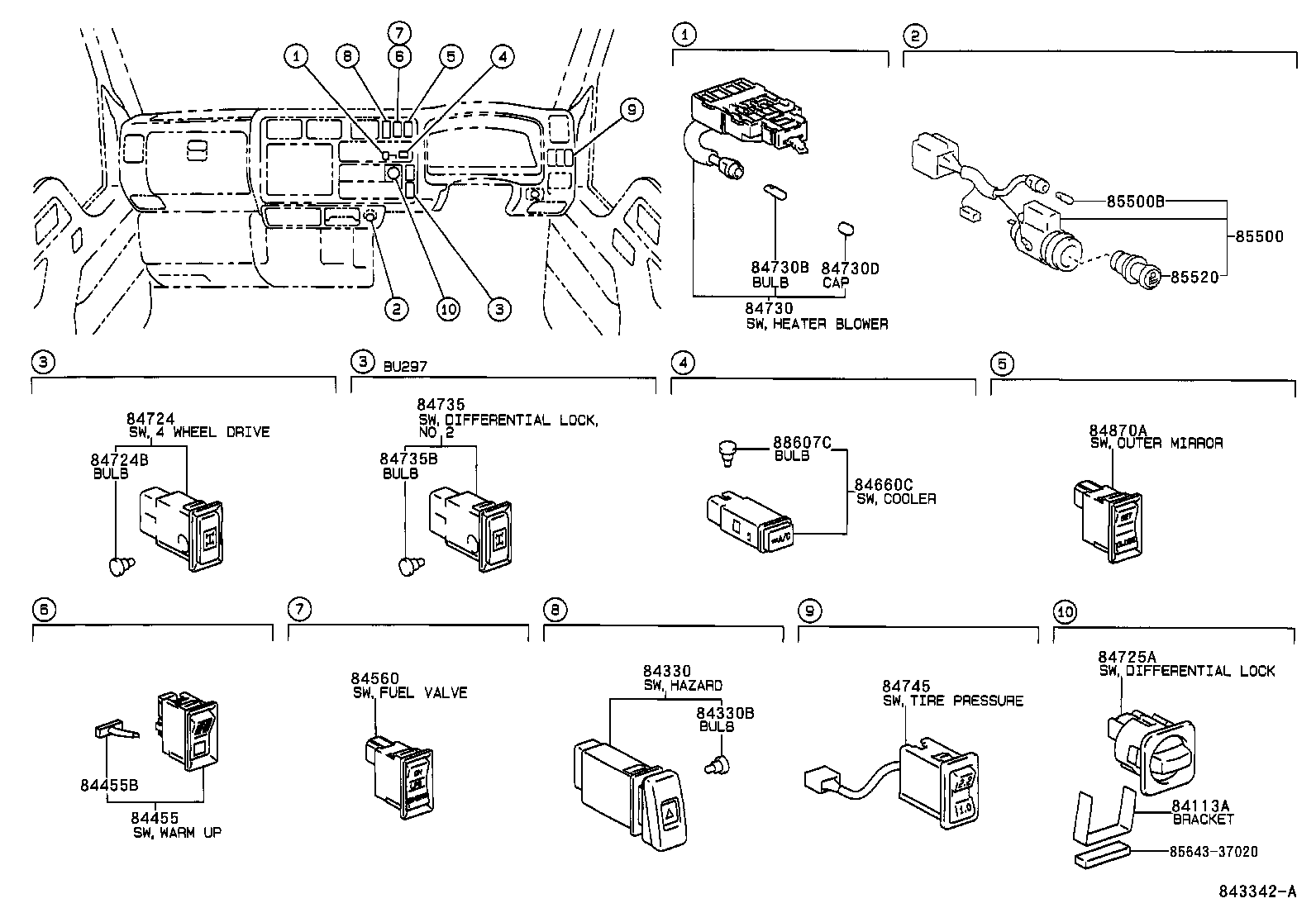

ILLUST NO. 4 OF 9(9505- )
INPANE SW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-37040 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,XZU130..DSL,TD |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10610 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,XZU130,140..DSL,TD 28V 0.84W |
1 | ||
| 84455 - SWITCH, WARM UP | ||||
| 84455-37020 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,XZU130,140..DSL,TD |
1 | ||
| 84455B - BULB (FOR WARM UP SWITCH) | ||||
| 84999-10840 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,XZU130,140..DSL,TD |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-37010 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,XZU130,140..DSL,TD |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-37020 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,XZU130,140..DSL,TD |
1 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90981-16020 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,XZU130,140..DSL,TD 24V 1.8W |
1 | ||
| 84730D - CAP, HEATER BLOWER SWITCH BULB | ||||
| 84998-10050 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,XZU130,140..DSL,TD |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-37020 |
BU10#,112,12#,132,14#,162,172,182,202,212,222,RZU100,XZU130 |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-37030 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,XZU130,140..DSL,TD |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90981-16020 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,XZU130,140..DSL,TD 24V 1.8W |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-95400 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,XZU130,140..DSL,TD |
1 | ||
| 88607C - LAMP SUB-ASSY, INDICATOR | ||||
| 88607-37010 |
BU102,112,12#,132,142,162,172,182,202,212,222,XZU130 28V 0.87W |
1 | ||
| Common parts | ||||
| 85643-37020 | ||||
ILLUST NO. 8 OF 9(9505- )
BLOCK METER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12200 | ||||
| 82711-17280 | ||||
| 82711-22270 | ||||
| 82711-37050 | ||||
| 82711-3H450 | ||||
| 82715-37210 | ||||
| 82715-37270 | ||||
| 90170-08204 | ||||
| 91611-60612 | ||||
| 91651-40825 | ||||
| 91651-60620 | ||||

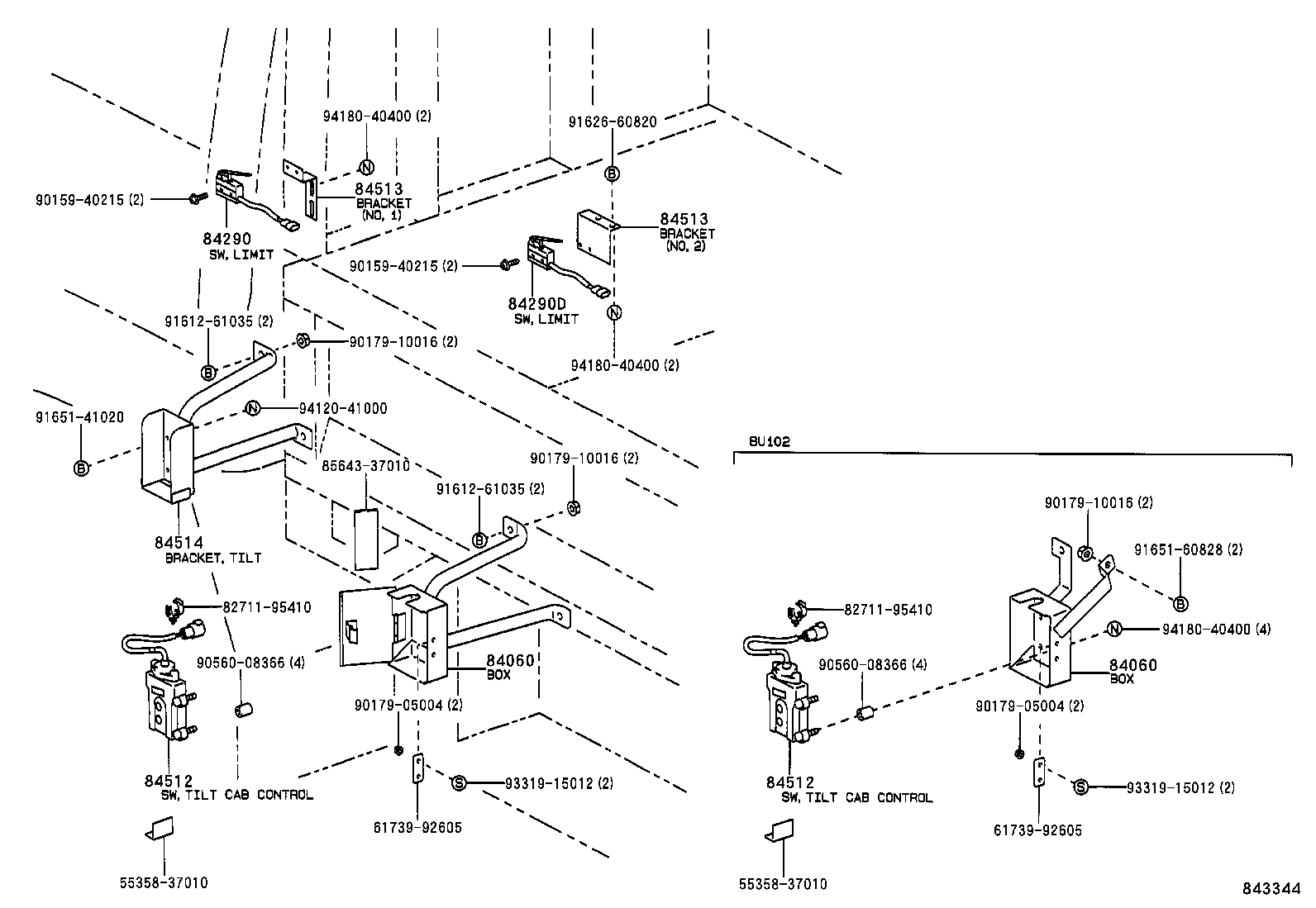

ILLUST NO. 9 OF 9(9505- )
TILT SW.
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 55358-37010 | ||||
| 61739-92605 | ||||
| 82711-95410 | ||||
| 85643-37010 | ||||
| 90159-40215 | ||||
| 90179-05004 | ||||
| 90179-10016 | ||||
| 90560-08366 | ||||
| 91612-61035 | ||||
| 91626-60820 | ||||
| 91651-41020 | ||||
| 91651-60828 | ||||
| 93319-15012 | ||||
| 94120-41000 | ||||
| 94180-40400 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
