BU102-PQMMS3 (1995)

Toyota Dyna 200/Toyoace G25

Production May 1995 - May 1999
Engine 15BF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )BU10#,142,147,172,212,297,RZU100..05S,06S,07S

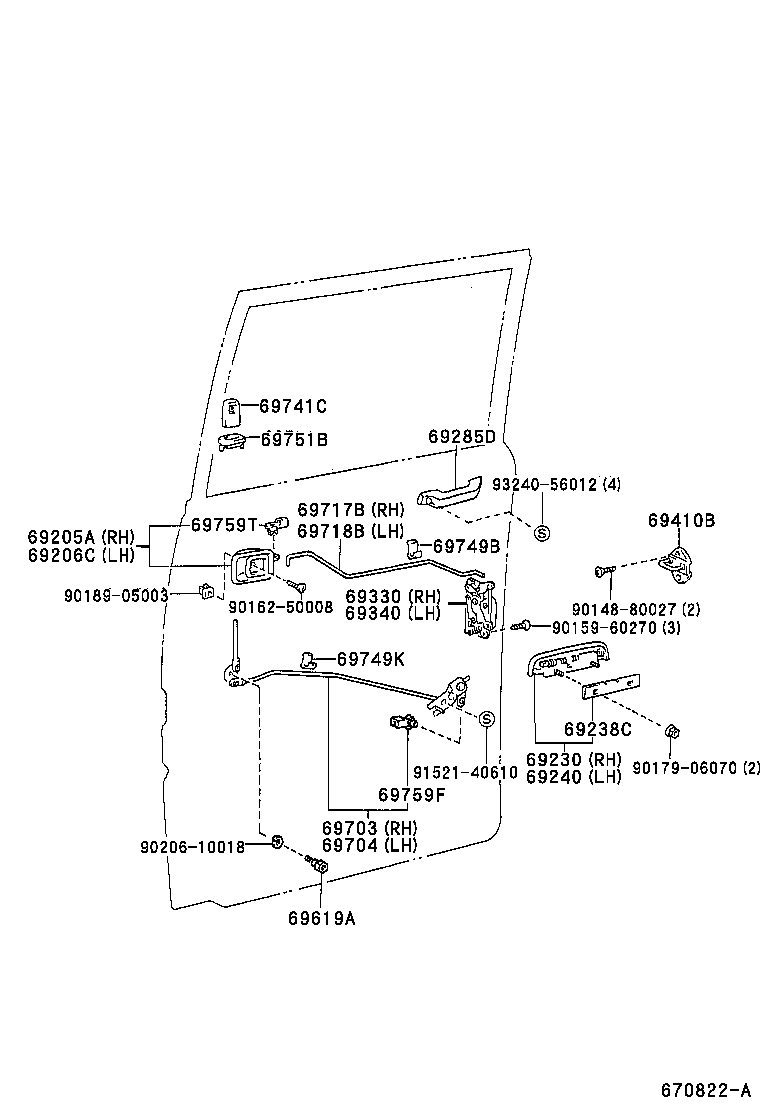

Click highlighted areas on diagram

diagram 69205A 69206C 69230 69238C 69240 69285D 69330 69340 69410B 69619A 69703 69704 69717B 69718B 69741C 69749B 69749K 69751B 69759F 69759T 9014880027 9015960270 9016250008 9017906070 9018905003 9020610018 9152140610 9324056012
Part # Description Qty Price
69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH
69205-95703B0

BU10#,142,147,172,212,297,RZU100..05S,06S,07S

BLUISH GRAY,TRIM1#

 1
69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH
69206-95703B0

BU10#,142,147,172,212,297,RZU100..05S,06S,07S

GRAY,TRIM1#

 1
69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH
69230-95400

BU10#,142,147,172,212,297,RZU100..05S,06S,07S

 1
69238C - PAD, DOOR OUTSIDE HANDLE
69238-95J00

BU10#,142,147,172,212,297,RZU100..05S,06S,07S

 2
69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH
69240-95400

BU10#,142,147,172,212,297,RZU100..05S,06S,07S

 1
69285D - HANDLE, PULL
69285-95700B0

BU10#,142,147,172,212,297,RZU100..05S,06S,07S

GRAY,TRIM1#

 2
69330 - LOCK ASSY, REAR DOOR, RH
69330-95401

BU10#,142,147,172,212,297,RZU100..05S,06S,07S

 1
69340 - LOCK ASSY, REAR DOOR, LH
69340-95402

BU10#,142,147,172,212,297,RZU100..05S,06S,07S

 1
69410B - PLATE ASSY, REAR DOOR LOCK STRIKER
69410-37010

BU10#,142,147,172,212,297,RZU100..05S,06S,07S

 2
69619A - BOLT
69619-95010

BU10#,142,147,172,212,297,RZU100..05S,06S,07S

 2
69703 - LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, RH
69701-95401

BU10#,142,147,172,212,297,RZU100..05S,06S,07S

 1
69704 - LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, LH
69702-95401

BU10#,142,147,172,212,297,RZU100..05S,06S,07S

 1
69717B - LINK, REAR DOOR LOCK REMOTE CONTROL, RH
69713-95400

BU10#,142,147,172,212,297,RZU100..05S,06S,07S

 1
69718B - LINK, REAR DOOR LOCK REMOTE CONTROL, LH
69714-95401

BU10#,142,147,172,212,297,RZU100..05S,06S,07S

 1
69741C - KNOB, REAR DOOR LOCK CONTROL
69741-3201020

BU10#,142,147,172,212,297,RZU100..05S,06S,07S

BLACK,TRIM1#

 2
69749B - CLAMP, REAR DOOR LOCK LINK
69749-12010

BU10#,142,147,172,212,297,RZU100..05S,06S,07S

 2
69749K - CLAMP, REAR DOOR LOCK
69749-12010

BU10#,142,147,172,212,297,RZU100..05S,06S,07S

 2
69751B - HOLDER, DOOR LOCKING(FOR REAR DOOR)
69751-2003120

BU10#,142,147,172,212,297,RZU100..05S,06S,07S

BLACK,TRIM1#

 2
69759F - SNAP, REAR DOOR LOCK CONTROL LINK
69759-24010

BU10#,142,147,172,212,297,RZU100..05S,06S,07S

左側

 1
69759-24020

BU10#,142,147,172,212,297,RZU100..05S,06S,07S

右側

 1
69759T - SNAP, REAR DOOR INSIDE HANDLE
69759-14050

BU10#,142,147,172,212,297,RZU100..05S,06S,07S

右側

 2
69759-24070

BU10#,142,147,172,212,297,RZU100..05S,06S,07S

左側

 2
Common parts
90148-80027
90159-60270
90162-50008
90179-06070
90189-05003
90206-10018
91521-40610
93240-56012
