BU102-PQMMS3 (1995)

Toyota Dyna 200/Toyoace G25

Production May 1995 - May 1999
Engine 15BF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )BU132..T3,T4 ; (9505- )BU10#,112,12#,137,14#,162,172,182,RZU100,140,X

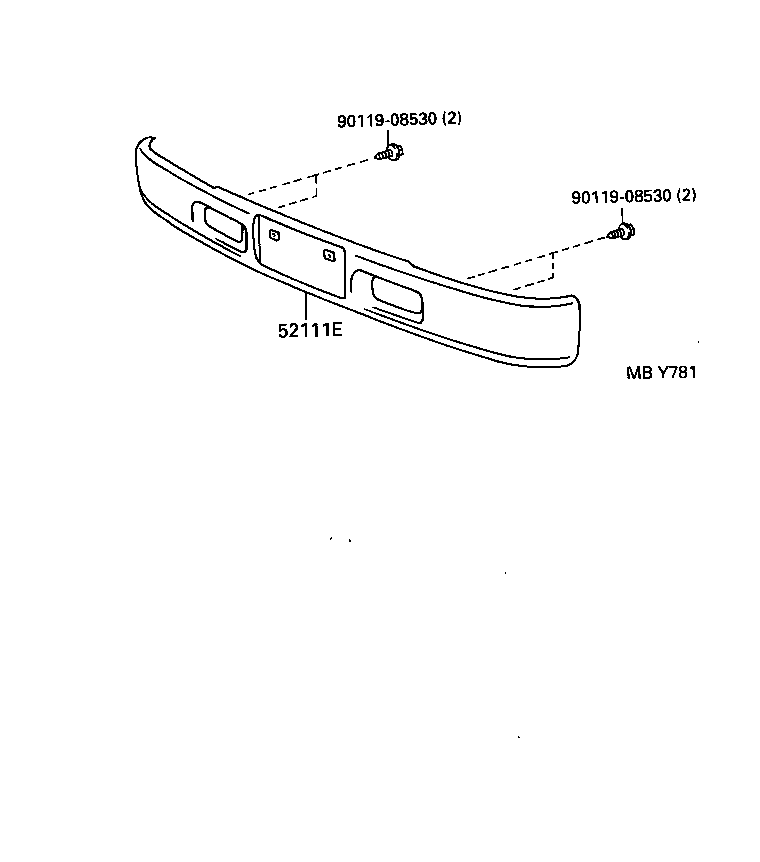

Click highlighted areas on diagram

diagram 52111E 9011908530 9011908530
Part # Description Qty Price
52111E - BAR, FRONT BUMPER
52101-37010B0

XZU130;BU10#,112,12#,132,14#,172,RZU100..03S,05S,06S

SILVER,048

 1
52101-37010H1

BU172..05S..(CBU,IV3);BU10#,112,132,14#,RZU100,XZU130..CBU,IV3

LOIRE TURQUOISE,705

 1
52101-37010A0

XZU130;BU10#,112,12#,132,14#,172,RZU100..03S,05S,06S

WHITE,TRIM1#&048

 1
52101-37070

XZU130;BU10#,112,12#,132,14#,172,RZU100..03S,05S,06S

ﾒﾂｷ ﾊﾞﾝﾊﾟ

 1
52101-37011J0

BU172..05S..(CBU,IV3);BU10#,112,13#,14#,RZU100,140,XZU130,140..(DM2,DM3,DM5,DM6,DM7,DM8,T1,T2,T3,T4,T5,TW1,TW2,TW4)..(CBU,IV3)

BLUE,8E5

 1
52101-37011A0

BU132,XZU130..DM7,T3,T4;BU10#,112,12#,137,14#,172,RZU100,140,XZU140..03S,05S,06S

WHITE,048

 1
52101-37011H1

BU172..05S..(CBU,IV3);BU10#,112,13#,14#,RZU100,140,XZU130,140..(DM2,DM3,DM5,DM6,DM7,DM8,T1,T2,T3,T4,T5,TW1,TW2,TW4)..(CBU,IV3)

LOIRE TURQUOISE,705

 1
52101-37011B0

BU172..05S..(CBU,IV3);BU10#,112,13#,14#,RZU100,140,XZU130,140..(DM2,DM3,DM5,DM6,DM7,DM8,T1,T2,T3,T4,T5,TW1,TW2,TW4)..(CBU,IV3)

SILVER,TRIM1#&8E5

 1
52101-37010J0

BU172..05S..(CBU,IV3);BU10#,112,132,14#,RZU100,XZU130..CBU,IV3

BLUE,8E5

 1
Common parts
90119-08530
