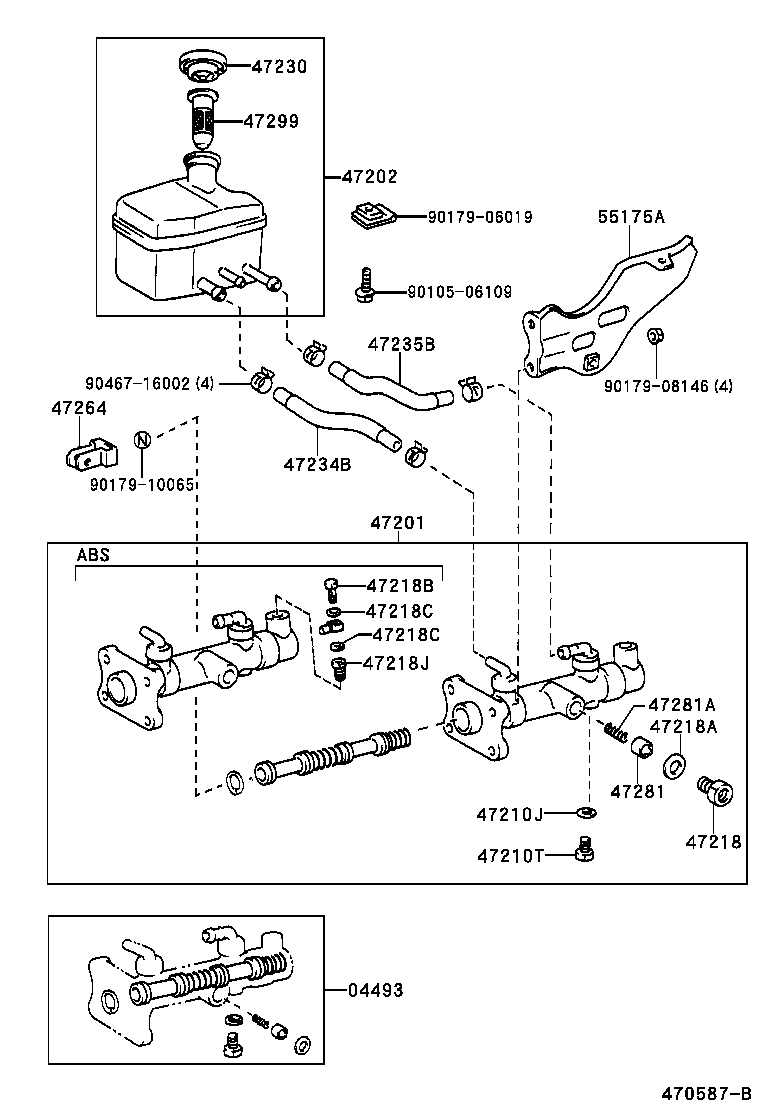

BU102-PQMMS3 (1995)
Toyota Dyna 200/Toyoace G25
(9505- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04493 - CYLINDER KIT, BRAKE MASTER | ||||
| 04493-37010 |
BU182..T4;BU102,162,RZU100..(DM2,DM5,T2,T3,T4,TW1,TW4)..20T..(CBU,IV3);BU100,112,12#,132,140,142,172,202,212,222,RZU140..(TR,V)..(175T,20T)..(CBU,IV3) |
1 | ||
| 04493-37011 |
BU182..T4;BU102,162,RZU100..(DM2,DM5,T2,T3,T4,TW1,TW4)..20T..(CBU,IV3);BU100,112,120,132,140,142,172,202,212,222,RZU140..(TR,V)..(175T,20T)..(CBU,IV3) |
1 | ||
| 04493-37012 |
BU182..T4;BU102,162,RZU100..(DM2,DM5,T2,T3,T4,TW1,TW4)..20T..(CBU,IV3);BU100,112,120,132,140,142,172,202,212,222,RZU140..(TR,V)..(175T,20T)..(CBU,IV3) |
1 | ||
| 47201 - CYLINDER SUB-ASSY, BRAKE MASTER | ||||
| 47201-37020 |
BU182..T4;BU102,162,RZU100..(DM2,DM5,T2,T3,T4,TW1,TW4)..20T..(CBU,IV3);BU100,112,12#,132,140,142,172,202,212,222,RZU140..(TR,V)..(175T,20T)..(CBU,IV3) |
1 | ||
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-37020 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..MTM |
1 | ||
| 47210J - GASKET(FOR MASTER CYLINDER) | ||||
| 90430-06104 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 |
1 | ||
| 47210T - BOLT(FOR BRAKE MASTER CYLINDER) | ||||
| 90109-06008 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 |
1 | ||
| 47218 - PLUG, MASTER CYLINDER FLUID OUTLET | ||||
| 47218-36070 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 |
1 | ||
| 47218A - GASKET(FOR FLUID OUTLET PLUG) | ||||
| 90430-11001 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-37020 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 |
1 | ||
| 47234B - TUBE, RESERVOIR, NO.1 | ||||
| 47234-37060 |
BU105,107,145,147,182..T2,T4,TW4;BU102,162,RZU100..(DM2,DM5,T2,T3,T4,TW1,TW4)..20T..(CBU,IV3);BU100,112,12#,13#,140,142,172,RZU140..(TR,V)..(175T,20T)..(CBU,IV3) |
1 | ||
| 47235B - TUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2 | ||||
| 47235-37040 |
BU105,107,145,147,182..T2,T4,TW4;BU102,162,RZU100..(DM2,DM5,T2,T3,T4,TW1,TW4)..20T..(CBU,IV3);BU100,112,12#,13#,140,142,172,RZU140..(TR,V)..(175T,20T)..(CBU,IV3) |
1 | ||
| 47264 - CLEVIS, MASTER CYLINDER PUSH ROD | ||||
| 47264-50010 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 |
1 | ||
| 47281 - VALVE, BRAKE MASTER CYLINDER OUTLET CHECK | ||||
| 47281-30020 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 |
1 | ||
| 47281A - SPRING COMPRESSION(FOR OUTLET CHECK VALVE) | ||||
| 90501-05012 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 |
1 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-26020 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 |
1 | ||
| 55175A - SUPPORT SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 55175-37010 |
BU102,162..(DM2,DM5,T2,T3,T4,TW4)..20T;BU100,107,112,12#,13#,14#,172,202,212,222,RZU100..(TR,V)..(175T,20T)..(CBU,IV3) |
1 | ||
| 55175-37040 |
BU105,107,145,147,182..T2,T4,TW4;BU102,162,RZU100..(DM2,DM5,T2,T3,T4,TW1,TW4)..20T..(CBU,IV3);BU100,112,12#,13#,140,142,172,202,212,222,RZU140..(TR,V)..(175T,20T)..(CBU,IV3) ｱﾘ(*80) |
1 | ||
| 55175-37010 |
BU105,107,145,147,182..T2,T4,TW4;BU102,162,RZU100..(DM2,DM5,T2,T3,T4,TW1,TW4)..20T..(CBU,IV3);BU100,112,120,13#,140,142,172,202,212,222,RZU140..(TR,V)..(175T,20T)..(CBU,IV3) |
1 | ||
| Common parts | ||||
| 90105-06109 | ||||
| 90179-06019 | ||||
| 90179-08146 | ||||
| 90179-10065 | ||||
| 90467-16002 | ||||
