BU102-PQMMS (1995)

Toyota Dyna 200/Toyoace G25

Production May 1995 - Oct 1996
Engine 15BF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )

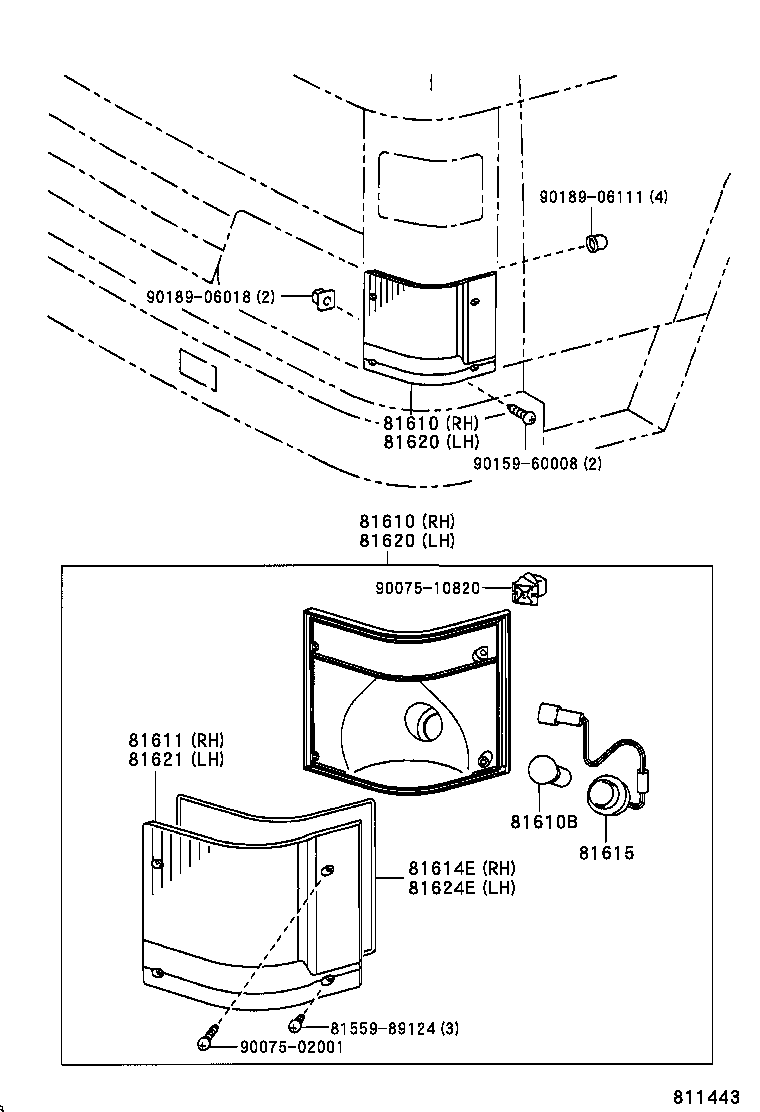

Click highlighted areas on diagram

diagram 8155989124 81610 81610 81610B 81611 81614E 81615 81620 81620 81621 81624E 9007502001 9007510820 9015960008 9018906018 9018906111
Part # Description Qty Price
81610 - LAMP ASSY, PARKING & CLEARANCE, RH
81610-37020

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,XZU130,140..DSL,TD

ｱﾘ(ｺ-ﾅﾘﾝｸﾞ ﾗﾝﾌﾟ)

 1
81610 - LAMP ASSY, PARKING & CLEARANCE, RH
81610-37020

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,XZU130,140..DSL,TD

ｱﾘ(ｺ-ﾅﾘﾝｸﾞ ﾗﾝﾌﾟ)

 1
81610B - BULB(FOR PARKING & CLEARANCE LAMP)
90981-16015

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,XZU130,140..DSL,TD

24V 21/5W,ｱﾘ(ｺ-ﾅﾘﾝｸﾞ ﾗﾝﾌﾟ)

 2
81611 - LENS, PARKING & CLEARANCE LAMP, RH
81611-37010

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140

 1
81614E - GASKET, CLEARANCE LAMP
81614-37010

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140

 1
81615 - SOCKET AND WIRE, CLEARANCE LAMP
81615-37010

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140

ｱﾘ(ｺ-ﾅﾘﾝｸﾞ ﾗﾝﾌﾟ)

 2
81620 - LAMP ASSY, PARKING & CLEARANCE, LH
81620-37020

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,XZU130,140..DSL,TD

ｱﾘ(ｺ-ﾅﾘﾝｸﾞ ﾗﾝﾌﾟ)

 1
81620 - LAMP ASSY, PARKING & CLEARANCE, LH
81620-37020

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,XZU130,140..DSL,TD

ｱﾘ(ｺ-ﾅﾘﾝｸﾞ ﾗﾝﾌﾟ)

 1
81621 - LENS, PARKING & CLEARANCE LAMP, LH
81621-37010

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140

 1
81624E - GASKET, CLEARANCE LAMP, LH
81624-37010

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140

 1
Common parts
81559-89124
90075-02001
90075-10820
90159-60008
90189-06018
90189-06111
