BU102-PQMMS (1995)

Toyota Dyna 200/Toyoace G25

Production May 1995 - Oct 1996
Engine 15BF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )RZU100..TR..EFI,LPG ; (9505- )BU10#,112,13#,14#,162,172,182,202,212,2

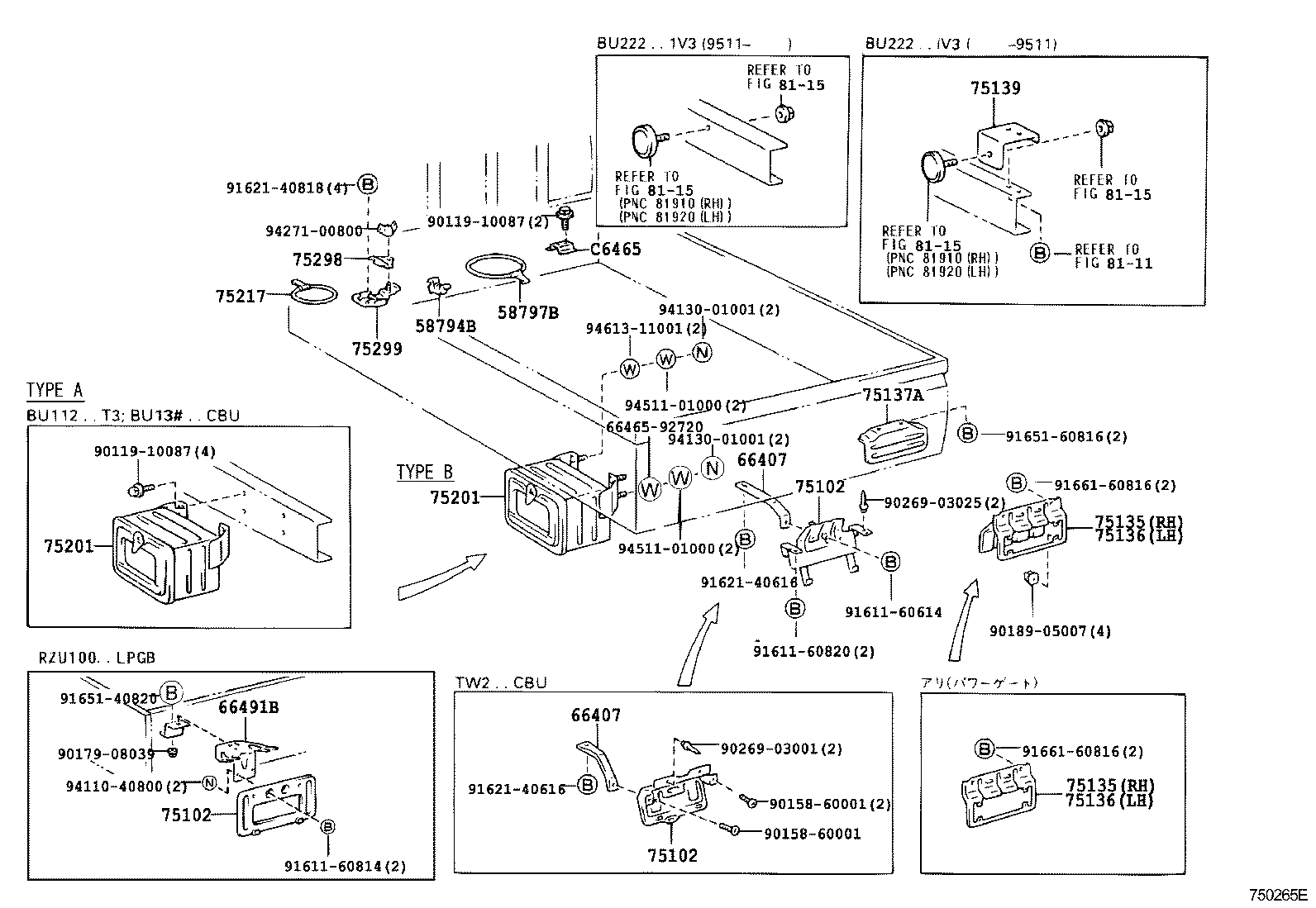

Click highlighted areas on diagram

diagram 58794B 58797B 66407 66407 6646592720 66491B 75102 75102 75102 75135 75135 75136 75136 75137A 75139 75201 75201 75217 75298 75299 8111 8115 8115 8115 8115 9011910087 9011910087 9015860001 9015860001 9017908039 9018905007 9026903001 9026903025 9161160614 9161160814 9161160820 9162140616 9162140616 9162140818 9165140820 9165160816 9166160816 9166160816 9411040800 9413001001 9413001001 9427100800 9451101000 9451101000 9461311001 C6465
Part # Description Qty Price
66407 - STAY SUB-ASSY, LICENSE PLATE BRACKET
66493-37060

RZU100..(T3,TW1)..CBU;BU10#,112,202..(T2,T3,T4,TW4)..20T..CBU

 1
66407 - STAY SUB-ASSY, LICENSE PLATE BRACKET
66493-37060

RZU100..(T3,TW1)..CBU;BU10#,112,202..(T2,T3,T4,TW4)..20T..CBU

 1
75102 - BRACKET SUB-ASSY, REAR LICENSE PLATE
66490-37030

BU10#,112,13#,14#,162,172,182,202,212,222,RZU100,140,XZU140..(T2,T3,T4,T5,TW1,TW4)..CBU

 1
75102 - BRACKET SUB-ASSY, REAR LICENSE PLATE
66490-37030

BU10#,112,13#,14#,162,172,182,202,212,222,RZU100,140,XZU140..(T2,T3,T4,T5,TW1,TW4)..CBU

 1
75102 - BRACKET SUB-ASSY, REAR LICENSE PLATE
66490-37030

BU10#,112,13#,14#,162,172,182,202,212,222,RZU100,140,XZU140..(T2,T3,T4,T5,TW1,TW4)..CBU

 1
75135 - BRACKET, COMBINATION REAR LAMP, RH
75105-37030

BU10#,112,13#,14#,162,172,182,202,212,222,RZU100,140,XZU140..(T2,T3,T4,T5,TW1,TW4)..CBU

 1
75135 - BRACKET, COMBINATION REAR LAMP, RH
75105-37030

BU10#,112,13#,14#,162,172,182,202,212,222,RZU100,140,XZU140..(T2,T3,T4,T5,TW1,TW4)..CBU

 1
75136 - BRACKET, COMBINATION REAR LAMP, LH
75105-37030

BU100..T3..ST..CBU;BU102..(T3,TW4)..CBU;BU14#,182,202,212,222,RZU140,XZU140..CBU;BU100,105,107,172,RZU100..(05S,06S)..20T..CBU

TECS=ﾄﾘﾌﾟﾙ ｷﾔﾌﾞ

 1
75136 - BRACKET, COMBINATION REAR LAMP, LH
75105-37030

BU100..T3..ST..CBU;BU102..(T3,TW4)..CBU;BU14#,182,202,212,222,RZU140,XZU140..CBU;BU100,105,107,172,RZU100..(05S,06S)..20T..CBU

TECS=ﾄﾘﾌﾟﾙ ｷﾔﾌﾞ

 1
75217 - BAND, TOOL BAG
58705-95A01

BU102..TW4;BU162,202,212,222,XZU130,140;BU100,105,107,142,147,172,182,RZU100..02S,05S,06S

 1
Common parts
66465-92720
90119-10087
90158-60001
90179-08039
90189-05007
90269-03001
90269-03025
91611-60614
91611-60814
91611-60820
91621-40616
91621-40818
91651-40820
91651-60816
91661-60816
94110-40800
94130-01001
94271-00800
94511-01000
94613-11001
Linked diagrams
8111
8115
