BU102-PQMMS (1995)

Toyota Dyna 200/Toyoace G25

Production May 1995 - Oct 1996
Engine 15BF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140

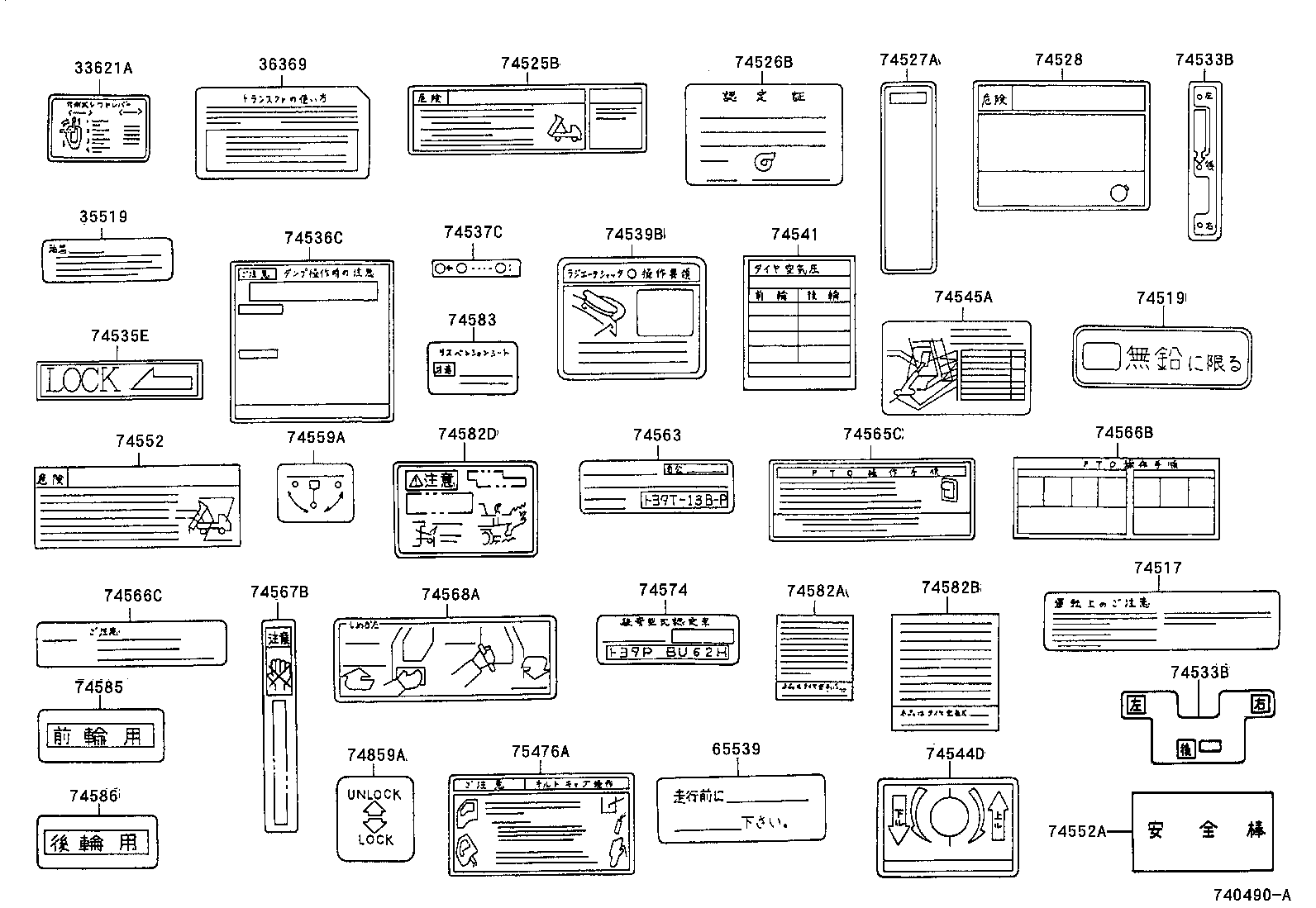

Click highlighted areas on diagram

diagram 33621A 35519 36369 65539 74517 74519 74525B 74526B 74527A 74528 74533B 74533B 74535E 74536C 74537C 74539B 74541 74544D 74545A 74552 74552A 74559A 74563 74565C 74566B 74566C 74567B 74568A 74574 74582A 74582B 74582D 74583 74585 74586 74859A 75476A
Part # Description Qty Price
33621A - PLATE, CONTROL LEVER CAUTION
33621-37020

BU10#,112,12#,13#,14#,202,212,222,RZU100,140,XZU130,140..MTM

 1
74517 - PLATE, EXHAUST TEMPERATURE CAUTION
74517-25010

BU10#,112,12#,132,14#,162,172,182,202,212,222,RZU100

 1
74539B - PLATE, RADIATOR SHUTTER CAUTION
74539-37010

BU100,105,107..5F;BU102,112,13#,14#,202,212,222,RZU100..(ALV,DM2,DM3,DM5,DM6,DM7,DM8,T2,T3,T4,T5,TW1,TW4)..MTM..(DSL,LPGB)..(CBU,IV3)

 1
74541 - PLATE, TIRE PRESSURE CAUTION
74552-37140

BU100,102..TW4

 1
74544D - PLATE, TIRE CARRIER CAUTION
74544-37010

BU172..(T4,TW1)..(CBU,IV3);RZU100,XZU130..DMP..(DSL,LPG)..IV3;BU112,12#,13#,182,202,222,RZU140,XZU140..TR,V;BU10#,14#,162,212,RZU100..(ALV,DM5,T1,T3,T4,T5,TW1,TW2,TW4)..(CBU,IV3)

 1
74565C - LABEL, POWER TAKE-OFF SWITCH INFORMATION
74565-93102

RZU100..03S;XZU130..IV3;BU10#,112,132,14#,162,172,182,202,212,222..(DM6,T1,T2,T3,T4,T5,TW2,TW4)..5F

 1
74565-93102

RZU100..03S;BU102..DM5..IV3;BU10#,112,132,14#,162,172,182,202,212,222..(DM6,T1,T2,T3,T4,T5,TW2,TW4)..5F

 1
