BU100-TSMLS3 (1995)

Toyota Dyna 200/Toyoace G25

Production May 1995 - May 1999
Engine 3B
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

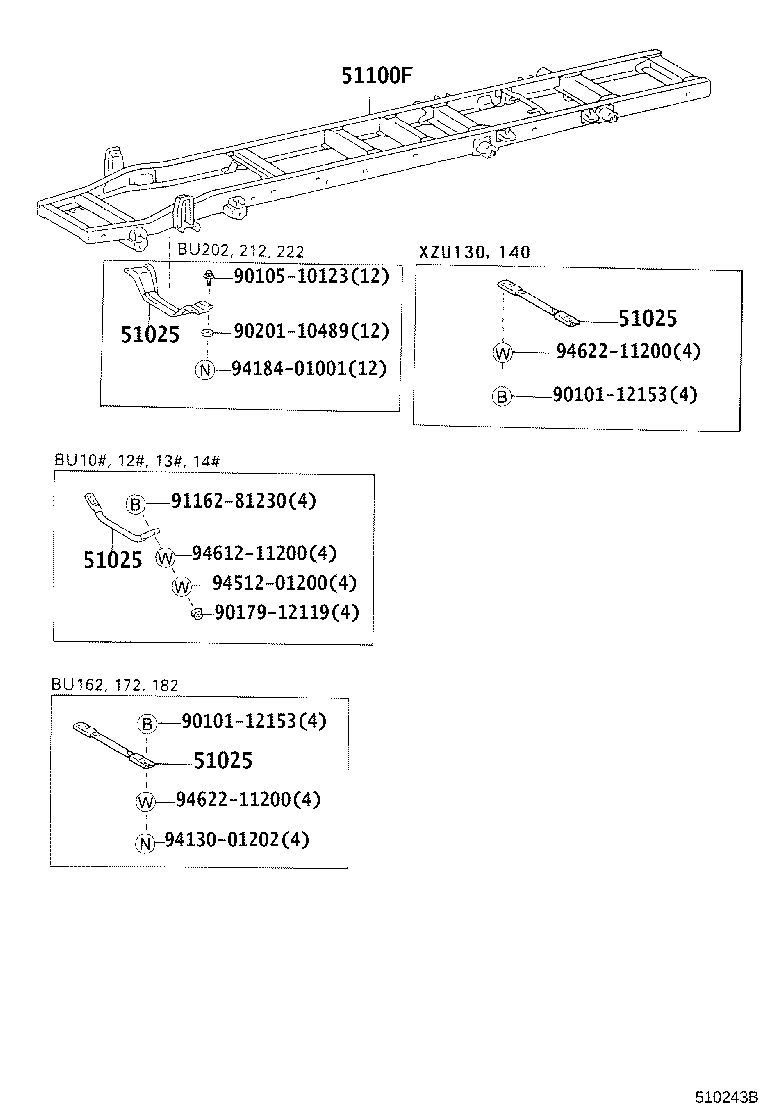

ILLUST NO. 1 OF 5(9505- )BU132..T3,T4 ; (9505- )BU10#,112,12#,137,14#,162,172,182,202,212,222,

Click highlighted areas on diagram

diagram 51025 51025 51025 51025 51100F 9010112153 9010112153 9010510123 9017912119 9020110489 9116281230 9413001202 9418401001 9451201200 9461211200 9462211200 9462211200
Part # Description Qty Price
51025 - MEMBER SUB-ASSY, ENGINE FRONT MOUNTING
51025-36040

BU100,102,12#,132,140,142,RZU100..DSL,LPGB

 1
51025 - MEMBER SUB-ASSY, ENGINE FRONT MOUNTING
51025-36040

BU100,102,12#,132,140,142,RZU100..DSL,LPGB

 1
51025 - MEMBER SUB-ASSY, ENGINE FRONT MOUNTING
51025-36040

BU100,102,12#,132,140,142,RZU100..DSL,LPGB

 1
51025 - MEMBER SUB-ASSY, ENGINE FRONT MOUNTING
51025-36040

BU100,102,12#,132,140,142,RZU100..DSL,LPGB

 1
51100F - FRAME SUB-ASSY
51001-37590

BU100..T1

 1
Common parts
90101-12153
90105-10123
90179-12119
90201-10489
91162-81230
94130-01202
94184-01001
94512-01200
94612-11200
94622-11200

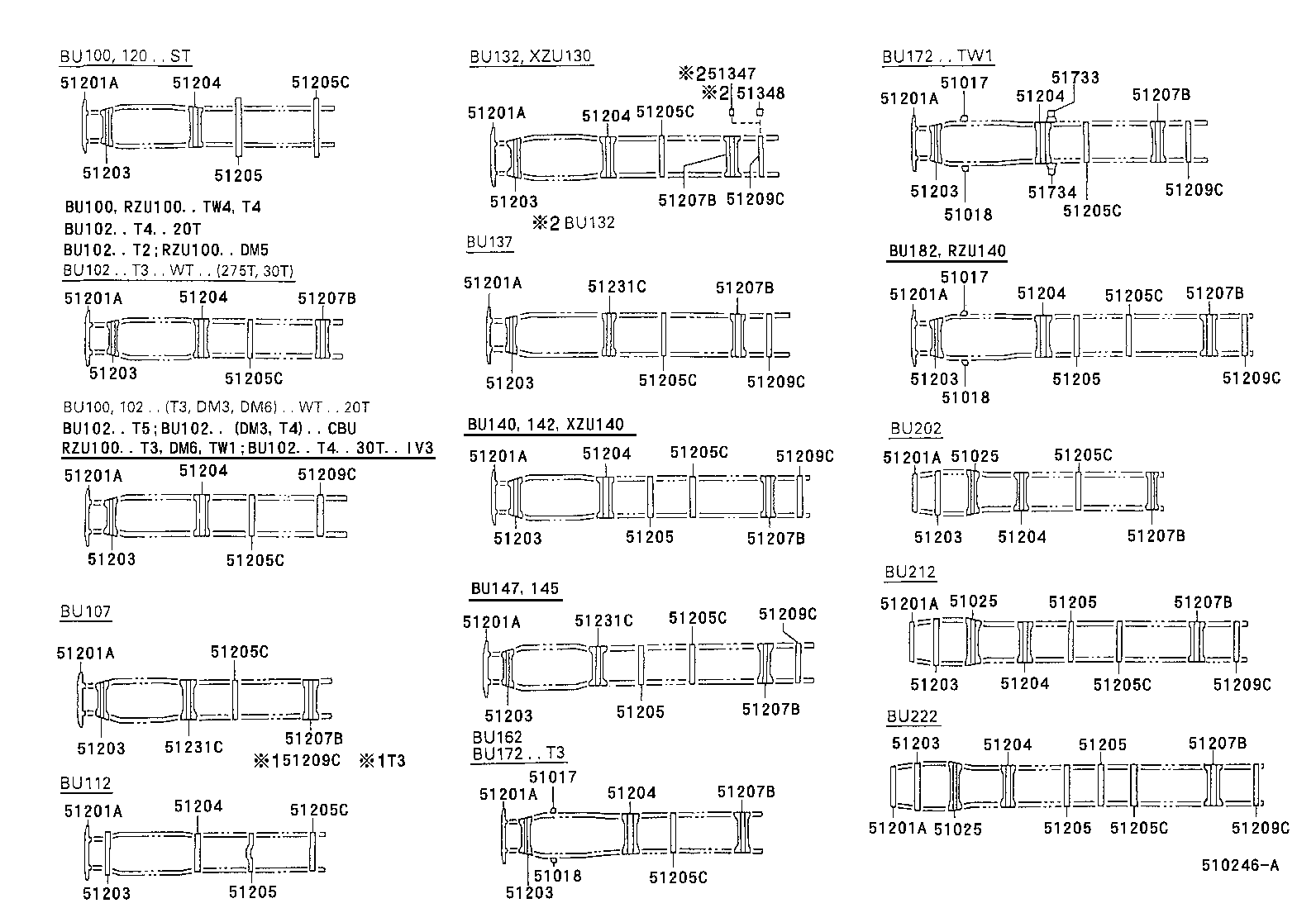

ILLUST NO. 2 OF 5(9505- )BU132..T3,T4 ; (9505- )BU10#,112,12#,137,14#,162,172,182,202,212,222,

Click highlighted areas on diagram

diagram 51017 51017 51017 51018 51018 51018 51025 51025 51025 51201A 51201A 51201A 51201A 51201A 51201A 51201A 51201A 51201A 51201A 51201A 51201A 51201A 51201A 51201A 51203 51203 51203 51203 51203 51203 51203 51203 51203 51203 51203 51203 51203 51203 51203 51204 51204 51204 51204 51204 51204 51204 51204 51204 51204 51204 51204 51205 51205 51205 51205 51205 51205 51205 51205 51205C 51205C 51205C 51205C 51205C 51205C 51205C 51205C 51205C 51205C 51205C 51205C 51205C 51205C 51205C 51207B 51207B 51207B 51207B 51207B 51207B 51207B 51207B 51207B 51207B 51207B 51207B 51209C 51209C 51209C 51209C 51209C 51209C 51209C 51209C 51209C 51209C 51231C 51231C 51231C 51347 51348 51733 51734
Part # Description Qty Price
51025 - MEMBER SUB-ASSY, ENGINE FRONT MOUNTING
51025-36040

BU100,102,12#,132,140,142,RZU100..DSL,LPGB

 1
51025 - MEMBER SUB-ASSY, ENGINE FRONT MOUNTING
51025-36040

BU100,102,12#,132,140,142,RZU100..DSL,LPGB

 1
51025 - MEMBER SUB-ASSY, ENGINE FRONT MOUNTING
51025-36040

BU100,102,12#,132,140,142,RZU100..DSL,LPGB

 1
51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT
51201-37040

BU10#,112,12#,13#,14#,162,172,182,RZU100,140,XZU130,140

 1
51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT
51201-37040

BU10#,112,12#,13#,14#,162,172,182,RZU100,140,XZU130,140

 1
51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT
51201-37040

BU10#,112,12#,13#,14#,162,172,182,RZU100,140,XZU130,140

 1
51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT
51201-37040

BU10#,112,12#,13#,14#,162,172,182,RZU100,140,XZU130,140

 1
51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT
51201-37040

BU10#,112,12#,13#,14#,162,172,182,RZU100,140,XZU130,140

 1
51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT
51201-37040

BU10#,112,12#,13#,14#,162,172,182,RZU100,140,XZU130,140

 1
51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT
51201-37040

BU10#,112,12#,13#,14#,162,172,182,RZU100,140,XZU130,140

 1
51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT
51201-37040

BU10#,112,12#,13#,14#,162,172,182,RZU100,140,XZU130,140

 1
51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT
51201-37040

BU10#,112,12#,13#,14#,162,172,182,RZU100,140,XZU130,140

 1
51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT
51201-37040

BU10#,112,12#,13#,14#,162,172,182,RZU100,140,XZU130,140

 1
51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT
51201-37040

BU10#,112,12#,13#,14#,162,172,182,RZU100,140,XZU130,140

 1
51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT
51201-37040

BU10#,112,12#,13#,14#,162,172,182,RZU100,140,XZU130,140

 1
51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT
51201-37040

BU10#,112,12#,13#,14#,162,172,182,RZU100,140,XZU130,140

 1
51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT
51201-37040

BU10#,112,12#,13#,14#,162,172,182,RZU100,140,XZU130,140

 1
51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT
51201-37040

BU10#,112,12#,13#,14#,162,172,182,RZU100,140,XZU130,140

 1
51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2
51202-36130

BU10#,12#,13#,14#,162,172,182,RZU100,140,XZU130,140

 1
51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2
51202-36130

BU10#,12#,13#,14#,162,172,182,RZU100,140,XZU130,140

 1
51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2
51202-36130

BU10#,12#,13#,14#,162,172,182,RZU100,140,XZU130,140

 1
51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2
51202-36130

BU10#,12#,13#,14#,162,172,182,RZU100,140,XZU130,140

 1
51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2
51202-36130

BU10#,12#,13#,14#,162,172,182,RZU100,140,XZU130,140

 1
51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2
51202-36130

BU10#,12#,13#,14#,162,172,182,RZU100,140,XZU130,140

 1
51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2
51202-36130

BU10#,12#,13#,14#,162,172,182,RZU100,140,XZU130,140

 1
51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2
51202-36130

BU10#,12#,13#,14#,162,172,182,RZU100,140,XZU130,140

 1
51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2
51202-36130

BU10#,12#,13#,14#,162,172,182,RZU100,140,XZU130,140

 1
51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2
51202-36130

BU10#,12#,13#,14#,162,172,182,RZU100,140,XZU130,140

 1
51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2
51202-36130

BU10#,12#,13#,14#,162,172,182,RZU100,140,XZU130,140

 1
51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2
51202-36130

BU10#,12#,13#,14#,162,172,182,RZU100,140,XZU130,140

 1
51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2
51202-36130

BU10#,12#,13#,14#,162,172,182,RZU100,140,XZU130,140

 1
51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2
51202-36130

BU10#,12#,13#,14#,162,172,182,RZU100,140,XZU130,140

 1
51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2
51202-36130

BU10#,12#,13#,14#,162,172,182,RZU100,140,XZU130,140

 1
51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3
51203-36250

BU10#..T3..ST;BU12#,14#,202,212..20T;BU10#,RZU100..DM2,DM5,T1,T2,T4,TW2,TW4

 1
51203-36251

BU100,102..T3..ST;BU12#,140,142,202,212,RZU140..20T;BU100,102,RZU100..(DM2,DM5,T1,T2,T4,TW2,TW4)..(175T,20T)

 1
51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3
51203-36250

BU10#..T3..ST;BU12#,14#,202,212..20T;BU10#,RZU100..DM2,DM5,T1,T2,T4,TW2,TW4

 1
51203-36251

BU100,102..T3..ST;BU12#,140,142,202,212,RZU140..20T;BU100,102,RZU100..(DM2,DM5,T1,T2,T4,TW2,TW4)..(175T,20T)

 1
51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3
51203-36250

BU10#..T3..ST;BU12#,14#,202,212..20T;BU10#,RZU100..DM2,DM5,T1,T2,T4,TW2,TW4

 1
51203-36251

BU100,102..T3..ST;BU12#,140,142,202,212,RZU140..20T;BU100,102,RZU100..(DM2,DM5,T1,T2,T4,TW2,TW4)..(175T,20T)

 1
51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3
51203-36250

BU10#..T3..ST;BU12#,14#,202,212..20T;BU10#,RZU100..DM2,DM5,T1,T2,T4,TW2,TW4

 1
51203-36251

BU100,102..T3..ST;BU12#,140,142,202,212,RZU140..20T;BU100,102,RZU100..(DM2,DM5,T1,T2,T4,TW2,TW4)..(175T,20T)

 1
51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3
51203-36250

BU10#..T3..ST;BU12#,14#,202,212..20T;BU10#,RZU100..DM2,DM5,T1,T2,T4,TW2,TW4

 1
51203-36251

BU100,102..T3..ST;BU12#,140,142,202,212,RZU140..20T;BU100,102,RZU100..(DM2,DM5,T1,T2,T4,TW2,TW4)..(175T,20T)

 1
51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3
51203-36250

BU10#..T3..ST;BU12#,14#,202,212..20T;BU10#,RZU100..DM2,DM5,T1,T2,T4,TW2,TW4

 1
51203-36251

BU100,102..T3..ST;BU12#,140,142,202,212,RZU140..20T;BU100,102,RZU100..(DM2,DM5,T1,T2,T4,TW2,TW4)..(175T,20T)

 1
51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3
51203-36250

BU10#..T3..ST;BU12#,14#,202,212..20T;BU10#,RZU100..DM2,DM5,T1,T2,T4,TW2,TW4

 1
51203-36251

BU100,102..T3..ST;BU12#,140,142,202,212,RZU140..20T;BU100,102,RZU100..(DM2,DM5,T1,T2,T4,TW2,TW4)..(175T,20T)

 1
51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3
51203-36250

BU10#..T3..ST;BU12#,14#,202,212..20T;BU10#,RZU100..DM2,DM5,T1,T2,T4,TW2,TW4

 1
51203-36251

BU100,102..T3..ST;BU12#,140,142,202,212,RZU140..20T;BU100,102,RZU100..(DM2,DM5,T1,T2,T4,TW2,TW4)..(175T,20T)

 1
51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3
51203-36250

BU10#..T3..ST;BU12#,14#,202,212..20T;BU10#,RZU100..DM2,DM5,T1,T2,T4,TW2,TW4

 1
51203-36251

BU100,102..T3..ST;BU12#,140,142,202,212,RZU140..20T;BU100,102,RZU100..(DM2,DM5,T1,T2,T4,TW2,TW4)..(175T,20T)

 1
51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3
51203-36250

BU10#..T3..ST;BU12#,14#,202,212..20T;BU10#,RZU100..DM2,DM5,T1,T2,T4,TW2,TW4

 1
51203-36251

BU100,102..T3..ST;BU12#,140,142,202,212,RZU140..20T;BU100,102,RZU100..(DM2,DM5,T1,T2,T4,TW2,TW4)..(175T,20T)

 1
51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3
51203-36250

BU10#..T3..ST;BU12#,14#,202,212..20T;BU10#,RZU100..DM2,DM5,T1,T2,T4,TW2,TW4

 1
51203-36251

BU100,102..T3..ST;BU12#,140,142,202,212,RZU140..20T;BU100,102,RZU100..(DM2,DM5,T1,T2,T4,TW2,TW4)..(175T,20T)

 1
51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3
51203-36250

BU10#..T3..ST;BU12#,14#,202,212..20T;BU10#,RZU100..DM2,DM5,T1,T2,T4,TW2,TW4

 1
51203-36251

BU100,102..T3..ST;BU12#,140,142,202,212,RZU140..20T;BU100,102,RZU100..(DM2,DM5,T1,T2,T4,TW2,TW4)..(175T,20T)

 1
51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4
51241-36170

BU100,102,12#..ST

 1
51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4
51241-36170

BU100,102,12#..ST

 1
51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4
51241-36170

BU100,102,12#..ST

 1
51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4
51241-36170

BU100,102,12#..ST

 1
51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4
51241-36170

BU100,102,12#..ST

 1
51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4
51241-36170

BU100,102,12#..ST

 1
51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4
51241-36170

BU100,102,12#..ST

 1
51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4
51241-36170

BU100,102,12#..ST

 1
51205C - CROSSMEMBER SUB-ASSY, FRAME, NO.5
51251-36140

BU100,102,12#..ST

 1
51205C - CROSSMEMBER SUB-ASSY, FRAME, NO.5
51251-36140

BU100,102,12#..ST

 1
51205C - CROSSMEMBER SUB-ASSY, FRAME, NO.5
51251-36140

BU100,102,12#..ST

 1
51205C - CROSSMEMBER SUB-ASSY, FRAME, NO.5
51251-36140

BU100,102,12#..ST

 1
51205C - CROSSMEMBER SUB-ASSY, FRAME, NO.5
51251-36140

BU100,102,12#..ST

 1
51205C - CROSSMEMBER SUB-ASSY, FRAME, NO.5
51251-36140

BU100,102,12#..ST

 1
51205C - CROSSMEMBER SUB-ASSY, FRAME, NO.5
51251-36140

BU100,102,12#..ST

 1
51205C - CROSSMEMBER SUB-ASSY, FRAME, NO.5
51251-36140

BU100,102,12#..ST

 1
51205C - CROSSMEMBER SUB-ASSY, FRAME, NO.5
51251-36140

BU100,102,12#..ST

 1
51205C - CROSSMEMBER SUB-ASSY, FRAME, NO.5
51251-36140

BU100,102,12#..ST

 1
51205C - CROSSMEMBER SUB-ASSY, FRAME, NO.5
51251-36140

BU100,102,12#..ST

 1
51205C - CROSSMEMBER SUB-ASSY, FRAME, NO.5
51251-36140

BU100,102,12#..ST

 1
51205C - CROSSMEMBER SUB-ASSY, FRAME, NO.5
51251-36140

BU100,102,12#..ST

 1
51205C - CROSSMEMBER SUB-ASSY, FRAME, NO.5
51251-36140

BU100,102,12#..ST

 1
51205C - CROSSMEMBER SUB-ASSY, FRAME, NO.5
51251-36140

BU100,102,12#..ST

 1

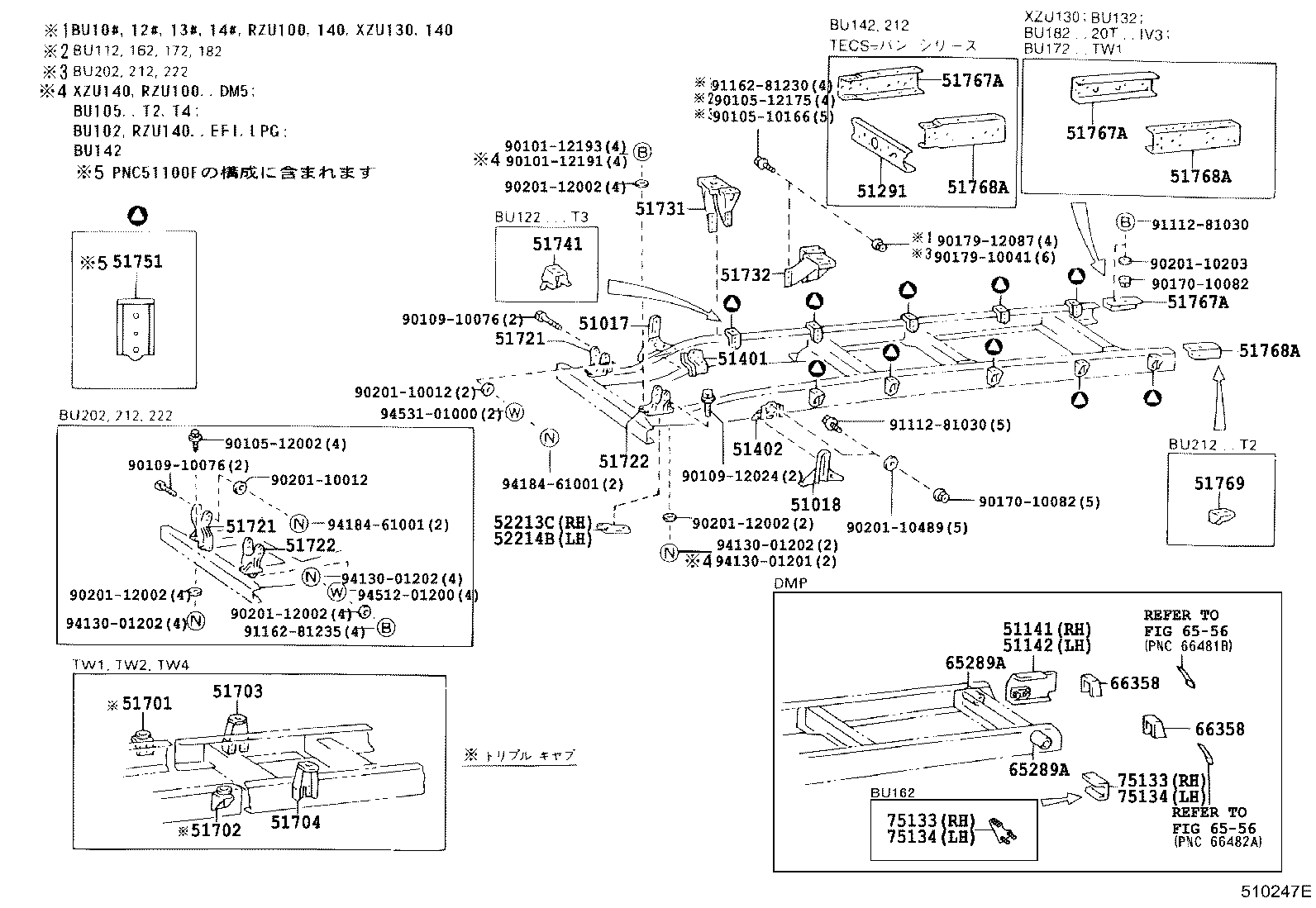

ILLUST NO. 3 OF 5(9505- )BU132..T3,T4 ; (9505- )BU10#,112,12#,137,14#,162,172,182,202,212,222,

Click highlighted areas on diagram

diagram 51017 51018 51141 51142 51291 51401 51402 51701 51702 51703 51704 51721 51721 51722 51722 51731 51732 51741 51751 51767A 51767A 51767A 51768A 51768A 51768A 51769 52213C 52214B 65289A 65289A 6556 6556 66358 66358 75133 75133 75134 75134 9010112191 9010112193 9010510166 9010512002 9010512175 9010910076 9010910076 9010912024 9017010082 9017010082 9017910041 9017912087 9020110012 9020110012 9020110203 9020110489 9020112002 9020112002 9020112002 9020112002 9111281030 9111281030 9116281230 9116281235 9413001201 9413001202 9413001202 9413001202 9418461001 9418461001 9451201200 9453101000
Part # Description Qty Price
51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH
51421-36140

BU100,102,12#,132,140,142,RZU100..DSL,LPGB

 1
51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH
51422-36100

BU100,102,12#,132,140,142,RZU100..DSL,LPGB

 1
51721 - BRACKET, CAB FRONT MOUNTING, RH
51711-37030

BU132,XZU130..DM7,T3,T4;BU10#,112,12#,137,14#,172,RZU100..03S,05S,06S

 1
51721 - BRACKET, CAB FRONT MOUNTING, RH
51711-37030

BU132,XZU130..DM7,T3,T4;BU10#,112,12#,137,14#,172,RZU100..03S,05S,06S

 1
51722 - BRACKET, CAB FRONT MOUNTING, LH
51712-36020

BU132,XZU130..DM7,T3,T4;BU10#,112,12#,137,14#,172,RZU100..03S,05S,06S

 1
51722 - BRACKET, CAB FRONT MOUNTING, LH
51712-36020

BU132,XZU130..DM7,T3,T4;BU10#,112,12#,137,14#,172,RZU100..03S,05S,06S

 1
51731 - BRACKET, CAB REAR MOUNTING, RH
51731-36100

BU100,102,112,12#,132,140,142,162,172,182,RZU100,140,XZU130,140

 1
51732 - BRACKET, CAB REAR MOUNTING, LH
51731-36100

BU100,102,112,12#,132,140,142,162,172,182,RZU100,140,XZU130,140

 1
51751 - BRACKET, BODY SUPPORT, NO.1
51751-36050

BU100..T1;BU14#,RZU140..(T2,T4)..20T

 10
Common parts
90101-12191
90101-12193
90105-10166
90105-12002
90105-12175
90109-10076
90109-12024
90170-10082
90179-10041
90179-12087
90201-10012
90201-10203
90201-10489
90201-12002
91112-81030
91162-81230
91162-81235
94130-01201
94130-01202
94184-61001
94512-01200
94531-01000
Linked diagrams
6556

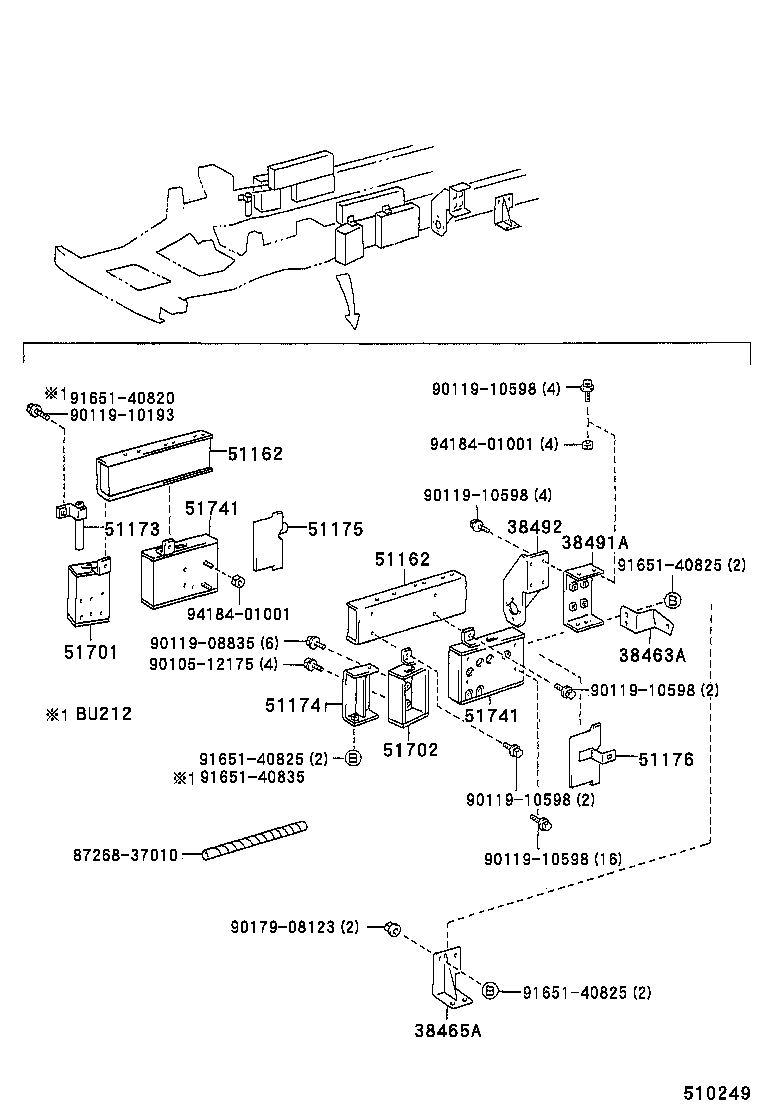

ILLUST NO. 4 OF 5(9505- )

Click highlighted areas on diagram

ｸﾚ-ﾝｼﾔ

diagram 38463A 38465A 38491A 38492 51162 51162 51173 51174 51175 51176 51701 51702 51741 51741 8726837010 9010512175 9011908835 9011910193 9011910598 9011910598 9011910598 9011910598 9011910598 9017908123 9165140820 9165140825 9165140825 9165140825 9165140835 9418401001 9418401001
Part # Description Qty Price
Common parts
87268-37010
90105-12175
90119-08835
90119-10193
90119-10598
90179-08123
91651-40820
91651-40825
91651-40835
94184-01001
