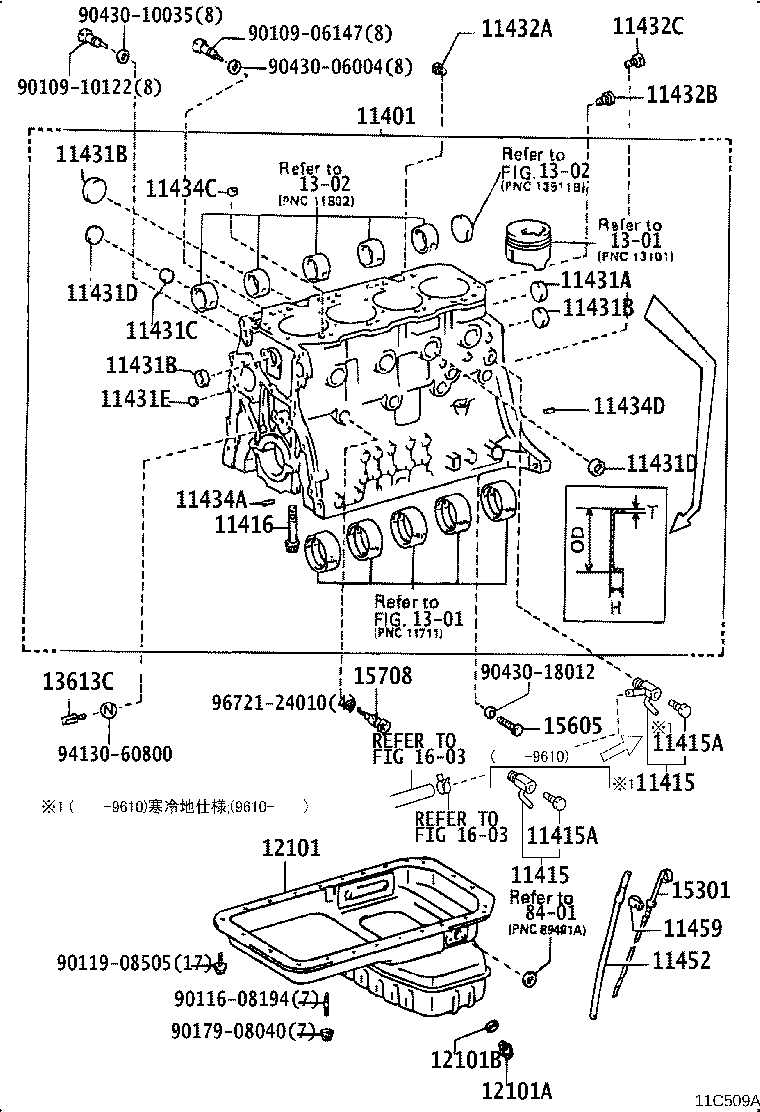

BU100-TSMLS3 (1995)
Toyota Dyna 200/Toyoace G25
(9505-9906)3B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11401-59417 |
3B..BU100,105,120,140,145 |
1 | ||
| 11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK) | ||||
| 90910-09078 |
3B..BU100,120,140 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 96431-53828 |
15BFP,3B..BU100,120,14# |
1 | ||
| 11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK) | ||||
| 90910-09078 |
3B..BU100,120,140 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 96431-53828 |
15BFP,3B..BU100,120,14# |
1 | ||
| 11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK) | ||||
| 96432-23814 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 90910-09087 |
15BF,15BFT,3B..BU10#,112,120,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK) | ||||
| 96432-23814 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 90910-09087 |
15BF,15BFT,3B..BU10#,112,120,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90910-02082 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 *16−2.0PX93.5−32 |
5 | ||
| 90910-02083 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 *16−2.0PX129.5−32 |
5 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 96411-14500 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) | ||||
| 96411-45000 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 外径=50,厚さ=1.6,高さ=12 |
3 | ||
| 96411-65000 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 外径=50,厚さ=1.2,高さ=12 |
1 | ||
| 90331-50003 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 外径=50,厚さ=1.2,高さ=9 |
1 | ||
| 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) | ||||
| 96411-45000 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 外径=50,厚さ=1.6,高さ=12 |
3 | ||
| 96411-65000 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 外径=50,厚さ=1.2,高さ=12 |
1 | ||
| 90331-50003 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 外径=50,厚さ=1.2,高さ=9 |
1 | ||
| 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) | ||||
| 96411-45000 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 外径=50,厚さ=1.6,高さ=12 |
3 | ||
| 96411-65000 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 外径=50,厚さ=1.2,高さ=12 |
1 | ||
| 90331-50003 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 外径=50,厚さ=1.2,高さ=9 |
1 | ||
| 11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK) | ||||
| 96411-63000 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
4 | ||
| 11431D - PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK) | ||||
| 96411-63500 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
5 | ||
| 11431D - PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK) | ||||
| 96411-63500 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
5 | ||
| 11431E - PLUG, TIGHT, NO.5(FOR CYLINDER BLOCK) | ||||
| 90331-14006 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
3 | ||
| 11432A - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90345-51007 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
4 | ||
| 11432B - PLUG, W/HEAD TAPER SCREW, NO.2 | ||||
| 90345-53004 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 11432C - PLUG, W/HEAD TAPER SCREW, NO.3 | ||||
| 90345-52001 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET) | ||||
| 90250-08120 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 長さ=18,外径=8 |
4 | ||
| 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) | ||||
| 90253-15008 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 長さ=9.0,外径=14.5 |
2 | ||
| 11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL) | ||||
| 90250-08120 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 長さ=18,外径=8 |
2 | ||
| 11452 - GUIDE, OIL LEVEL GAGE | ||||
| 11452-56050 |
3B..BU100,105,120,140,145 |
1 | ||
| 11459 - SUPPORT, OIL LEVEL GAGE GUIDE | ||||
| 11459-56040 |
3B..BU100,105,120,140,145 |
1 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12101-58102 |
15BF..BU202,212,222;15BF..BU102,107,112,132,142,147..4FC;15BFP,15BFT,3B..BU100,120,140,142,212,222 |
1 | ||
| 12101-58170 |
15B#,3B..BU10#,112,12#,13#,14#,202,212,222..CBU,IV3 |
1 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90341-12026 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90430-12031 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 13613C - NOZZLE, OIL | ||||
| 90915-01015 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-58011 |
3B..BU100,105,120,140,145 |
1 | ||
| 15605 - VALVE SUB-ASSY, OIL CHECK | ||||
| 15605-56010 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 15708 - NOZZLE SUB-ASSY, OIL, NO.1 | ||||
| 15708-56010 |
3B..BU100,105,120,140,145 |
4 | ||
| Common parts | ||||
| 90109-06147 | ||||
| 90109-10122 | ||||
| 90116-08194 | ||||
| 90119-08505 | ||||
| 90179-08040 | ||||
| 90430-06004 | ||||
| 90430-10035 | ||||
| 90430-18012 | ||||
| 94130-60800 | ||||
| 96721-24010 | ||||
| Linked diagrams | ||||
| 1301 | ||||
| 1302 | ||||
| 1603 | ||||
| 8401 | ||||
