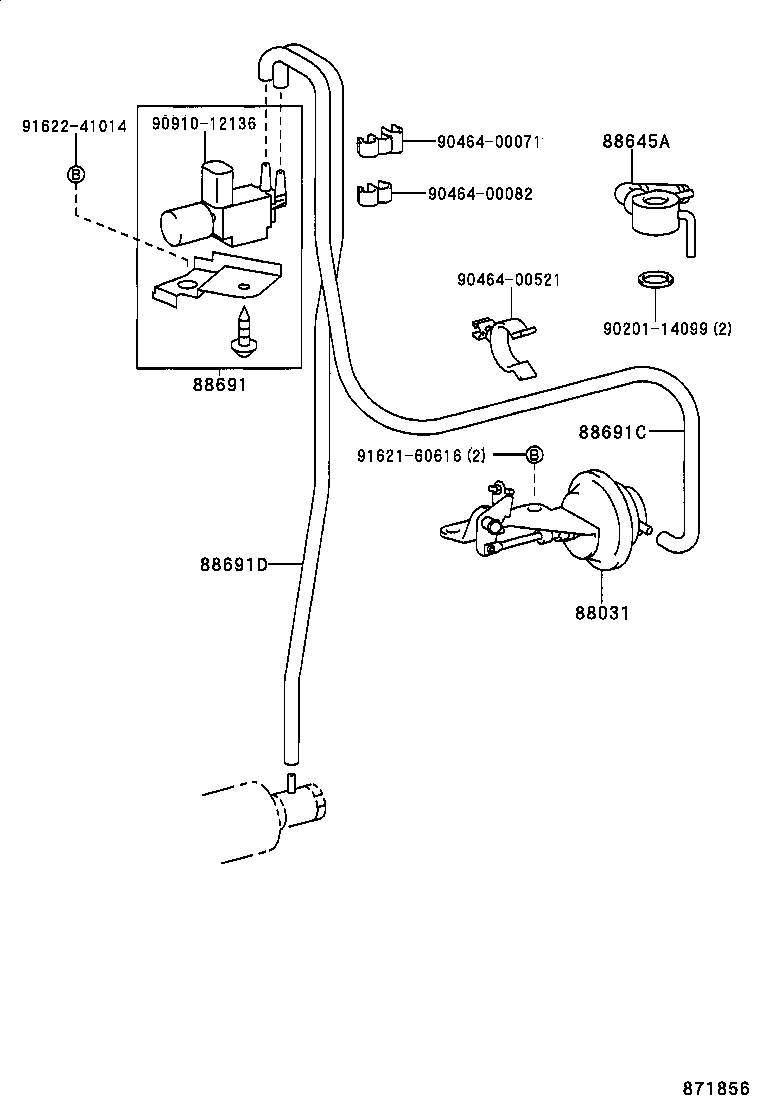

Toyota Dyna 200/toyoace g25 BU100 HEATING & AIR CONDITIONING - VACUUM PIPING

Part #	Description	Period	Qty
88031 - ACTUATOR SET, IDLE-UP
88031-30060	BU100,105,120,140,145 ｱﾘ(ｴｱｺﾝ)	05/1995 - 05/1999	1
88031-36070	BU100,140	05/1995 - 10/1996	1
88645A - UNION (FOR IDLE UP DEVICE)
90405-09164	BU100,105,140,145	12/1996 - 05/1999	1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
25860-58060	BU100,105,140,145	05/1995 - 06/1999	1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92003	BU100,140 H,L=540,ﾏｰｸ=#,ﾋ-ﾀｱｲﾄﾞﾙｱﾂﾌﾟ	05/1995 - 03/1996	1
90999-92003	BU100,140 H,L=450,ﾏｰｸ=#,ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ	05/1995 - 10/1996	1
90999-92003	BU140;BU100..CBU;BU100..T3..ST..IV3;BU100..(DM6,T1,TW2,TW4)..IV3 H,L=540,ﾏｰｸ=#,ﾋ-ﾀｱｲﾄﾞﾙｱﾂﾌﾟ	03/1996 - 05/1999	1
88691D - HOSE, VACUUM (FOR IDLE UP DIVICE), NO.2
90999-92003	BU100,140 H,L=450,ﾏｰｸ=#,ﾋ-ﾀｱｲﾄﾞﾙｱﾂﾌﾟ	05/1995 - 03/1996	1
90999-92003	BU140;BU100..CBU;BU100..T3..ST..IV3;BU100..(DM6,T1,TW2,TW4)..IV3 H,L=450,ﾏｰｸ=#,ﾋ-ﾀｱｲﾄﾞﾙｱﾂﾌﾟ	03/1996 - 10/1996	1
90999-92003	BU100,140 H,L=540,ﾏｰｸ=#,ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ	05/1995 - 10/1996	1
90999-92003	BU100,140 H,L=540,ﾏｰｸ=#,ｱﾘ(ｱｲﾄﾞﾙｱﾂﾌﾟ)	10/1996 - 12/2999	1
Common parts
90201-14099
90464-00071
90464-00082
90464-00521
90910-12136
91621-60616
91622-41014

BU100-TSMLS (1995)
