BU100-TQMMS (1995)

Toyota Dyna 200/Toyoace G25

Production May 1995 - Aug 1997
Engine 3B
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

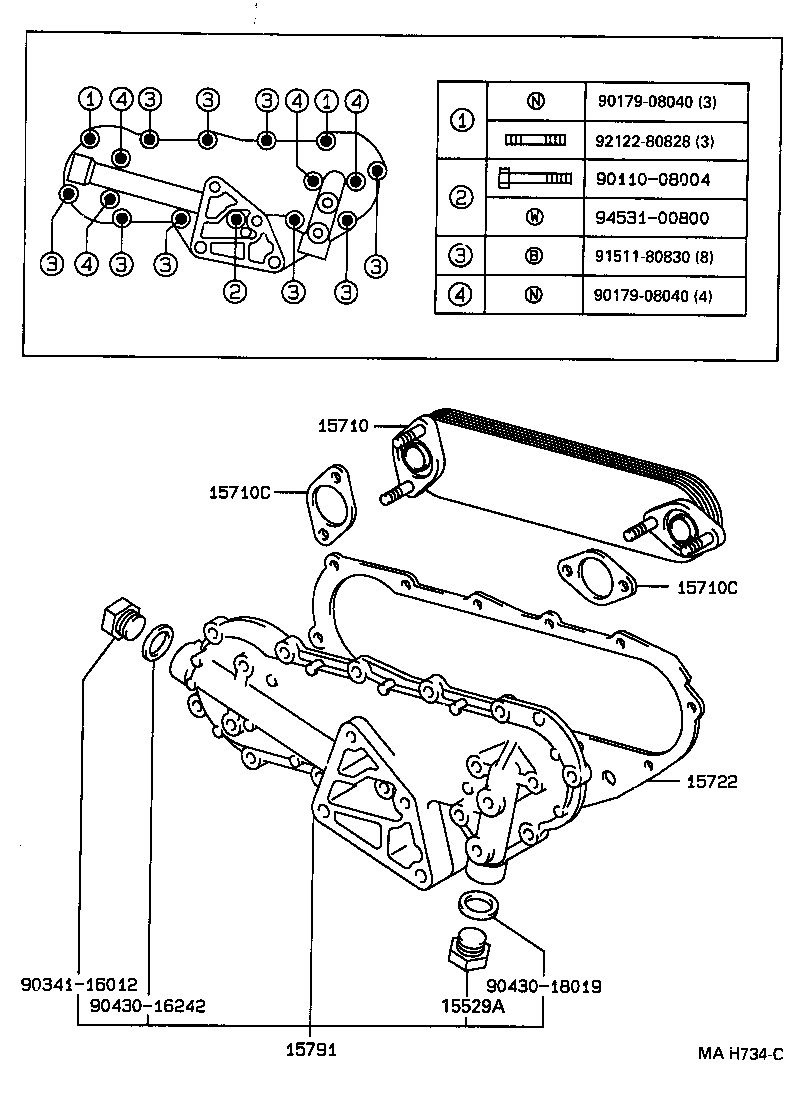

ILLUST NO. 1 OF 2(9505-9905)15B#,3B..CBU,IV3 ; (9905-9906)15BF,3B

Click highlighted areas on diagram

diagram 15529A 15710 15710C 15710C 15722 15791 9011008004 9017908040 9017908040 9034116012 9043016242 9043018019 9151180830 9212280828 9453100800
Part # Description Qty Price
15529A - PLUG
90341-18006

15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297

 1
90341-18006

15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297

 1
15710 - COOLER ASSY, OIL
15710-58030

15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297

 1
15710-58030

15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297

 1
15710C - GASKET(FOR OIL COOLER)
15785-58010

15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297

 2
15785-58010

15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297

 2
15710C - GASKET(FOR OIL COOLER)
15785-58010

15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297

 2
15785-58010

15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297

 2
15722 - GASKET, OIL COOLER
15725-56020

15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297

 1
15725-56020

15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297

 1
15791 - CASE, OIL COOLER
15701-58050

15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297..CBU,IV3

 1
15701-58050

15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297..CBU,IV3

 1
Common parts
90110-08004
90179-08040
90341-16012
90430-16242
90430-18019
91511-80830
92122-80828
94531-00800
