BU100-TKMMS (1995)

Toyota Dyna 200/Toyoace G25

Production May 1995 - Aug 1997
Engine 3B
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )BU10#,112,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140

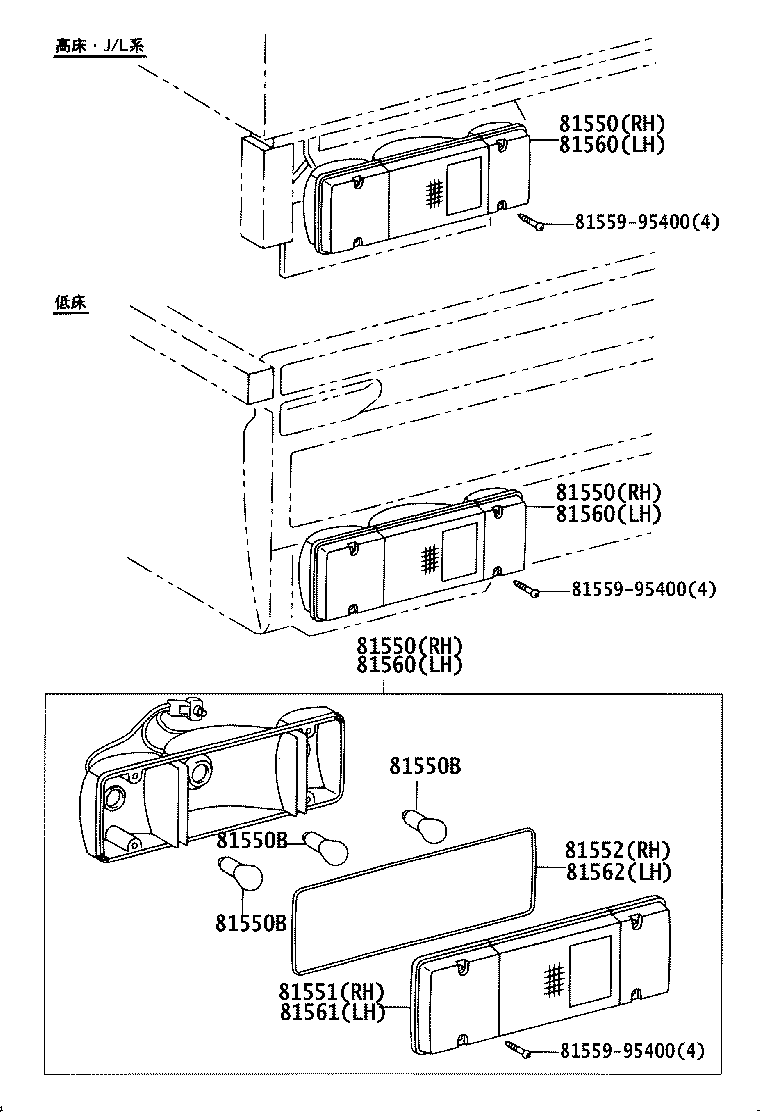

Click highlighted areas on diagram

diagram 81550 81550 81550 81550B 81550B 81550B 81551 81552 8155995400 8155995400 8155995400 81560 81560 81560 81561 81562
Part # Description Qty Price
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-37050

BU10#,112,13#,14#,162,172,182,202,212,222,297,XZU130,140..DSL,TD

 1
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-37050

BU10#,112,13#,14#,162,172,182,202,212,222,297,XZU130,140..DSL,TD

 1
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-37050

BU10#,112,13#,14#,162,172,182,202,212,222,297,XZU130,140..DSL,TD

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-16027

BU10#,112,13#,14#,162,172,182,202,212,222,297,XZU130,140..DSL,TD

24V 25/10W

 2
99134-11250

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,XZU130,140..DSL,TD

24V 25W

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-16027

BU10#,112,13#,14#,162,172,182,202,212,222,297,XZU130,140..DSL,TD

24V 25/10W

 2
99134-11250

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,XZU130,140..DSL,TD

24V 25W

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-16027

BU10#,112,13#,14#,162,172,182,202,212,222,297,XZU130,140..DSL,TD

24V 25/10W

 2
99134-11250

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,XZU130,140..DSL,TD

24V 25W

 4
81551 - LENS, REAR COMBINATION LAMP, RH
81551-60451

BU10#,112,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140

 1
81552 - GASKET, REAR COMBINATION LAMP LENS, RH
81552-95400

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-37070

BU10#,112,13#,14#,162,172,182,202,212,222,297,XZU130,140..DSL,TD

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-37070

BU10#,112,13#,14#,162,172,182,202,212,222,297,XZU130,140..DSL,TD

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-37070

BU10#,112,13#,14#,162,172,182,202,212,222,297,XZU130,140..DSL,TD

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-60381

BU10#,112,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140

 1
81562 - GASKET, REAR COMBINATION LAMP LENS, LH
81552-95400

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140

 1
Common parts
81559-95400
