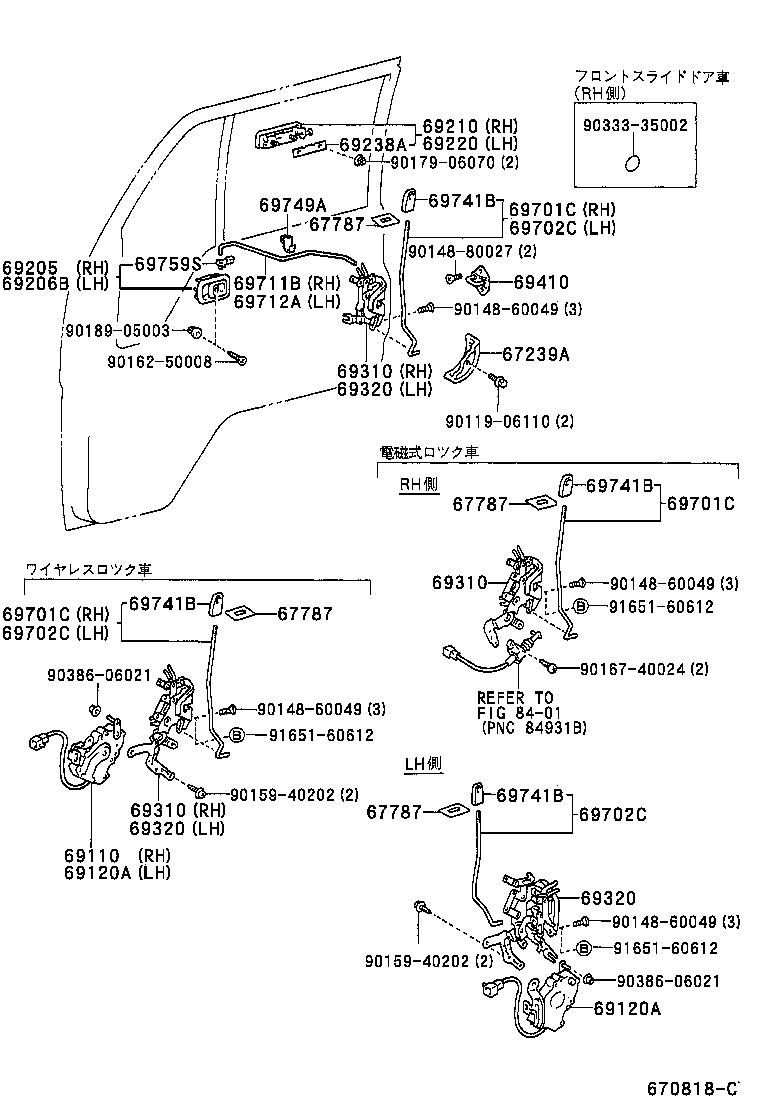

BU100-TGMMS (1995)
Toyota Dyna 200/Toyoace G25
(9505- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67239A - WEIGHT, FRONT DOOR | ||||
| 67239-95401 |
BU10#,112,13#,14#,162,172,182,RZU100,140,XZU130,140..02S,03S |
1 | ||
| 67787 - SILENCER, FRONT DOOR LOCKING BUTTON KNOB | ||||
| 67787-37020 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 |
2 | ||
| 67787 - SILENCER, FRONT DOOR LOCKING BUTTON KNOB | ||||
| 67787-37020 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 |
2 | ||
| 67787 - SILENCER, FRONT DOOR LOCKING BUTTON KNOB | ||||
| 67787-37020 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 |
2 | ||
| 67787 - SILENCER, FRONT DOOR LOCKING BUTTON KNOB | ||||
| 67787-37020 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 |
2 | ||
| 69110 - ACTUATOR ASSY, FRONT DOOR LOCK, RH | ||||
| 69110-37010 |
BU122;BU10#,112,132,14#,162,172,182,202,212,222..(DM6,T1,T2,T3,T4,T5,TW1,TW2,TW4)..(DSL,TD)..(CBU,IV3) |
1 | ||
| 69110-37010 |
BU12#;BU10#,112,13#,14#,162,172,182,202,212,222..(DM6,T1,T2,T3,T4,T5,TL4,TW1,TW2,TW4)..(DSL,TD)..(CBU,IV3) |
1 | ||
| 69120A - ACTUATOR ASSY, FRONT DOOR LOCK, LH | ||||
| 69120-37010 |
BU10#,112,122,132,14#,162,172,182,202,212,222,XZU130..(DSL,TD)..(CBU,IV3) |
1 | ||
| 69120-37010 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,XZU130,140..DSL,TD |
1 | ||
| 69120A - ACTUATOR ASSY, FRONT DOOR LOCK, LH | ||||
| 69120-37010 |
BU10#,112,122,132,14#,162,172,182,202,212,222,XZU130..(DSL,TD)..(CBU,IV3) |
1 | ||
| 69120-37010 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,XZU130,140..DSL,TD |
1 | ||
| 69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH | ||||
| 69205-10040B1 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 GRAY,TRIM1# |
1 | ||
| 69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH | ||||
| 69206-10040B1 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 GRAY,TRIM1# |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69210-37010 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 |
1 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69220-37010 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 |
1 | ||
| 69238A - PAD, DOOR OUTSIDE HANDLE | ||||
| 69238-95J00 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 |
2 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69310-37040 |
BU12#;BU10#,112,13#,14#,162,172,182,202,212,222,RZU100,140,XZU140..(ALV,DM6,T1,T2,T3,T4,T5,TL4,TW1,TW2,TW4)..(CBU,IV3) ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱｷ-) |
1 | ||
| 69310-37030 |
BU132..5F;BU10#,112,12#,14#,162,172,182,RZU100,XZU130..CBU,IV3 ｼﾞﾖｼﾕｾｷ = ｱﾘ(*EL) |
1 | ||
| 69310-37050 |
BU10#,112,12#,132,14#,162,172,182,RZU100,XZU130 |
1 | ||
| 69310-37030 |
BU132..T3,T4;BU10#,112,12#,137,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 ｼﾞﾖｼﾕｾｷ = ｱﾘ(*EL) |
1 | ||
| 69310-37050 |
BU132..T3,T4;BU10#,112,12#,137,14#,162,172,182,202,212,222,RZU100,140,XZU130,140 |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69310-37040 |
BU12#;BU10#,112,13#,14#,162,172,182,202,212,222,RZU100,140,XZU140..(ALV,DM6,T1,T2,T3,T4,T5,TL4,TW1,TW2,TW4)..(CBU,IV3) ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱｷ-) |
1 | ||
| 69310-37030 |
BU132..5F;BU10#,112,12#,14#,162,172,182,RZU100,XZU130..CBU,IV3 ｼﾞﾖｼﾕｾｷ = ｱﾘ(*EL) |
1 | ||
| 69310-37050 |
BU10#,112,12#,132,14#,162,172,182,RZU100,XZU130 |
1 | ||
| 69310-37030 |
BU132..T3,T4;BU10#,112,12#,137,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 ｼﾞﾖｼﾕｾｷ = ｱﾘ(*EL) |
1 | ||
| 69310-37050 |
BU132..T3,T4;BU10#,112,12#,137,14#,162,172,182,202,212,222,RZU100,140,XZU130,140 |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69310-37040 |
BU12#;BU10#,112,13#,14#,162,172,182,202,212,222,RZU100,140,XZU140..(ALV,DM6,T1,T2,T3,T4,T5,TL4,TW1,TW2,TW4)..(CBU,IV3) ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱｷ-) |
1 | ||
| 69310-37030 |
BU132..5F;BU10#,112,12#,14#,162,172,182,RZU100,XZU130..CBU,IV3 ｼﾞﾖｼﾕｾｷ = ｱﾘ(*EL) |
1 | ||
| 69310-37050 |
BU10#,112,12#,132,14#,162,172,182,RZU100,XZU130 |
1 | ||
| 69310-37030 |
BU132..T3,T4;BU10#,112,12#,137,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 ｼﾞﾖｼﾕｾｷ = ｱﾘ(*EL) |
1 | ||
| 69310-37050 |
BU132..T3,T4;BU10#,112,12#,137,14#,162,172,182,202,212,222,RZU100,140,XZU130,140 |
1 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69320-37020 |
BU12#;BU10#,112,132,14#,162,172,182,RZU100..(DM6,T1,T2,T3,T4,T5,TW1,TW2,TW4)..(CBU,IV3) ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱﾛﾂｸ) OR ｱﾘ(ﾊﾟﾜ- ﾄﾞｱﾛﾂｸ) |
1 | ||
| 69320-37020 |
BU132..5F;BU10#,112,12#,14#,162,172,182,RZU100,XZU130..CBU,IV3 ｱﾘ(*EL=ｼﾞﾖｼﾕｾｷ ﾉﾐ) |
1 | ||
| 69320-37040 |
BU10#,112,12#,132,14#,162,172,182,RZU100,XZU130 |
1 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69320-37020 |
BU12#;BU10#,112,132,14#,162,172,182,RZU100..(DM6,T1,T2,T3,T4,T5,TW1,TW2,TW4)..(CBU,IV3) ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱﾛﾂｸ) OR ｱﾘ(ﾊﾟﾜ- ﾄﾞｱﾛﾂｸ) |
1 | ||
| 69320-37020 |
BU132..5F;BU10#,112,12#,14#,162,172,182,RZU100,XZU130..CBU,IV3 ｱﾘ(*EL=ｼﾞﾖｼﾕｾｷ ﾉﾐ) |
1 | ||
| 69320-37040 |
BU10#,112,12#,132,14#,162,172,182,RZU100,XZU130 |
1 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69320-37020 |
BU12#;BU10#,112,132,14#,162,172,182,RZU100..(DM6,T1,T2,T3,T4,T5,TW1,TW2,TW4)..(CBU,IV3) ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱﾛﾂｸ) OR ｱﾘ(ﾊﾟﾜ- ﾄﾞｱﾛﾂｸ) |
1 | ||
| 69320-37020 |
BU132..5F;BU10#,112,12#,14#,162,172,182,RZU100,XZU130..CBU,IV3 ｱﾘ(*EL=ｼﾞﾖｼﾕｾｷ ﾉﾐ) |
1 | ||
| 69320-37040 |
BU10#,112,12#,132,14#,162,172,182,RZU100,XZU130 |
1 | ||
| 69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER | ||||
| 69410-89103 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 |
2 | ||
| 69701C - LINK SUB-ASSY, FRONT DOOR LOCK CONTROL, RH | ||||
| 69701-37010C0 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 BLACK,TRIM1# |
1 | ||
| 69701C - LINK SUB-ASSY, FRONT DOOR LOCK CONTROL, RH | ||||
| 69701-37010C0 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 BLACK,TRIM1# |
1 | ||
| 69701C - LINK SUB-ASSY, FRONT DOOR LOCK CONTROL, RH | ||||
| 69701-37010C0 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 BLACK,TRIM1# |
1 | ||
| 69702C - LINK SUB-ASSY, FRONT DOOR LOCK CONTROL, LH | ||||
| 69702-37010C0 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 BLACK,TRIM1# |
1 | ||
| 69702C - LINK SUB-ASSY, FRONT DOOR LOCK CONTROL, LH | ||||
| 69702-37010C0 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 BLACK,TRIM1# |
1 | ||
| 69702C - LINK SUB-ASSY, FRONT DOOR LOCK CONTROL, LH | ||||
| 69702-37010C0 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 BLACK,TRIM1# |
1 | ||
| 69711B - LINK, FRONT DOOR LOCK REMOTE CONTROL, RH | ||||
| 69711-95403 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 |
1 | ||
| 69712A - LINK, FRONT DOOR LOCK REMOTE CONTROL, LH | ||||
| 69712-95401 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 |
1 | ||
| 69741B - KNOB, FRONT DOOR LOCK CONTROL | ||||
| 69741-3201020 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 BLACK,TRIM1# |
2 | ||
| 69741B - KNOB, FRONT DOOR LOCK CONTROL | ||||
| 69741-3201020 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 BLACK,TRIM1# |
2 | ||
| 69741B - KNOB, FRONT DOOR LOCK CONTROL | ||||
| 69741-3201020 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 BLACK,TRIM1# |
2 | ||
| 69741B - KNOB, FRONT DOOR LOCK CONTROL | ||||
| 69741-3201020 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 BLACK,TRIM1# |
2 | ||
| 69749A - CLAMP, FRONT DOOR LOCK LINK, NO.1 | ||||
| 69749-20010 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 |
2 | ||
| 69759S - SNAP, FRONT DOOR INSIDE HANDLE | ||||
| 69759-20060 |
RZU100..20T;RZU100..30T..(EFI,LPG);BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU140,XZU130,140 右側 |
1 | ||
| 69759-20070 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 左側 |
1 | ||
| Common parts | ||||
| 90119-06110 | ||||
| 90148-60049 | ||||
| 90148-80027 | ||||
| 90159-40202 | ||||
| 90162-50008 | ||||
| 90167-40024 | ||||
| 90179-06070 | ||||
| 90189-05003 | ||||
| 90333-35002 | ||||
| 90386-06021 | ||||
| 91651-60612 | ||||
| Linked diagrams | ||||
| 8401 | ||||

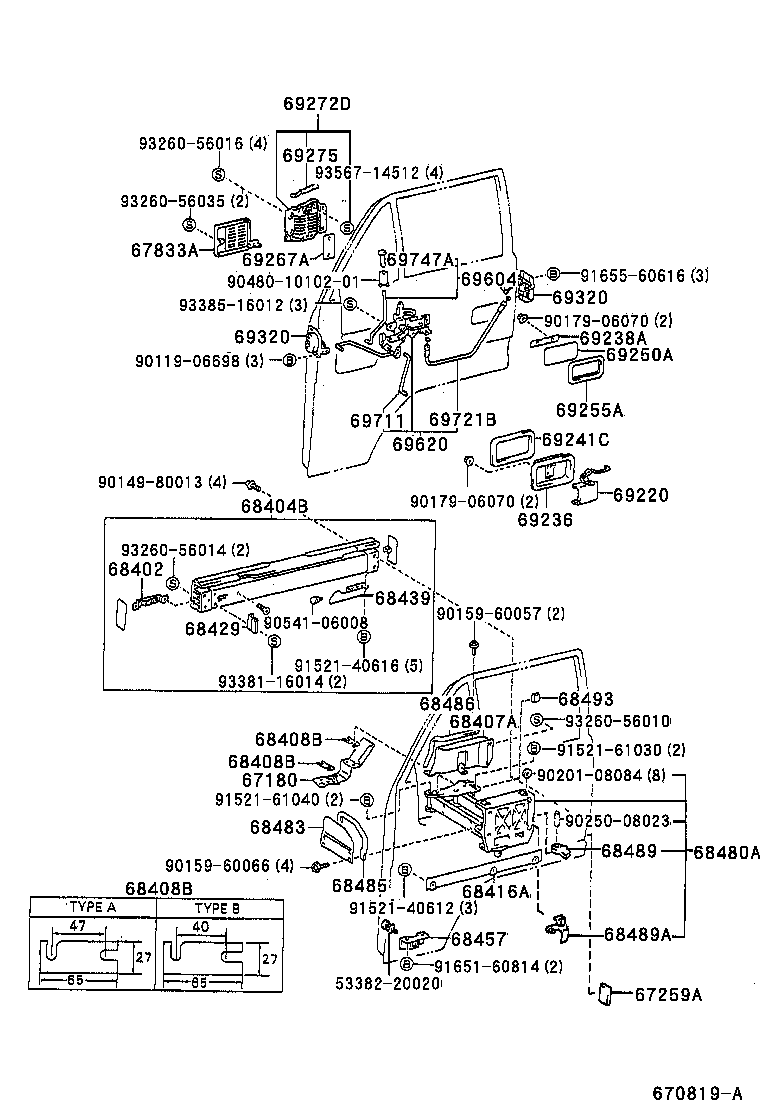

(9505- )
ｱﾘ(ﾌﾛﾝﾄ ｽﾗｲﾄﾞ ﾄﾞｱ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69220-37010 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 |
1 | ||
| 69238A - PAD, DOOR OUTSIDE HANDLE | ||||
| 69238-95J00 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 |
2 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69320-37020 |
BU12#;BU10#,112,132,14#,162,172,182,RZU100..(DM6,T1,T2,T3,T4,T5,TW1,TW2,TW4)..(CBU,IV3) ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱﾛﾂｸ) OR ｱﾘ(ﾊﾟﾜ- ﾄﾞｱﾛﾂｸ) |
1 | ||
| 69320-37020 |
BU132..5F;BU10#,112,12#,14#,162,172,182,RZU100,XZU130..CBU,IV3 ｱﾘ(*EL=ｼﾞﾖｼﾕｾｷ ﾉﾐ) |
1 | ||
| 69320-37040 |
BU10#,112,12#,132,14#,162,172,182,RZU100,XZU130 |
1 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69320-37020 |
BU12#;BU10#,112,132,14#,162,172,182,RZU100..(DM6,T1,T2,T3,T4,T5,TW1,TW2,TW4)..(CBU,IV3) ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱﾛﾂｸ) OR ｱﾘ(ﾊﾟﾜ- ﾄﾞｱﾛﾂｸ) |
1 | ||
| 69320-37020 |
BU132..5F;BU10#,112,12#,14#,162,172,182,RZU100,XZU130..CBU,IV3 ｱﾘ(*EL=ｼﾞﾖｼﾕｾｷ ﾉﾐ) |
1 | ||
| 69320-37040 |
BU10#,112,12#,132,14#,162,172,182,RZU100,XZU130 |
1 | ||
| Common parts | ||||
| 53382-20020 | ||||
| 90119-06698 | ||||
| 90149-80013 | ||||
| 90159-60057 | ||||
| 90159-60066 | ||||
| 90179-06070 | ||||
| 90201-08084 | ||||
| 90250-08023 | ||||
| 90480-1010201 | ||||
| 90541-06008 | ||||
| 91521-40612 | ||||
| 91521-40616 | ||||
| 91521-61030 | ||||
| 91521-61040 | ||||
| 91651-60814 | ||||
| 91655-60616 | ||||
| 93260-56010 | ||||
| 93260-56014 | ||||
| 93260-56016 | ||||
| 93260-56035 | ||||
| 93381-16014 | ||||
| 93385-16012 | ||||
| 93567-14512 | ||||
