Toyota Dyna 200/toyoace g25 BU100 FRONT DOOR PANEL & GLASS

BU100-TGMMS (1995)

Toyota Dyna 200/Toyoace G25

Production May 1995 - Aug 1997

Engine 3B

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

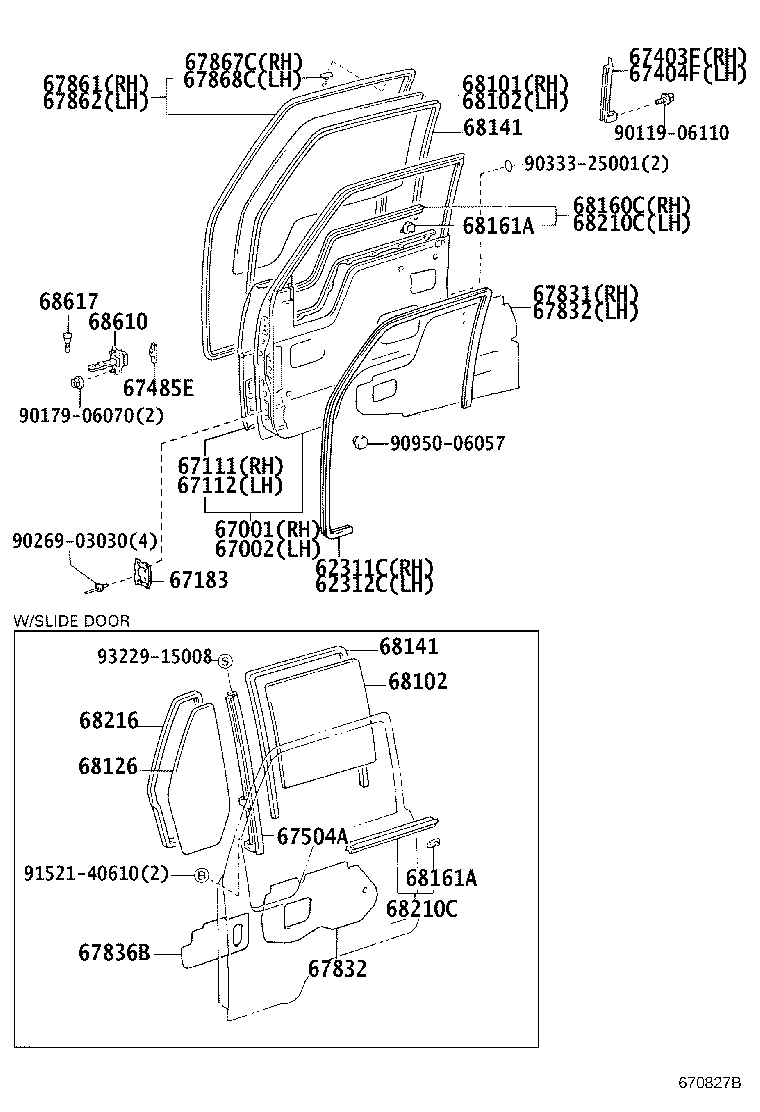

ILLUST NO. 2 OF 3(9505- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
62311C - WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
62311-37010B0	BU10#,112,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..DM2,DM3,DM5,DM7,DM8,T1,T2,T3,T4,T5 BLUISH GRAY,TRIM1#	10/1996 - 12/2999	1
62312C - WEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
62312-37010B0	BU10#,112,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..DM2,DM3,DM5,DM7,DM8,T1,T2,T3,T4,T5 BLUISH GRAY,TRIM1#	10/1996 - 12/2999	1
67001 - PANEL SUB-ASSY, FRONT DOOR, RH
67001-37050	RZU100..EFI,LPG;BU10#,112,12#,13#,14#,162,172,182,202,212,297,RZU140,XZU130,140 ﾅｼ(ｻｲﾄﾞﾘﾌﾚｸﾀ)	05/1995 - 12/2999	1
67002 - PANEL SUB-ASSY, FRONT DOOR, LH
67002-37060	BU10#,112,12#,13#,14#,162,172,182,202,212,297,RZU100,140,XZU130,140 ﾅｼ(ｻｲﾄﾞﾘﾌﾚｸﾀ)	05/1995 - 12/2999	1
67111 - PANEL, FRONT DOOR, OUTER RH
67111-37040	RZU100..EFI,LPG;BU10#,112,12#,13#,14#,162,172,182,202,212,297,RZU140,XZU130,140 ﾅｼ(ｻｲﾄﾞﾘﾌﾚｸﾀ)	05/1995 - 12/2999	1
67112 - PANEL, FRONT DOOR, OUTER LH
67112-37050	BU10#,112,12#,13#,14#,162,172,182,202,212,297,RZU100,140,XZU130,140 ﾅｼ(ｻｲﾄﾞﾘﾌﾚｸﾀ)	05/1995 - 12/2999	1
67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67403-37010	BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140	10/1996 - 12/2999	1
67403-95400	BU10#,112,12#,132,14#,162,172,182,202,212,222,RZU100,XZU130	05/1995 - 10/1996	1
67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67404-95400	BU10#,112,12#,132,14#,162,172,182,202,212,222,RZU100,XZU130	05/1995 - 10/1996	1
67404-37010	BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140	10/1996 - 12/2999	1
67485E - SEAL, FRONT DOOR BRACKET
67485-95701	BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140	05/1995 - 12/2999	2
67831 - COVER, FRONT DOOR SERVICE HOLE, RH
67831-95408	BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140	05/1995 - 12/2999	1
67832 - COVER, FRONT DOOR SERVICE HOLE, LH
67832-95409	BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140	05/1995 - 12/2999	1
67832 - COVER, FRONT DOOR SERVICE HOLE, LH
67832-95409	BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140	05/1995 - 12/2999	1
67861 - WEATHERSTRIP, FRONT DOOR, RH
67861-37010	BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140	05/1995 - 12/2999	1
67862 - WEATHERSTRIP, FRONT DOOR, LH
67862-37010	BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140	05/1995 - 12/2999	1
67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH
67867-12150	BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140	05/1995 - 12/2999	28
67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH
67867-12150	BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140	05/1995 - 12/2999	28
68101 - GLASS SUB-ASSY, FRONT DOOR, RH
68111-37020	BU10#,112,13#,14#,162,172,182,202,212,222,RZU100,XZU130..DM2,DM3,DM5,DM7,DM8,T1,T2,T3,T4,T5 *TEM,厚さ=4.0,ﾌﾞﾛﾝｽﾞ	10/1996 - 08/1997	1
68111-37020	BU10#,112,132,14#,162,172,182,202,212,222,RZU100,XZU130..02S,03S *TEM,厚さ=4.0,ﾌﾞﾛﾝｽﾞ	05/1995 - 10/1996	1
68111-37030	BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,XZU130 *TT,厚さ=4.0	10/1996 - 08/1997	1
68111-37010	BU10#,112,12#,132,14#,162,172,182,202,212,222,RZU100,XZU130 *TT,厚さ=4.0	05/1995 - 10/1996	1
68102 - GLASS SUB-ASSY, FRONT DOOR, LH
68112-37010	BU10#,112,12#,132,14#,162,172,182,202,212,222,RZU100,XZU130 *TT,厚さ=4.0	05/1995 - 10/1996	1
68112-37020	BU10#,112,132,14#,162,172,182,202,212,222,RZU100,XZU130..02S,03S *TEM,厚さ=4.0,ﾌﾞﾛﾝｽﾞ	05/1995 - 10/1996	1
68102 - GLASS SUB-ASSY, FRONT DOOR, LH
68112-37010	BU10#,112,12#,132,14#,162,172,182,202,212,222,RZU100,XZU130 *TT,厚さ=4.0	05/1995 - 10/1996	1
68112-37020	BU10#,112,132,14#,162,172,182,202,212,222,RZU100,XZU130..02S,03S *TEM,厚さ=4.0,ﾌﾞﾛﾝｽﾞ	05/1995 - 10/1996	1
68141 - RUN, FRONT DOOR GLASS
68141-95408	BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140	05/1995 - 12/2999	2
68141 - RUN, FRONT DOOR GLASS
68141-95408	BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140	05/1995 - 12/2999	2
68160C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH
68161-95403	BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140	05/1995 - 12/2999	1
68161A - CLIP(FOR FRONT DOOR GLASS OUTER WEATHERSTRIP)
68211-12080	BU212,RZU100..(DM5,DM6,T2,T3,T4,TW1,TW4)..(DSL,EFI,LPG,TD);BU10#,112,12#,13#,14#,162,172,182,202,222,297,RZU140,XZU130,140 ﾌﾞﾗｯｸ	05/1995 - 05/2000	10
68212-95400	BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 ﾚﾌﾄ,ｲｴﾛ- ｸﾞﾘ-ﾝ	05/1995 - 05/2000	1
68211-95402	BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 右側,ﾌﾞﾗｳﾝ	05/1995 - 05/2000	1
68161A - CLIP(FOR FRONT DOOR GLASS OUTER WEATHERSTRIP)
68211-12080	BU212,RZU100..(DM5,DM6,T2,T3,T4,TW1,TW4)..(DSL,EFI,LPG,TD);BU10#,112,12#,13#,14#,162,172,182,202,222,297,RZU140,XZU130,140 ﾌﾞﾗｯｸ	05/1995 - 05/2000	10
68212-95400	BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 ﾚﾌﾄ,ｲｴﾛ- ｸﾞﾘ-ﾝ	05/1995 - 05/2000	1
68211-95402	BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 右側,ﾌﾞﾗｳﾝ	05/1995 - 05/2000	1
68210C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH
68162-95402	BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140	05/1995 - 12/2999	1
68210C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH
68162-95402	BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140	05/1995 - 12/2999	1
68610 - CHECK ASSY, FRONT DOOR
68610-95401	BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140	05/1995 - 05/2000	2
68617 - PIN, FRONT DOOR CHECK
68617-20011	BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140	05/1995 - 12/2999	2
Common parts
90119-06110
90179-06070
90269-03030
90333-25001
90950-06057
91521-40610
93229-15008

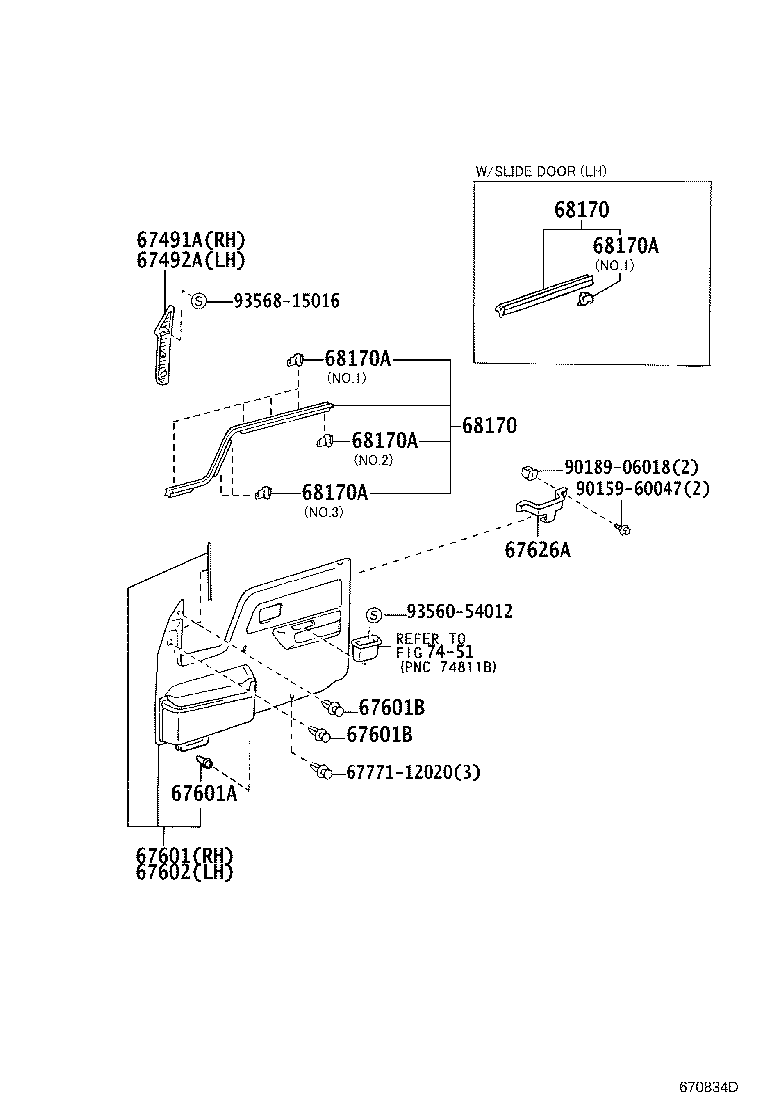

ILLUST NO. 1 OF 3(9505- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
67491-37010	BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140	05/1995 - 12/2999	1
67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
67492-37010	BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140	05/1995 - 12/2999	1
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-37010B0	BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 GRAY,TRIM1#	05/1995 - 05/2000	1
67610-95417B1	BU10#,112,132,14#,162,172,182,202,212,222,RZU100,XZU130..02S,03S ｶｽﾀﾑｼﾖｳ-*104,BLUISH GRAY,TRIM1#	05/1995 - 10/1996	1
67601A - RETAINER(FOR FRONT DOOR TRIM BOARD)
67771-30060	BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140	05/1995 - 02/1998	20
67601B - CLIP(FOR FRONT DOOR TRIM BOARD)
90467-06017B0	BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 GRAY,TRIM1#	05/1995 - 05/2000	4
67601B - CLIP(FOR FRONT DOOR TRIM BOARD)
90467-06017B0	BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 GRAY,TRIM1#	05/1995 - 05/2000	4
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-95423B1	BU10#,112,132,14#,162,172,182,202,212,222,RZU100,XZU130..02S,03S ｶｽﾀﾑｼﾖｳ-*104,BLUISH GRAY,TRIM1#	05/1995 - 10/1996	1
67620-37010B0	BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 GRAY,TRIM1#	05/1995 - 12/2999	1
67620-95423B2	RZU100..(DM5,T2,T3,T4)..(EFI,LPG);BU10#,112,13#,14#,162,172,182,202,212,222,RZU140,XZU130,140..DM2,DM3,DM5,DM7,DM8,T1,T2,T3,T4,T5 ｶｽﾀﾑｼﾖｳ-*104,BLUISH GRAY,TRIM1#	10/1996 - 12/2999	1
67626A - BRACKET, DOOR TRIM, NO.2
67626-95400	BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140	05/1995 - 12/2999	2
68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68171-95409	BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 右側	05/1995 - 12/2999	1
68172-95406	BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 左側	05/1995 - 12/2999	1
68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68171-95409	BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 右側	05/1995 - 12/2999	1
68172-95406	BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 左側	05/1995 - 12/2999	1
68170A - CLIP(FOR FRONT DOOR GLASS INNER WEATHERSTRIP SET)
68211-95401	BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 NO.2	05/1995 - 12/2999	2
68211-12080	BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 NO.1	05/1995 - 12/2999	8
68212-95400	BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 右側,NO.3	05/1995 - 12/2999	2
68211-95402	BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 左側,NO.3	05/1995 - 12/2999	2
68170A - CLIP(FOR FRONT DOOR GLASS INNER WEATHERSTRIP SET)
68211-95401	BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 NO.2	05/1995 - 12/2999	2
68211-12080	BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 NO.1	05/1995 - 12/2999	8
68212-95400	BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 右側,NO.3	05/1995 - 12/2999	2
68211-95402	BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 左側,NO.3	05/1995 - 12/2999	2
68170A - CLIP(FOR FRONT DOOR GLASS INNER WEATHERSTRIP SET)
68211-95401	BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 NO.2	05/1995 - 12/2999	2
68211-12080	BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 NO.1	05/1995 - 12/2999	8
68212-95400	BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 右側,NO.3	05/1995 - 12/2999	2
68211-95402	BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 左側,NO.3	05/1995 - 12/2999	2
68170A - CLIP(FOR FRONT DOOR GLASS INNER WEATHERSTRIP SET)
68211-95401	BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 NO.2	05/1995 - 12/2999	2
68211-12080	BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 NO.1	05/1995 - 12/2999	8
68212-95400	BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 右側,NO.3	05/1995 - 12/2999	2
68211-95402	BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 左側,NO.3	05/1995 - 12/2999	2
Common parts
67771-12020
90159-60047
90189-06018
93560-54012
93568-15016
Linked diagrams
7451

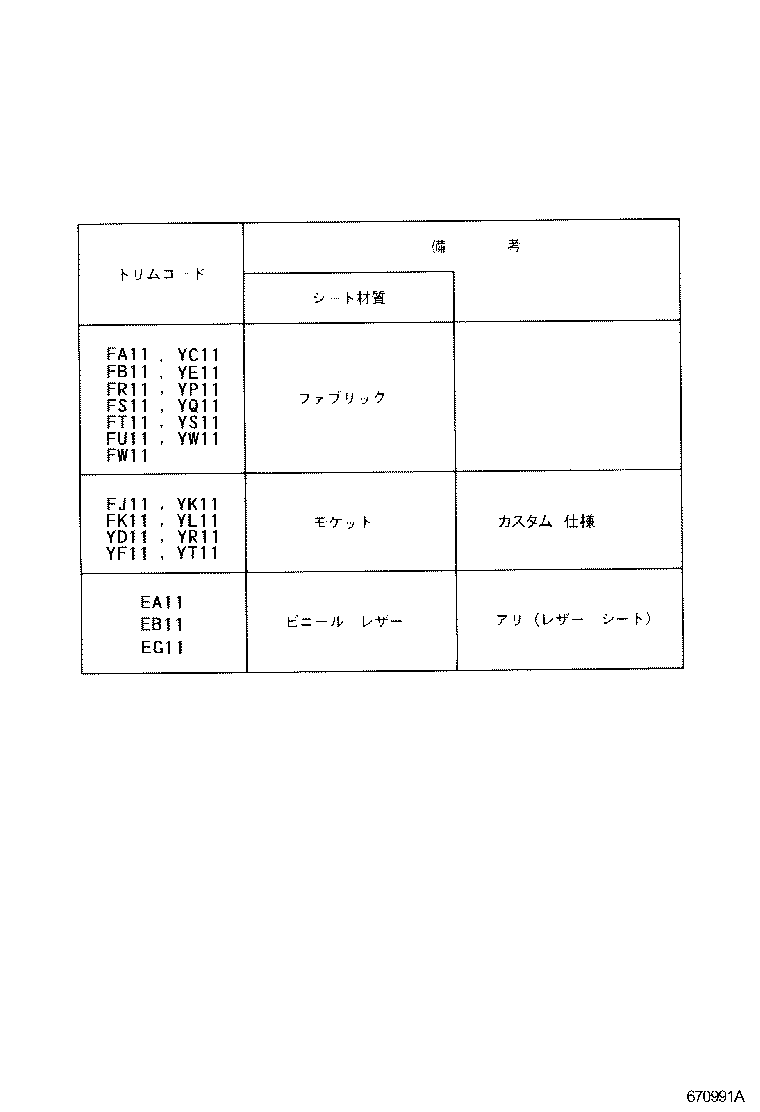

ILLUST NO. 3 OF 3(9505- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
