BU100-PSMJS3 (1995)

Toyota Dyna 200/Toyoace G25

Production May 1995 - May 1999
Engine 3B
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )BU10#,112,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140

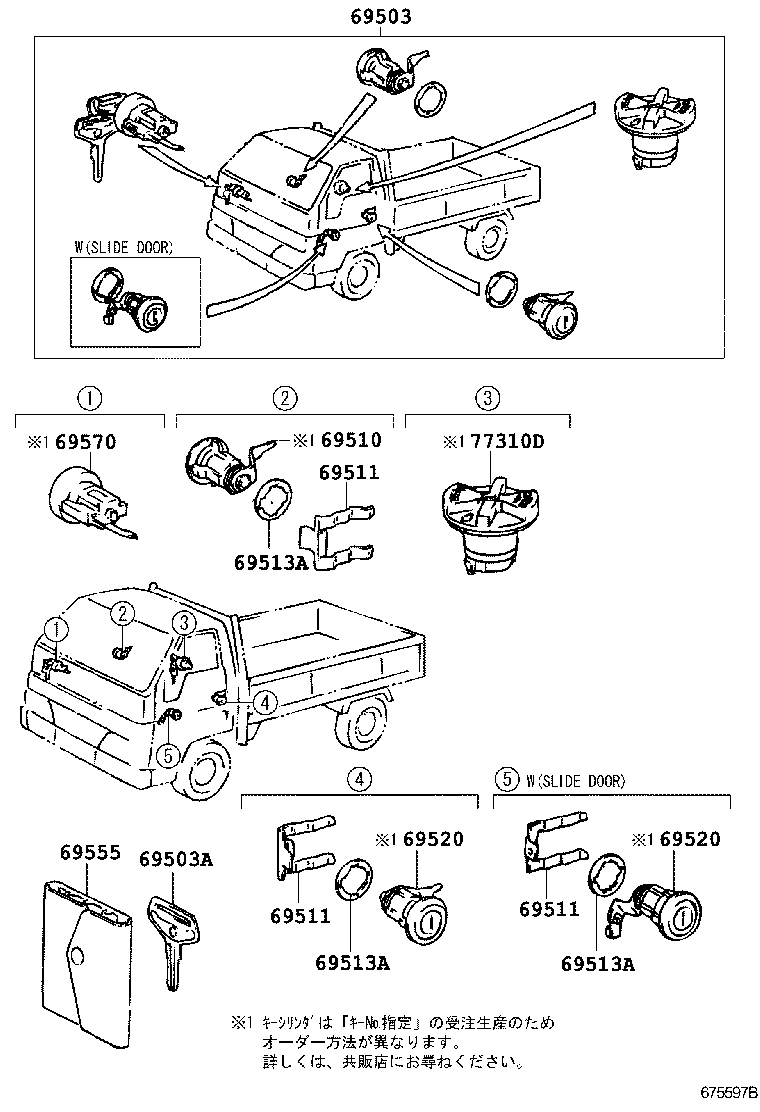

Click highlighted areas on diagram

diagram 69503 69503A 69510 69511 69511 69511 69513A 69513A 69513A 69520 69520 69555 69570 77310D
Part # Description Qty Price
69503 - CYLINDER SET, LOCK
69503-37020

BU10#,112,13#,14#,162,172,182,202,212,222,297,XZU130,140..DSL,TD

 1
69503A - KEY, BLANK
90999-00186

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140

ﾏｽﾀｰｷｰ

 1
90999-00185

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140

ﾏｽﾀｰｷｰ,*68付き

 1
69510 - CYLINDER ASSY, FRONT DOOR LOCK, RH
69510-37010

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140

 1
69511 - RETAINER, FRONT DOOR LOCK CYLINDER
69511-95400

BU100,102;BU105,107,112,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140..ALV,DM5,DM6,DM7,DM8,T2,T3,T4,TW1,TW4

 2
69511 - RETAINER, FRONT DOOR LOCK CYLINDER
69511-95400

BU100,102;BU105,107,112,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140..ALV,DM5,DM6,DM7,DM8,T2,T3,T4,TW1,TW4

 2
69511 - RETAINER, FRONT DOOR LOCK CYLINDER
69511-95400

BU100,102;BU105,107,112,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140..ALV,DM5,DM6,DM7,DM8,T2,T3,T4,TW1,TW4

 2
69513A - PAD, DOOR CYLINDER
69513-32010

BU10#,112,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140

 2
69513A - PAD, DOOR CYLINDER
69513-32010

BU10#,112,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140

 2
69513A - PAD, DOOR CYLINDER
69513-32010

BU10#,112,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140

 2
69520 - CYLINDER ASSY, FRONT DOOR LOCK, LH
69520-37010

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140

 1
69520 - CYLINDER ASSY, FRONT DOOR LOCK, LH
69520-37010

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140

 1
69555 - COVER, KEY
69555-20010

BU10#,112,12#,132,14#,162,172,182,202,212,222,RZU100,XZU130

 1
69570 - CYLINDER ASSY, IGNITION SWITCH LOCK
69570-37010

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140

 1
77310D - CAP ASSY, FUEL TANK
77310-37020

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,XZU130,140..DSL,TD

 1
